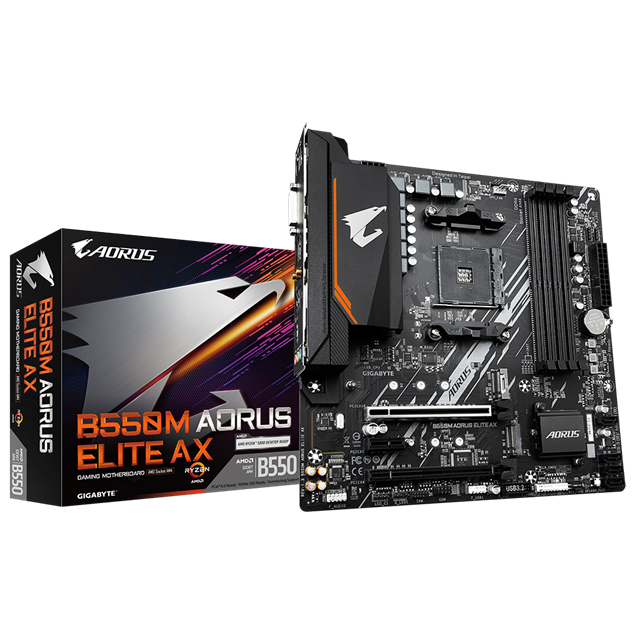

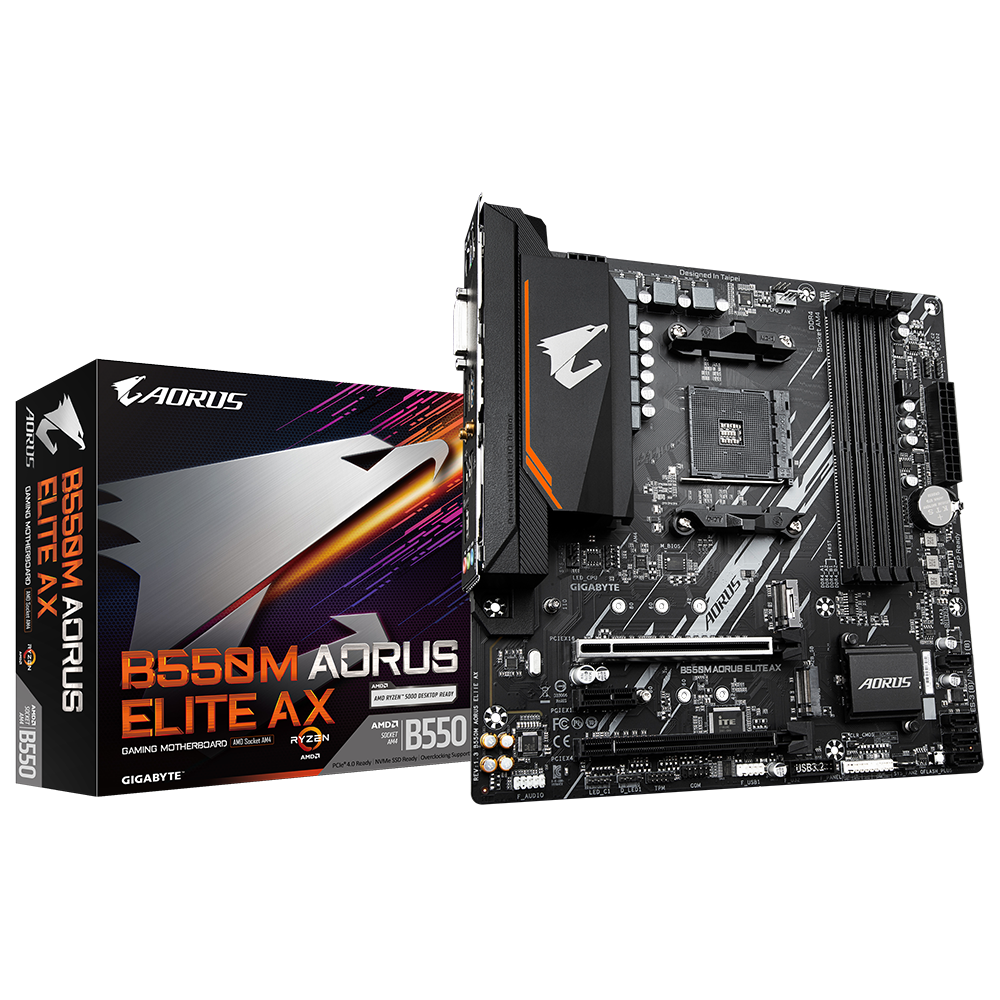

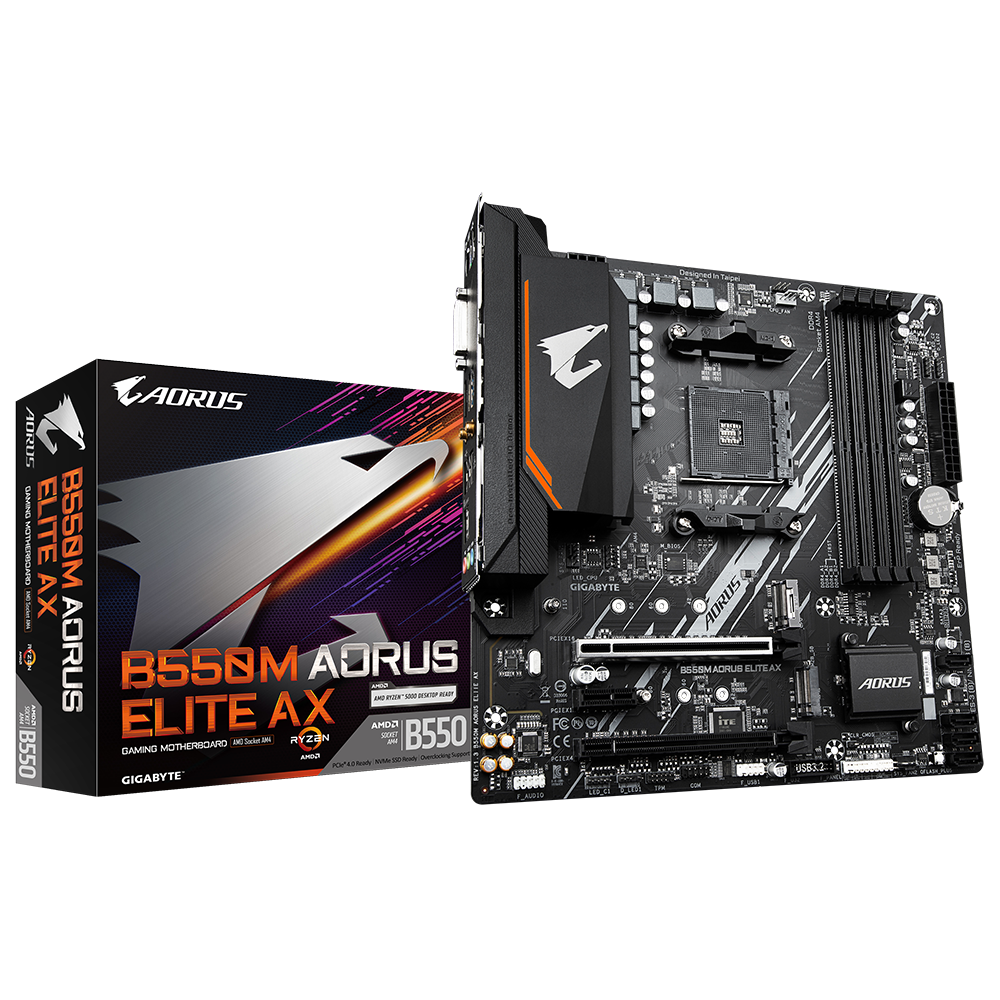

Gigabyte B550M AORUS ELITE AX mATX Motherboard for AMD AM4 CPUs

Gigabyte B550M AORUS ELITE AX mATX Motherboard for AMD AM4 CPUs

CCL Code: MBD3673

Coming soon

Notify Me
  • Gigabyte B550M AORUS ELITE AX mATX Motherboard for AMD AM4 CPUs
  • Gigabyte B550M AORUS ELITE AX mATX Motherboard for AMD AM4 CPUs
  • Gigabyte B550M AORUS ELITE AX mATX Motherboard for AMD AM4 CPUs
  • Gigabyte B550M AORUS ELITE AX mATX Motherboard for AMD AM4 CPUs
  • Gigabyte B550M AORUS ELITE AX mATX Motherboard for AMD AM4 CPUs

Save 5% when you buy 3 or more eligible different items*

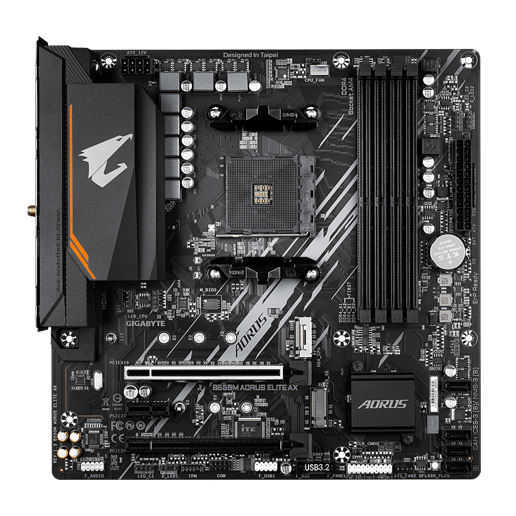

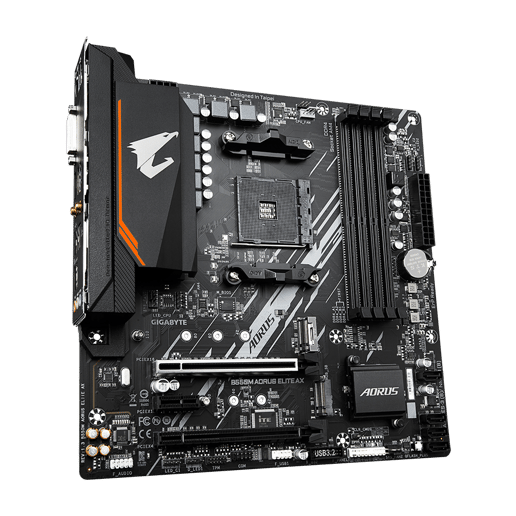

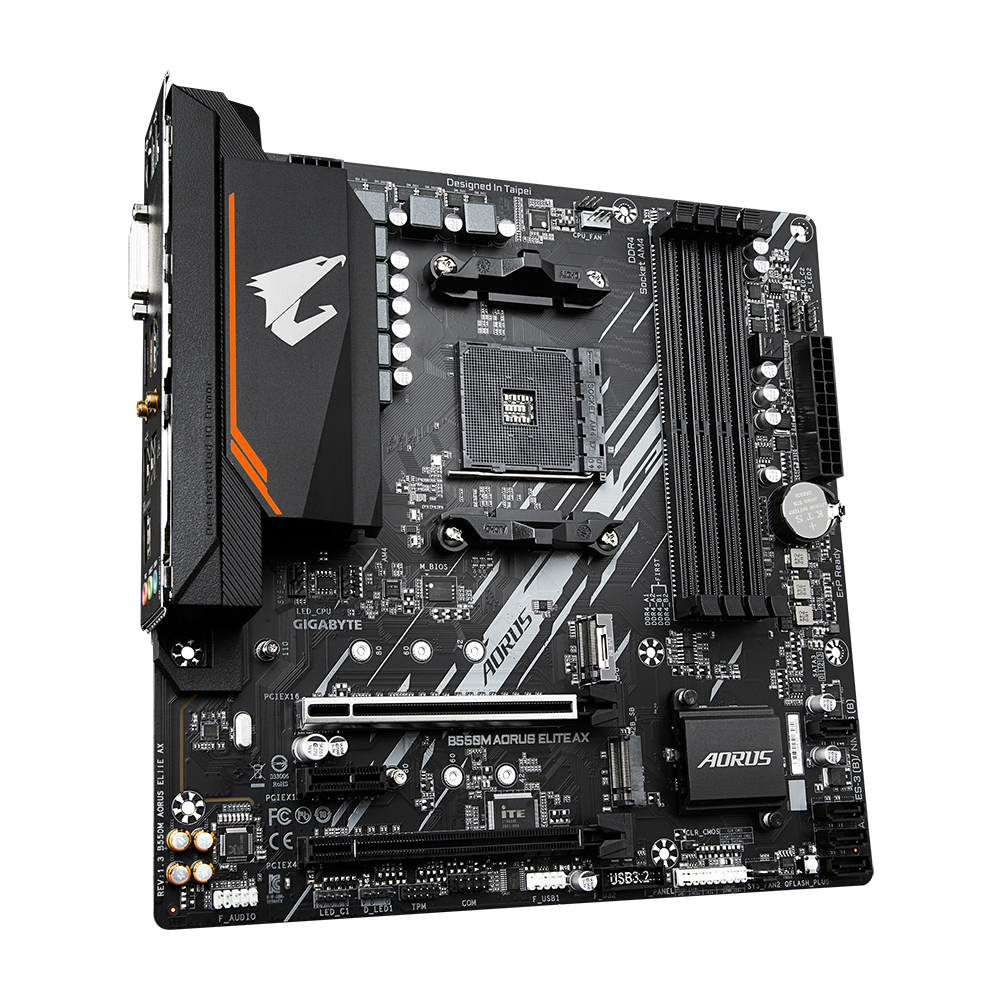

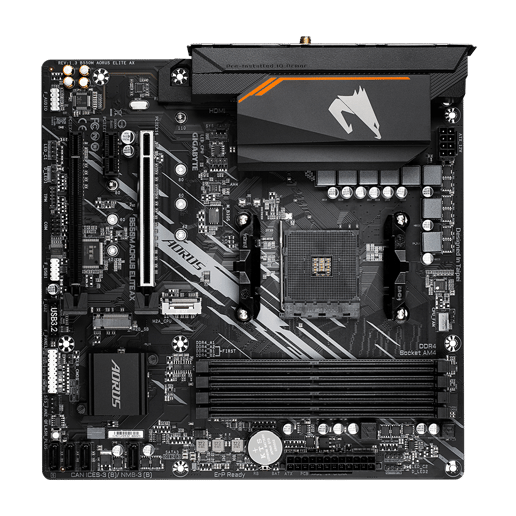

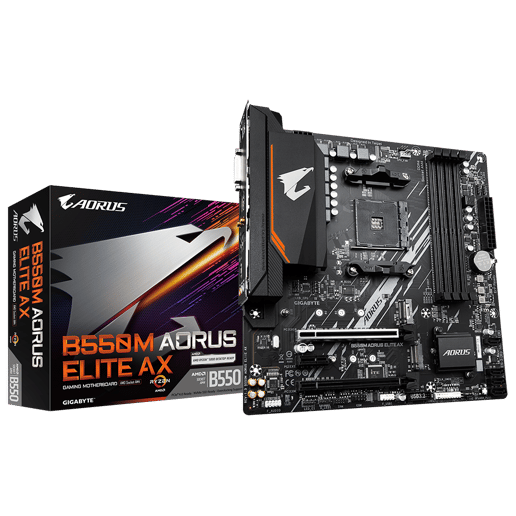

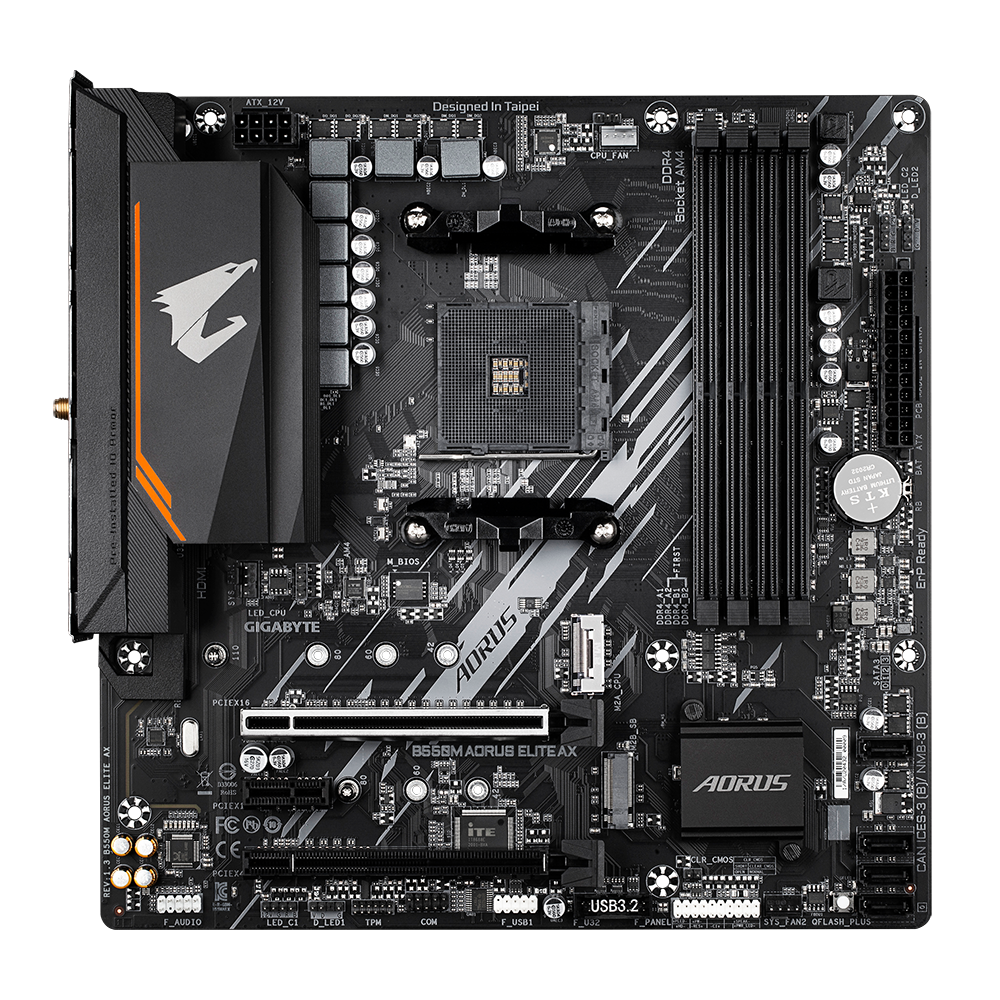

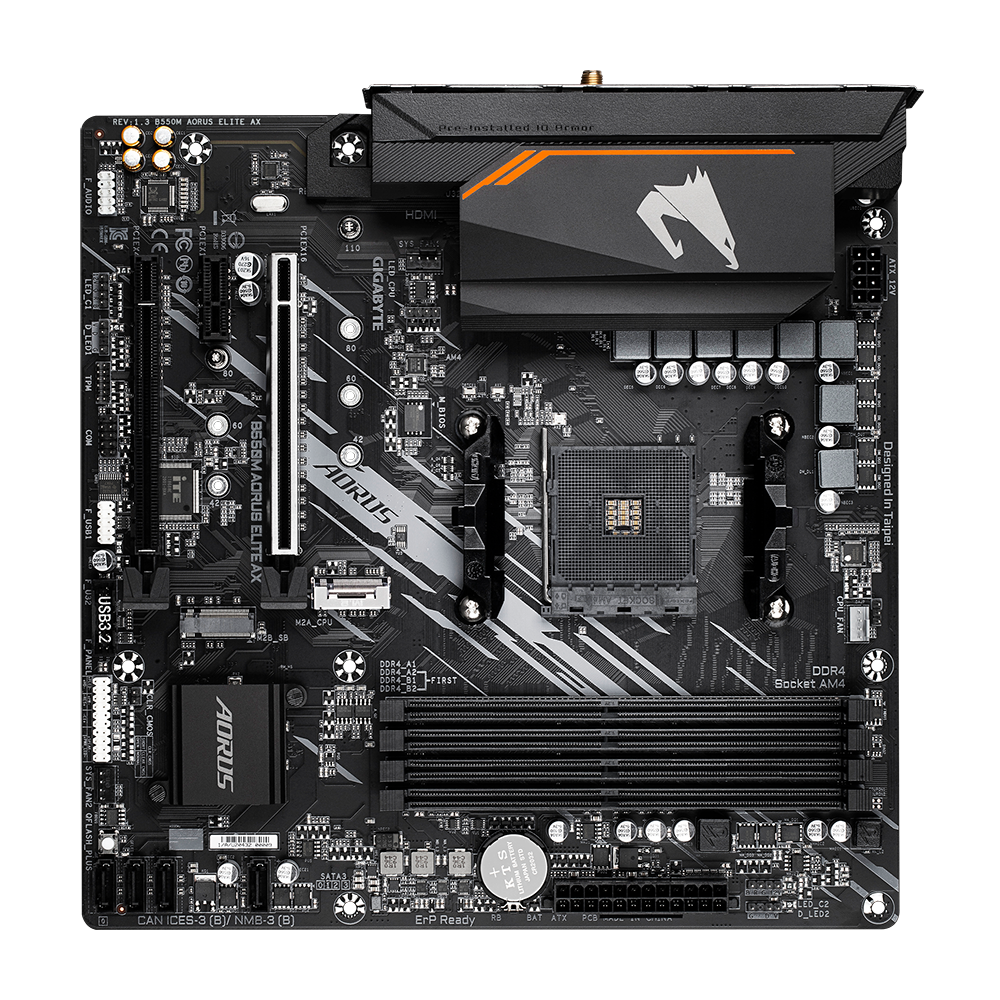

Gigabyte B550M AORUS ELITE AX mATX Motherboard for AMD AM4 CPUs

B550M AORUS ELITE AX

Key Features:

  • mATX Form Factor
  • AMD B550 Chipset
  • Socket AM4
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 8 x USB & 4 x SATA
  • HDMI and DVI
CCL Code: MBD3673

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

WiFi 6E 802.11ax + BT 5.3 Module

Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance and provides smooth video streaming, better gaming experience. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.

Dual NVMe PCIe 4.0/3.0 M.2 Connectors

With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

Realtek GbE LAN with Bandwidth Management

Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Main Features

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • Onboard Wi-Fi 6E 802.11ax & BT 5.3
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek GbE LAN with Bandwidth Management
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
Promotions

Get 5% off PC Components, Peripherals and selected Monitors when you buy three or more*

USE CODE: UPGRADE5 at checkout

For a limited time only, buy at least three different PC components or Peripherals from different qualifying categories and get 5% off those items when you use code UPGRADE5 at checkout. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU CoolersCases, MonitorsKeyboards, Mice, HeadsetsLaptop Cases and Bags.


Promotional Period: From 3rd June 2024 till 30th June 2024.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one processor, one motherboard and one keyboard). It will not apply to multiples from categories (e.g. three graphics cards).

Discount will be applied to the items in your basket when you enter the promo code UPGRADE5 at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: until till June 30th 2024.

Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series, Ryzen 3000 Series and Ryzen 3000 G-Series Processors
64-bit Support Yes
Socket AM4

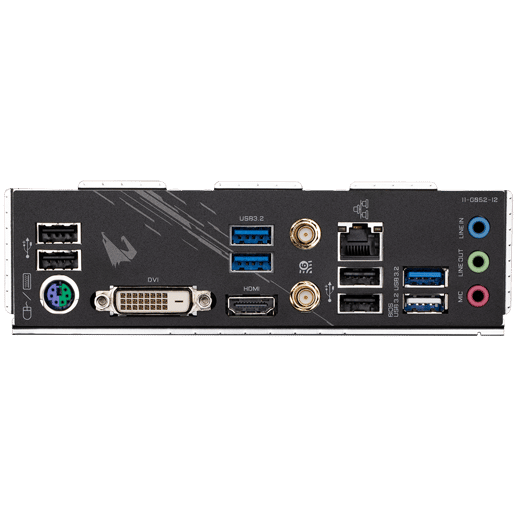

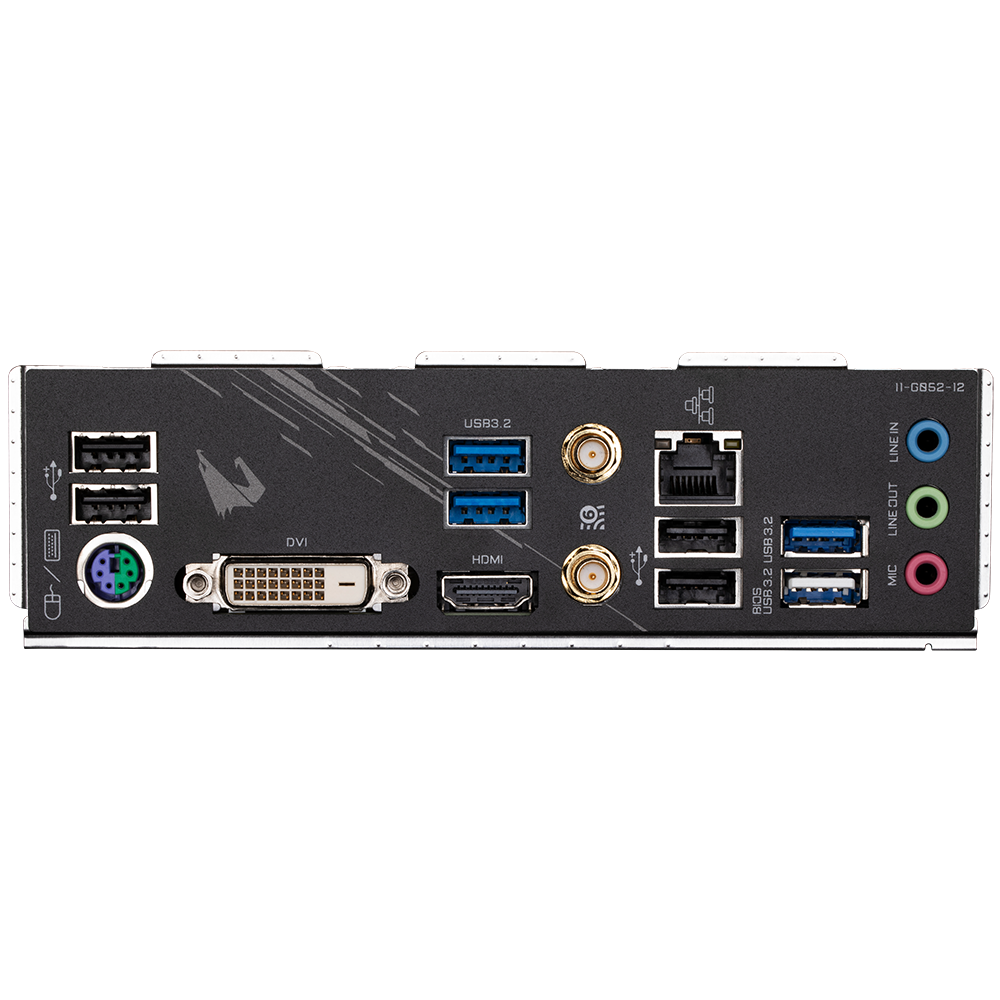

Rear Panel I/O Ports

USB Ports 4 x USB 3.0
4 x USB 2.0
HDMI Port 1 x HDMI 2.1
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Digital Port 1 x DVI-D
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 header (supports 2 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
2 x System fan headers
Serial Connectors 1 x COM header
TPM Header 1 x TPM header (2x6 pin, for the GC-TPM2.0_S module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 22110/2280/2260/2242 (PCIe Gen4 or SATA)
1 x M.2 slot, Socket 3, M Key, Type 2280/2260/2242 (PCIe Gen3 or SATA)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 4733 MT/s
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B550
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 1 Gbps
Wireless LAN Yes - Wi-Fi 6E
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
Width 244 mm
Length 244 mm

Key Features

Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 244 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection Yes
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B550
Thunderbolt No
Motherboard Model Gigabyte B550M AORUS ELITE AX
WiFi Speed 2400 Mbps
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header No
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 4733 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2
