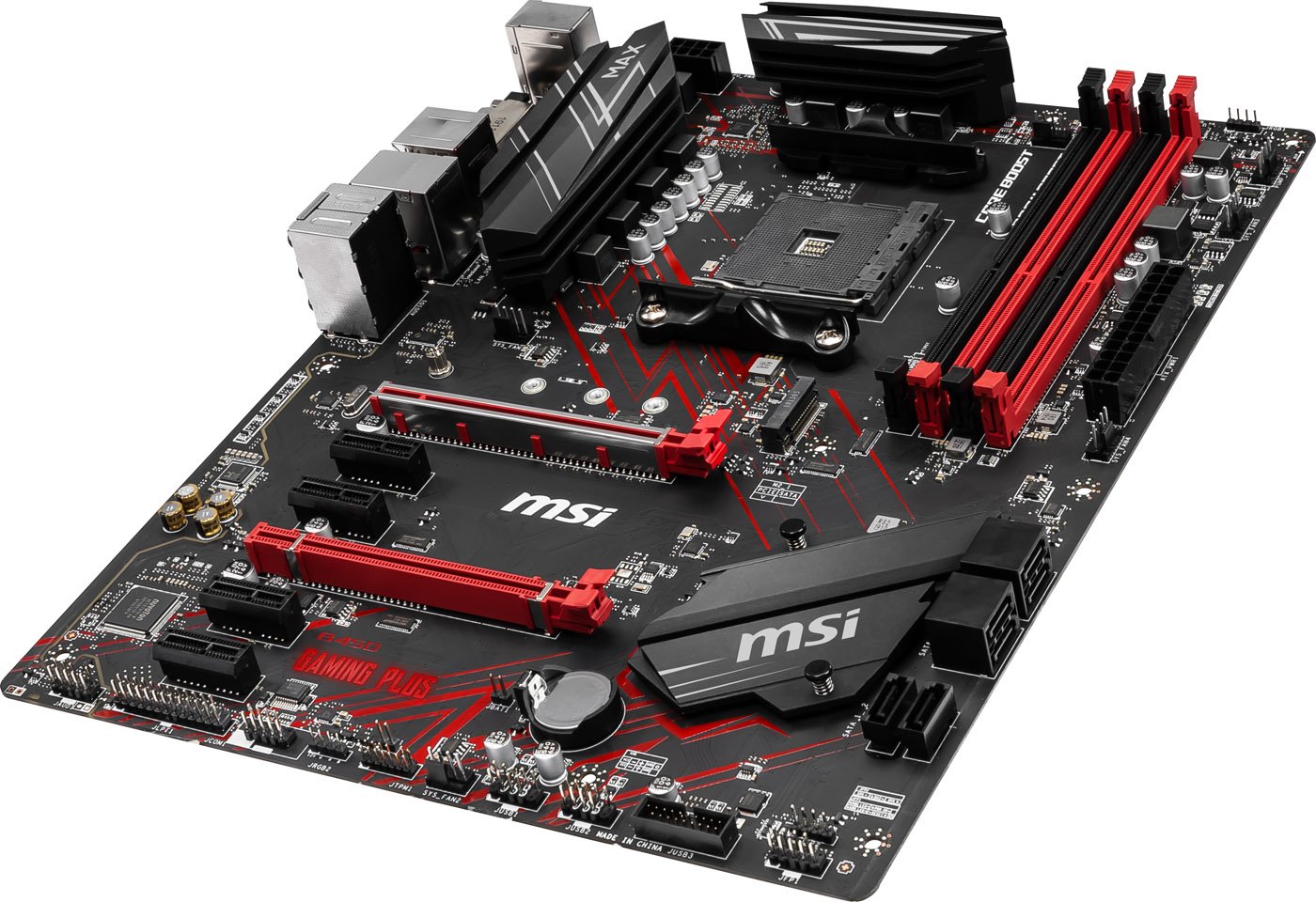

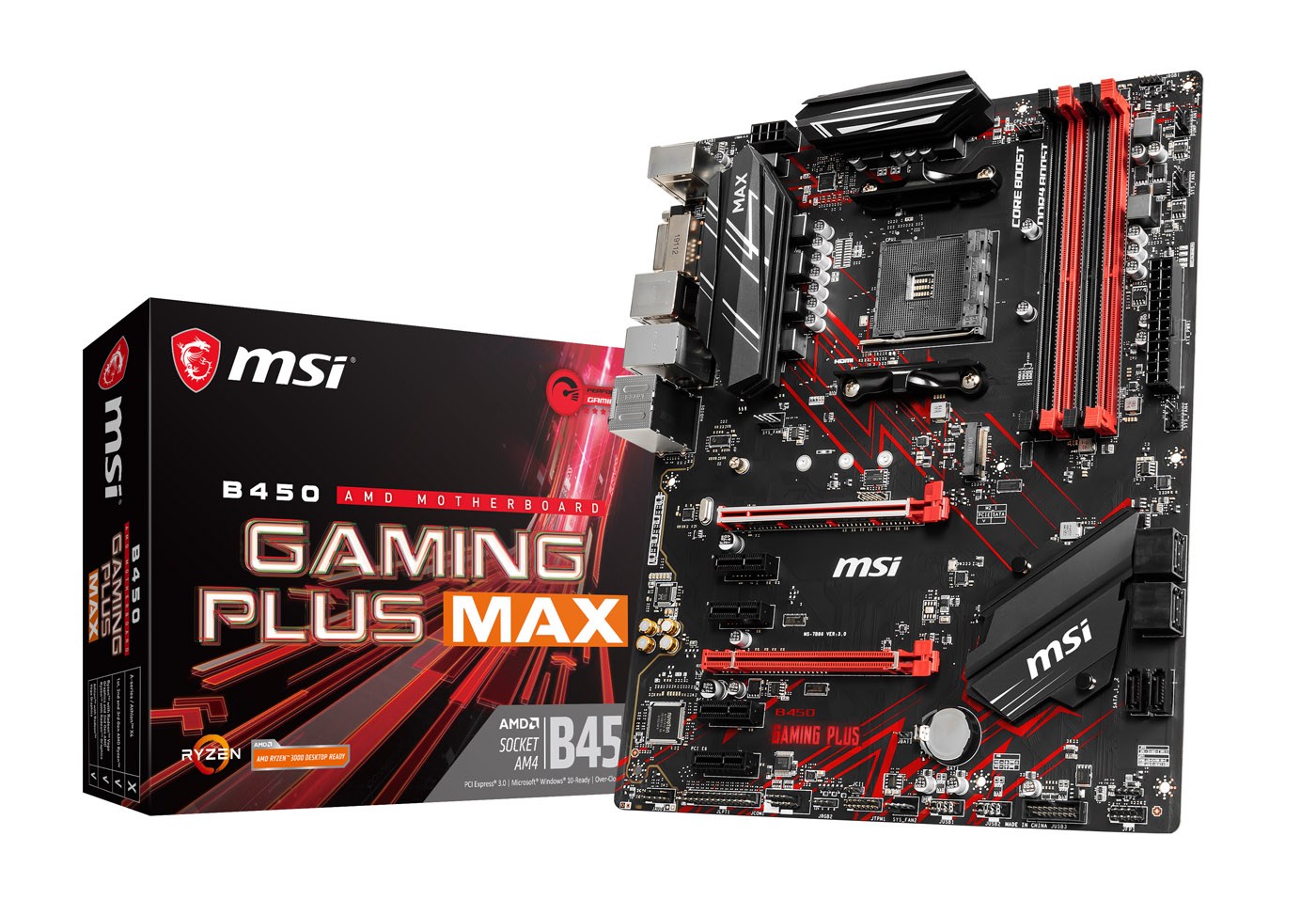

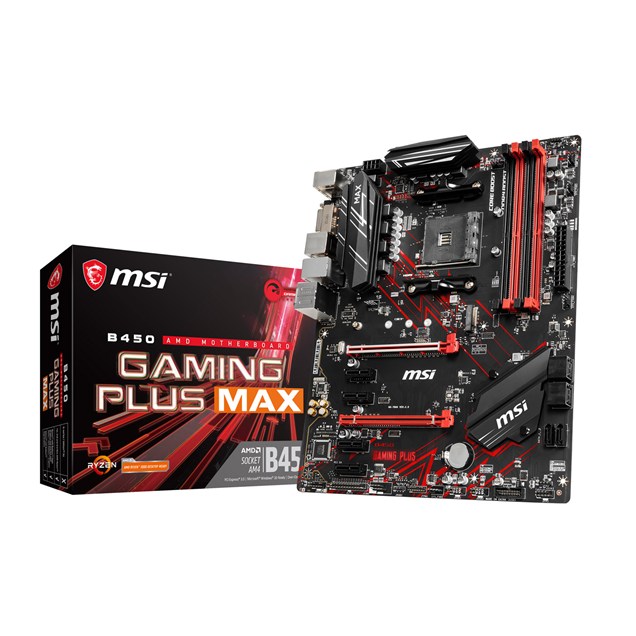

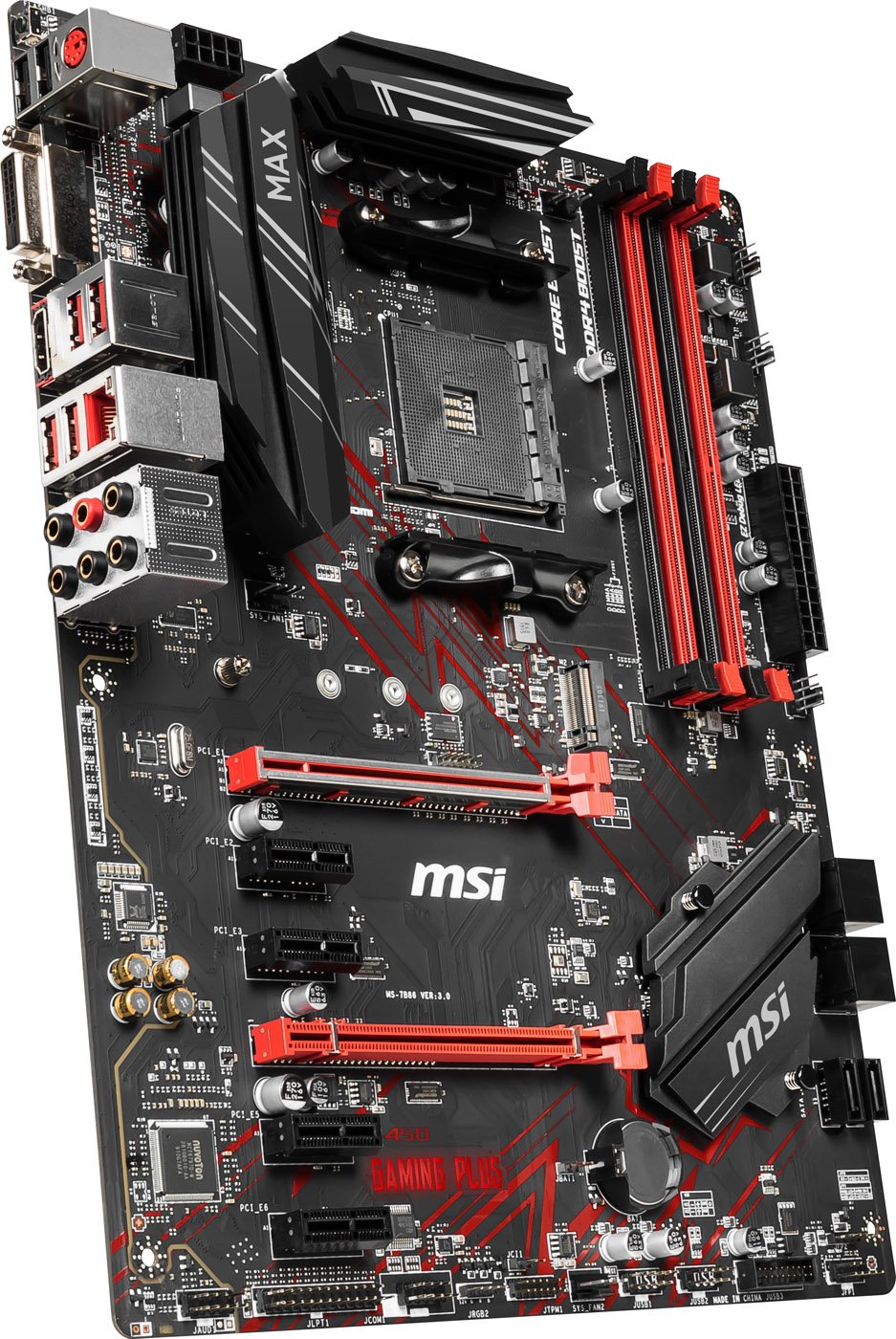

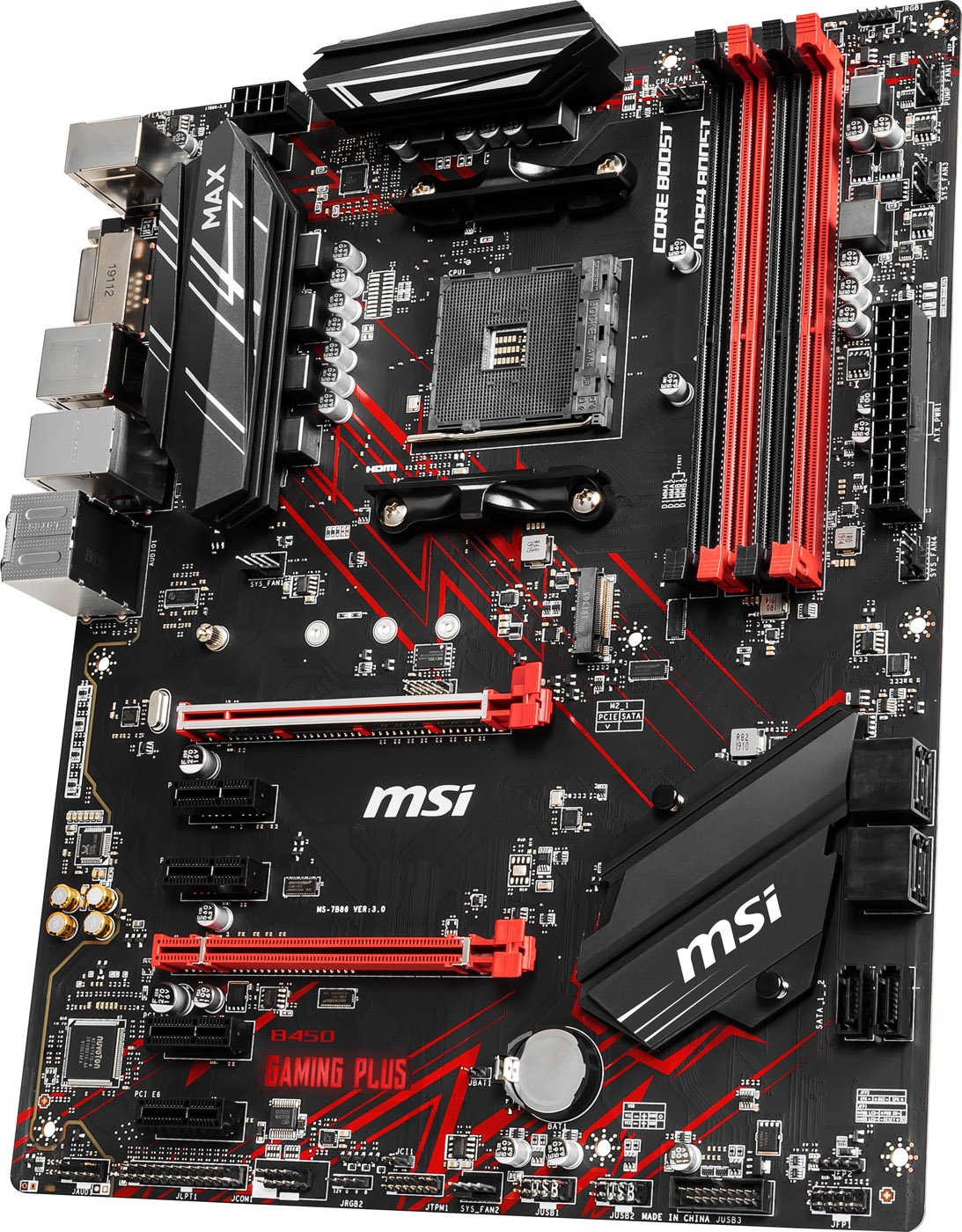

MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs

MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs

CCL Code: MBD2684

Discontinued

  • MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs
  • MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs
  • MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs
  • MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs
  • MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs
  • MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs
  • MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs

Satisfying gamers with what they really need, B450 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, DDR4 Boost, USB 3.2 Gen2 Connector

MSI B450 GAMING PLUS MAX ATX Motherboard for AMD AM4 CPUs

B450 GAMING PLUS MAX

Satisfying gamers with what they really need, B450 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, DDR4 Boost, USB 3.2 Gen2 Connector

Key Features:

  • ATX Form Factor
  • AMD B450 Chipset
  • Socket AM4
  • DDR4 (Max: 64GB / 4 slots)
  • 1 x M.2 & 6 x USB & 6 x SATA
  • HDMI and DVI
CCL Code: MBD2684

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

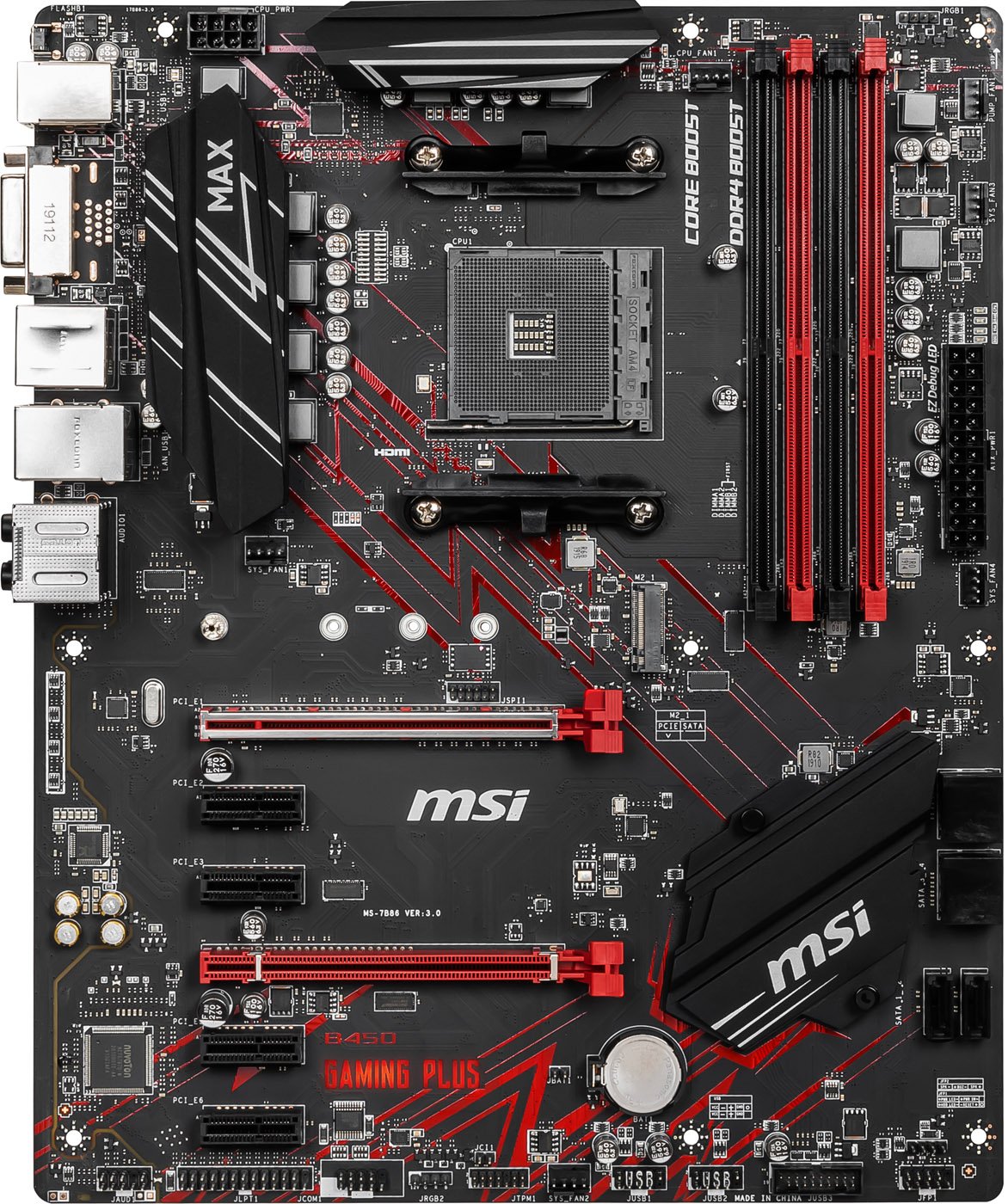

Overview

B450 GAMING PLUS MAX
GAME IN STYLE
1 BIOS Flashback Button
2 Gaming Device Port
3 LAN Port
4 AMD Turbo USB 3.2 Gen2
5 Golden Audio Jacks
6 Core Boost
supports more cores and provide better performance.
7 Gaming heatsinks with Passion Red scheme
for maximum cooling and performance
8 DDR4 Boost
Optimized traces and isolated memory circuitry
9 Turbo M.2
NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4, Supports STORE MI
10 PCI-E Steel Armor
Protecting VGA cards against bending and EMI
11 PCI-E Steel Slot
Protecting VGA cards against bending
12 Audio Boost with amplifier
Optimized gaming audio using best components, with Nahimic3
MSI B450 GAMING PLUS MAX overview

Immerse yourself into Virtual Worlds
Integrating the very best of cutting edge technologies on MSI hardware provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through joint efforts with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.
Microsoft HoloLens HTC Vive


Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Your in-game advantage
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
Gaming Hotkey Gaming Device port
Gaming Hotkey Gaming Device port
Multi-GPU
Multi GPU
1 second overclocking
Game Boost 1 second overclocking

Amplify your Game with Audio Boost
Like a dedicated sound card Audio Boost, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
Isolated Audio Line High-quality Audio capacitors Nahimic 3 Sound Tracker
Isolated Audio Line High-quality Audio Capacitors Nahimic 3 Sound Tracker
Audio Boost Ohm graph

Maximize your USB Device performance
Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.2 devices, delivering lightning-fast transfer speeds!



Unmatched Memory Performance
MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.
Memory Signal Purity MSI MSI caption Others MSI caption
DDR4 Boost performance
Best compatibility
Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.
Best compatibility chart


Extreme storage performance: Turbo M.2
Enjoy a blazing fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4.
Performance NVM

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing any damage due to heavy-weight graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference to provide a pure and reliable signal for the best performance, even when turning it up a notch.
OTHERS ANTI-BENDING MSI STEEL ARMOR
NO STRENGTHENING   REINFORCED, HEAVY SOLDERED CONNECTIONS
fortify


Main Features

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133(OC) MHz
  • Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card
Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors
64-bit Support Yes
Socket AM4

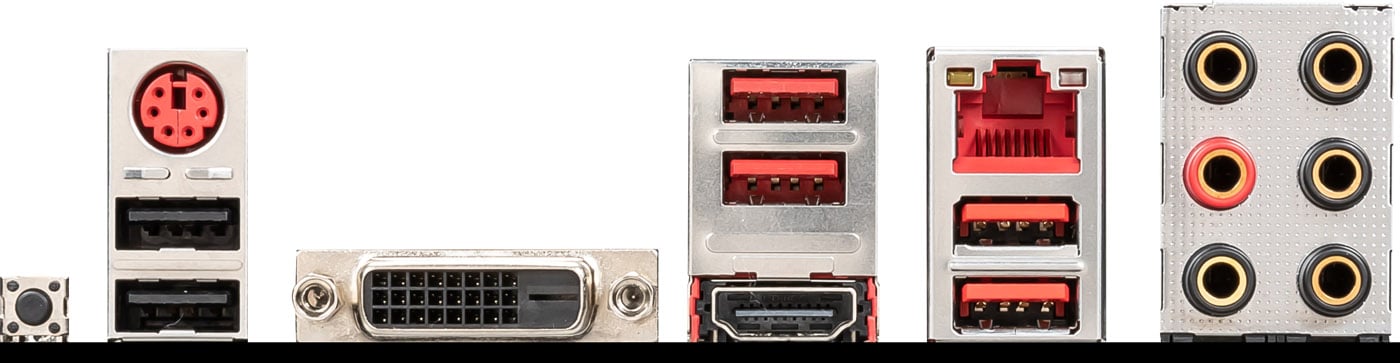

Rear Panel I/O Ports

USB Ports 2 x USB 3.1
2 x USB 3.0
2 x USB 2.0
HDMI Port 1 x HDMI
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Digital Port 1 x DVI-D
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 4 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB 3.0
2 x USB 2.0
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan
1 x Water Pump fan
4 x System fans
Parallel Connectors 1 x Parallel
Serial Connectors 1 x COM
Chassis Intrusion Connector 1 x Chassis Intrusion
TPM Header 1 x TPM
Power Connector Port 1 x 20+4-pin ATX
1 x 4+4-pin EPS
Other Connectors 1 x M.2, Key M (Type 2242/2260/2280/22110)
2 x 5050 RGB LED strip headers

Memory

Memory Bus Speed 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz
Memory Type DDR4
Maximum RAM 64 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge B450
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 3.0 x16
1 x PCI Express 2.0 x16 (@ x4)
4 x PCI Express 2.0 x1

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek® ALC892

Network

Integrated Network Realtek® 8111H
Network Speeds Supported 10/100/1000 Mbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

Jumpers 1 x Clear CMOS
SLi/Crossfire Features Supports 2-Way AMD® CrossFire™ Technology

Physical

Form Factor ATX Motherboard

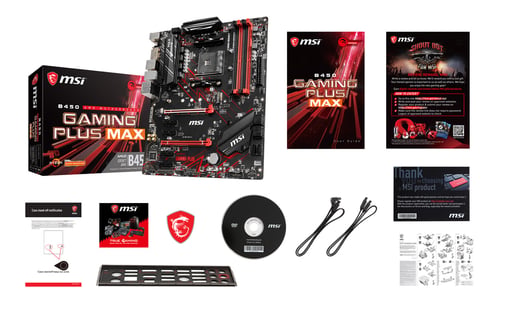

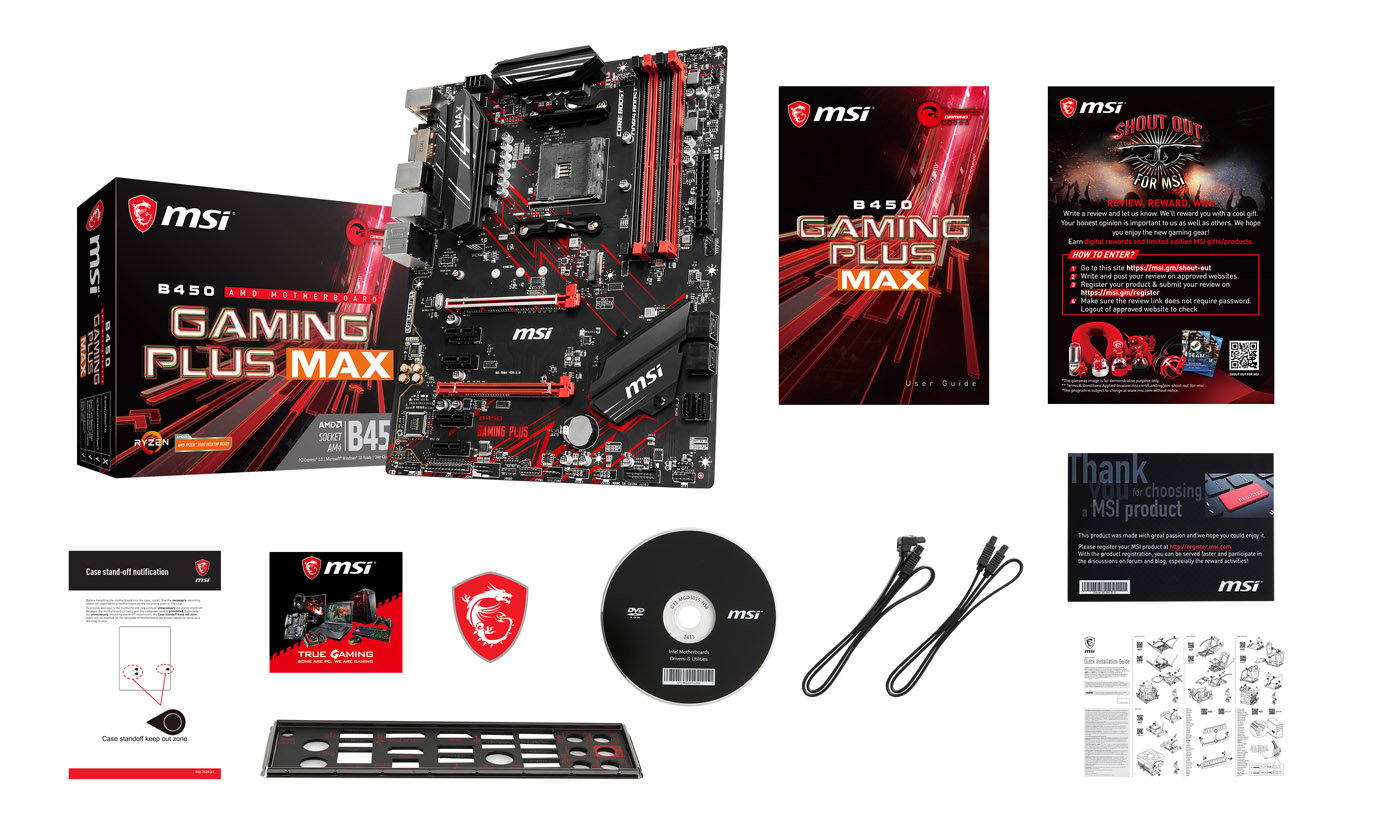

In The Box Motherboard
User Guide
Shout Out Leaflet
Stand Off Notice
Quick Guide
Warranty Card
I/O Shield
Driver Disc
2 x SATA Cables
Width 305 mm
Length 244 mm

Key Features

RGB Header Type None
Addressable RGB No
Internal USB Type-C Header No
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 2667 MT/s
Max Memory Speed Supported (overclocked) 4133 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 1
Maximum NVMe M.2 ports 1
Maximum SATA M.2 ports 1
SATA ports 6
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
Firewire No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection Yes
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B450
Thunderbolt No
Motherboard Model MSI B450 GAMING PLUS MAX
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control None
Skip Audio Test No

Warranty

Warranty 1 Year

Item Details

Manufacturer MSI
Manufacturer Code B450 GAMING PLUS MAX
EAN 4719072658557
UPC 824142189696
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer MSI
Manufacturer Code B450 GAMING PLUS MAX
