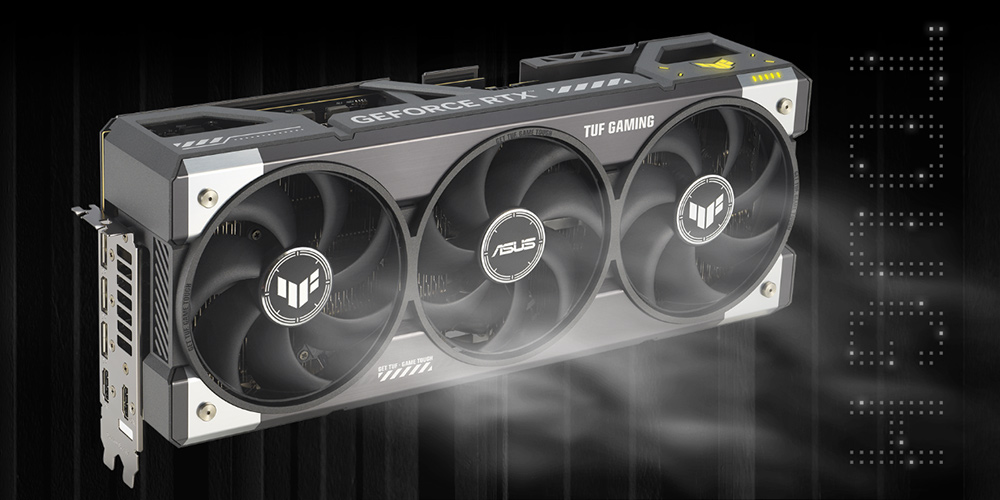

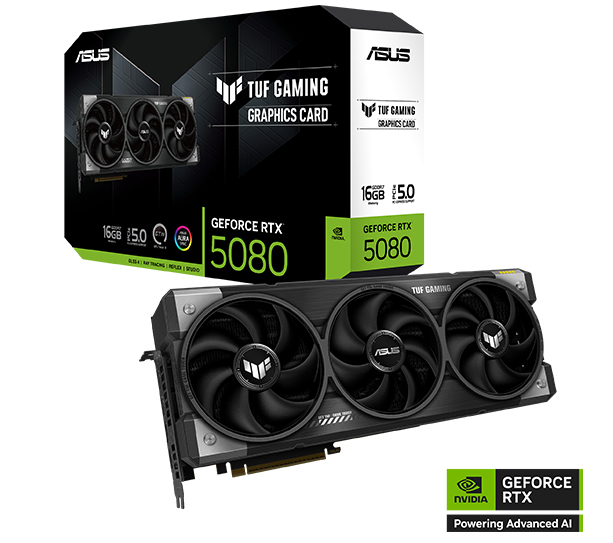

ASUS GeForce RTX 5080 TUF 16GB GDDR7 Graphics Card

ASUS GeForce RTX 5080 TUF 16GB GDDR7 Graphics Card

CCL Code: VGA7193

Coming soon

Notify Me

ASUS GeForce RTX 5080 TUF 16GB GDDR7 Graphics Card

90YV0M31-M0NA00

Key Features:

  • 16GB GDDR7 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Outputs - HDMI and Display Port
CCL Code: VGA7193

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

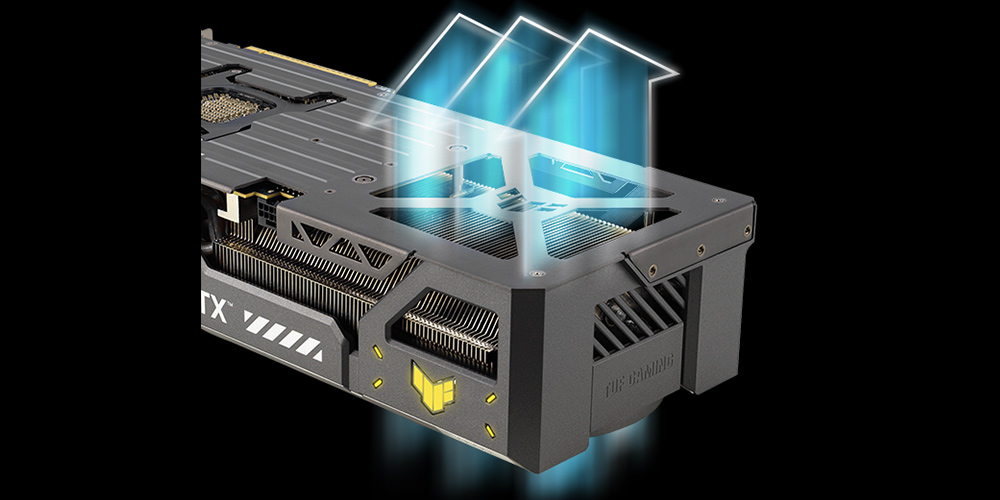

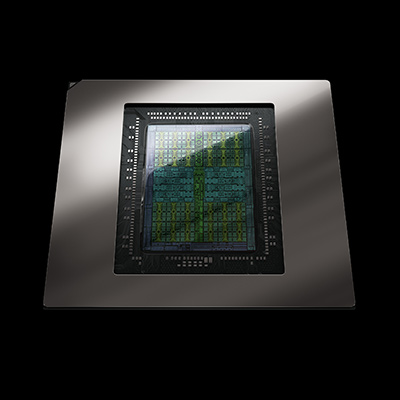

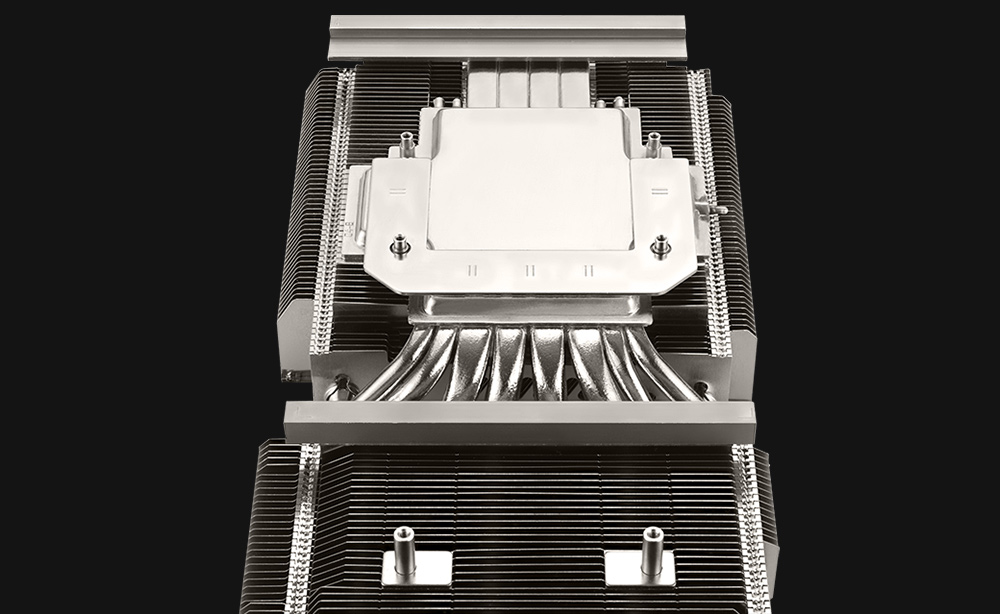

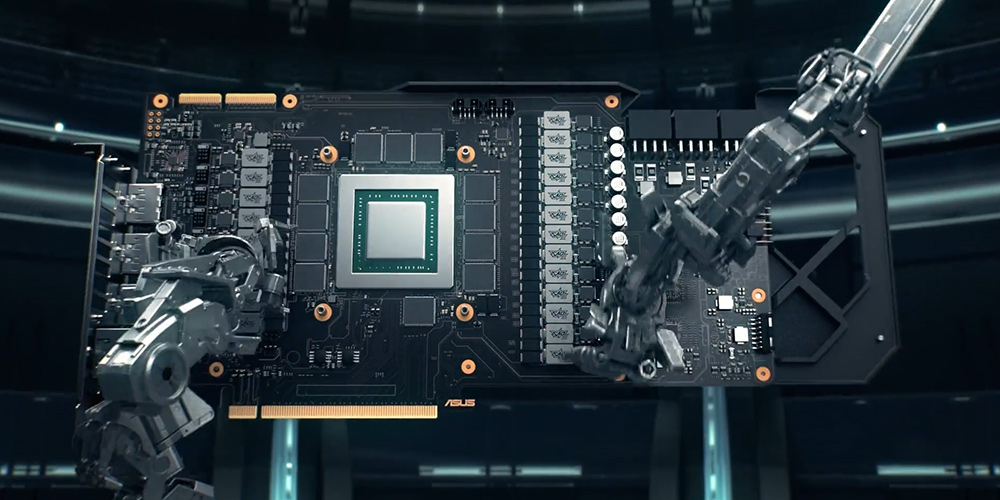

NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5080, designed to withstand the harshest conditions and deliver unparalleled performance.

Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5080
Chipset Additional Information TUF Gaming
Graphics Core CUDA
Number of Cores 10752

Memory

Memory Size 16384 MB
Memory Clock 30 Gbps
Memory Type GDDR7
Memory Width 256 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16
HDMI Port 2 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 12V-2x6 or 3 x 8-pin PCIe
Recomended Power Supply 850 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Speedsetup Manual
TUF Graphics Card Holder
TUF Velcro Hook & Loop
TUF Magnet
TUF Gaming Certificate
Thank You Card
Adapter Cable (1 to 3)
Width 72 mm (3.6 slot)
Depth 348 mm
Height 146 mm
Weight 1.94 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) Yes
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12

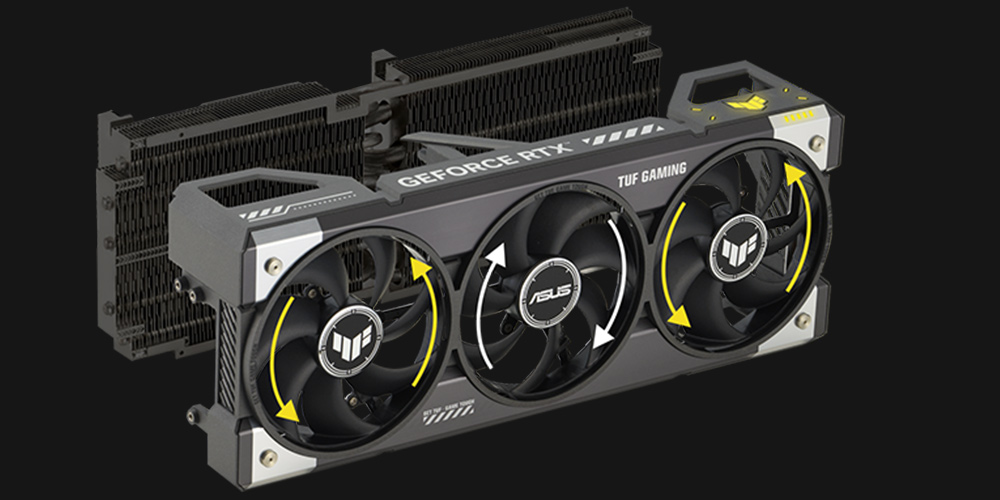

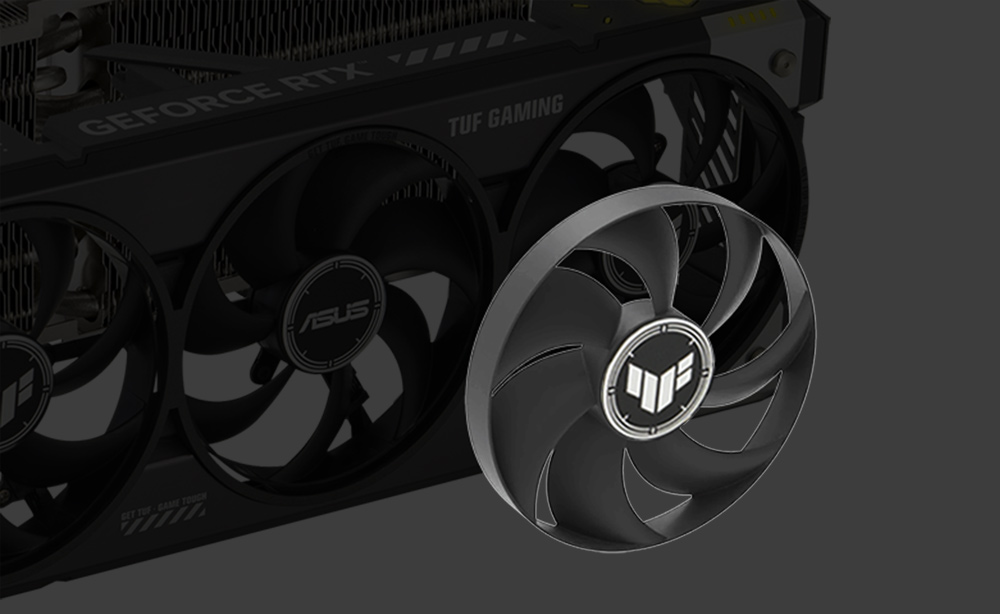

Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5080
PCIe Pin Type 12+4-Pin (16-Pin)
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 348 mm
Card Width 4
Graphics card count 1
PCI Express Power Pins (female) 24
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 5080

Graphics Device

G-Sync Yes

Item Details

Manufacturer ASUS
Manufacturer Code 90YV0M31-M0NA00
EAN 4711387868348
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90YV0M31-M0NA00
Reviews
No reviews have been received for this product yet
