750W ASUS ROG Loki Modular 80 Plus Platinum PSU

750W ASUS ROG Loki Modular 80 Plus Platinum PSU

CCL Code: PSU2112

Discontinued

750W ASUS ROG Loki Modular 80 Plus Platinum PSU

90YE00N4-B0NA00

Key Features:

  • SFX-L Form Factor
  • Fully Modular
  • 2 x 4+4-Pin EPS CPU
  • 3 x 6+2-Pin PCIe
  • 1 x 12+4-Pin 12VHPVR
  • 6 x SATA
CCL Code: PSU2112

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

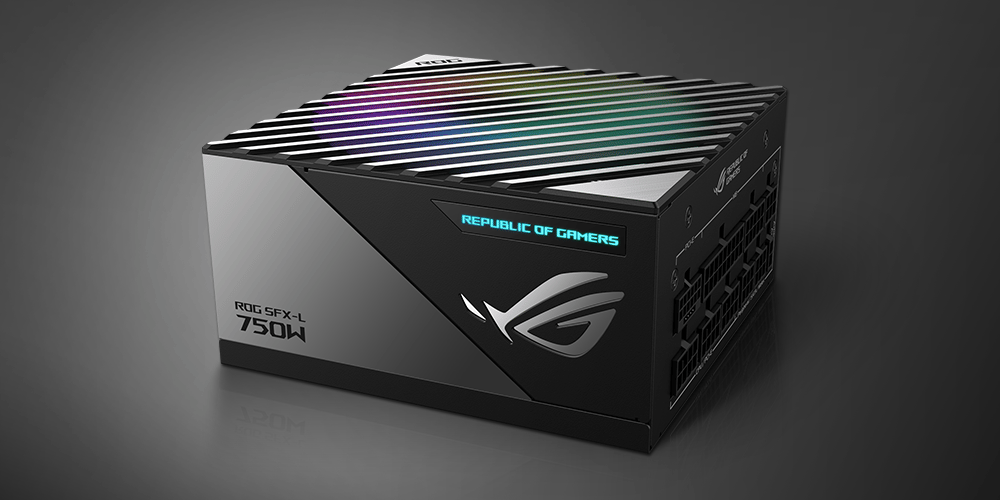

The Quietest SFX-L PSU

Taking after the ROG Thor, the ROG Loki SFX-L 750W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.

COOLING

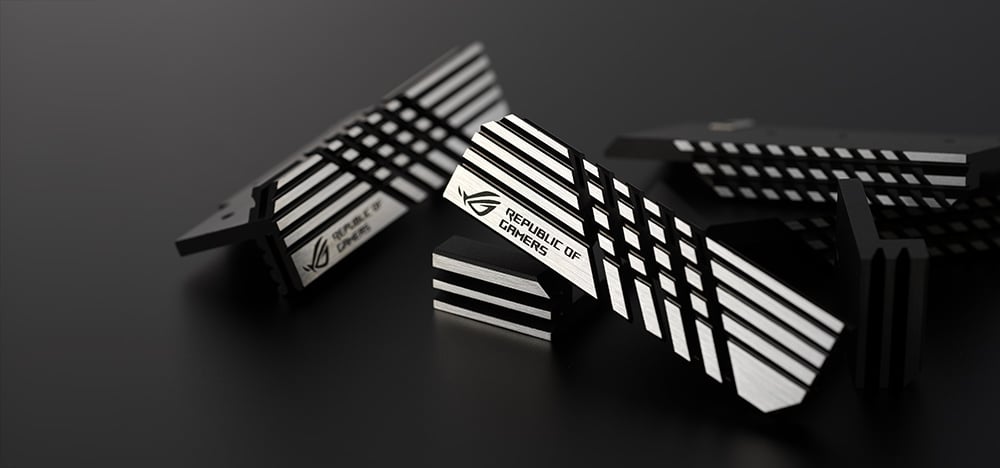

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

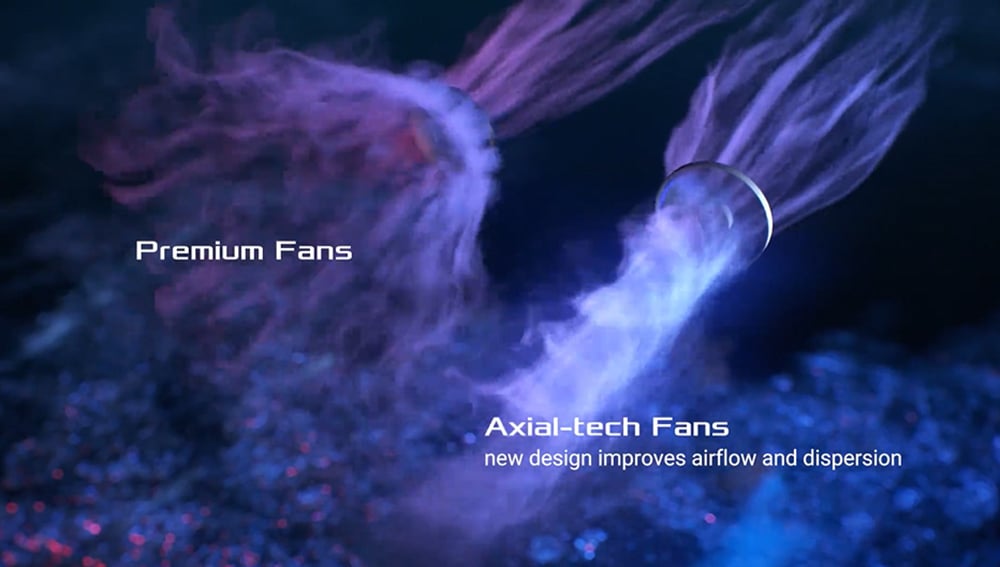

Axial-tech Fan Design

Better, faster, stronger

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we've scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.

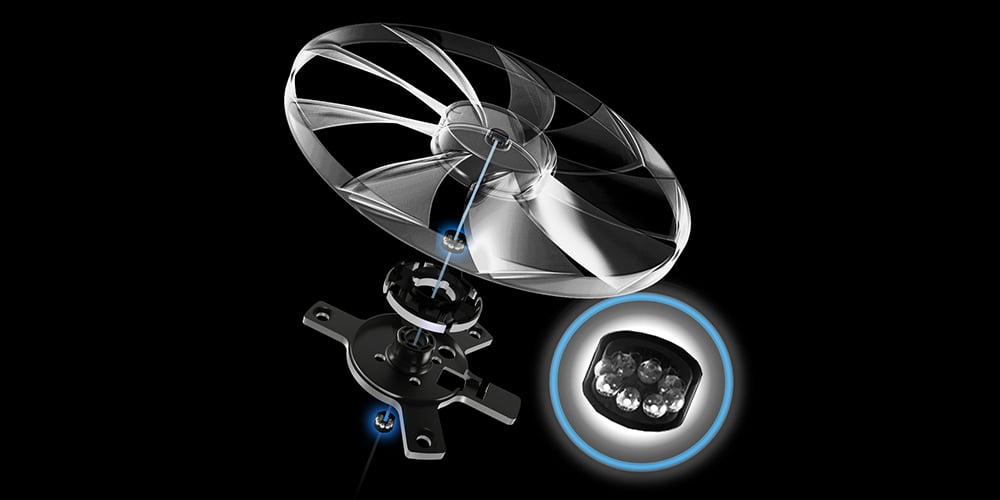

Dual Ball Fan Bearings

2x longer lifespan

The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

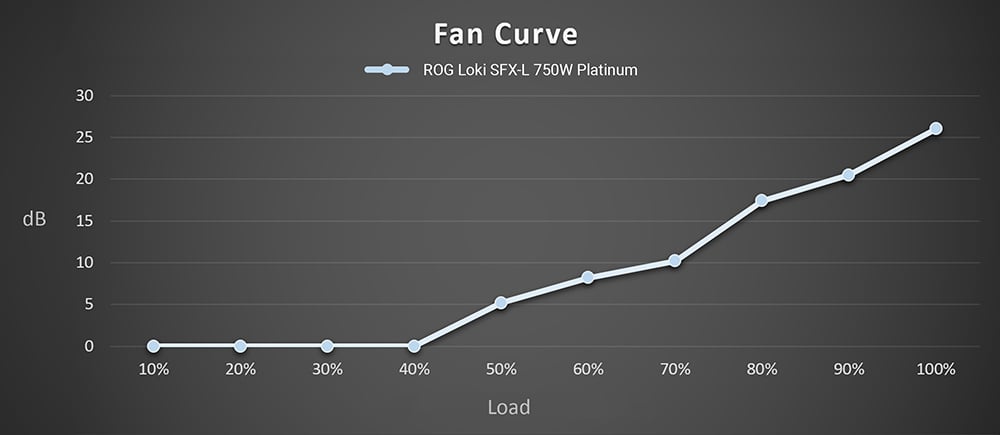

0dB Technology

Quiet intelligence

To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.

Lambda A+ Certification

Quietly deviant

On average, ROG Loki emits less than 20 dB of noise – earning a coveted Cybenetics Lambda A+ certification.

ENGINEERING

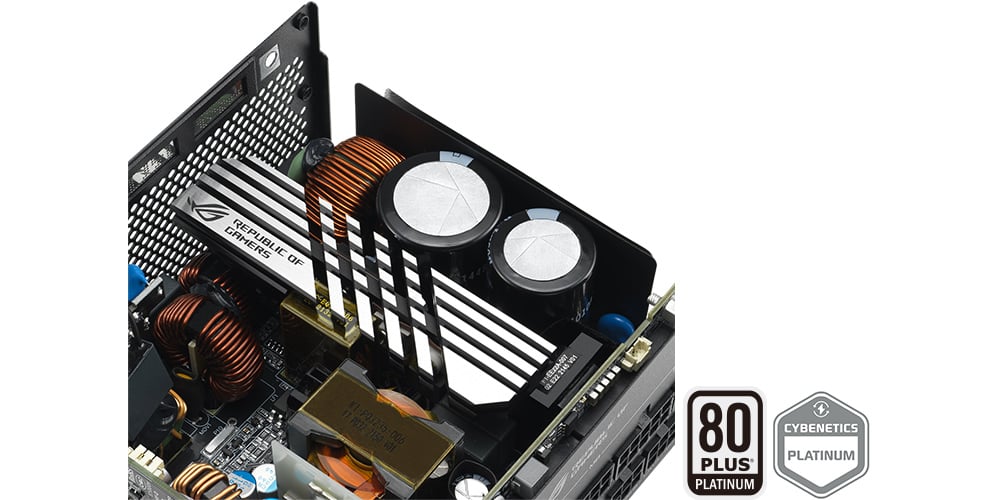

80 PLUS Platinum Certified

Effortless output

Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

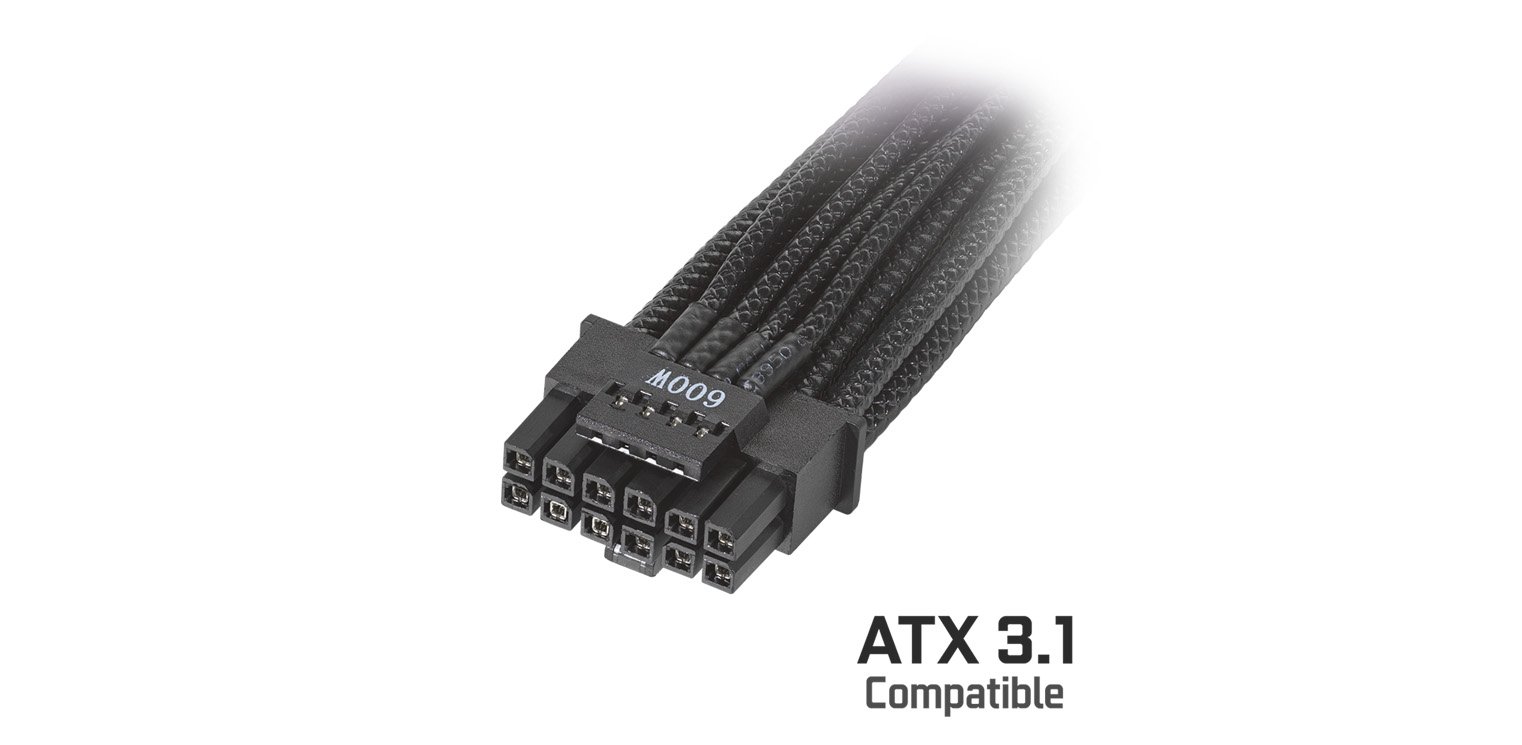

ATX 3.0 Compatible

Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

EXPERIENCE

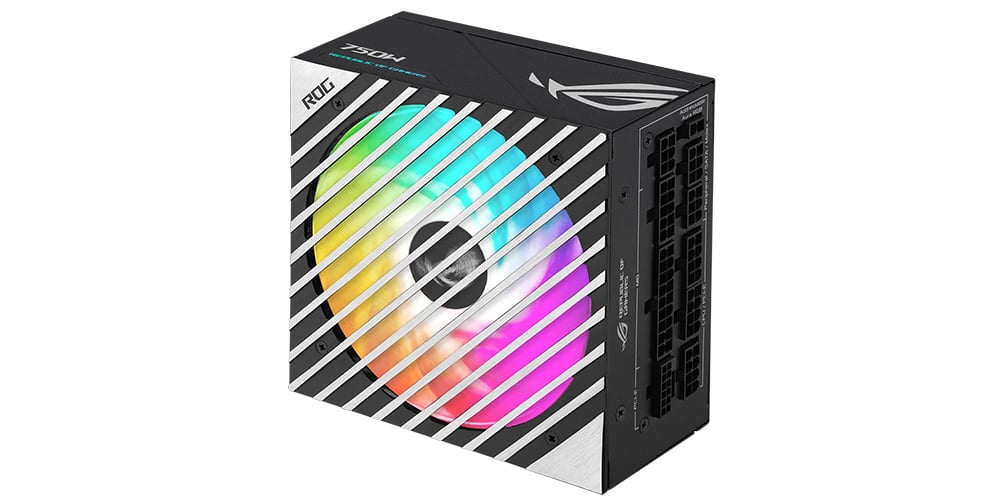

ARGB-illuminated Fan & Aura Sync

Magical glow

The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.

* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

10-Year Warranty

A decade of power

We're so confident about the reliability of the ROG Loki SFX-L 750W Platinum that we back it with a 10-year worldwide warranty.

*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.

Specifications

Interfaces/Ports

SATA Connectors 6
CPU Connectors 2 x 4+4-pin EPS
PCI Connectors 1 x 16-pin PCIe
3 x 8-pin PCIe
Motherboard Connectors 1 x 24-pin ATX
Molex Connectors 4

Compliance

ATX Spec ATX 3.0
Standards ATX 3.0
80 PLUS Platinum Certified
Safety OPP/OVP/UVP/SCP/OCP/OTP

Electrical

Voltage 100 ~ 240 V AC
Power 750 W
Power Cord Yes

Physical

Form Factor SFX-L Power Supply
Case Colour Black
In The Box Power Supply
Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
PCI-E 1-to-2 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Width 125 mm
Depth 125 mm
Height 63.5 mm
Weight 1.815 kg

Warranty

Warranty 10 Years

Key Features

Main Colour Black
Modular Cables Modular
80Plus Rated 80 Plus Platinum
PSU Form Factor SFX-L
PCIe Connectors 3
Motherboard (EPS) Power Connectors 2 x 4+4-Pin
PCIe Pin Type 6+2-Pin
PSU Depth 125 mm
Cybenetics Efficiency ETA Cert. Platinum
Cybenetics Lambda Noise Cert. A+
CPU Power Pins (male) 16
PCIe Power Pins (male) 24
12VHPWR 16-pin Connector Yes
Side Modular Cable Location No
Create Your Own Gaming PC (CCL) No

Item Details

Manufacturer ASUS
Manufacturer Code 90YE00N4-B0NA00
EAN 4711081722915
UPC 195553722919
Condition New
Warranty

Warranty Information

Warranty 10 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90YE00N4-B0NA00
Reviews
5.0 / 5 2 reviews

Nicholas

February 2023

Absolutely fantastic power supply, comes with both new standard 12 pin for 40 series cards and older 8pin cards. Great for my meshlicious case.

Andrew

January 2023

Good quality cables and RGB works well
