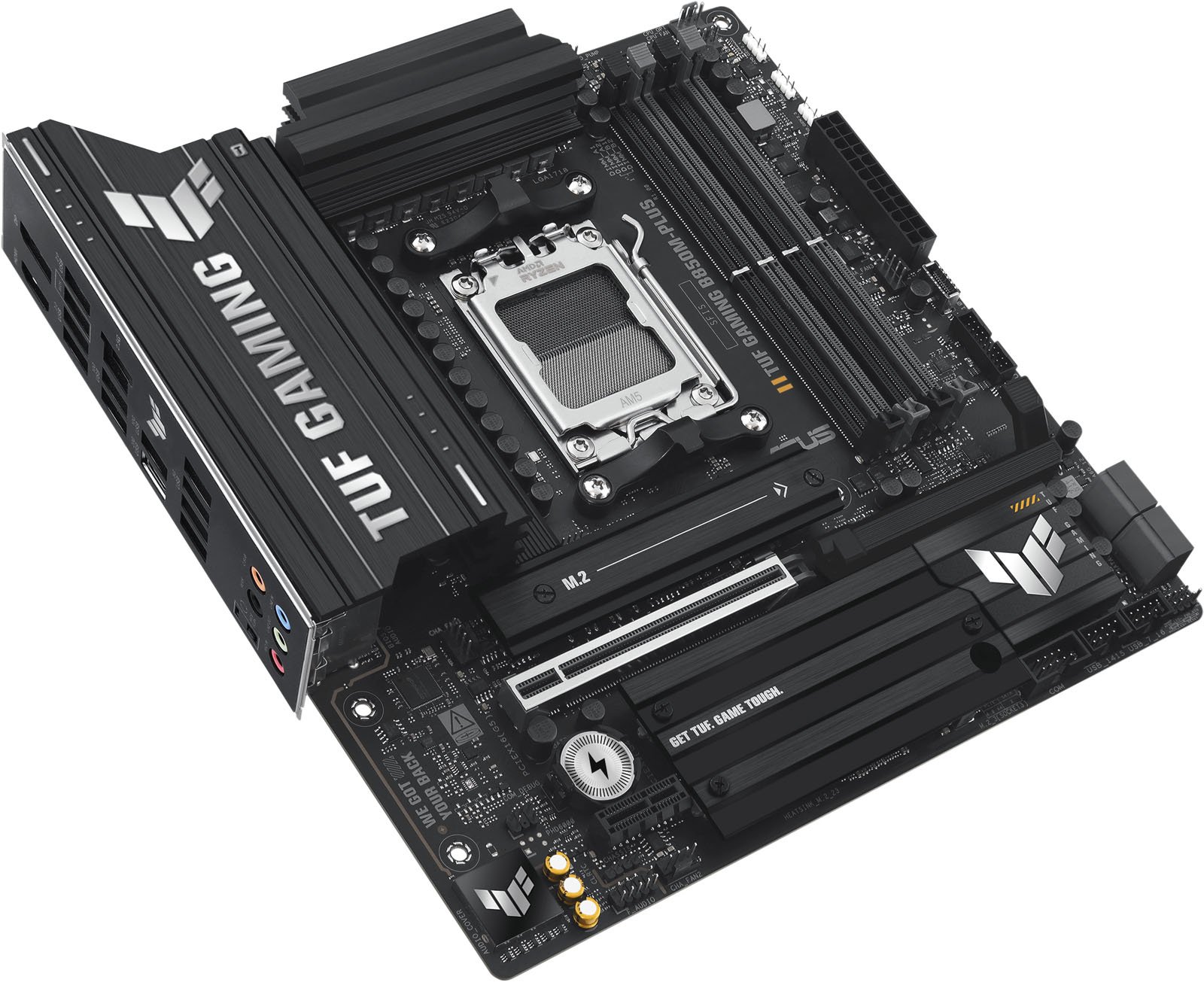

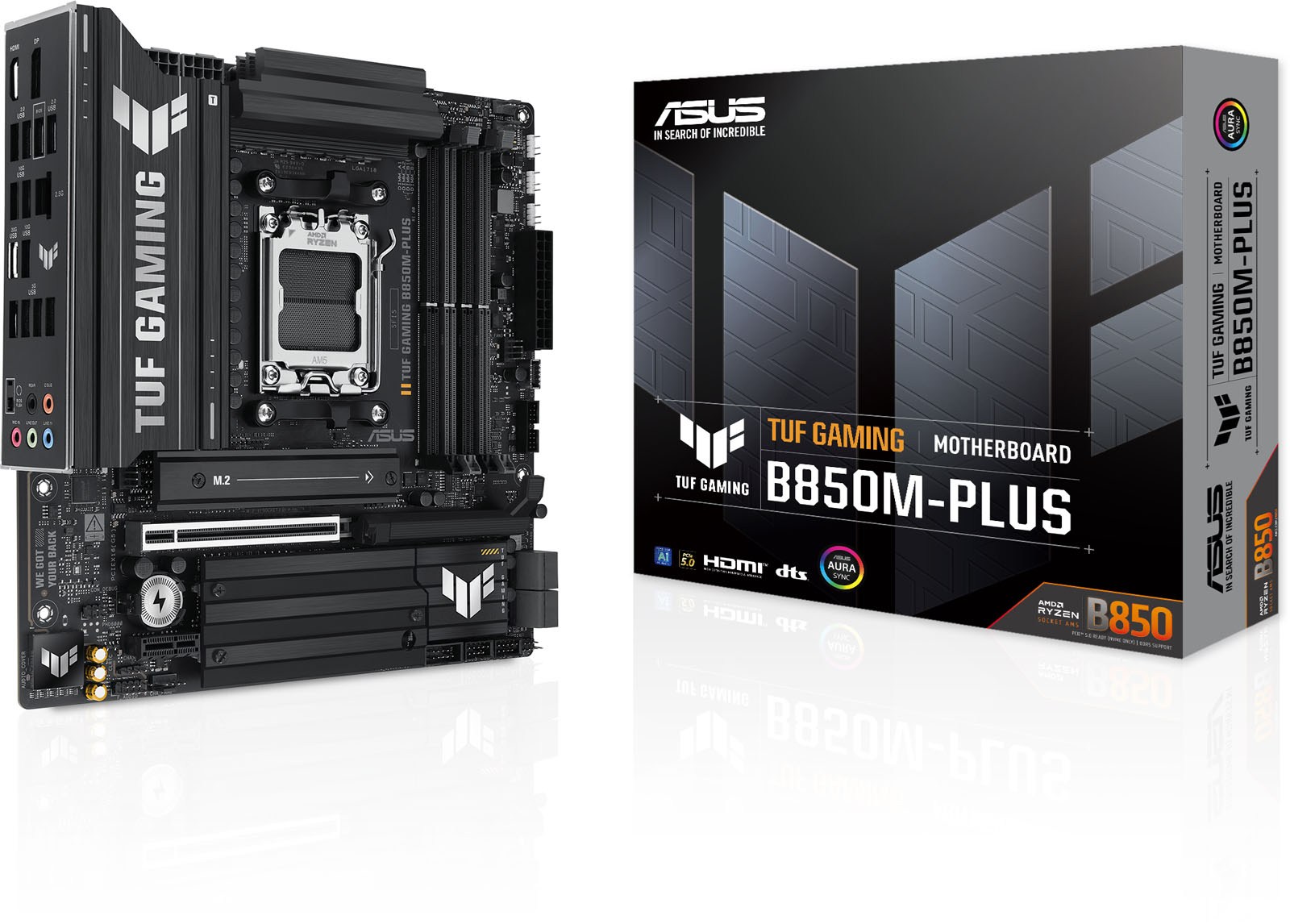

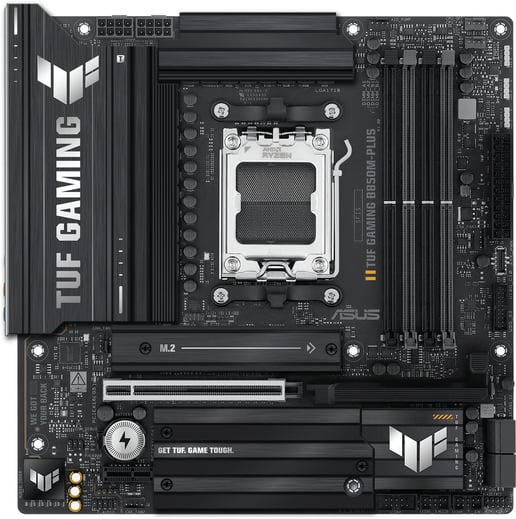

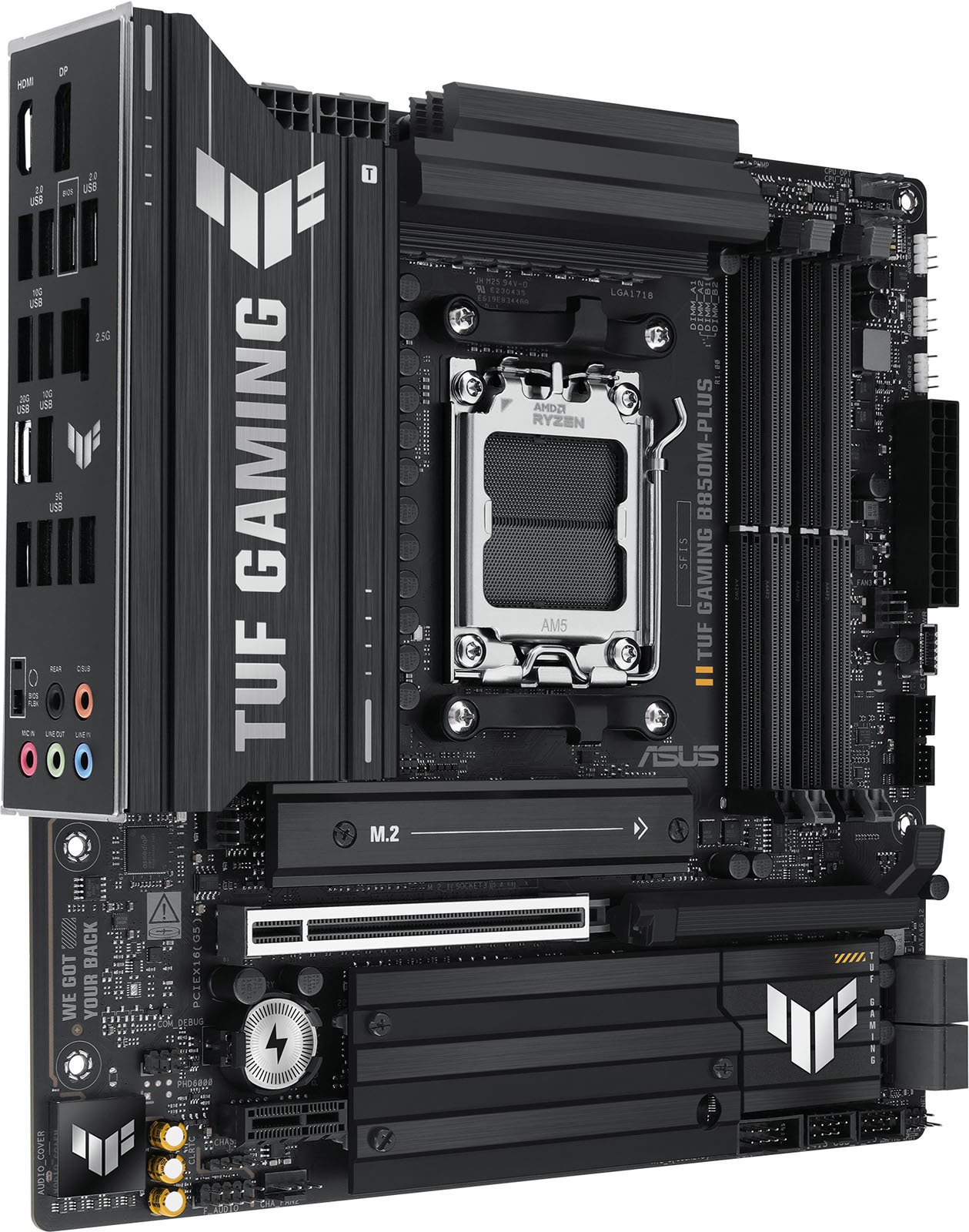

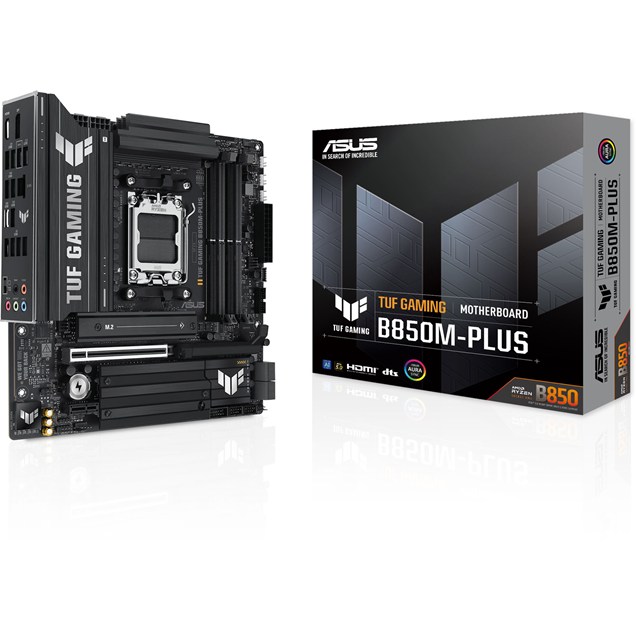

ASUS TUF Gaming B850M-Plus mATX Motherboard for AMD AM5 CPUs

ASUS TUF Gaming B850M-Plus mATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3789

Sold out

Notify Me

ASUS TUF Gaming B850M-Plus mATX Motherboard for AMD AM5 CPUs

90MB1IX0-M0EAY0

Key Features:

  • mATX Form Factor
  • AMD B850 Chipset
  • Socket AM5
  • DDR5 (Max: 192GB / 4 slots)
  • 3 x M.2 & 12 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3789

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

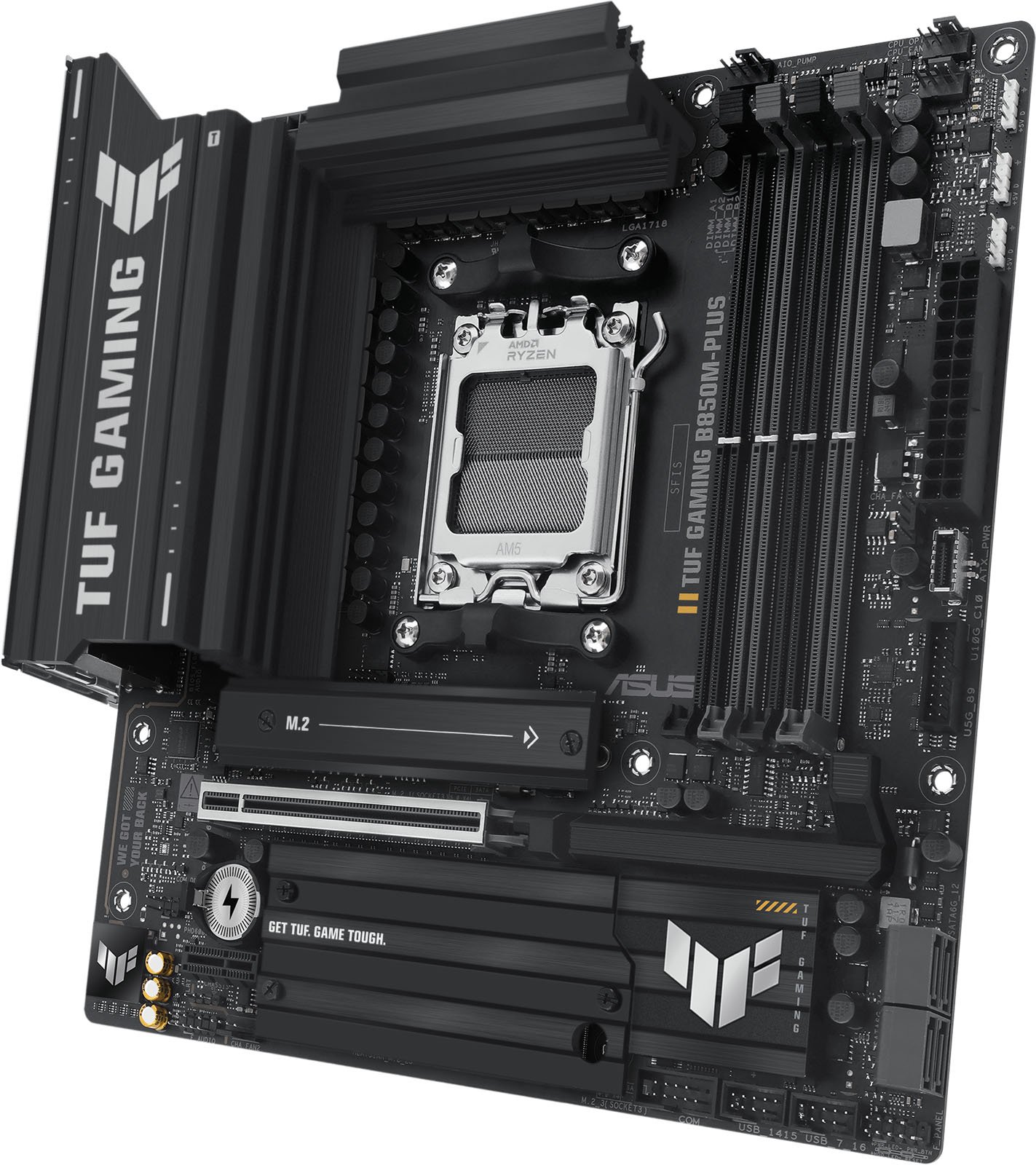

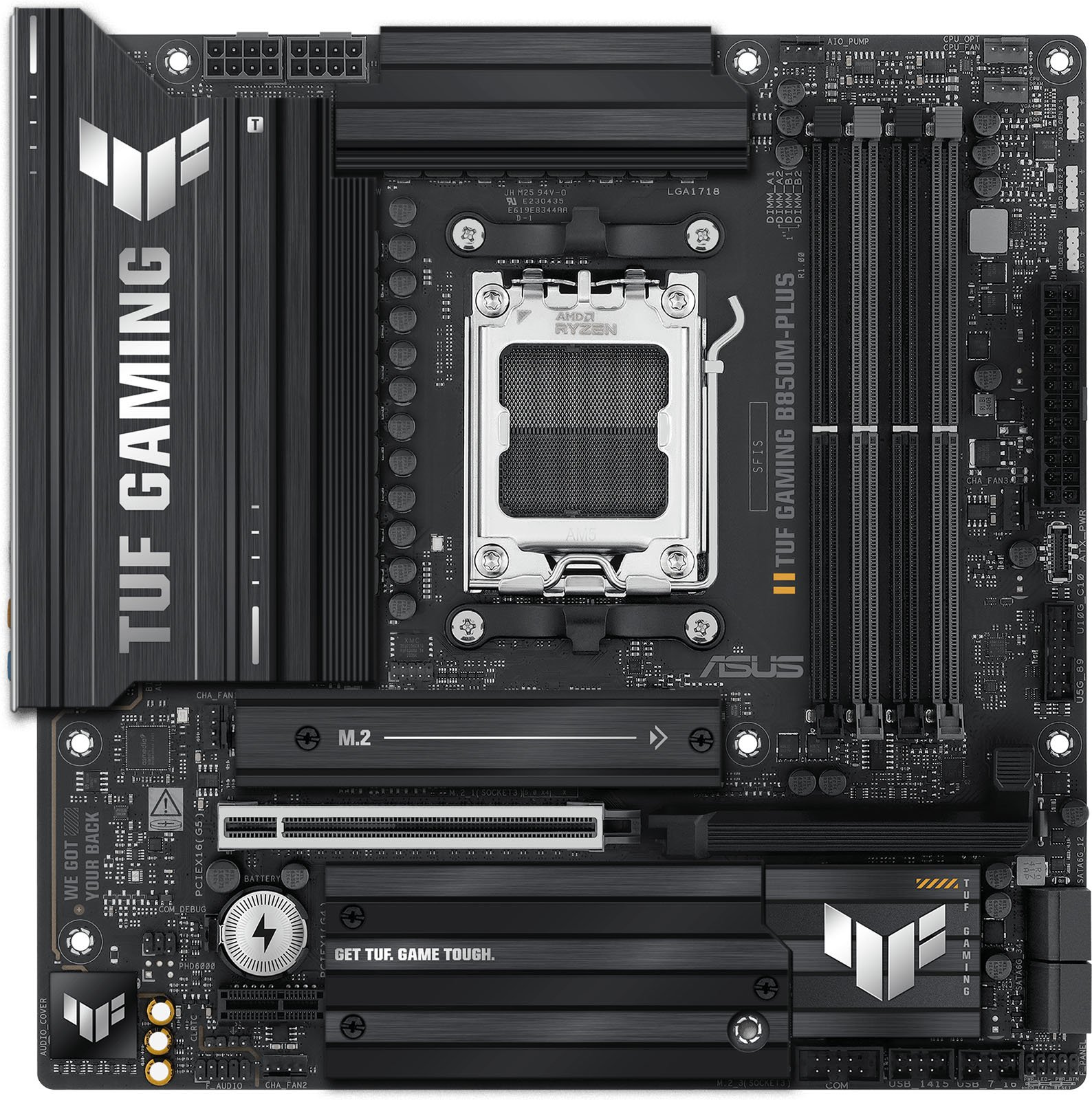

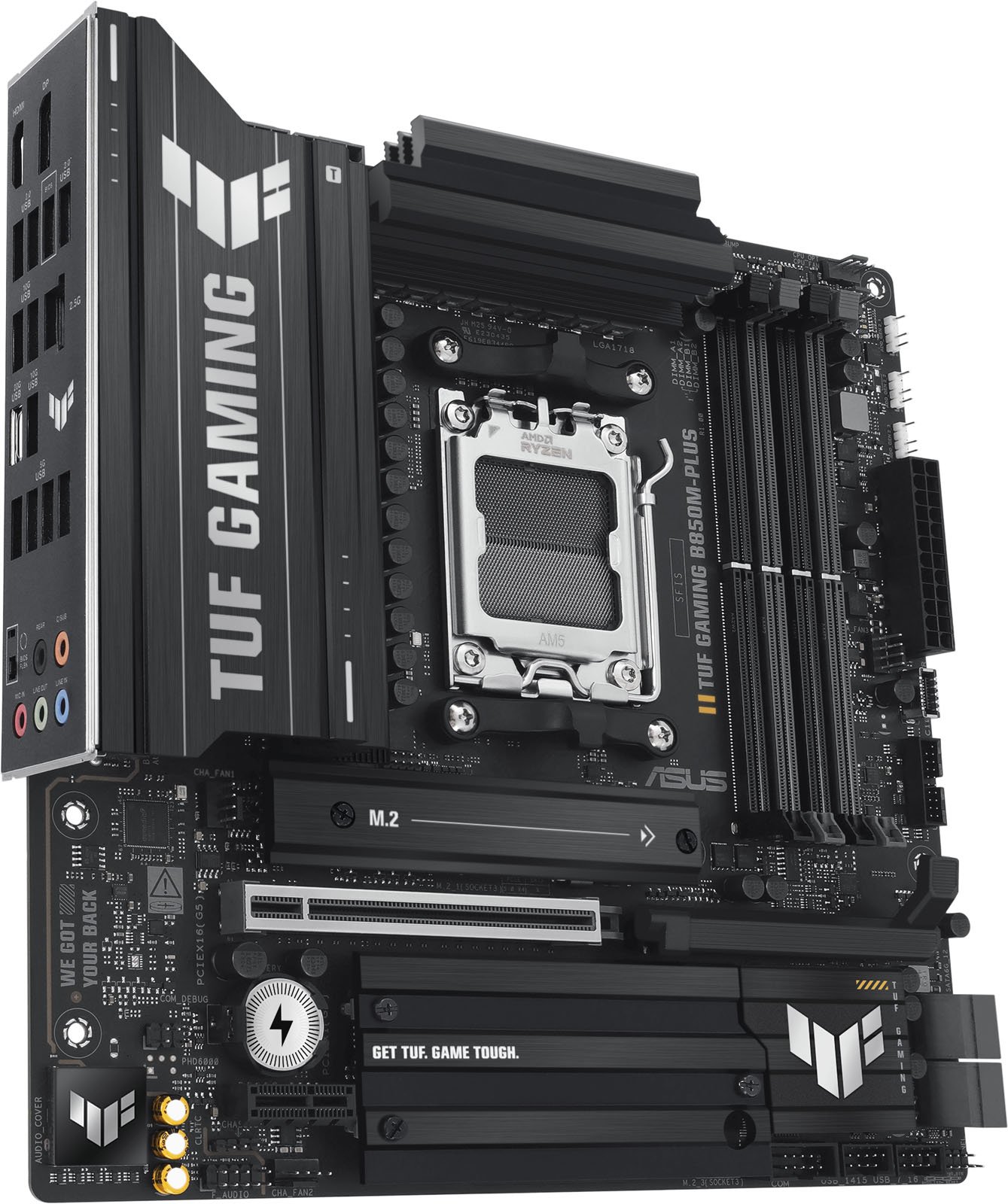

ASUS TUF GAMING B850M-PLUS Socket AM5 mATX Motherboard

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

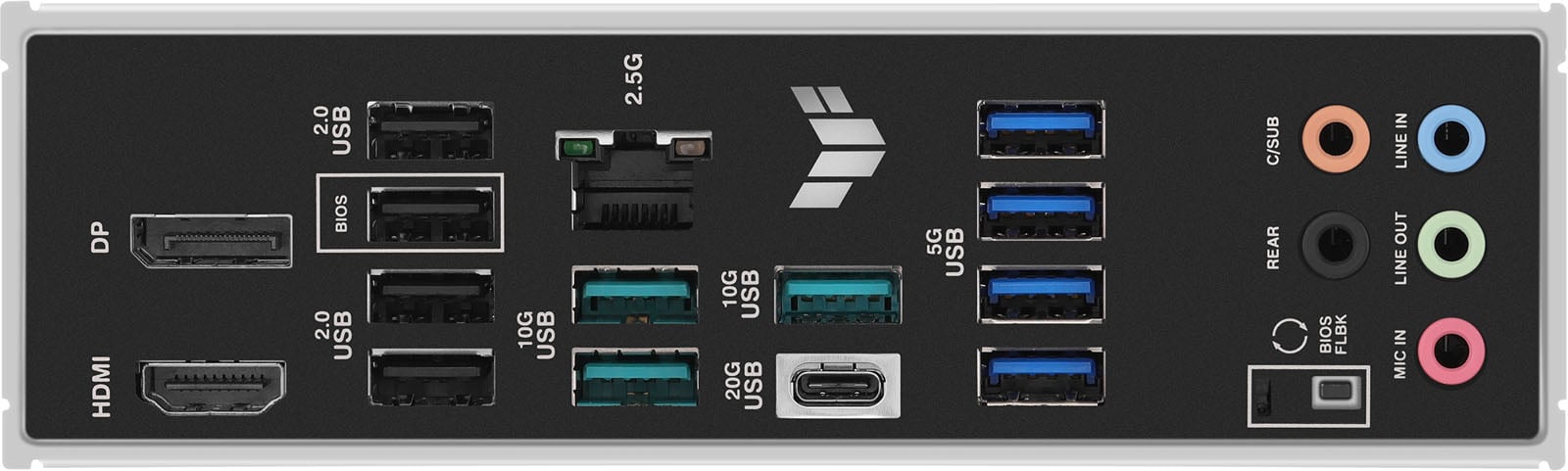

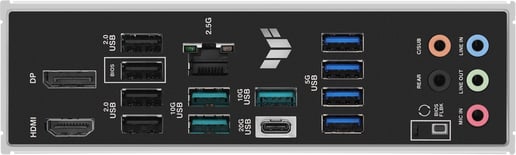

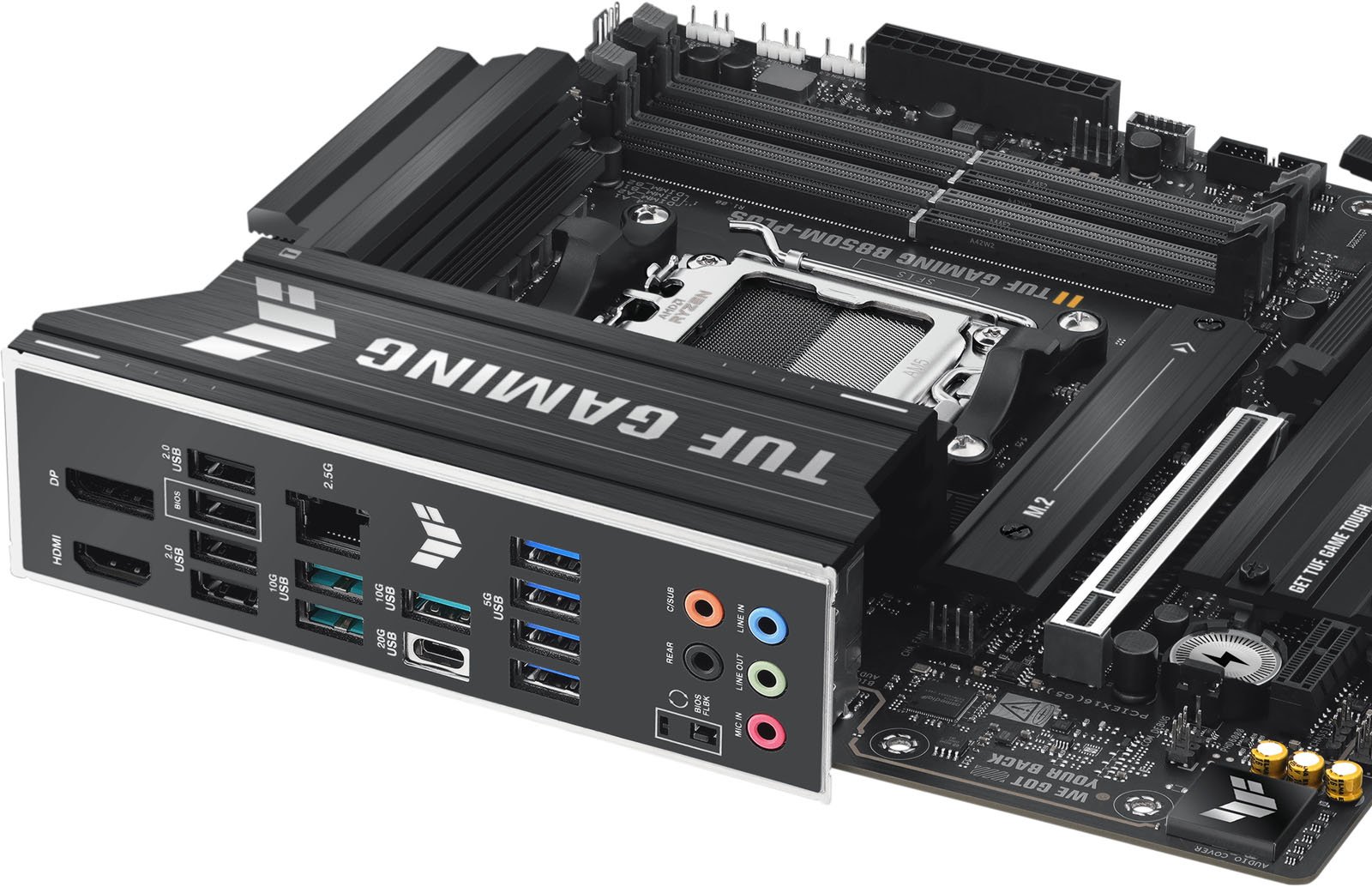

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
3 x USB 3.1
4 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU_OPT fan header
1 x AIO pump header
3 x Chassis fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
3 x 3-pin ARGB headers

Memory

Memory Bus Speed Up to 8000 MT/s
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B850
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard

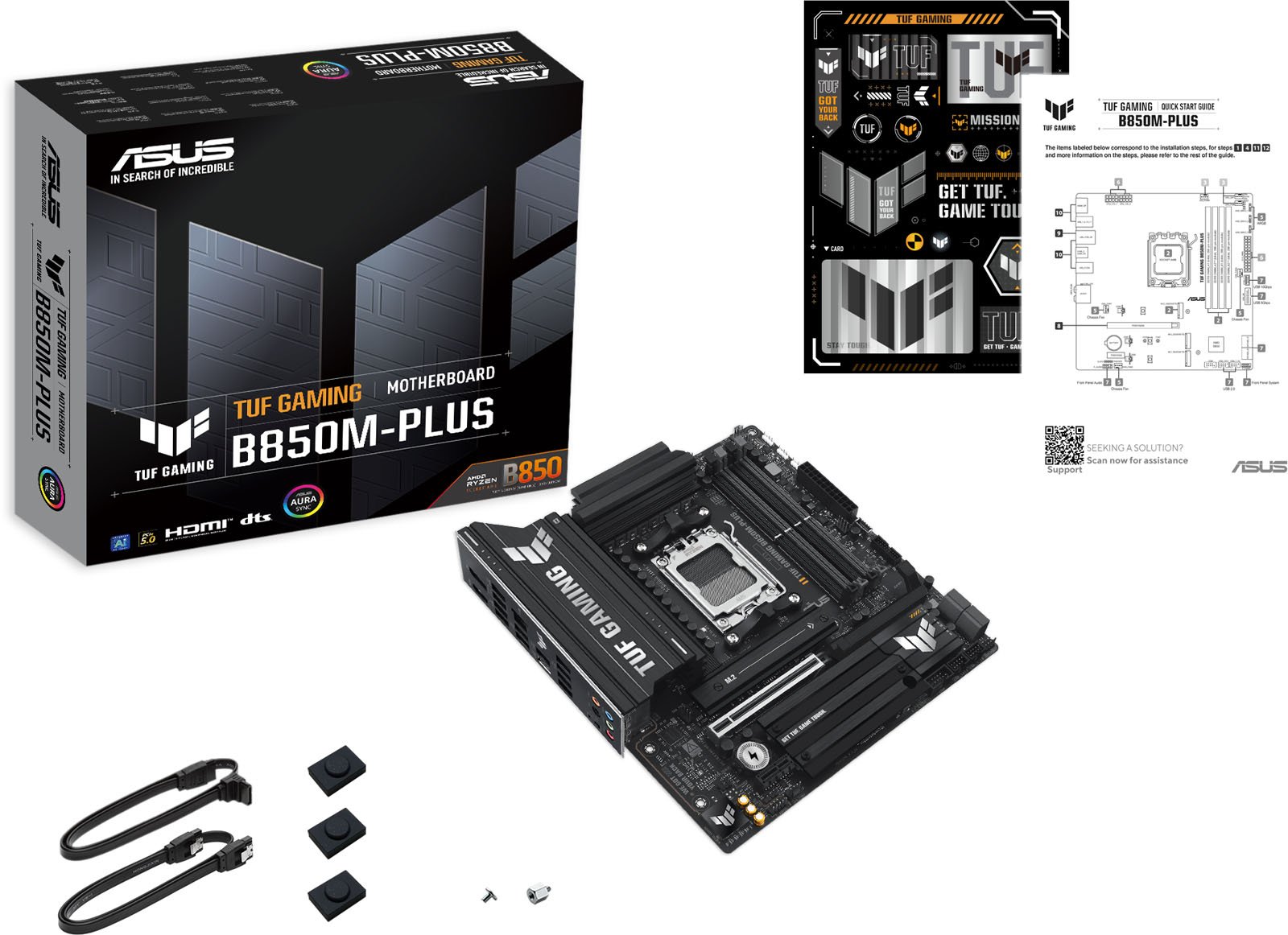

In The Box Motherboard
2 x SATA 6Gb/s cables
1 x TUF GAMING sticker
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x Quick start guide
Width 244 mm
Length 244 mm
Weight 1.19 kg

Key Features

Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 12 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset AMD B850
Thunderbolt No
Motherboard Model ASUS TUF Gaming B850M-Plus
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1IX0-M0EAY0
EAN 4711387775172
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1IX0-M0EAY0
