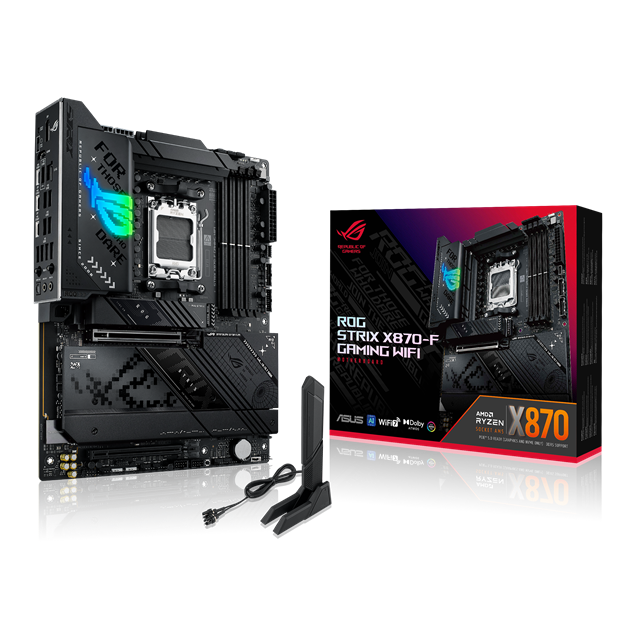

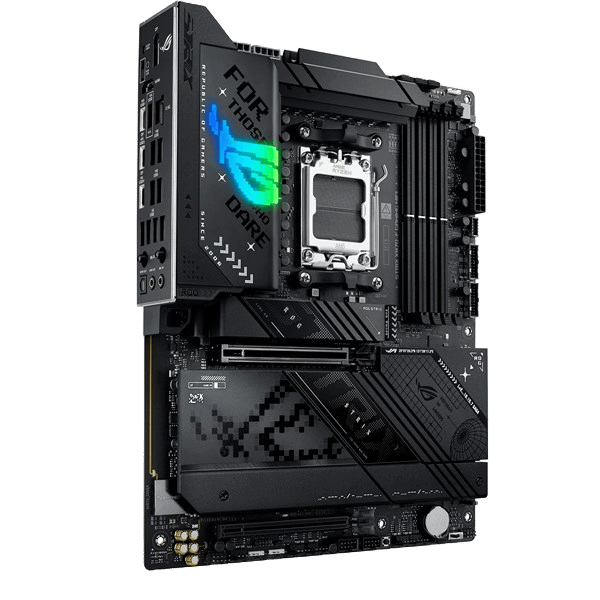

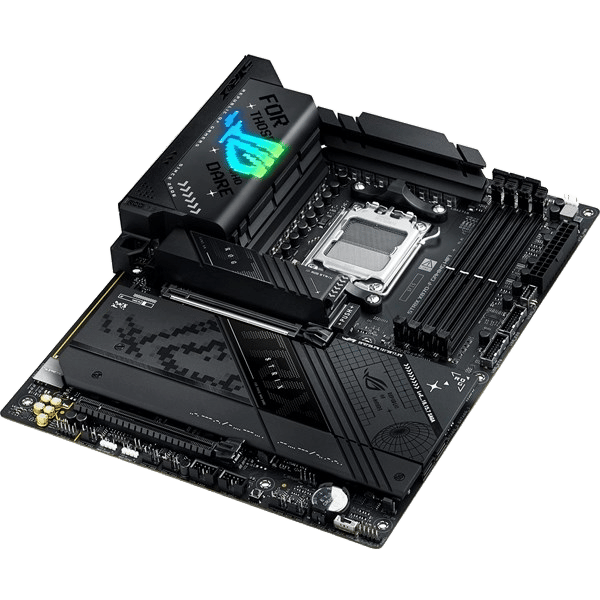

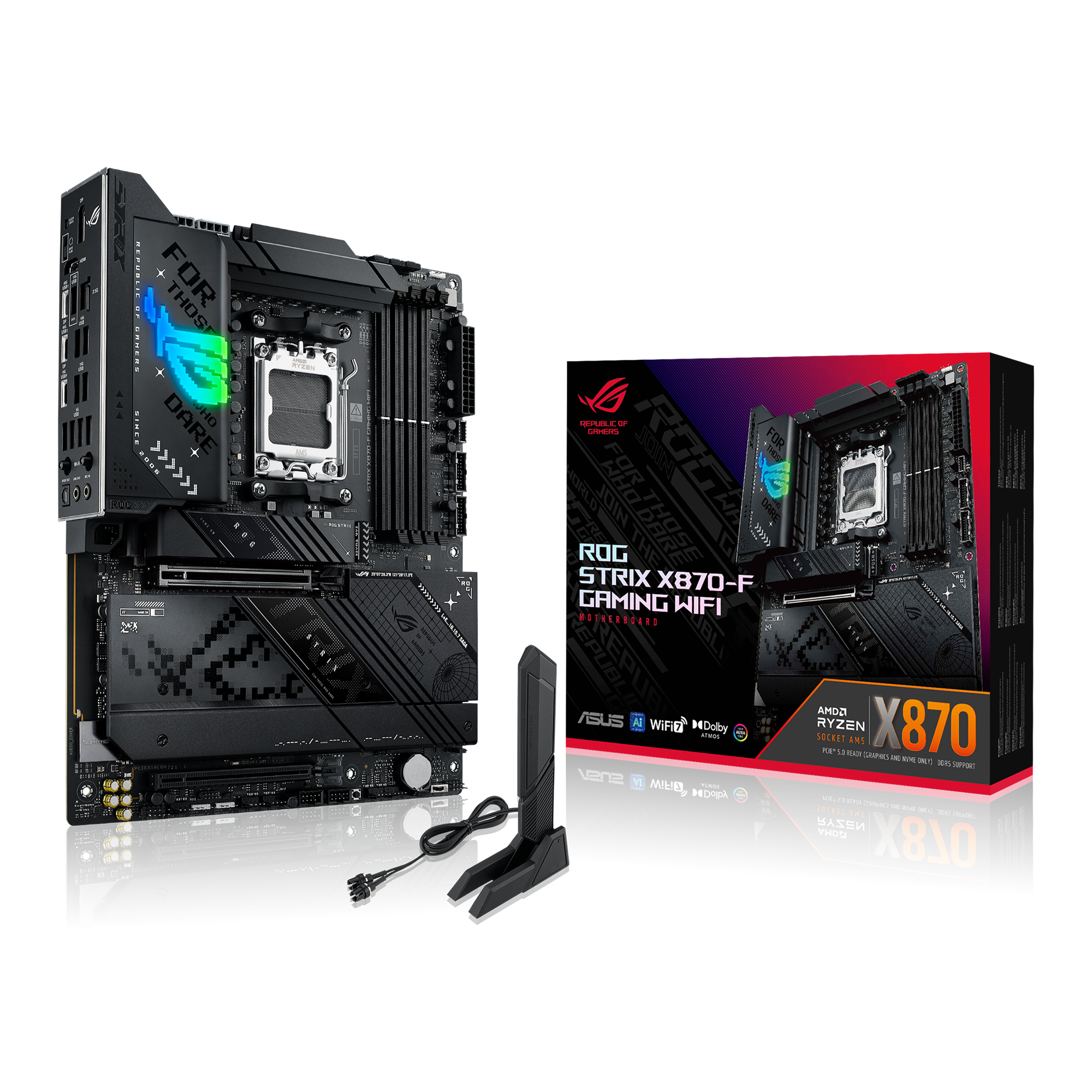

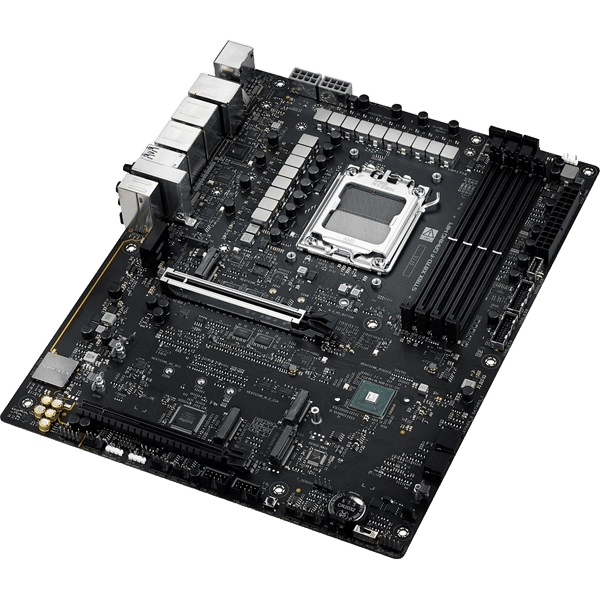

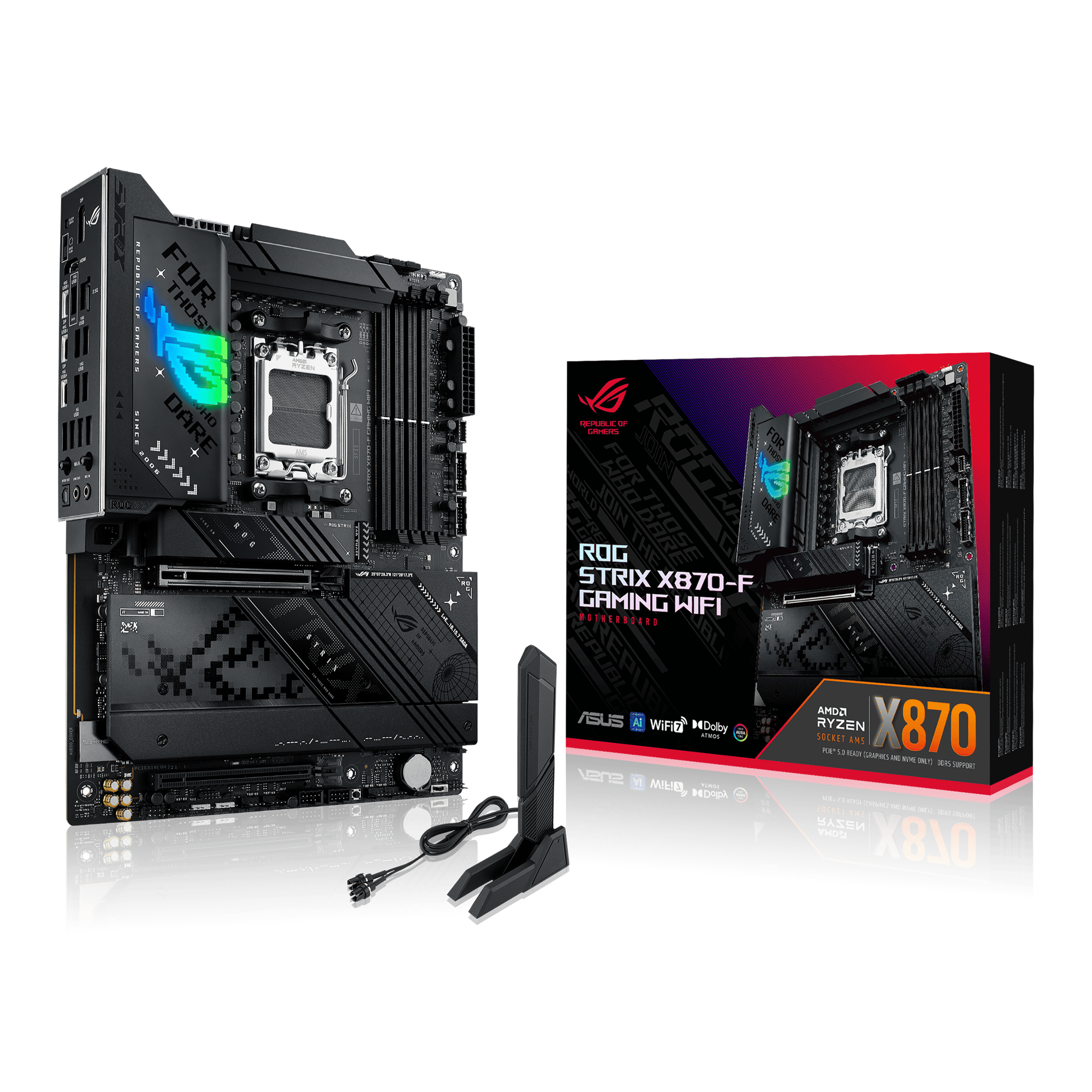

ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard for AMD AM5 CPUs

ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3701

£440.05 inc VAT

ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard for AMD AM5 CPUs

90MB1IV0-M0EAY0

£440.05 inc VAT

Available for Free Priority Delivery from Tomorrow

or Click & Collect from Today

10+ In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • AMD X870 Chipset
  • Socket AM5
  • DDR5 (Max: 192GB / 4 slots)
  • 4 x M.2 & 12 x USB & 2 x SATA
  • HDMI and Display Port
CCL Code: MBD3701
Overview

The ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

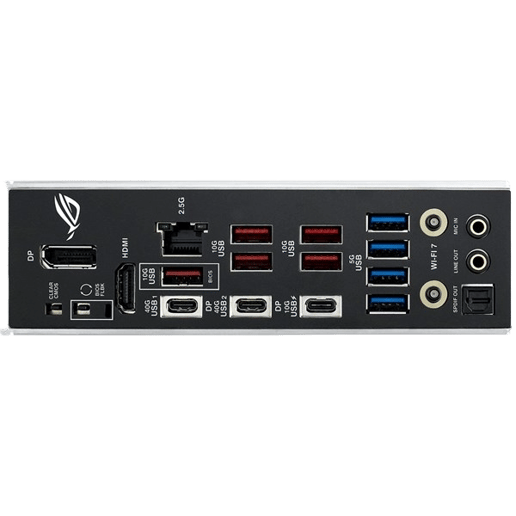

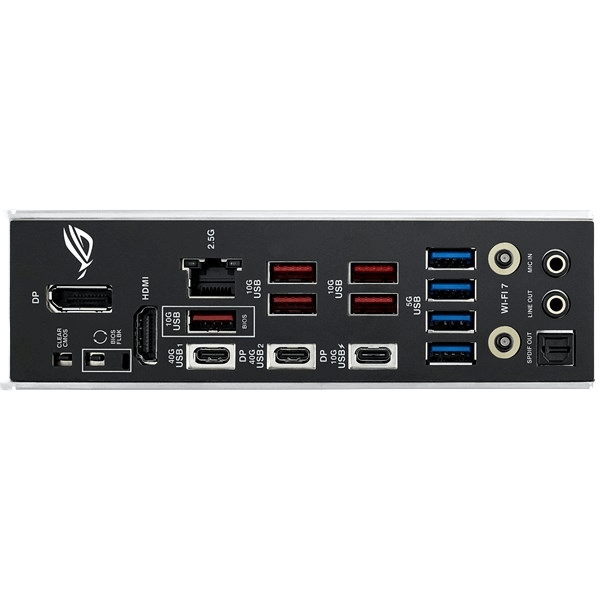

Rear Panel I/O Ports

USB Ports 2 x USB-C 4
1 x USB-C 3.1
5 x USB 3.1
4 x USB 3.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 2 x SATA III
USB Connectors 1 x USB-C 3.2 header (supporting 1 port)
2 x USB 3.0 headers (supporting 4 ports)
2 x USB 2.0 headers (supporting 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
5 x Chassis fan headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2280 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x Thermal Sensor header

Memory

Memory Bus Speed Up to 8000 MT/s
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD X870
RAID Supported RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound ROG SupremeFX ALC4080

Warranty

Warranty 3 Years

Network

Integrated Network Intel
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 7
Wireless Network Speed Up to 6.5 Gbps
Bluetooth Yes
Bluetooth Version 5.4

System Requirements

Operating Systems Supported Windows 11
Windows 10 64-bit

System

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x CPU Over Voltage
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

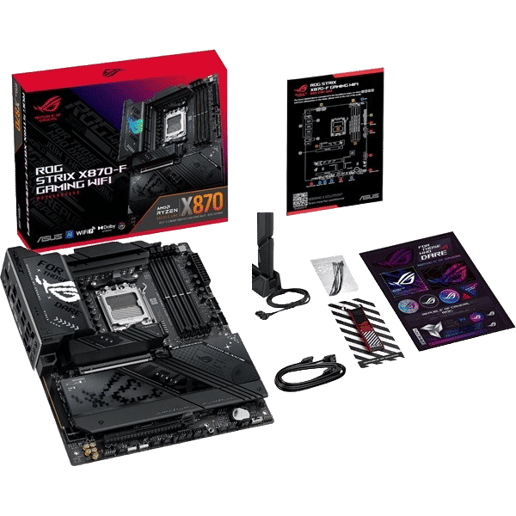

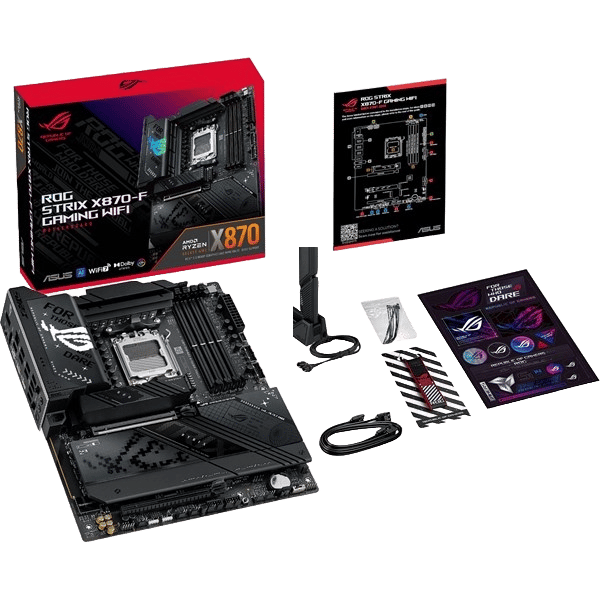

In The Box Motherboard
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2 22110
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber packages
1 x Quick start guide
Width 244 mm
Length 305 mm

Key Features

RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
SATA ports 2
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
Back Connect Support No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 2 port(s)
Number of USB Ports 12 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Drive Interface Type PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset AMD X870
Thunderbolt No
Motherboard Model ASUS ROG Strix X870-F Gaming WiFi
WiFi Speed 6500 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1IV0-M0EAY0
EAN 4711387732045
UPC 197105732049
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1IV0-M0EAY0
