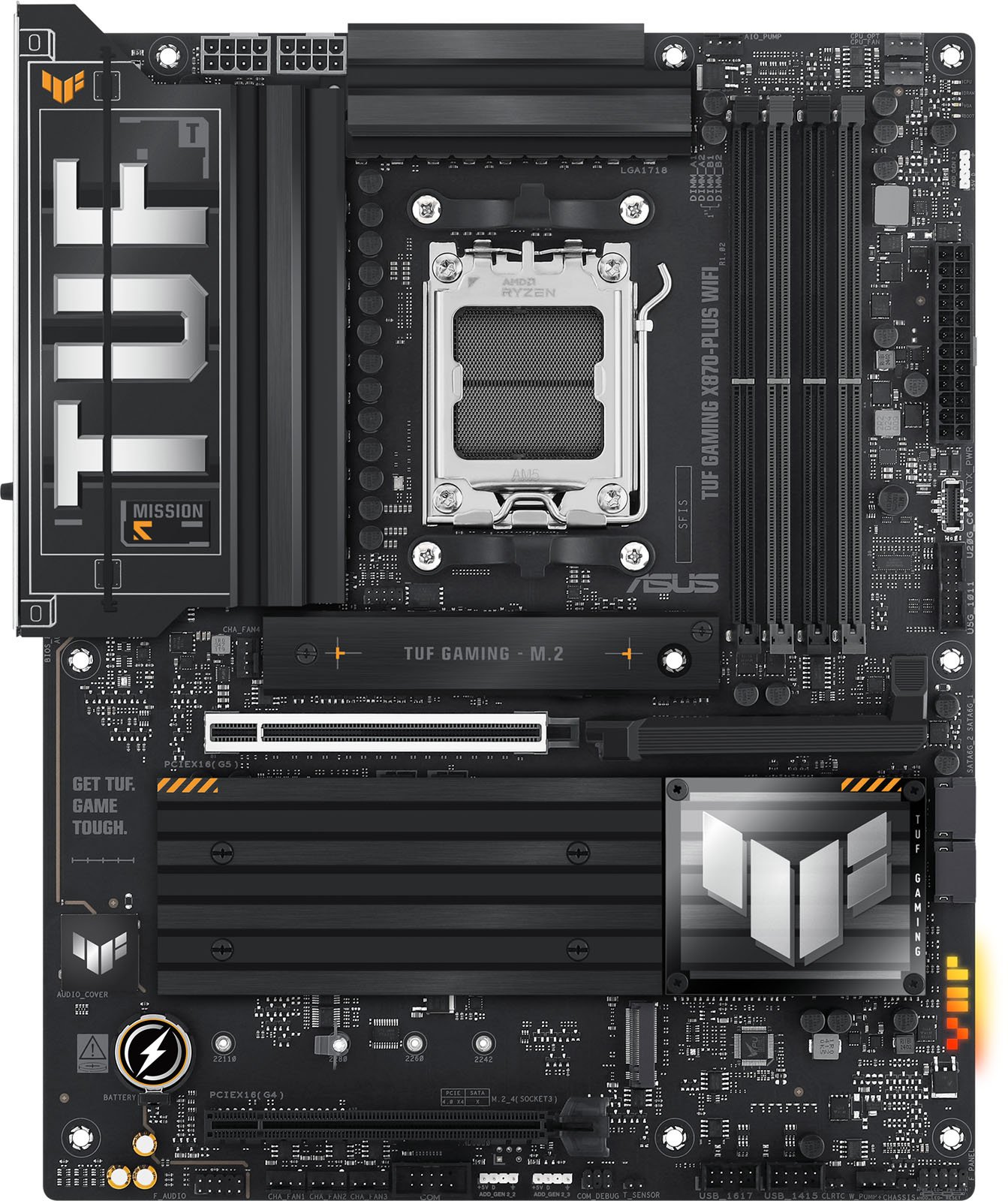

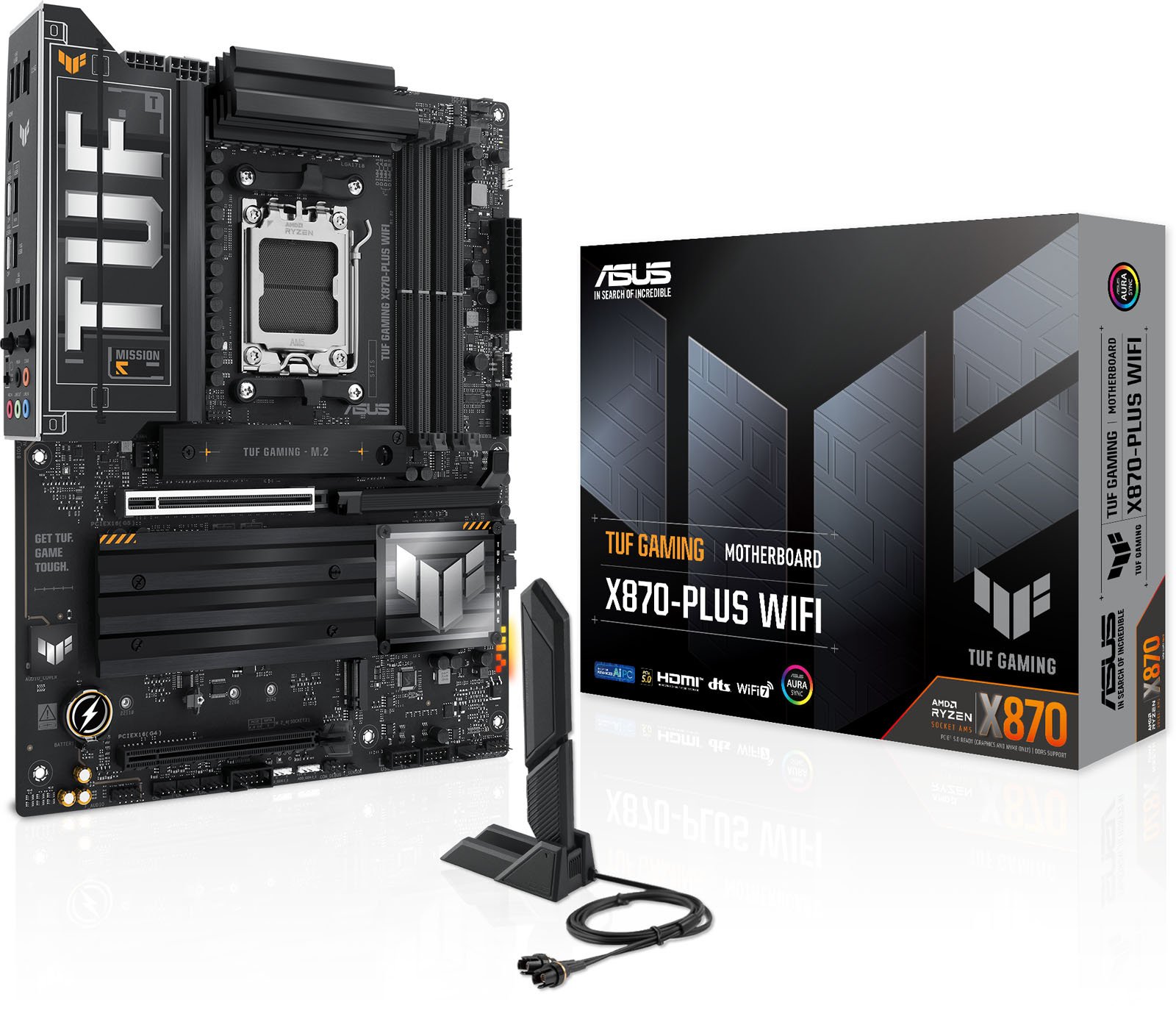

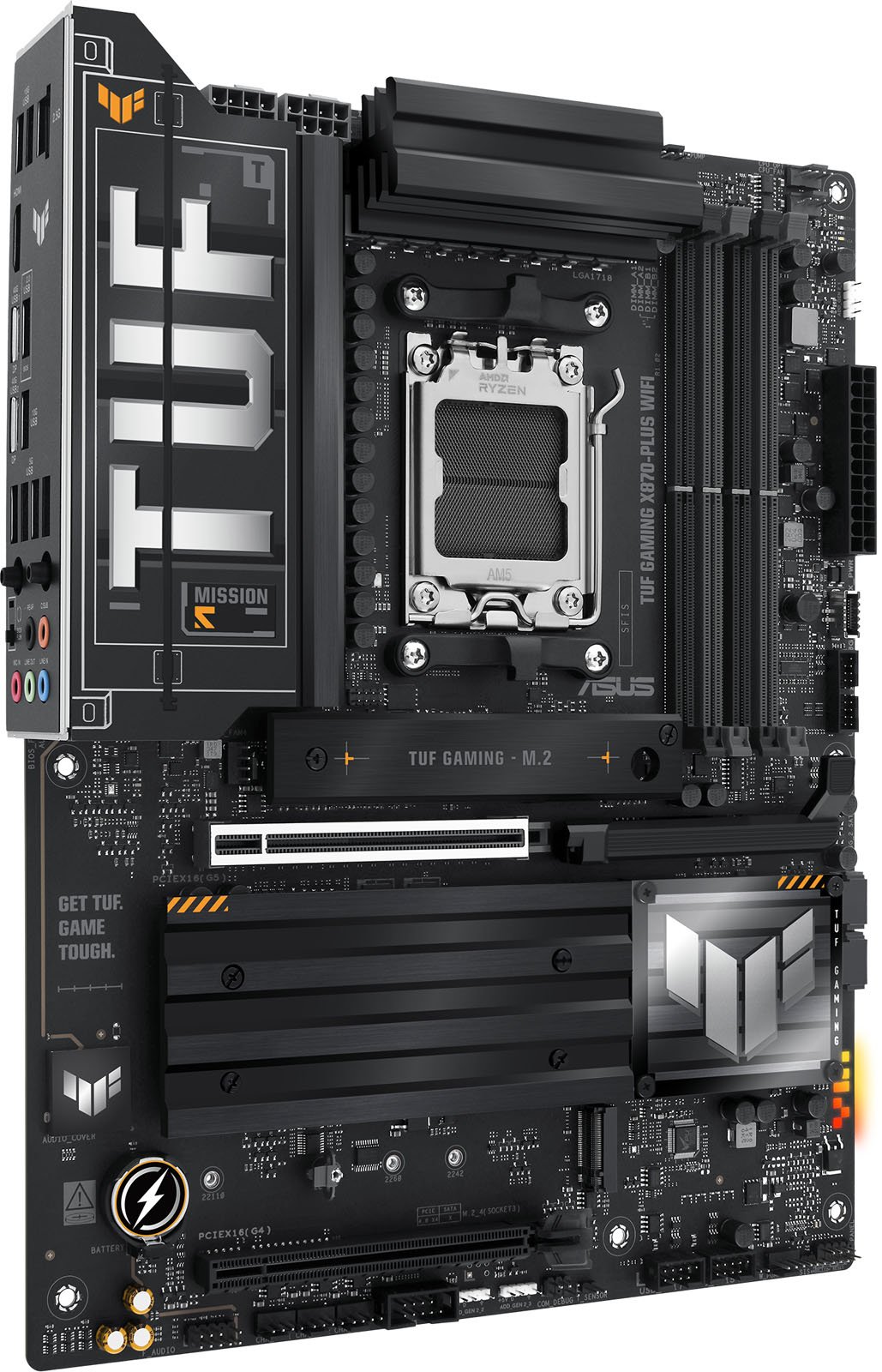

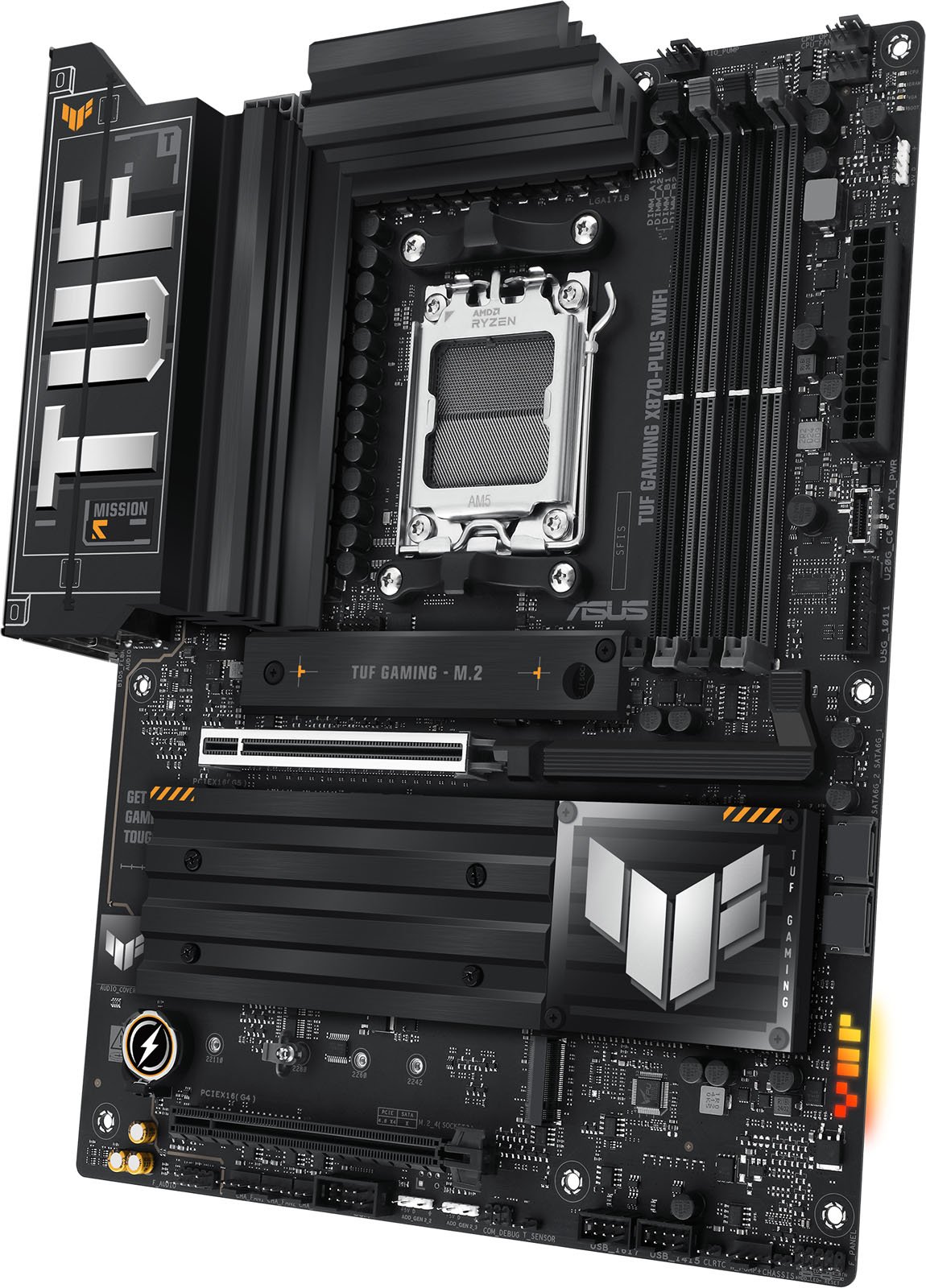

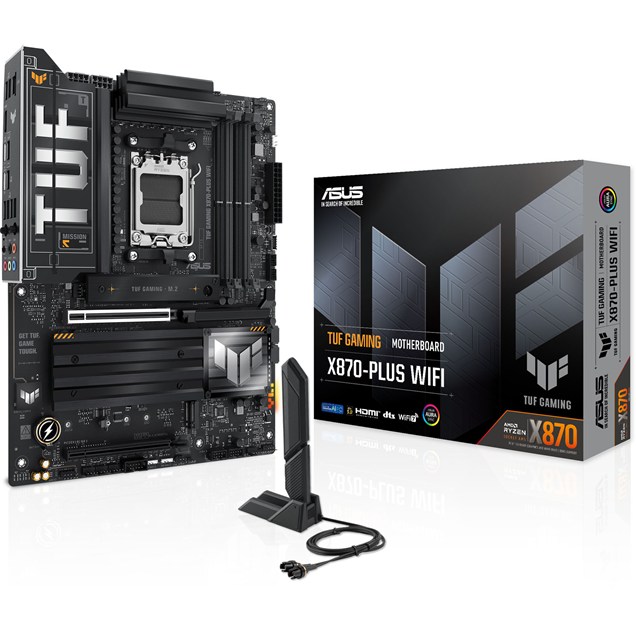

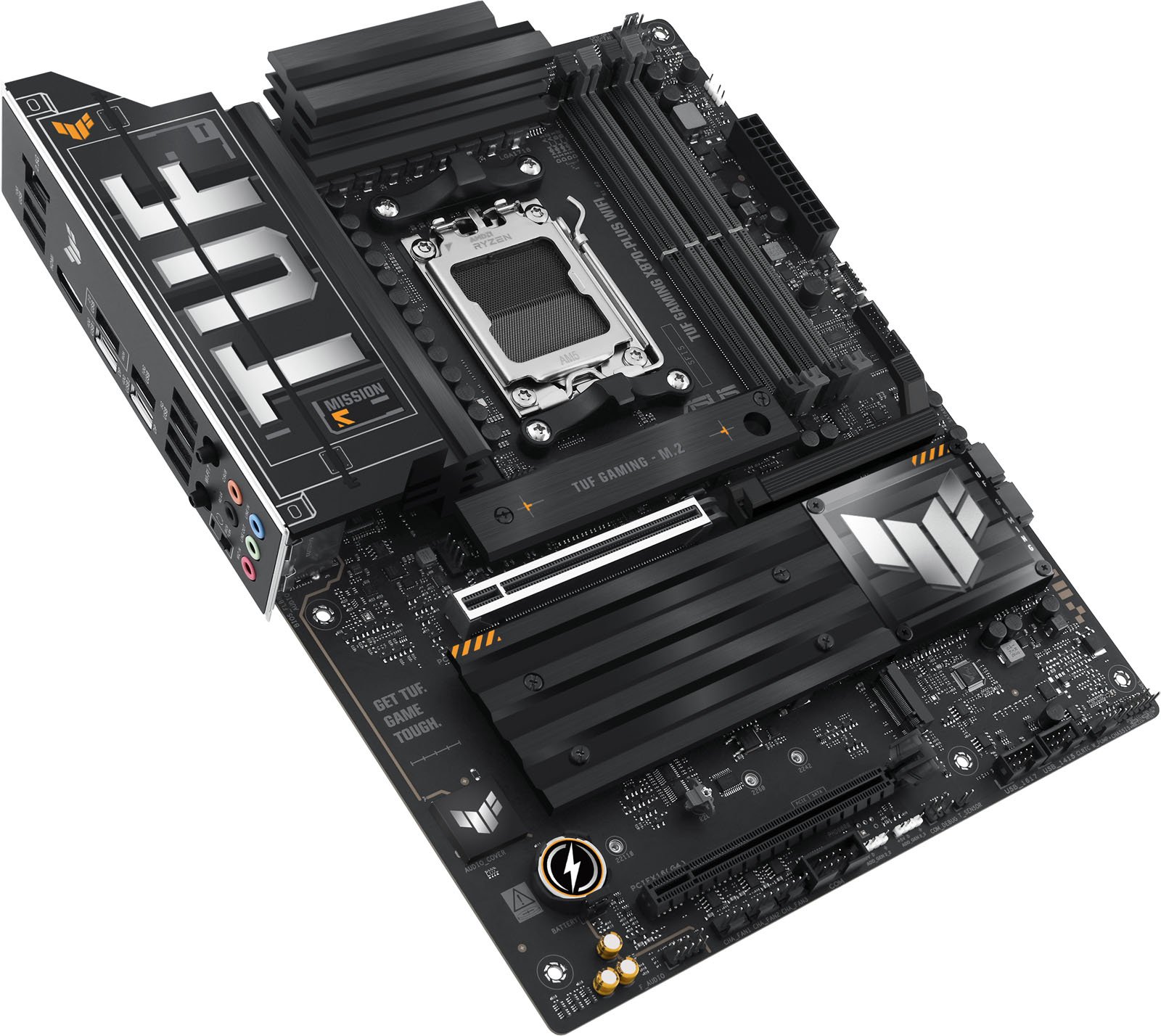

ASUS TUF Gaming X870-Plus WiFi ATX Motherboard for AMD AM5 CPUs

ASUS TUF Gaming X870-Plus WiFi ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3703

£320.87 inc VAT

ASUS TUF Gaming X870-Plus WiFi ATX Motherboard for AMD AM5 CPUs

90MB1IU0-M0EAY0

£320.87 inc VAT

Available for Free Priority Delivery from Tomorrow

or Click & Collect from Today

8 In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • AMD X870 Chipset
  • Socket AM5
  • DDR5 (Max: 256GB / 4 slots)
  • 4 x M.2 & 10 x USB & 2 x SATA
  • HDMI
CCL Code: MBD3703
Overview

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

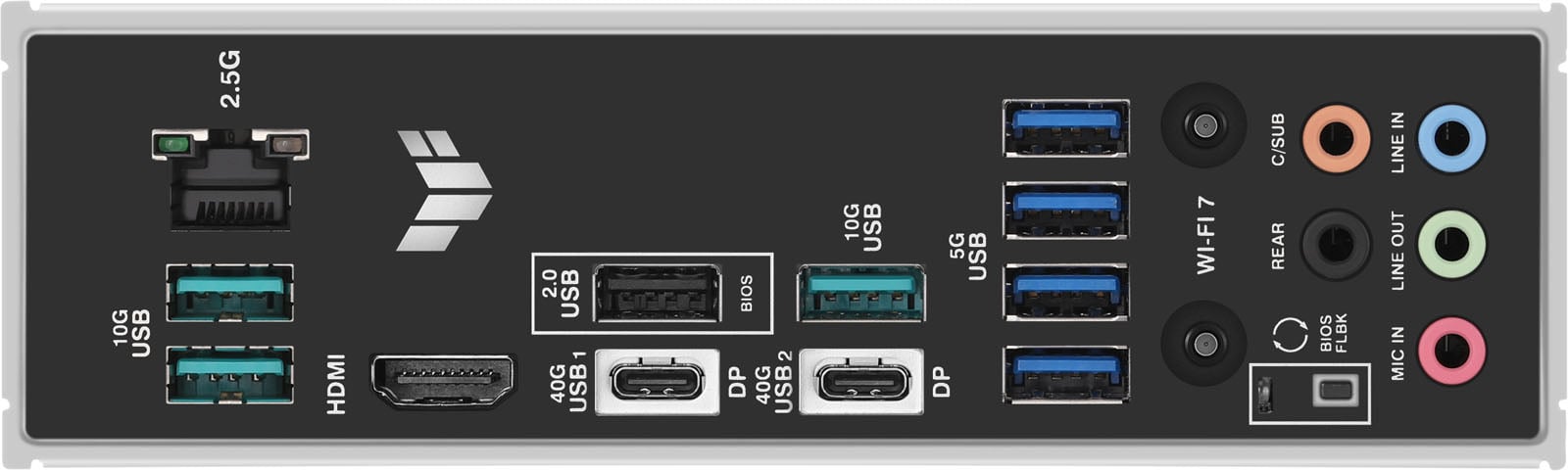

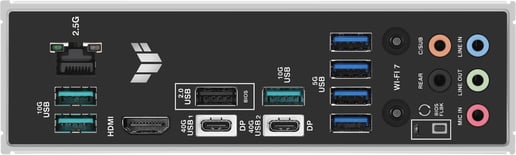

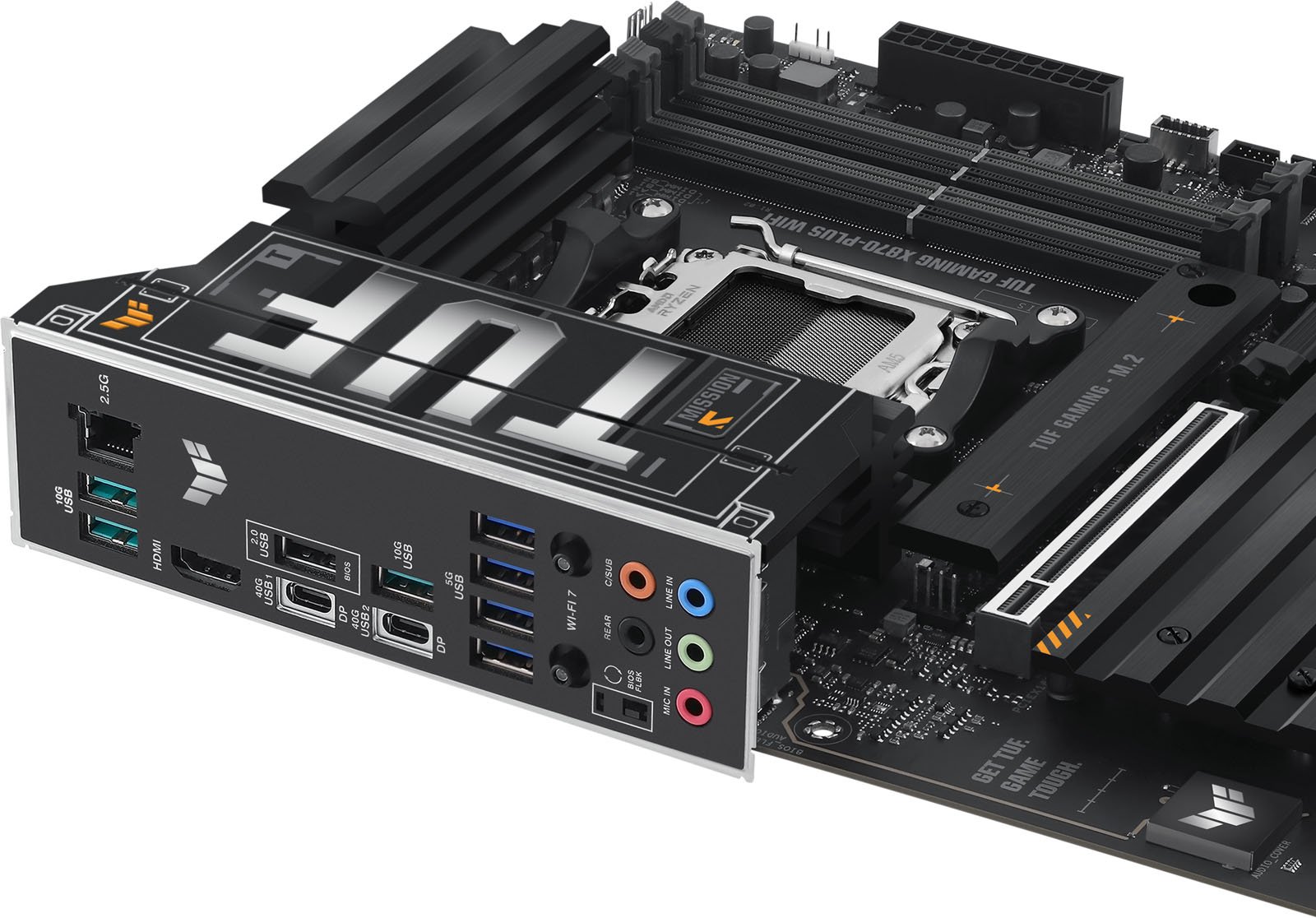

Rear Panel I/O Ports

USB Ports 2 x USB-C 4
3 x USB 3.1
4 x USB 3.0
1 x USB 2.0
DisplayPorts Yes - via USB-C
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack

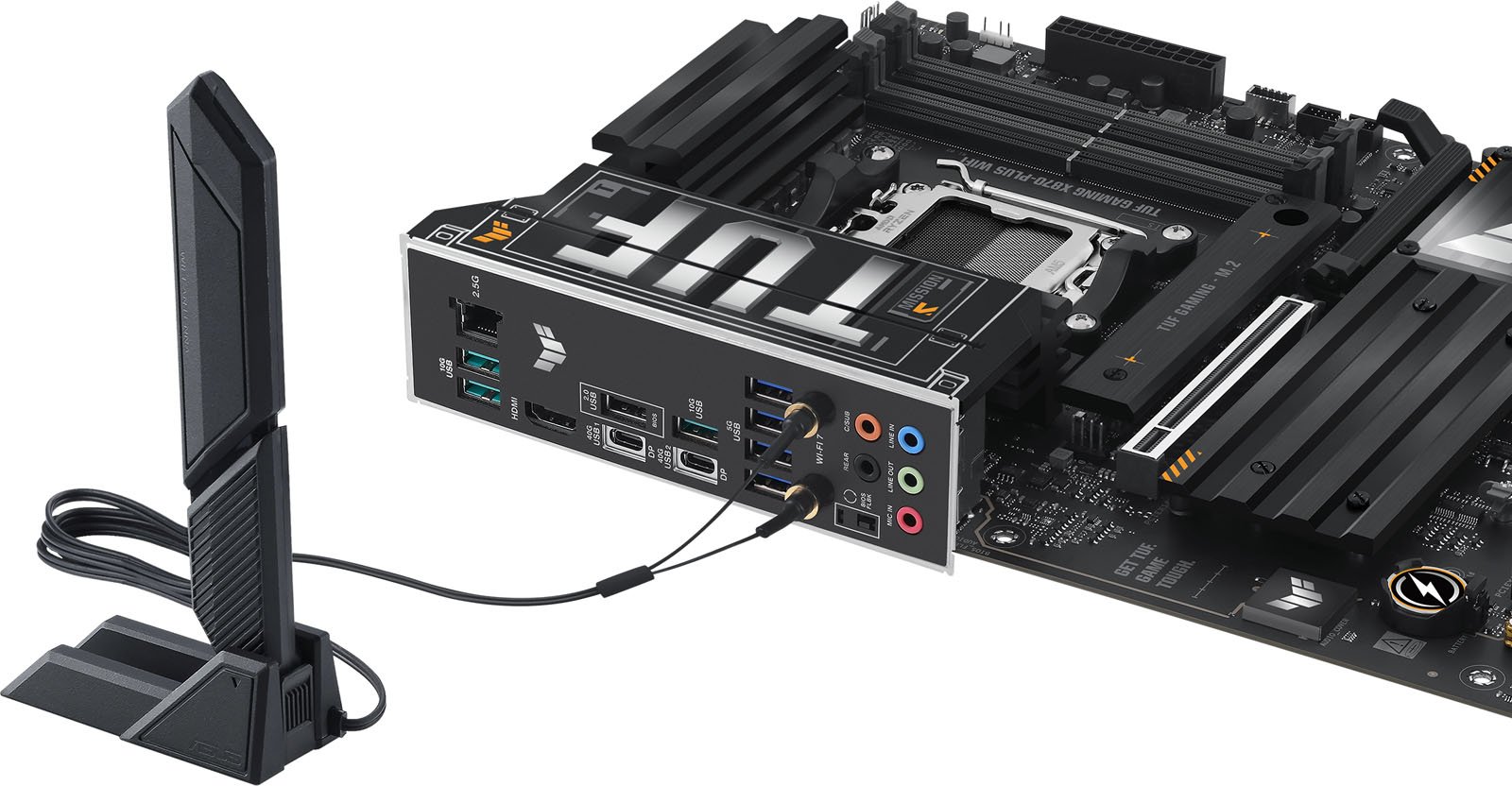

Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 2 x SATA III
USB Connectors 1 x USB-C 3.2 header (supporting 1 port)
1 x USB 3.0 header (supporting 2 ports)
2 x USB 2.0 headers (supporting 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
4 x Chassis fan headers
1 x W_PUMP+ header
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x Thermal Sensor header

Memory

Memory Bus Speed Up to 8000 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD X870
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC1220P

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 7
Wireless Network Speed Up to 2.9 Gbps
Bluetooth Yes
Bluetooth Version 5.4

System Requirements

Operating Systems Supported Windows 11, Windows 10 64-bit

System

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

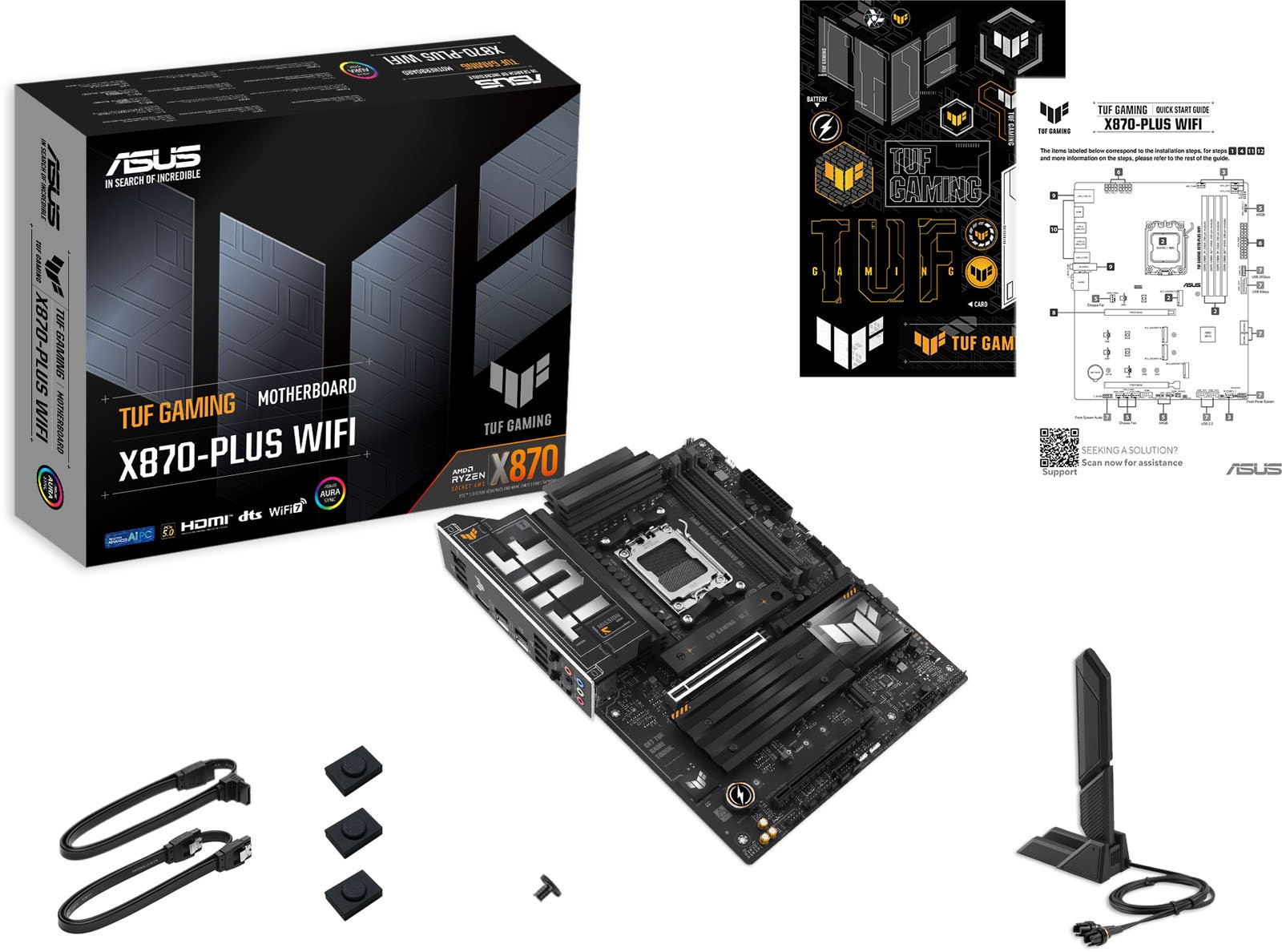

In The Box Motherboard
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
1 x TUF certification card
1 x Quick start guide
Width 244 mm
Length 305 mm

Key Features

Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
SATA ports 2
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 2 port(s)
Number of USB Ports 10 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
Drive Interface Type PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset AMD X870
Thunderbolt No
Motherboard Model ASUS TUF Gaming X870-Plus WiFi
WiFi Speed 2900 Mbps
USB 3.1 Support Yes

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1IU0-M0EAY0
EAN 4711387723609
UPC 197105723603
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1IU0-M0EAY0
Reviews
No reviews have been received for this product yet
