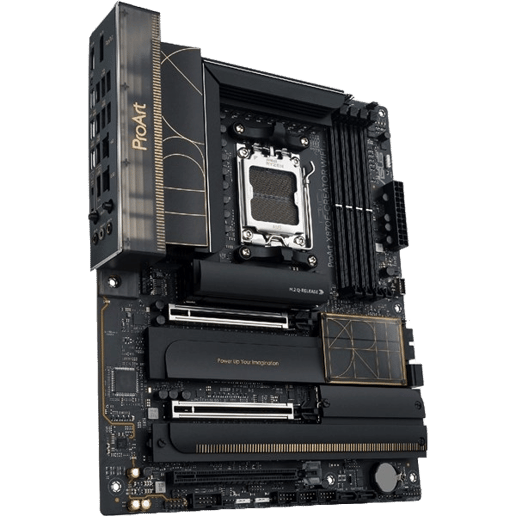

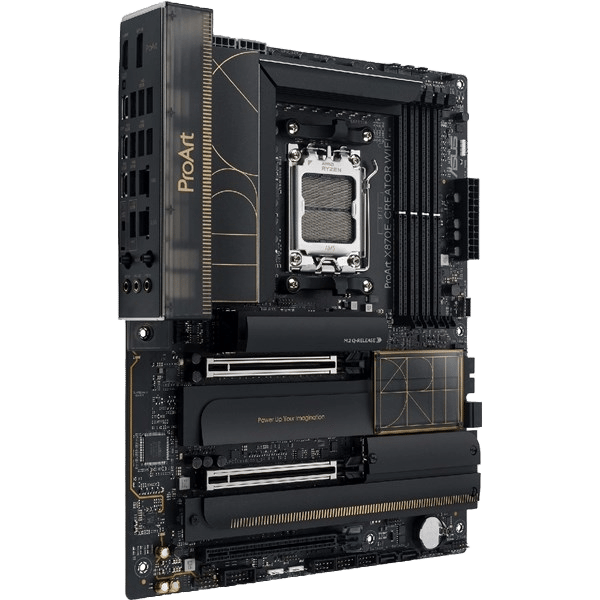

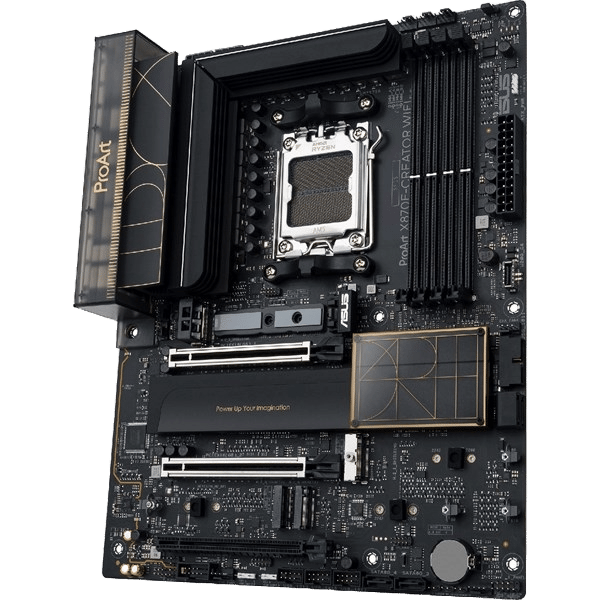

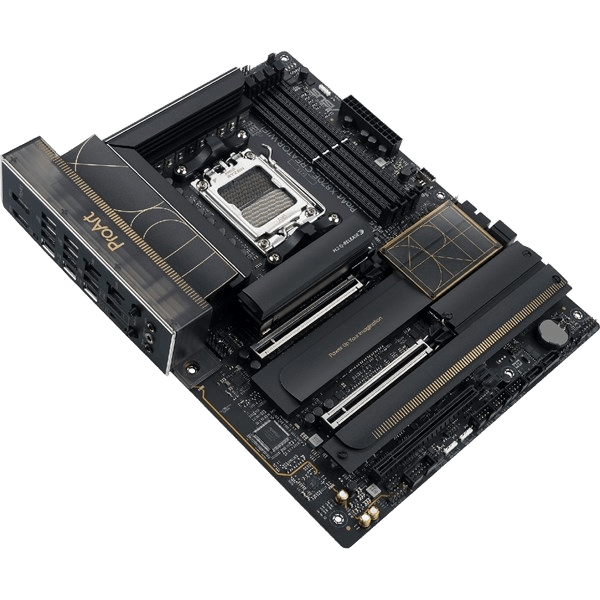

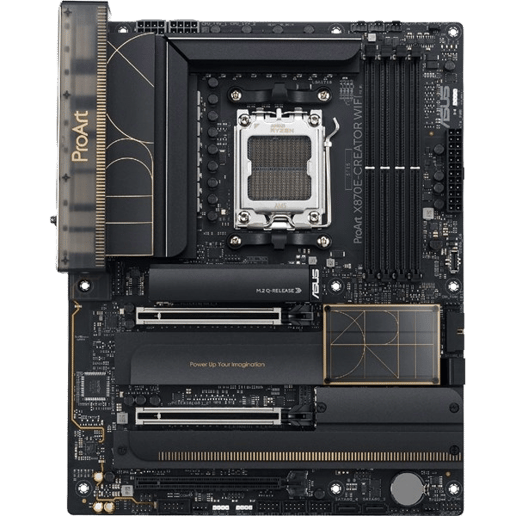

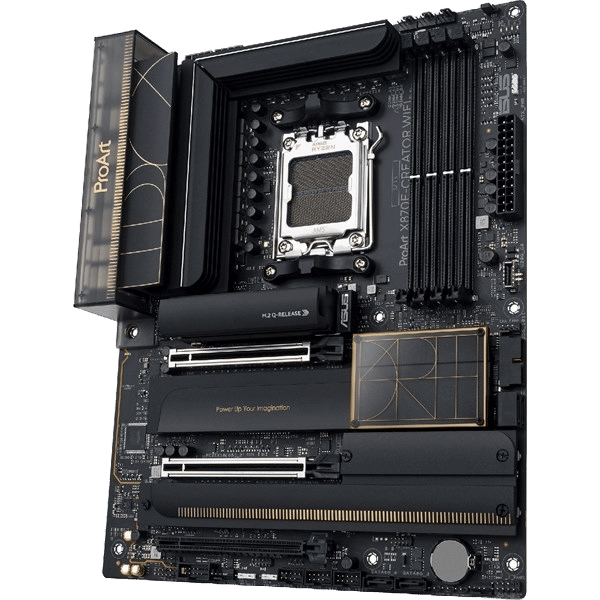

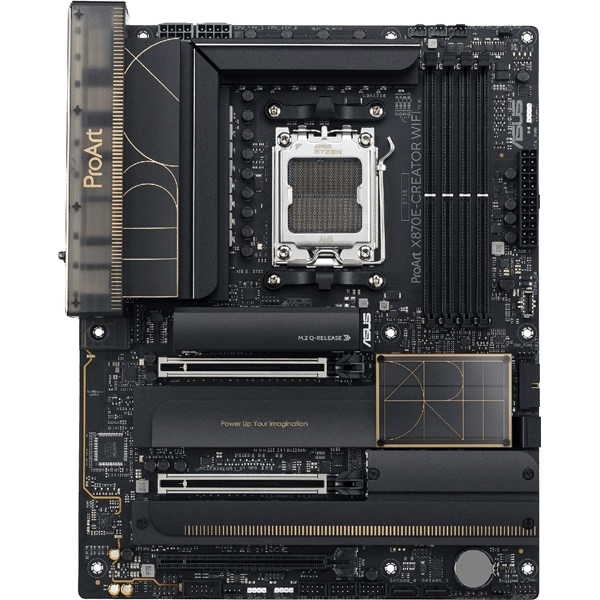

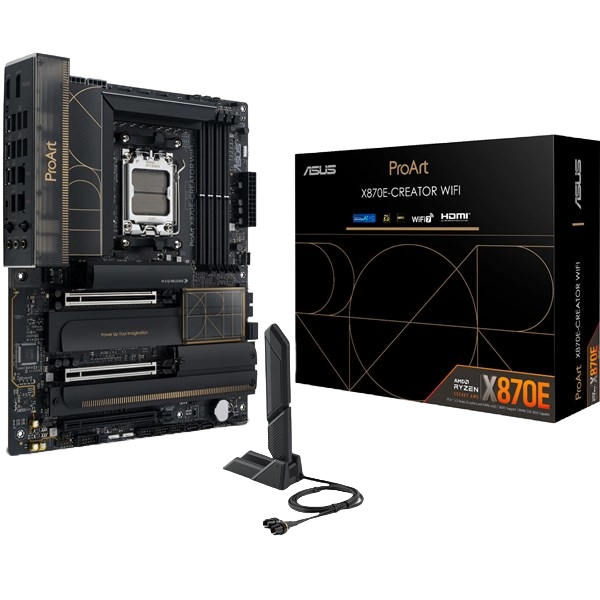

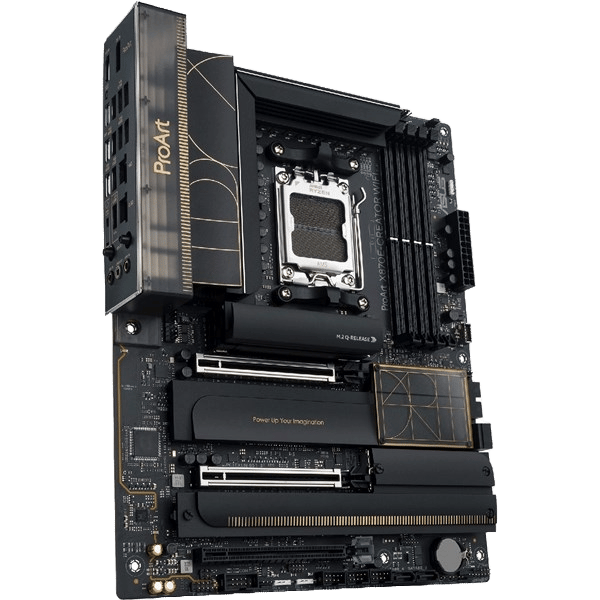

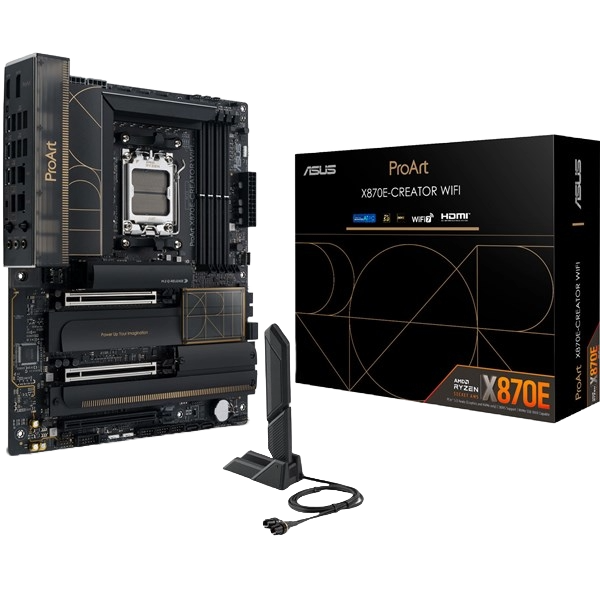

ASUS ProArt X870E-Creator WiFi ATX Motherboard for AMD AM5 CPUs

ASUS ProArt X870E-Creator WiFi ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3700

£485.99 inc VAT

ASUS ProArt X870E-Creator WiFi ATX Motherboard for AMD AM5 CPUs

90MB1IG0-M0EAY0

£485.99 inc VAT

Available for delivery from Tuesday 26th November

or Click & Collect from Tuesday 26th November

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • AMD X870E Chipset
  • Socket AM5
  • DDR5 (Max: 256GB / 4 slots)
  • 4 x M.2 & 11 x USB & 4 x SATA
  • HDMI
CCL Code: MBD3700
Overview

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

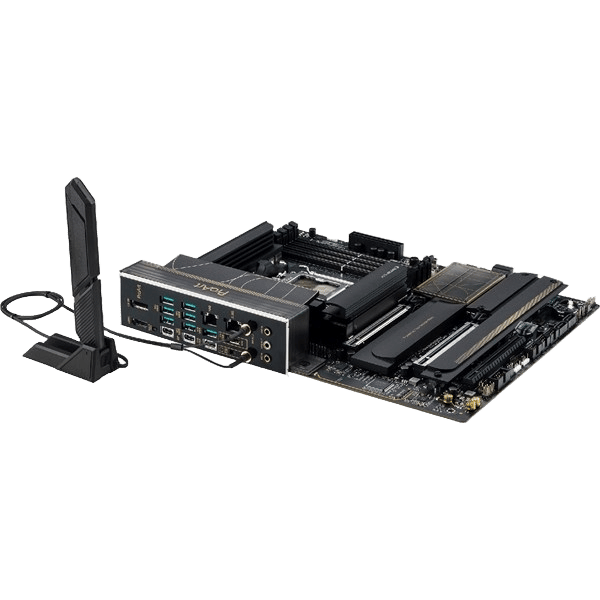

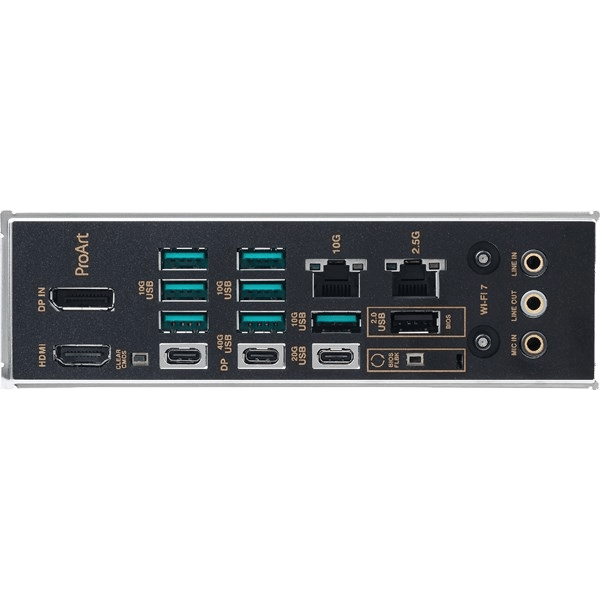

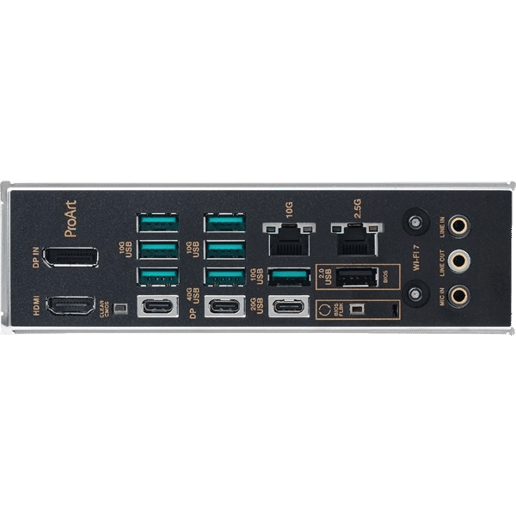

Rear Panel I/O Ports

USB Ports 2 x USB-C 4
1 x USB-C 3.2
7 x USB 3.1
1 x USB 2.0
DisplayPorts Yes - via USB-C 4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 2 x RJ-45
DisplayPort(s) 1 x DisplayPort IN
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supporting 1 port)
1 x USB 3.0 header (supporting 2 ports)
3 x USB 2.0 headers (supporting 6 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
5 x Chassis fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x Thermal Sensor header

Memory

Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD X870E
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek S1220A

Warranty

Warranty 3 Years

Network

Integrated Network Marvel AQtion
Intel
Network Speeds Supported Marvel: Up to 10 Gbps
Intel: Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 7
Wireless Network Speed Up to 6.5 Gbps
Bluetooth Yes
Bluetooth Version 5.4

System Requirements

Operating Systems Supported Windows 11
Windows 10 64-bit

System

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x CPU Over Voltage
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

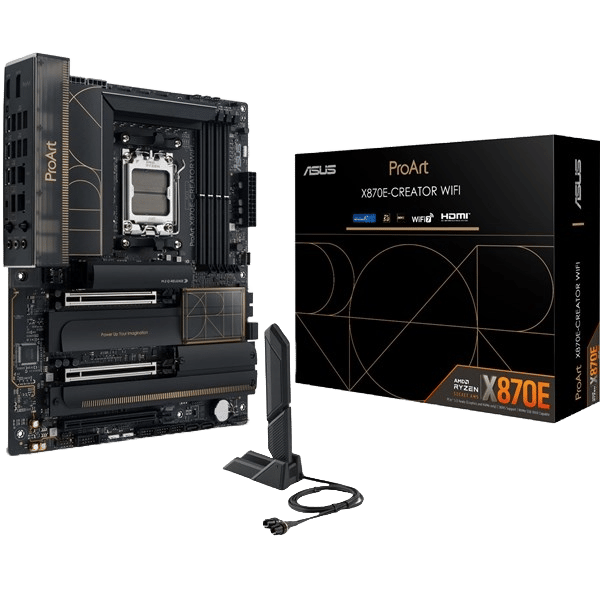

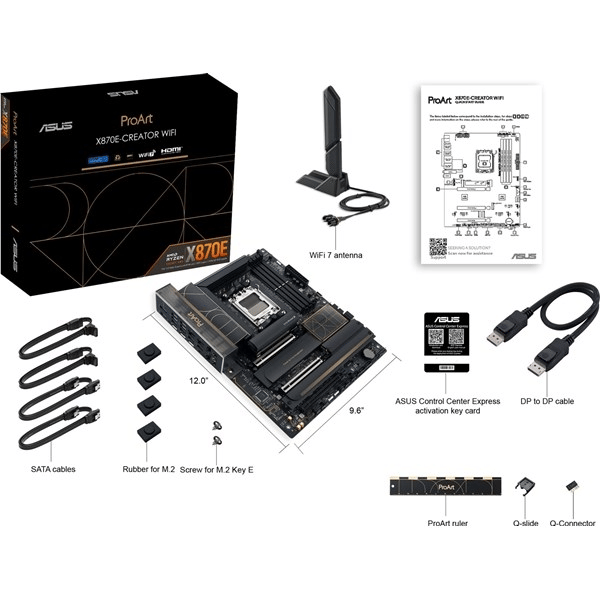

In The Box Motherboard
1 x DisplayPort cable
4 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide
Width 244 mm
Length 305 mm

Key Features

USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
CPU Power Pins (female) 16
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
SATA ports 4
No. of front USB2.0 ports supported 6
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 11 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset AMD X870E
Thunderbolt No
Motherboard Model ASUS ProArt X870E-Creator WiFi
WiFi Speed 6500 Mbps

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1IG0-M0EAY0
EAN 4711387730775
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1IG0-M0EAY0
