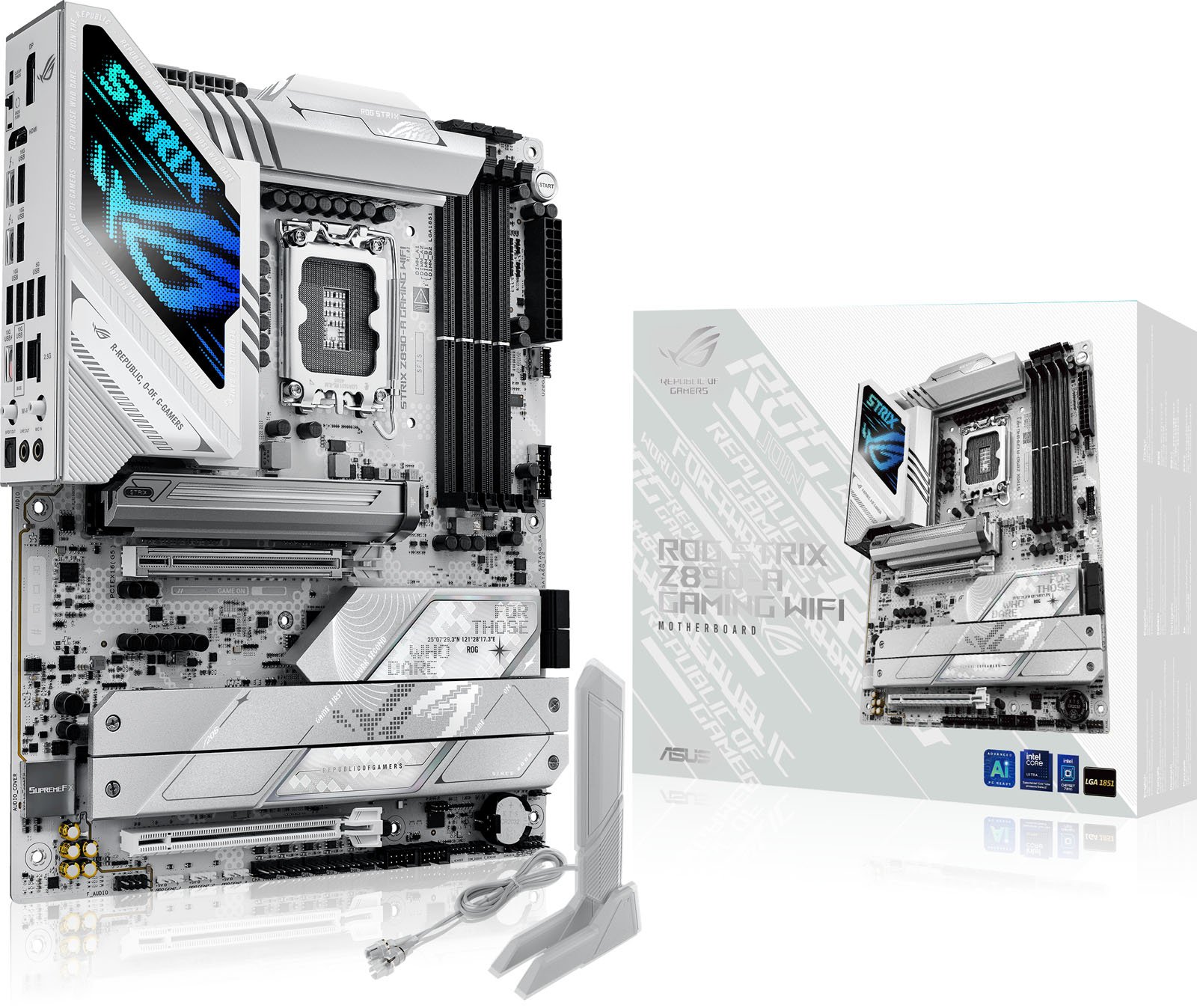

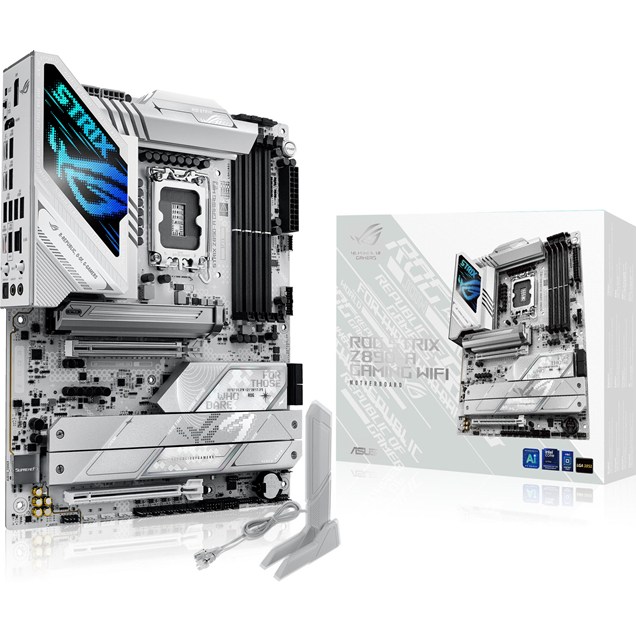

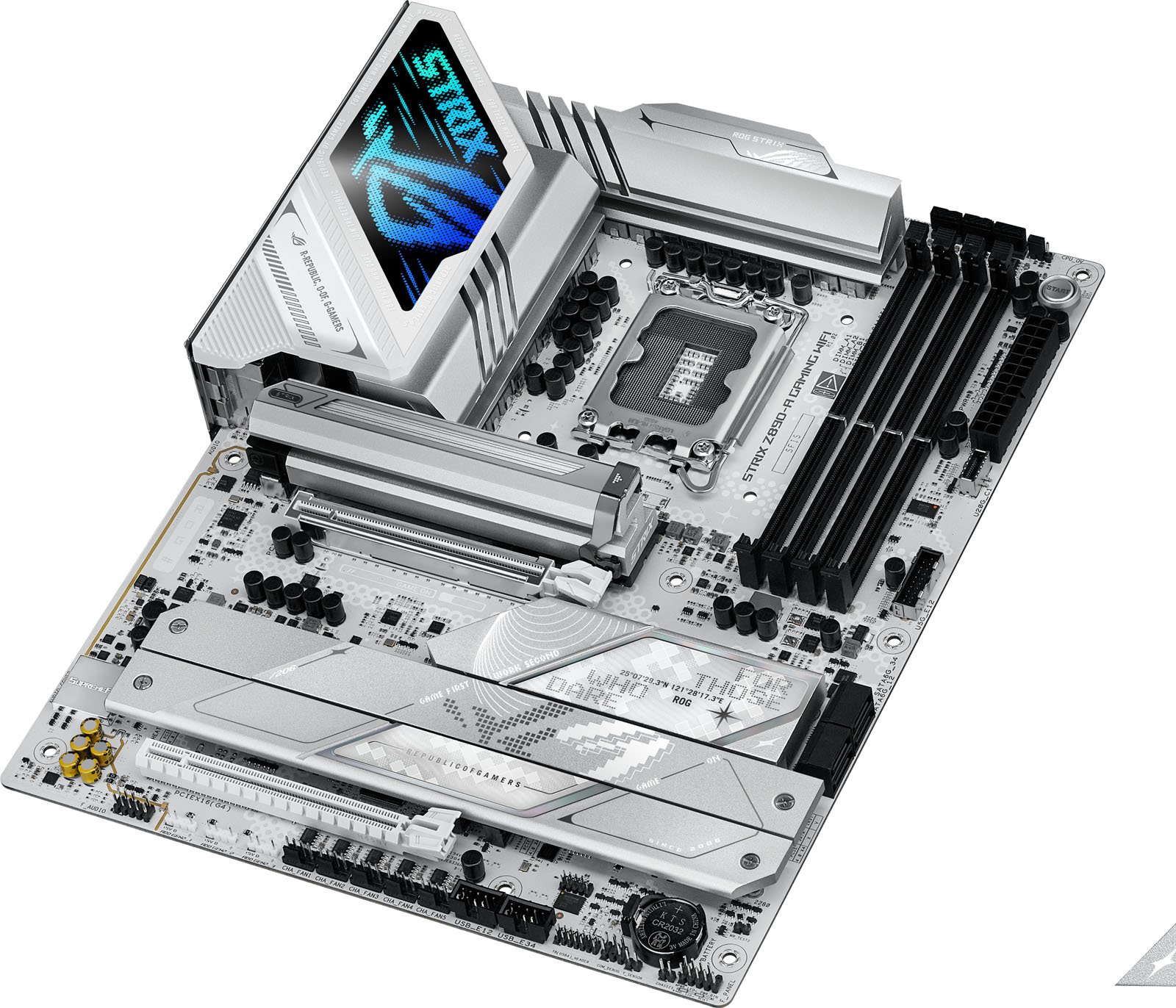

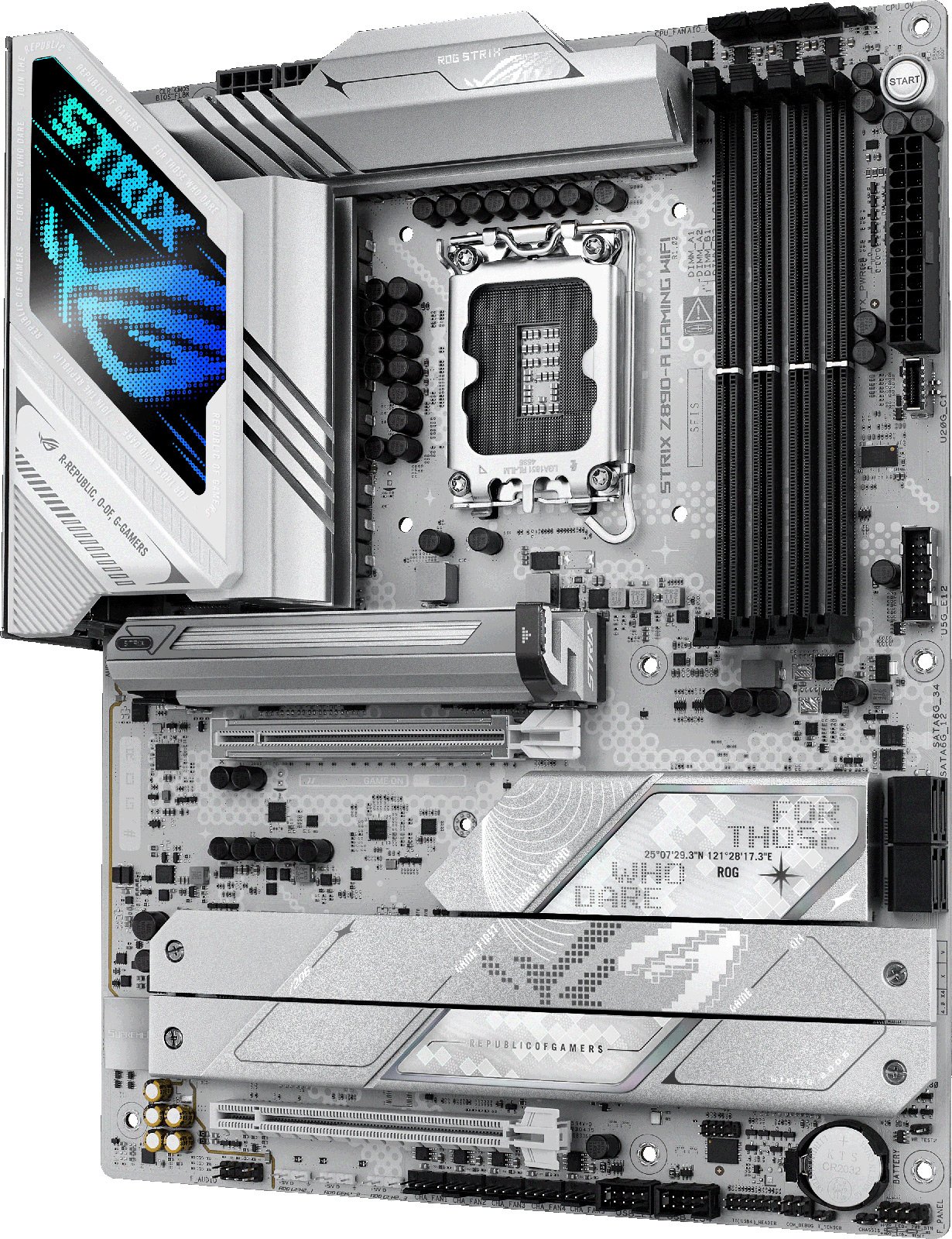

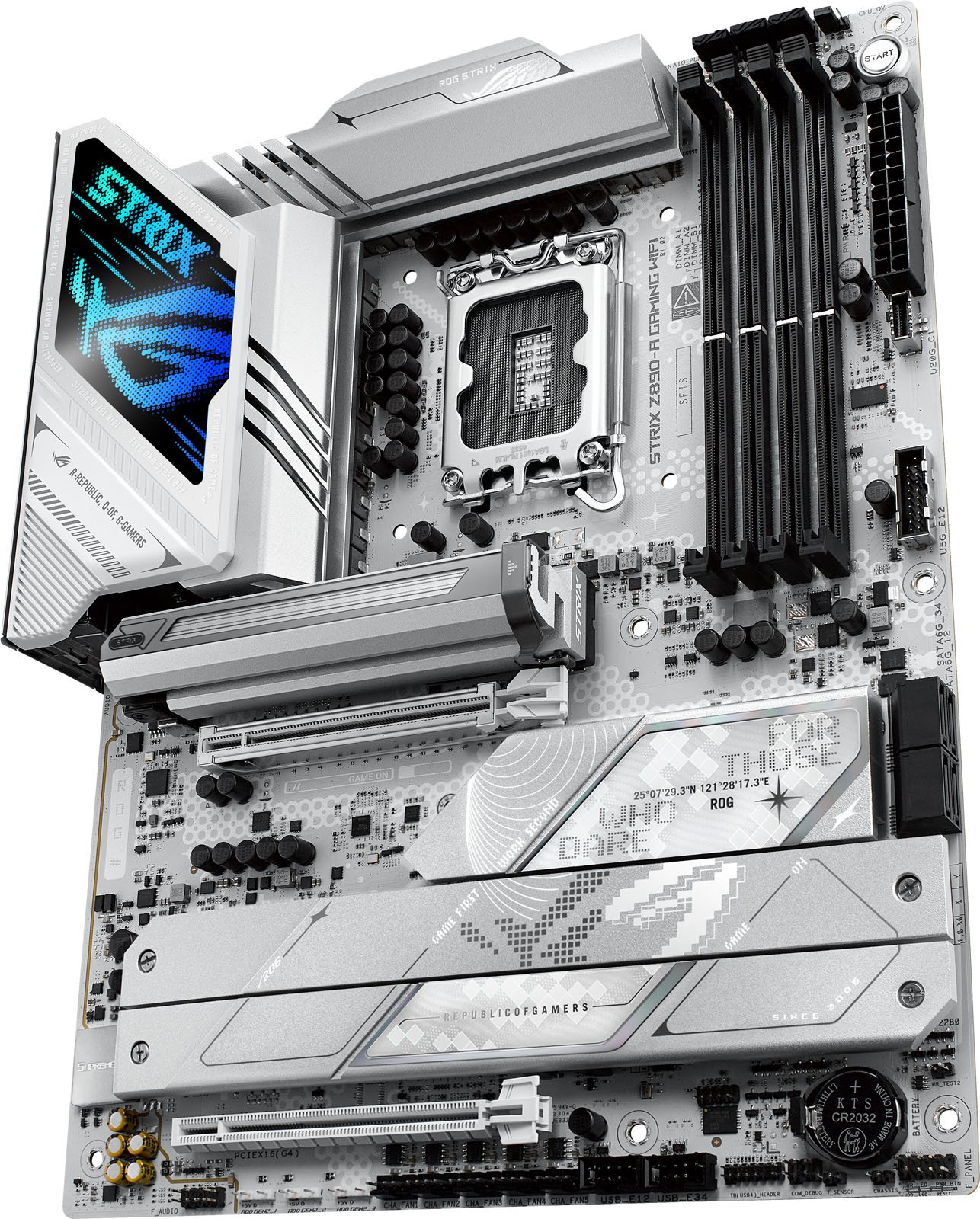

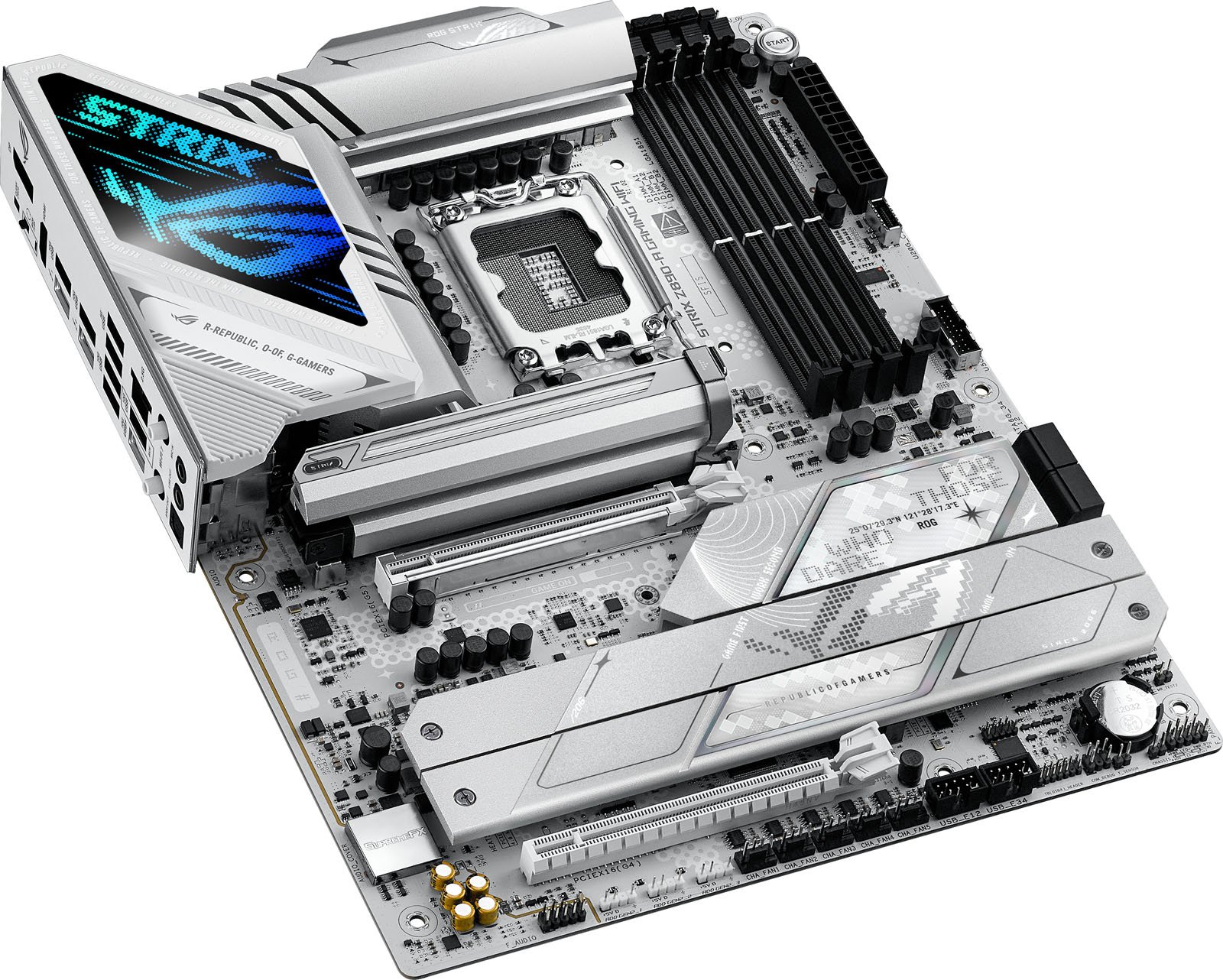

ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs

ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs

CCL Code: MBD3735

£444.99 inc VAT

  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
  • ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs

Claim cashback on this product from ASUS!*

Rate your Gear and claim £25 cashback from ASUS*

ASUS ROG Strix Z890-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs

90MB1I90-M0EAY0

£444.99 inc VAT

Available for delivery from Thursday 5th December

or Click & Collect from Tomorrow

10 In Stock Now

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel Z890 Chipset
  • Socket 1851
  • DDR5 (Max: 192GB / 4 slots)
  • 5 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3735
Overview

ASUS ROG Strix Z890-A Gaming WiFi Intel LGA1851 Motherboard

Promotions

Receive up to £120 Cashback with the purchase of selected ASUS products.

Upgrade your PC and enjoy cashback from ASUS

For a limited time, claim up to £120 cashback directly from ASUS when you buy selected ASUS Intel Z890 motherboards or ASUS liquid coolers from CCL!

For more information and to view qualifying products, visit our promotion page.

Once you have your invoice, follow the below Redemption Link to make a claim
promotion.asus.com/en/uk/advanced-ai-intel-cashback-2024

Separation

Promotional Period: From October 24th until December 4th 2024. Claims must be made directly with ASUS. CCL does not provide cashback.

Claim Period: From November 7th until December 18th 2024. Claims made outside of this timeframe will not be honoured.



Terms and Conditions

CCL do not provide cashback - all claims are processed and handled by ASUS directly with the end user. One end user (bank account) can only claim one time during promotion. Each product line can only be redeemed one time. For full Terms & Conditions, please visit the ASUS website.

ASUS Rate Your Gear

Rate your Gear with ASUS

For a limited time purchase an eligible ASUS product, leave a review of said product from the review invitation email, and you can claim £25 cashback from ASUS.

For more information, visit our promotion page. Terms & Conditions apply.

Separation

Promotional Period: From October 21st till December 31st 2024, while stock lasts.

Terms and Conditions

Find the full Terms & Conditions on the ASUS website here: Terms & Conditions.

Specifications

CPU

CPU Socket Socket 1851
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core Ultra Processors (Series 2)
64-bit Support Yes
Socket LGA1851

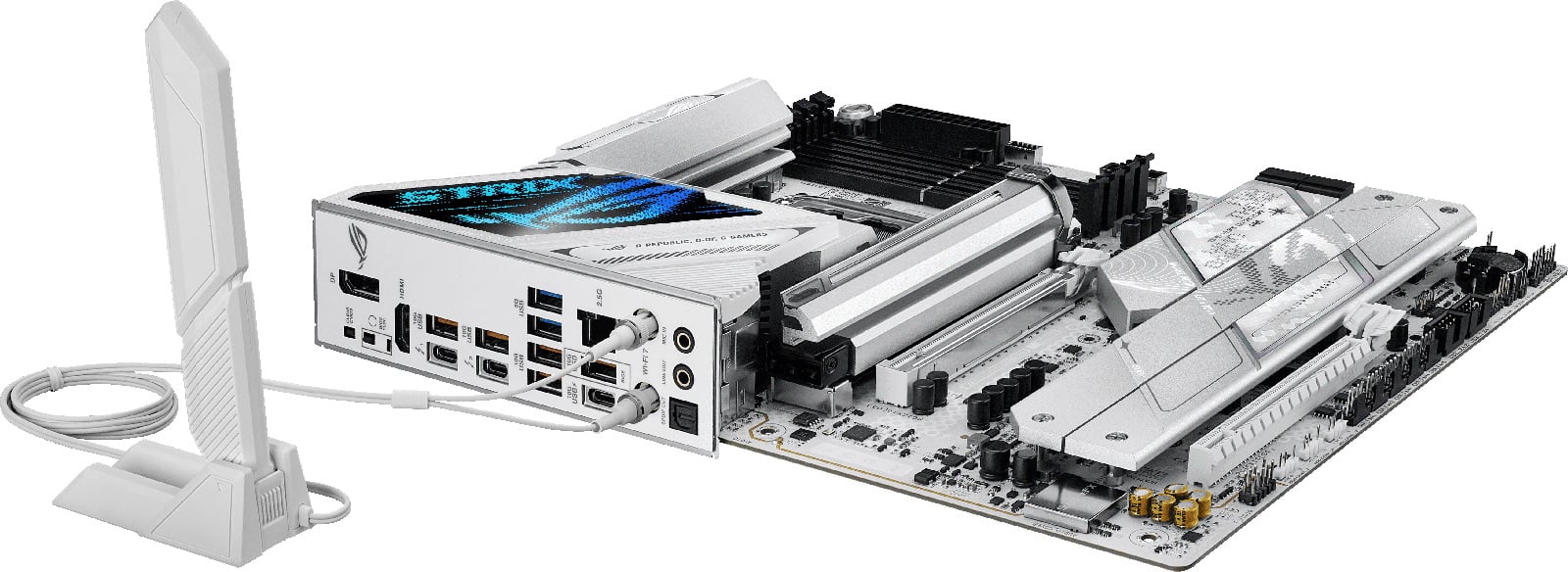

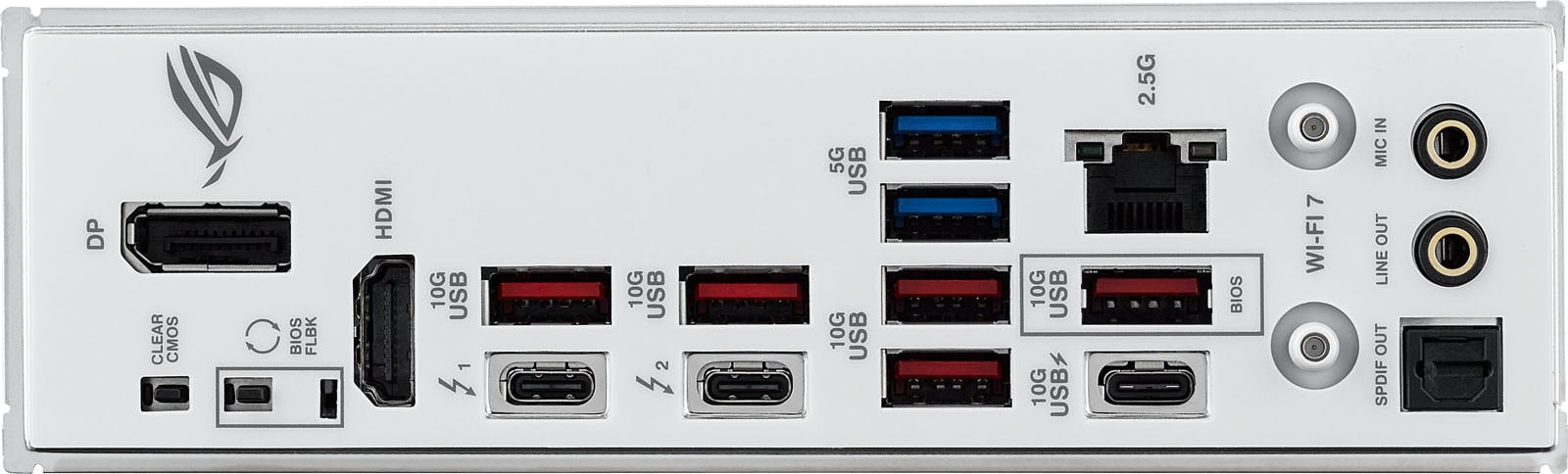

Rear Panel I/O Ports

USB Ports 2 x Thunderbolt 4
1 x USB-C 3.1
5 x USB 3.1
2 x USB 3.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
5 x Chassis fan headers
Thunderbolt Port(s) 1 x Thunderbolt 4 header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 or SATA)
3 x 3-pin ARGB headers
1 x Thermal Sensor header

Memory

Memory Bus Speed Up to 8000 MT/s
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIM

Motherboard

Northbridge Intel Z890
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound ROG SupremeFX ALC4080

Warranty

Warranty 3 Years

Network

Integrated Network Intel
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 7
Wireless Network Speed Up to 5.8 Gbps
Bluetooth Yes
Bluetooth Version 5.4

System Requirements

Operating Systems Supported Windows 11

System

BIOS 256 Mb UEFI AMI BIOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

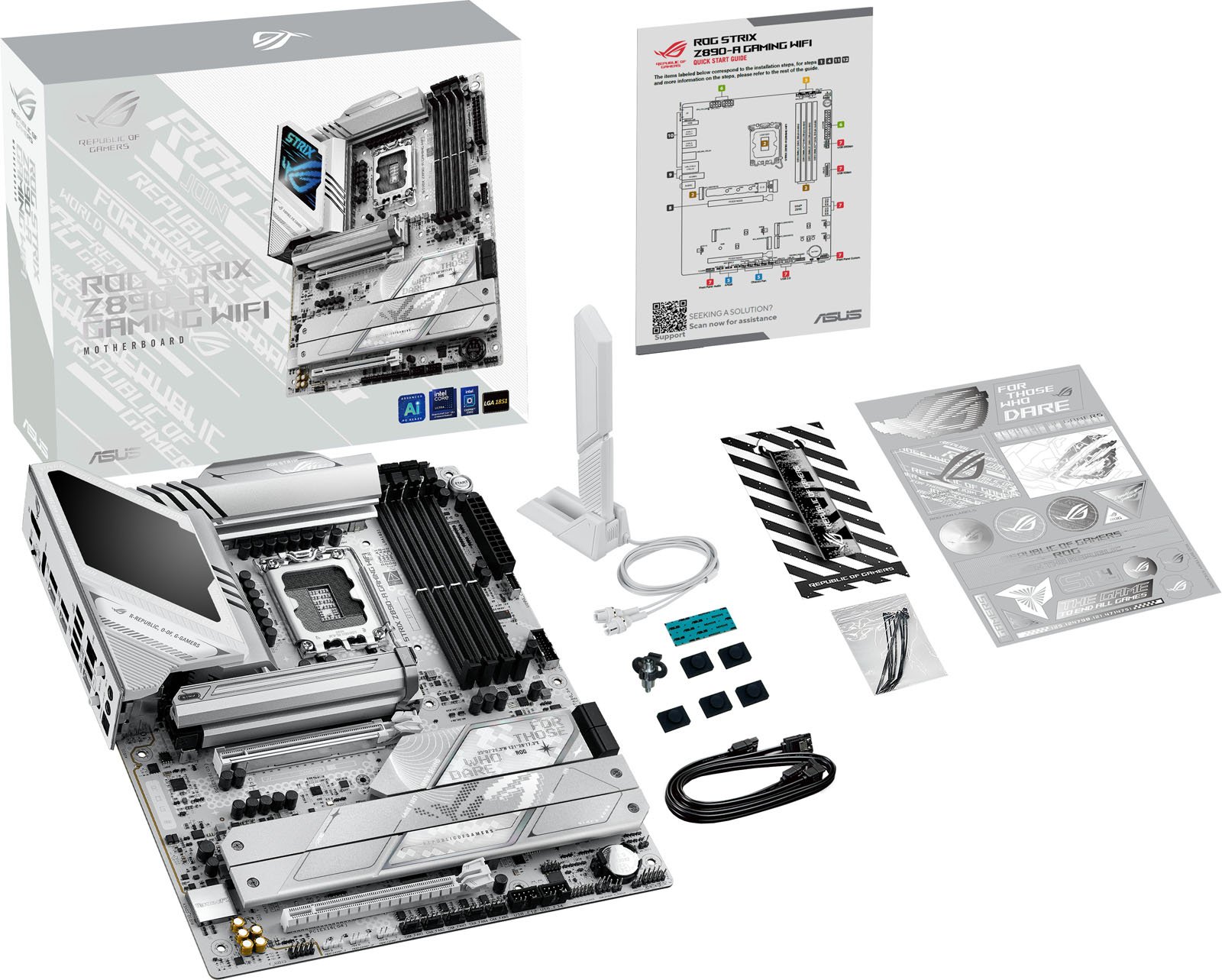

In The Box Motherboard
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2 22110
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 rubber packages
1 x Quick start guide
Width 244 mm
Length 305 mm

Key Features

Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Drive Interface Type PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel Z890
Thunderbolt Yes
Motherboard Model ASUS ROG Strix Z890-A Gaming WiFi
WiFi Speed 5800 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 5
Maximum NVMe M.2 ports 5
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1I90-M0EAY0
EAN 4711387758830
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1I90-M0EAY0
