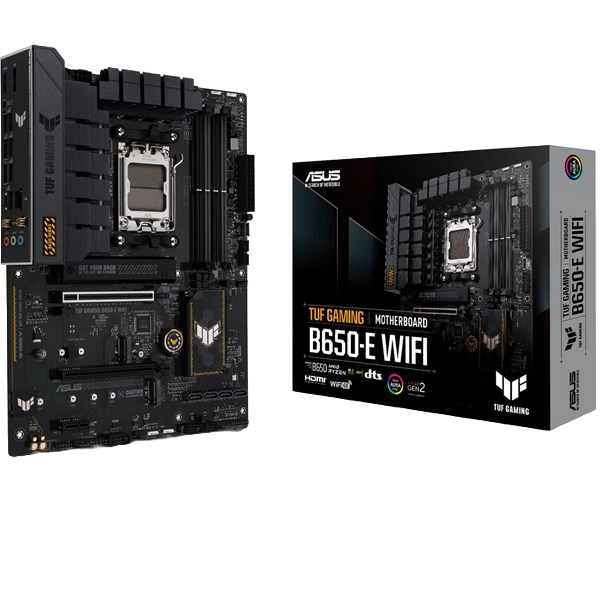

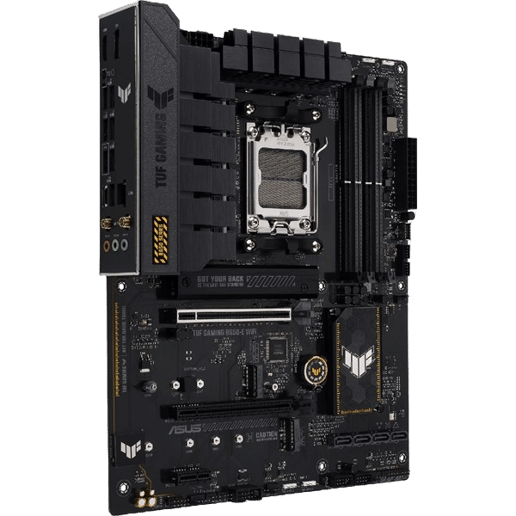

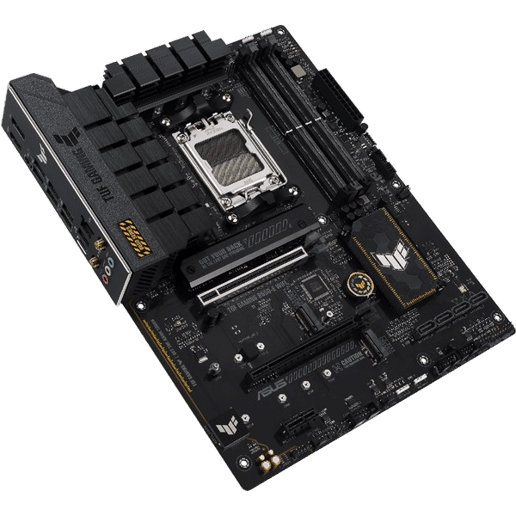

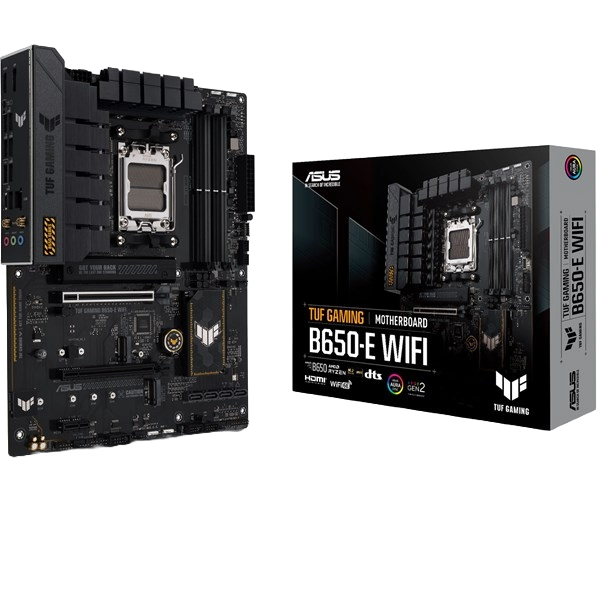

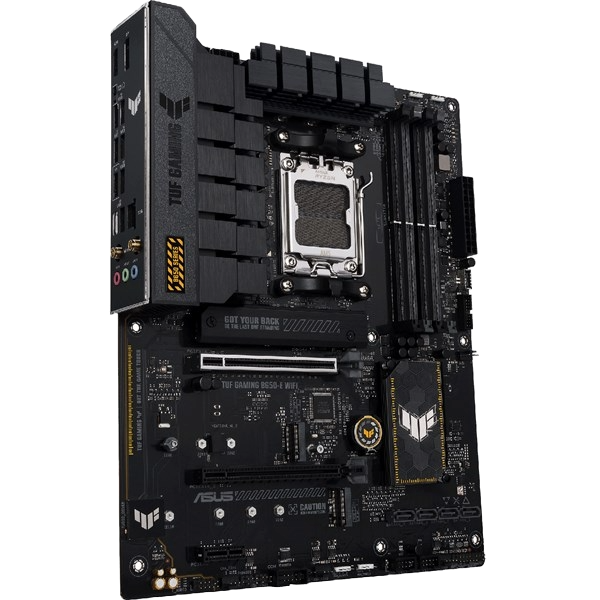

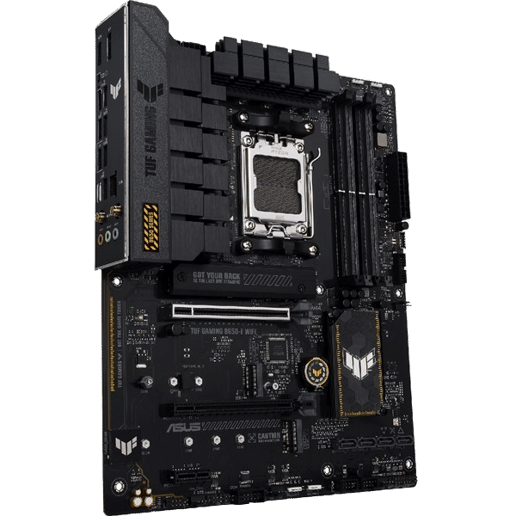

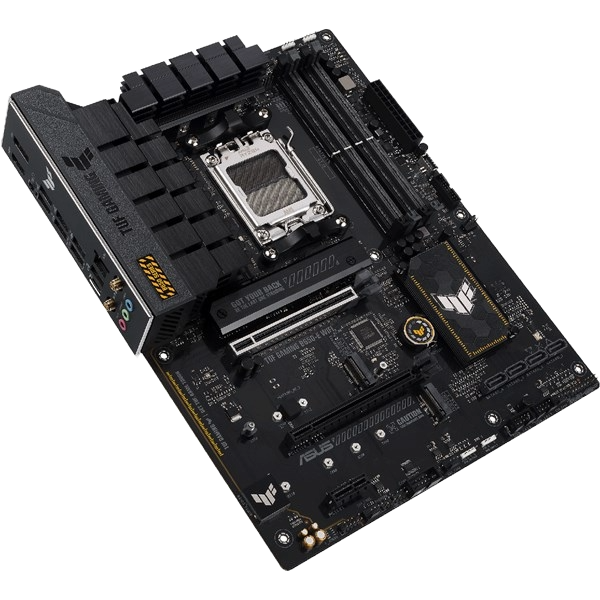

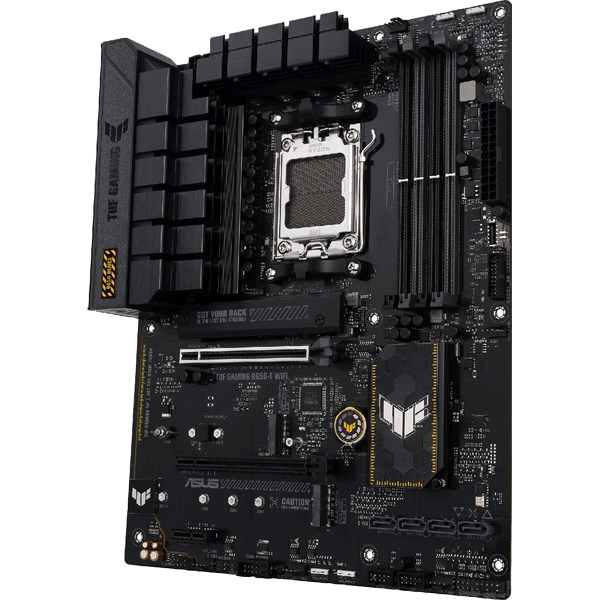

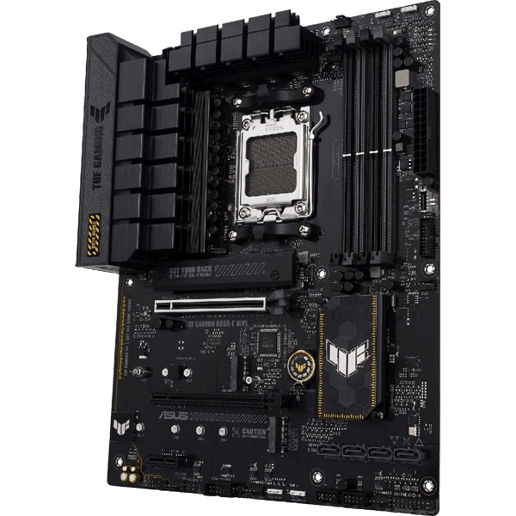

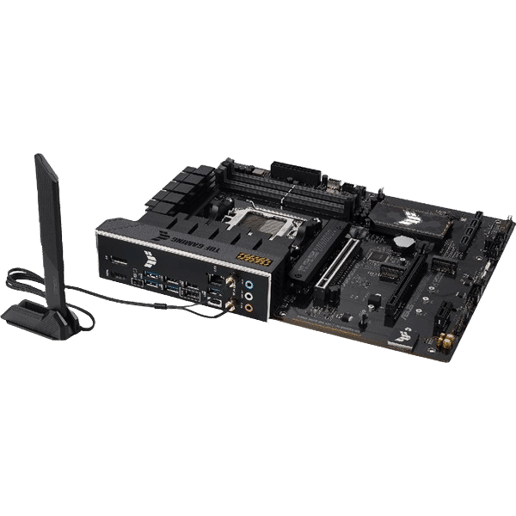

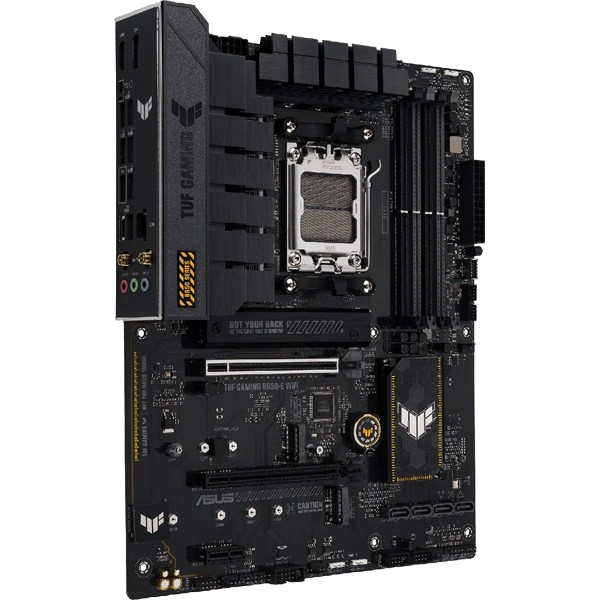

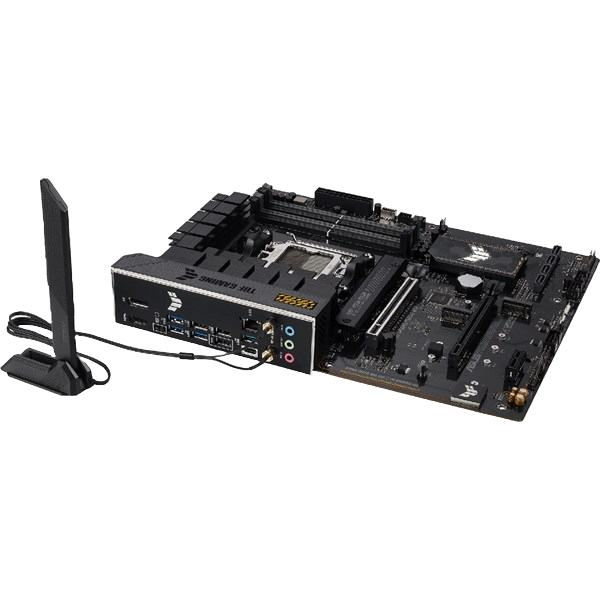

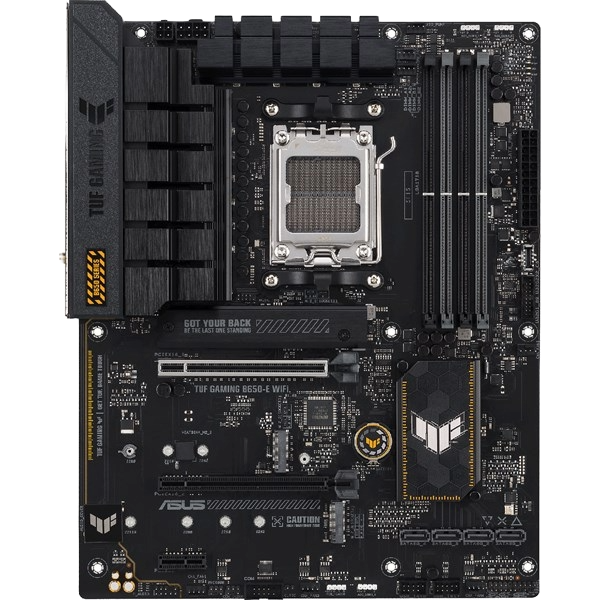

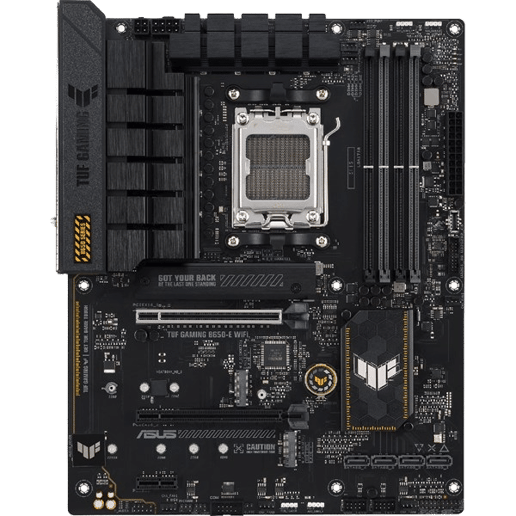

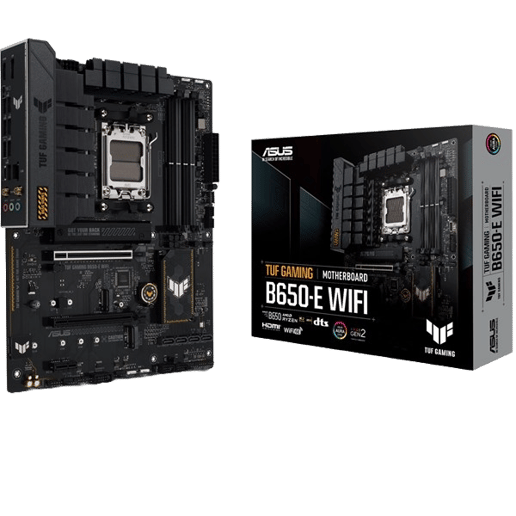

Name: ASUS TUF Gaming B650-E WiFi ATX Motherboard for AMD AM5 CPUs
Brand: ASUS
SKU: MBD3697
Price: 157.99 GBP
Availability: InStock

ASUS TUF Gaming B650-E WiFi ATX Motherboard for AMD AM5 CPUs

Compare

£157.99 inc VAT

Available for Free Priority Delivery from Tomorrow

or Click & Collect from Today

Hurry, only 3 left!

Order within

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

ATX Form Factor
AMD B650 Chipset
Socket AM5
DDR5 (Max: 192GB / 4 slots)
3 x M.2 & 8 x USB & 4 x SATA
HDMI and Display Port

CCL Code: MBD3697

Overview

ASUS TUF GAMING B650-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

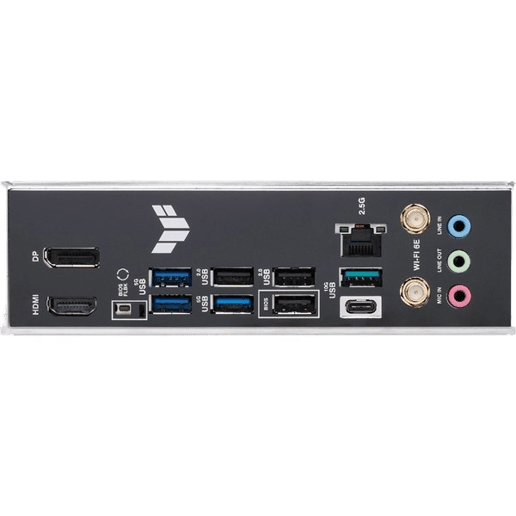

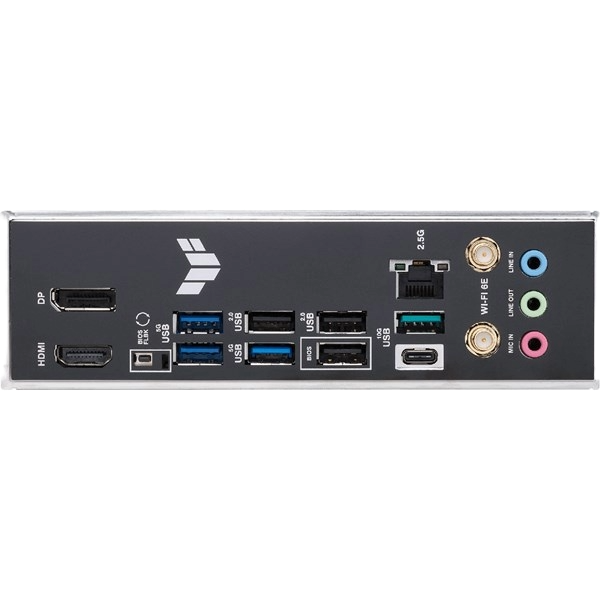

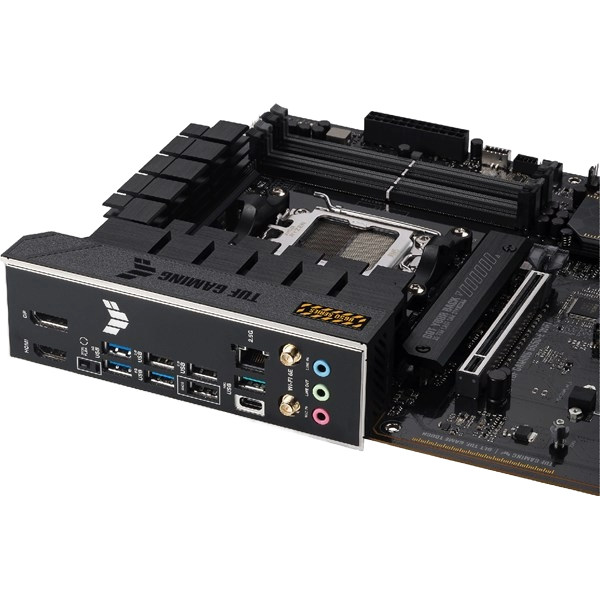

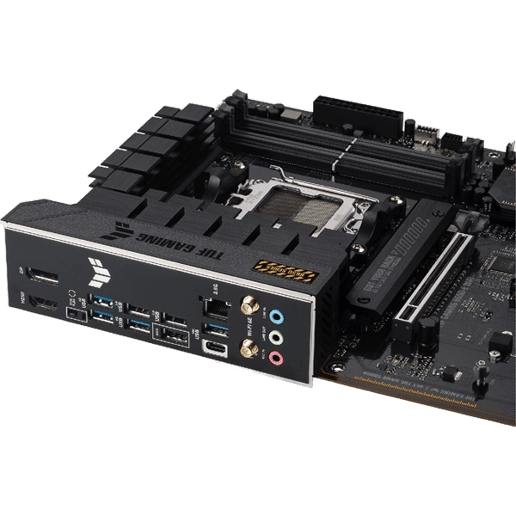

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 1 x USB 3.1 3 x USB 3.0 3 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO pump header 4 x Chassis fan headers
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x 4-pin RGB header

Memory

Memory Bus Speed	Up to 8000 MT/s
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD B650
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

2 x PCI Express 4.0 x16 slots (@ x16/x1)
1 x PCI Express 4.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 6E
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.3

System

Jumpers

1 x Clear CMOS

Physical

Form Factor	ATX Motherboard
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4-Pin + 8-Pin
Motherboard Chipset	AMD B650
Thunderbolt	No
Motherboard Model	ASUS TUF Gaming B650-E WiFi
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	8000 MT/s
CPU Power Pins (female)	12
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
