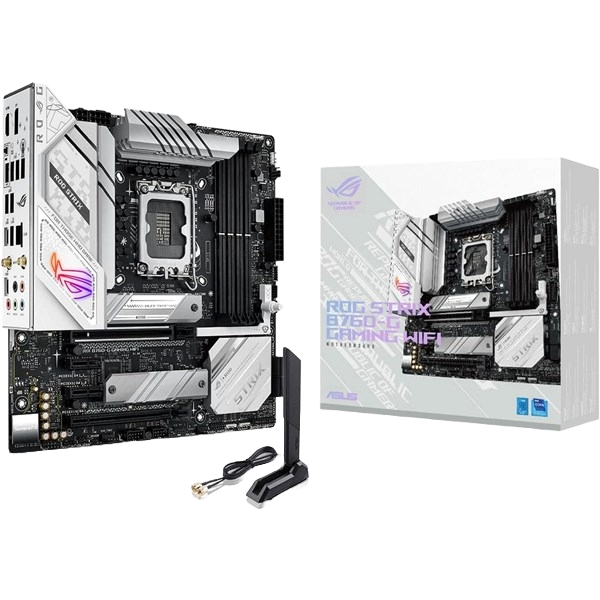

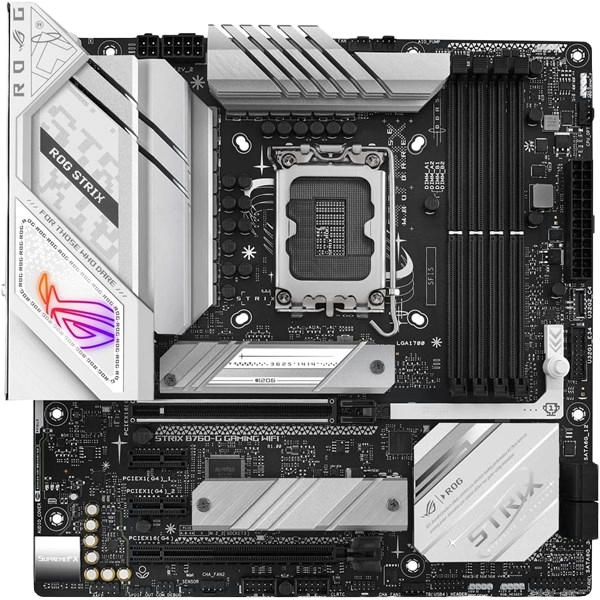

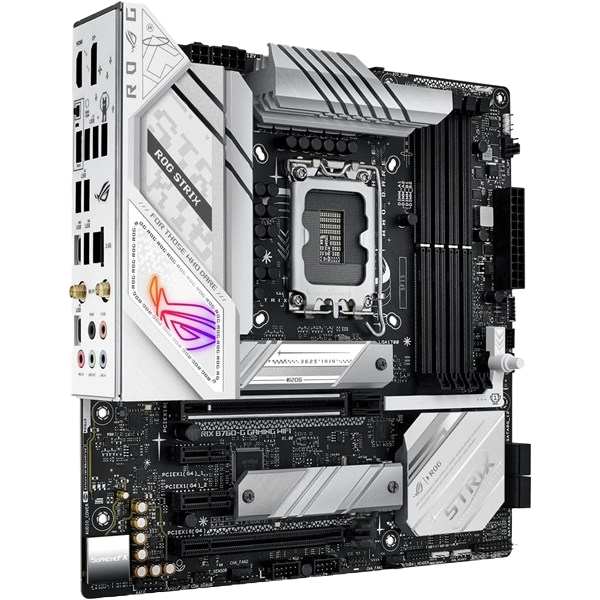

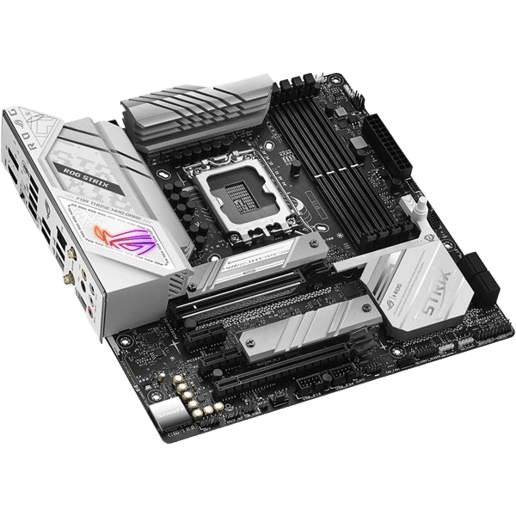

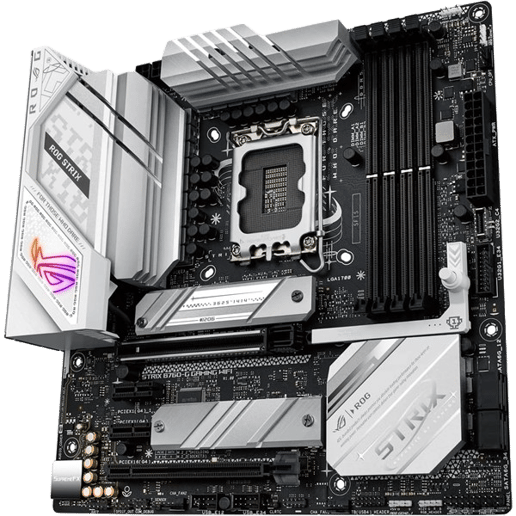

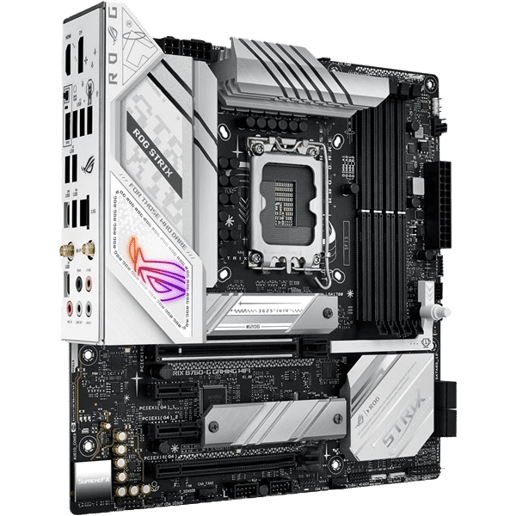

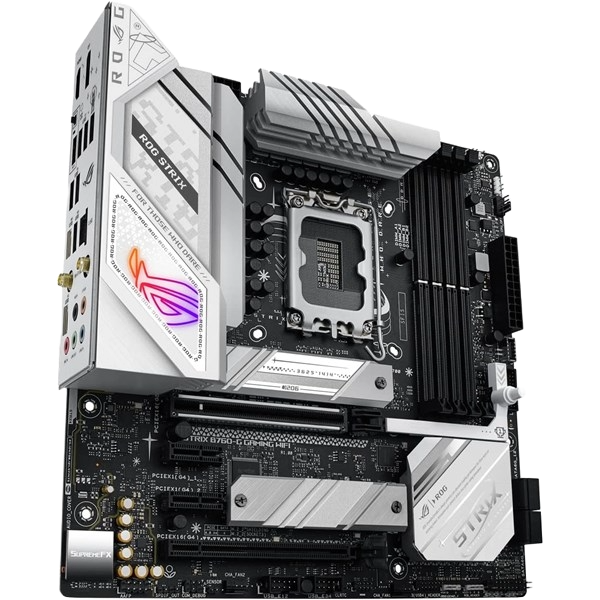

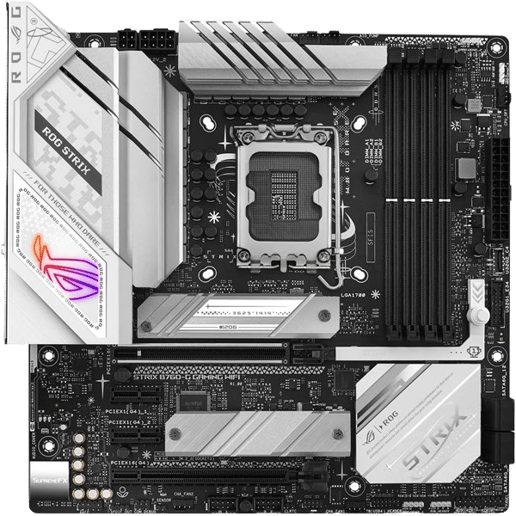

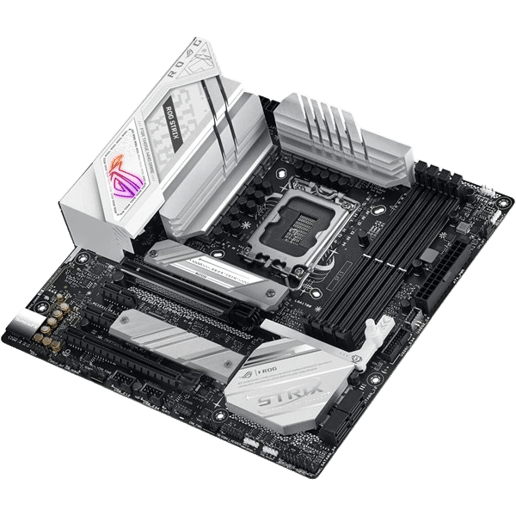

ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs

ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3599

Was £243.58

SAVE £23

Now only

£219.90 inc VAT

  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs
  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs
  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs
  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs
  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs
  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs
  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs
  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs
  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs
  • ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs

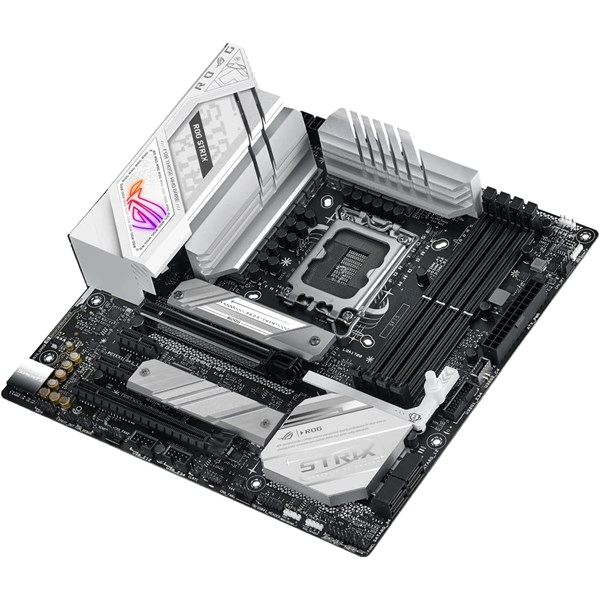

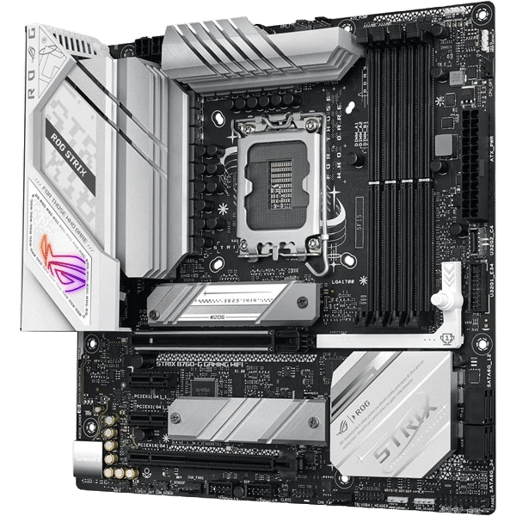

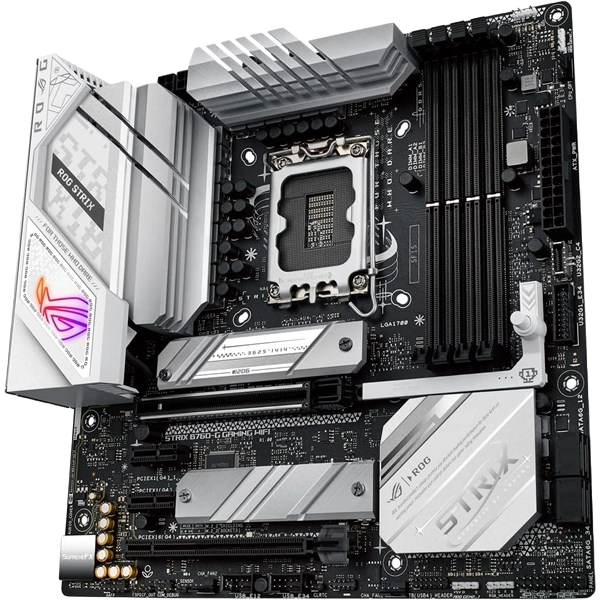

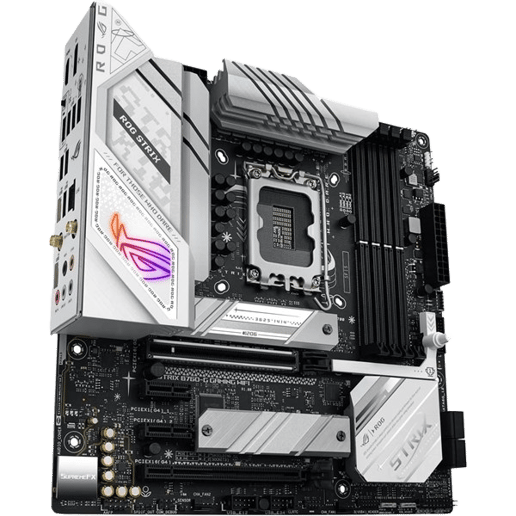

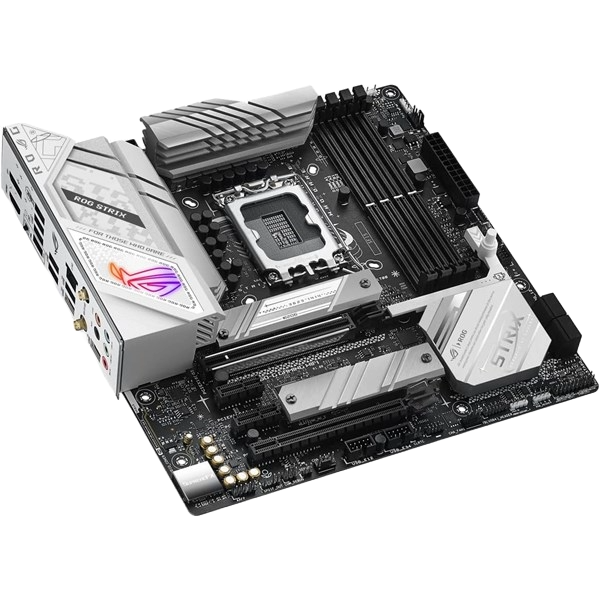

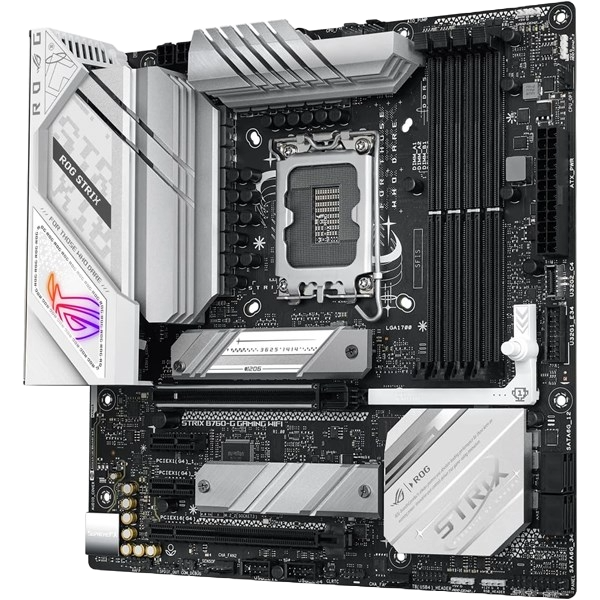

Intel® B760 LGA 1700 white mATX motherboard with 12 + 1 power stages, DDR5 up to 7800 MT/s, PCIe 5.0 x16 SafeSlot with Q-Release, two PCIe 4.0 M.2 slots, WiFi 6E, 2.5G Ethernet, USB 3.2 Gen 2x2 Type-C®, Two-Way AI Noise Cancelation, and Aura Sync RGB lighting

ASUS ROG Strix B760-G GAMING WIFI mATX Motherboard for Intel LGA1700 CPUs

90MB1EQ0-M0EAY0

Intel® B760 LGA 1700 white mATX motherboard with 12 + 1 power stages, DDR5 up to 7800 MT/s, PCIe 5.0 x16 SafeSlot with Q-Release, two PCIe 4.0 M.2 slots, WiFi 6E, 2.5G Ethernet, USB 3.2 Gen 2x2 Type-C®, Two-Way AI Noise Cancelation, and Aura Sync RGB lighting

Was £243.58

SAVE £23

Now only

£219.90 inc VAT

Available for delivery from Wednesday 27th November

or Click & Collect from Wednesday 27th November

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 192GB / 4 slots)
  • 2 x M.2 & 9 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3599
Overview

Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.

Main Features

  • Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors and 12th Gen Intel Core, Pentium Gold, and Celeron processors
  • Robust Power Solution: 12 + 1 power stages, ProCool power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
  • Optimized VRM Thermals: Thick heatsinks bridged to the power stages with high-quality thermal pads keep the solution cool during heavy workloads
  • Ample M.2 Support: Two PCIe 4.0 M.2 slots with heatsinks maintain optimal temperatures for maximum data transfer speed
  • Next-Gen Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard
  • Abundant Connectivity: USB 3.2 Gen 2x2 Type-C rear I/O port, eight additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 4
  • Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation simplifies setup and improves performance
  • DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBackT button, and Q-LED
  • Industry-leading Gaming Audio: S1220A codec with Savitech SV3H712 amplifier, along with DTS Sound UnboundT and Sonic Studio III
  • Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

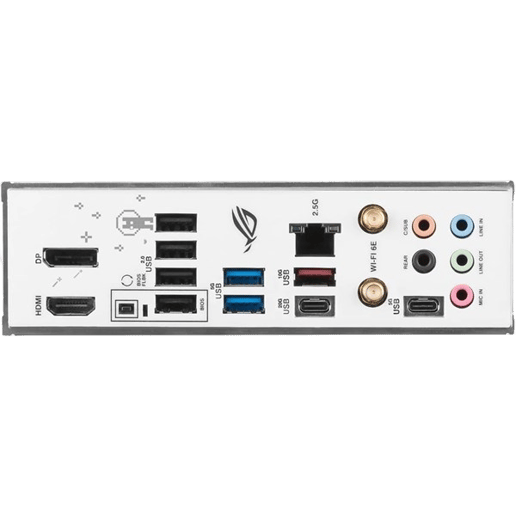

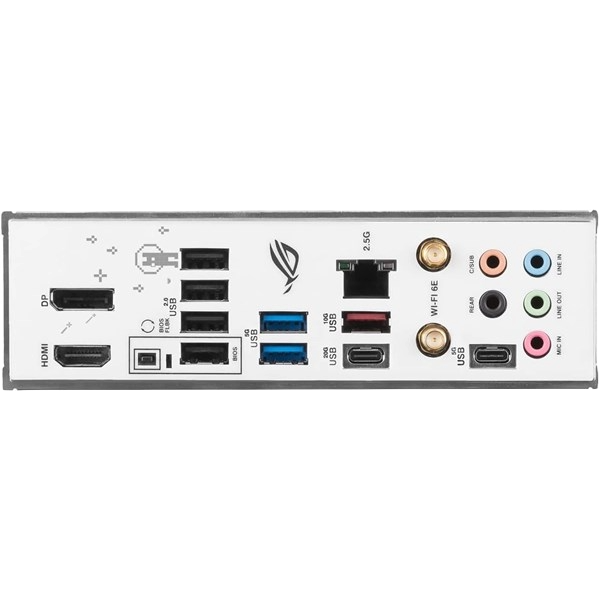

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB 3.1
1 x USB-C 3.0
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
2 x Chassis fan headers
S/PDIF Connectors 1 x S/PDIF Out header
Thunderbolt Port(s) 1 x Thunderbolt header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Thermal Sensor header

Memory

Memory Bus Speed Up to 7800 MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
2 x PCI Express 4.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Intel
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard

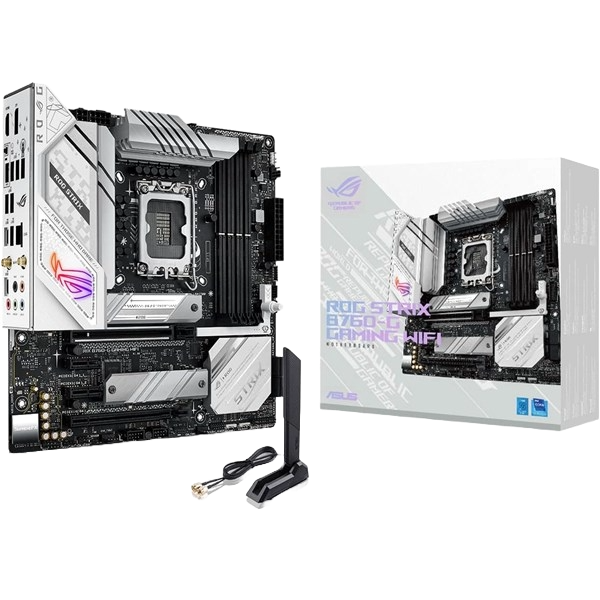

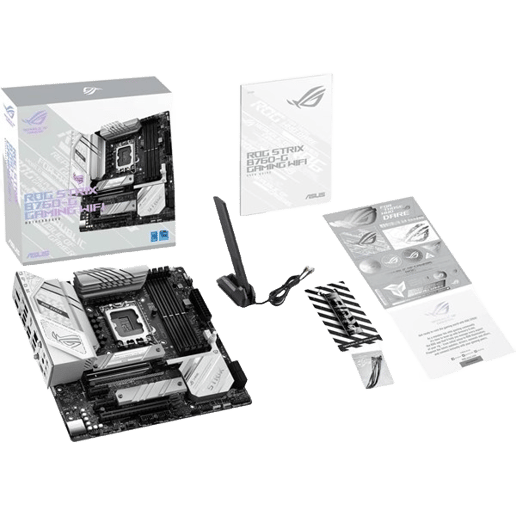

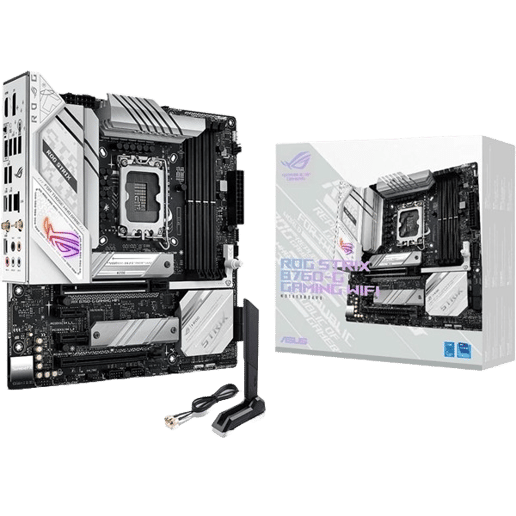

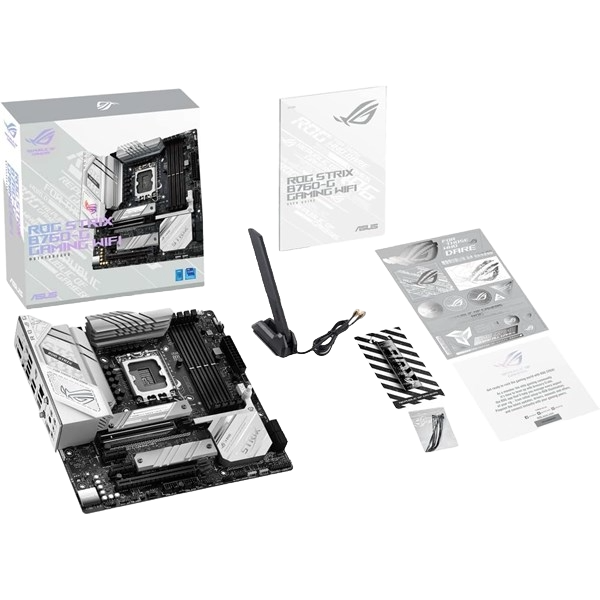

In The Box Motherboard
2 x SATA Cables
Thermal Pad for M.2
ASUS Wi-Fi Antenna
Cable Ties
M.2 Rubber Package
M.2 Q-Latch Package
ROG Key Chain
ROG Strix Stickers
ROG Strix Thank You Card
User Manual
Width 244 mm
Length 244 mm

Key Features

WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 7800 MT/s
CPU Power Pins (female) 12
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 9 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4-Pin + 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1EQ0-M0EAY0
EAN 4711387120002
UPC 197105120006
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1EQ0-M0EAY0
