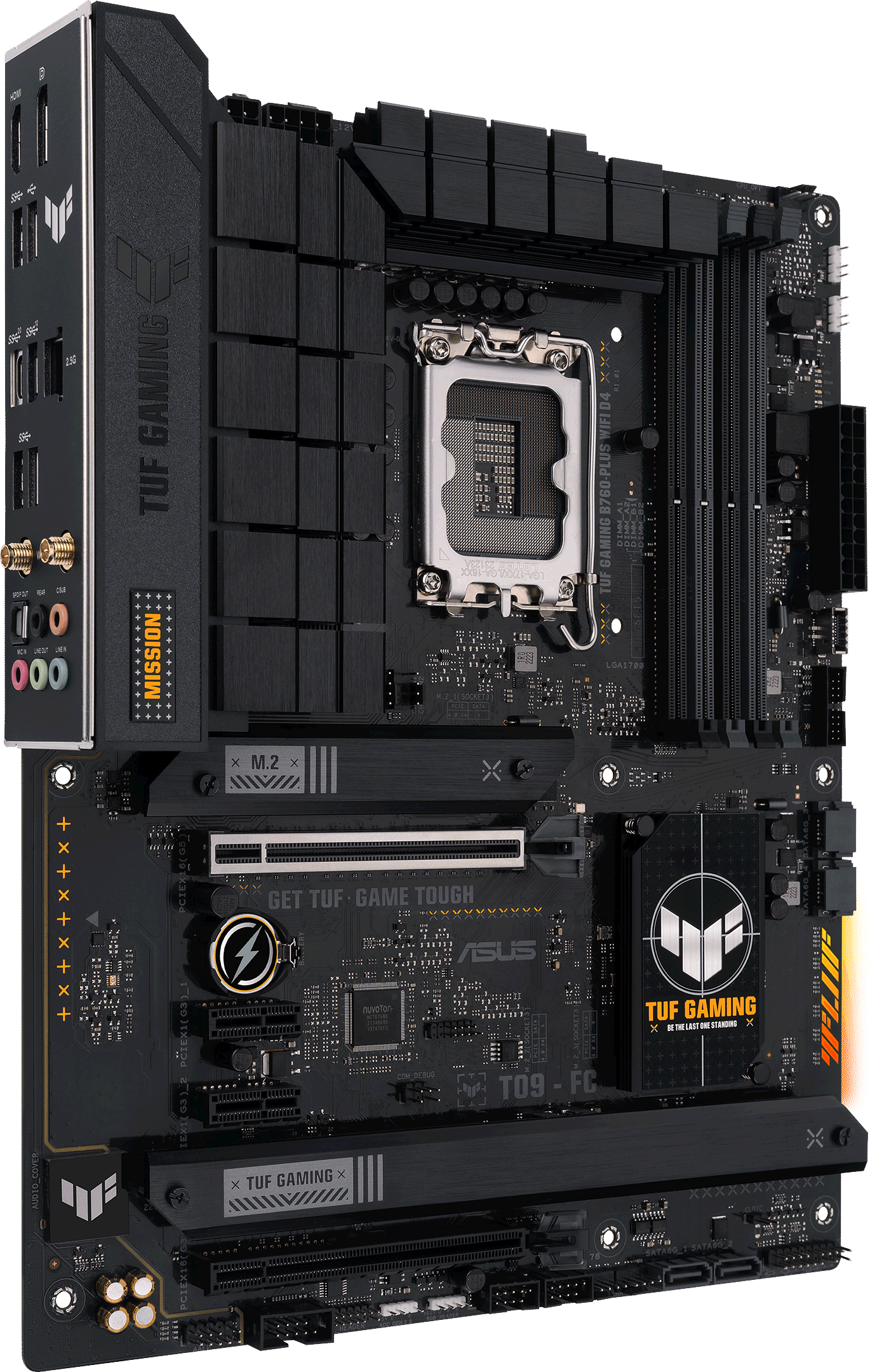

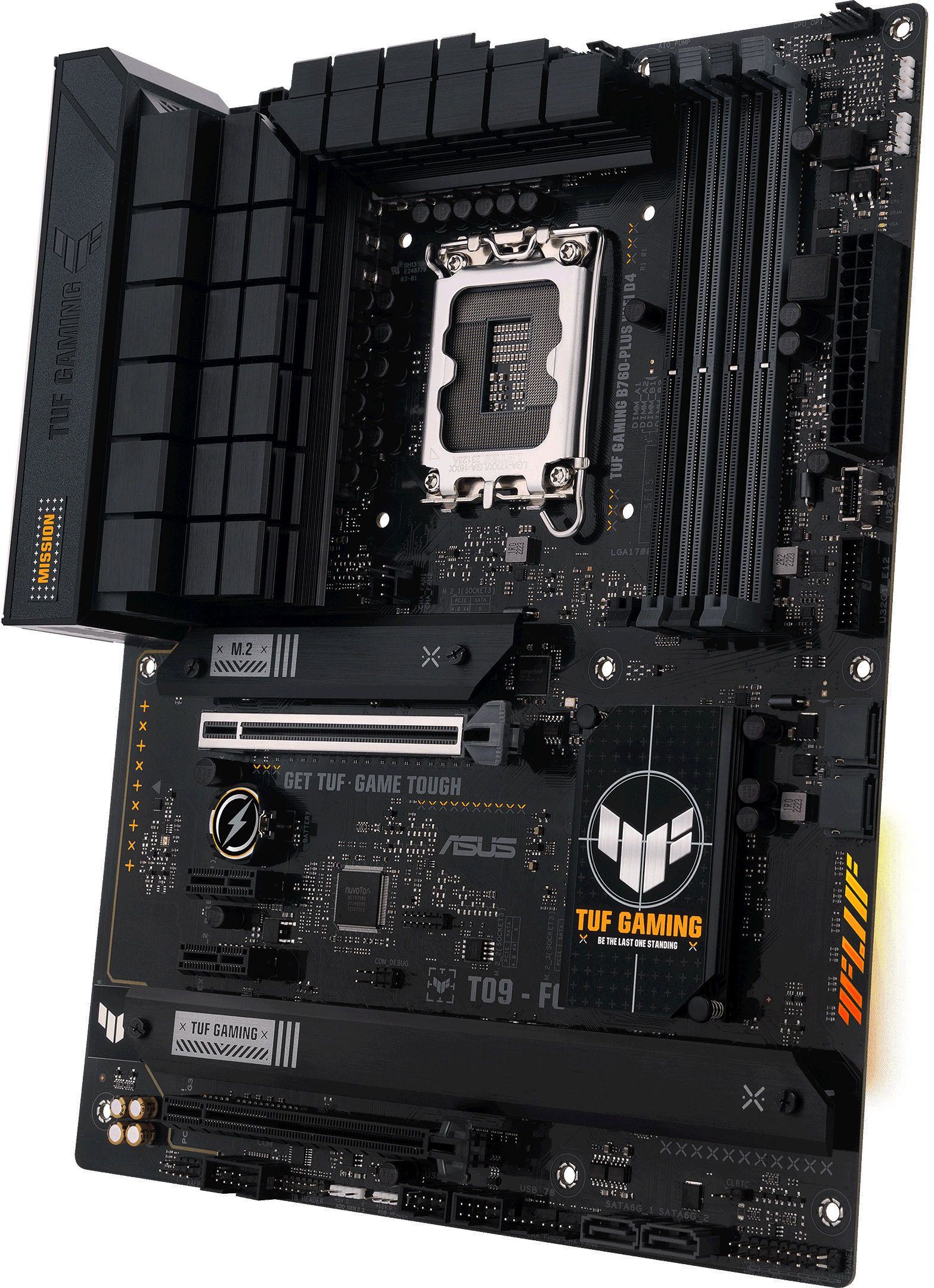

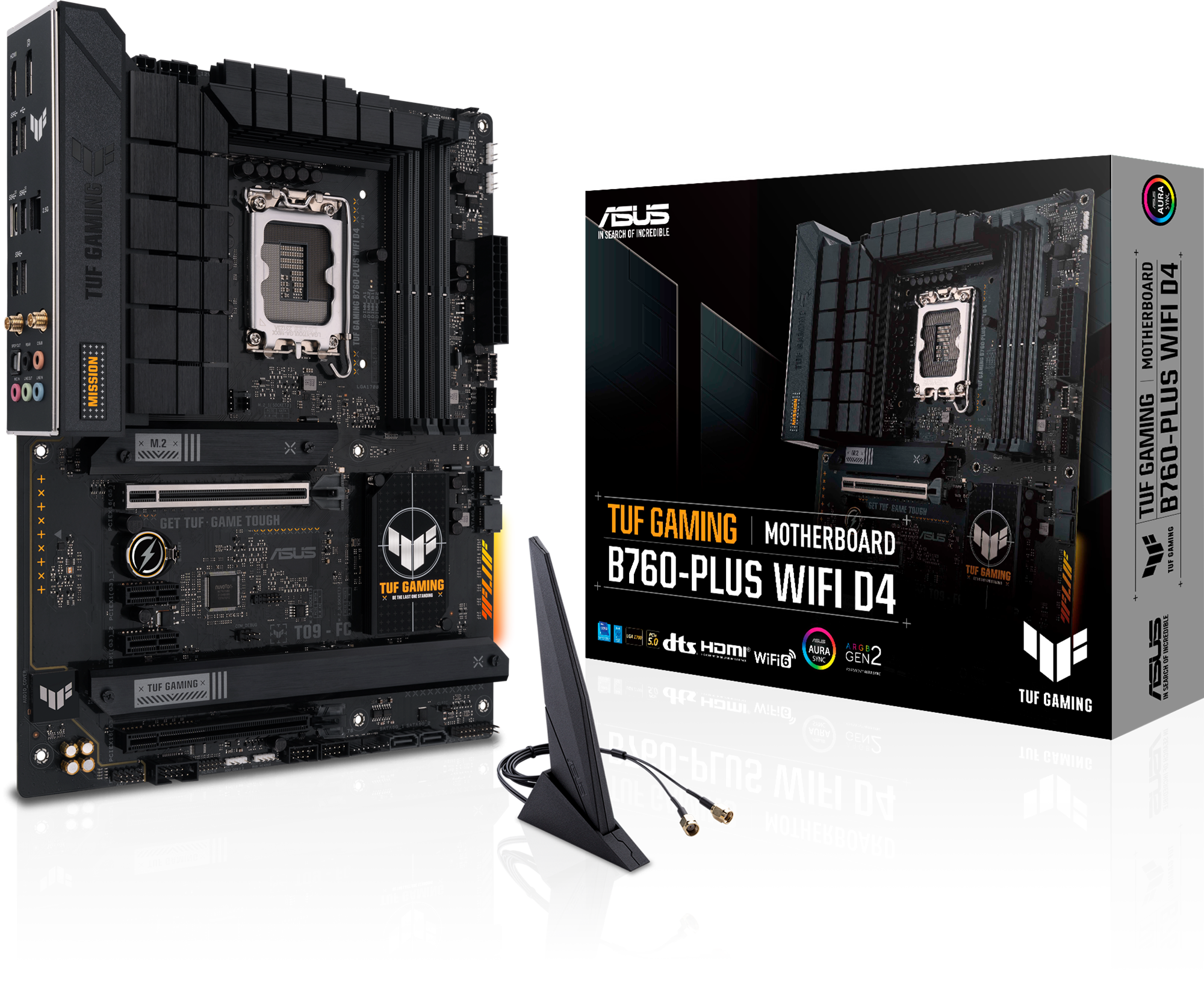

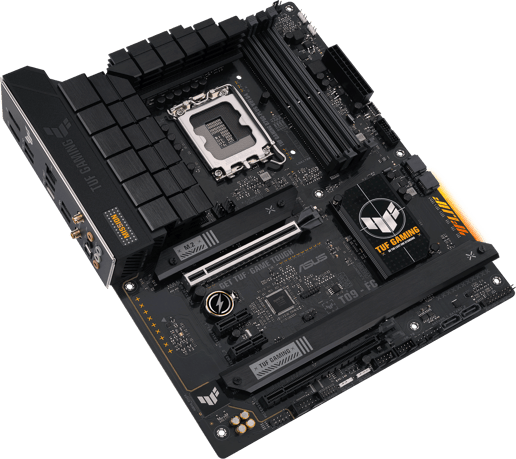

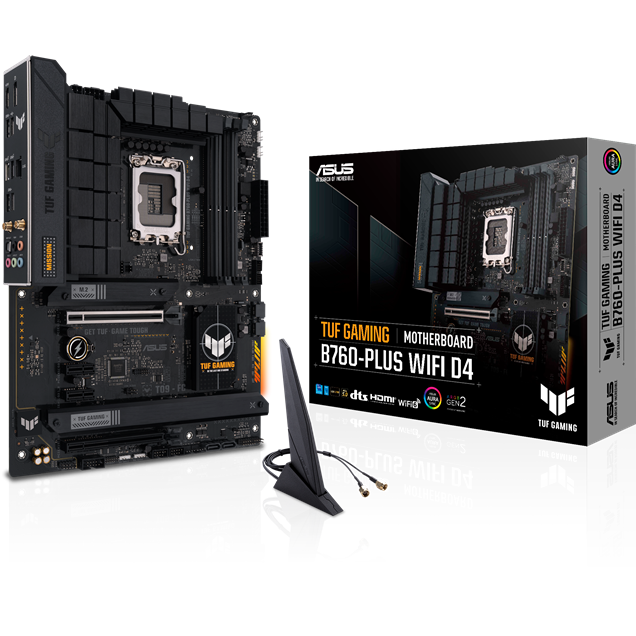

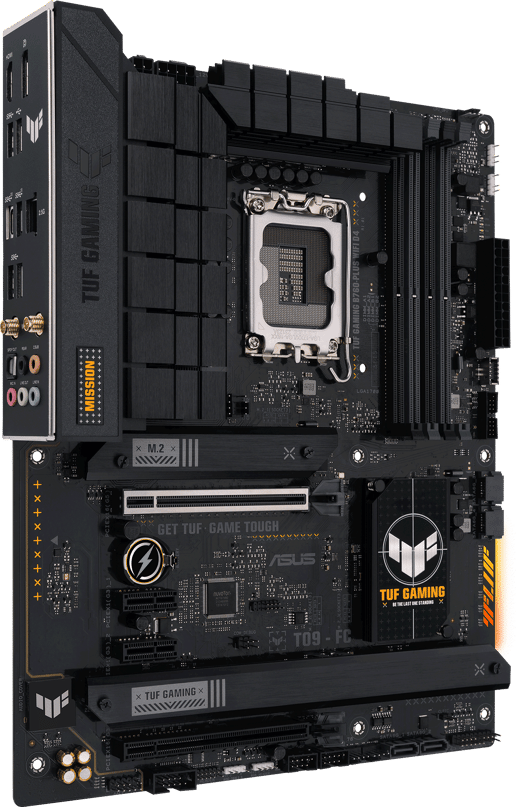

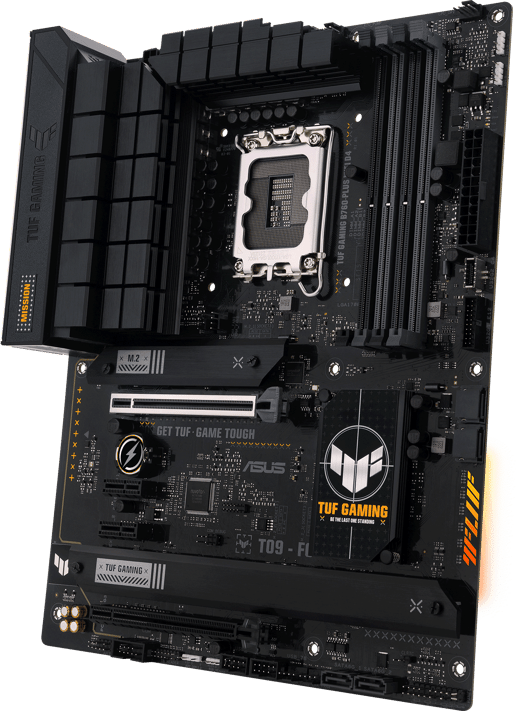

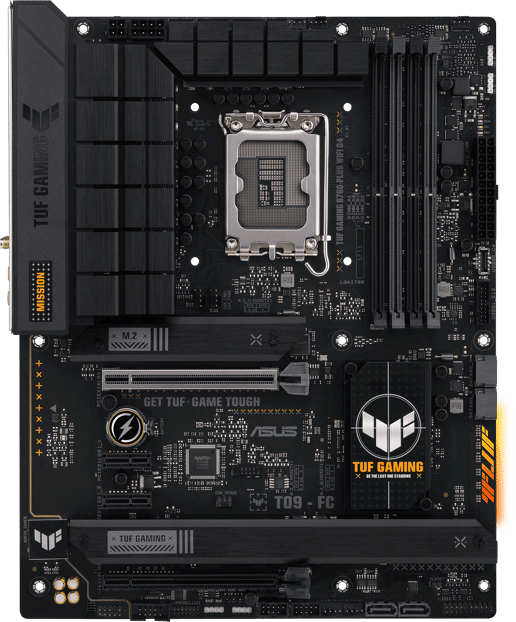

Name: ASUS TUF Gaming B760-Plus WiFi D4 ATX Motherboard for Intel LGA1700 CPUs
Brand: ASUS
SKU: MBD3459
Price: 173.99 GBP
Availability: InStock

ASUS TUF Gaming B760-Plus WiFi D4 ATX Motherboard for Intel LGA1700 CPUs

Compare

TUF GAMING B760-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming.

Was £229.07

SAVE £55

Now only

£173.99 inc VAT

Available for delivery from Sunday 21st July

or Click & Collect from Sunday 21st July

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

Socket 1700
Intel B760 Chipset
4 x SATA & 6 x USB Ports
DDR4 (max 128GB, 4 slots)
HDMI and Display Port
ATX Form Factor

CCL Code: MBD3459

Overview

ASUS TUF Gaming B760-Plus WiFi D4 Motherboard

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

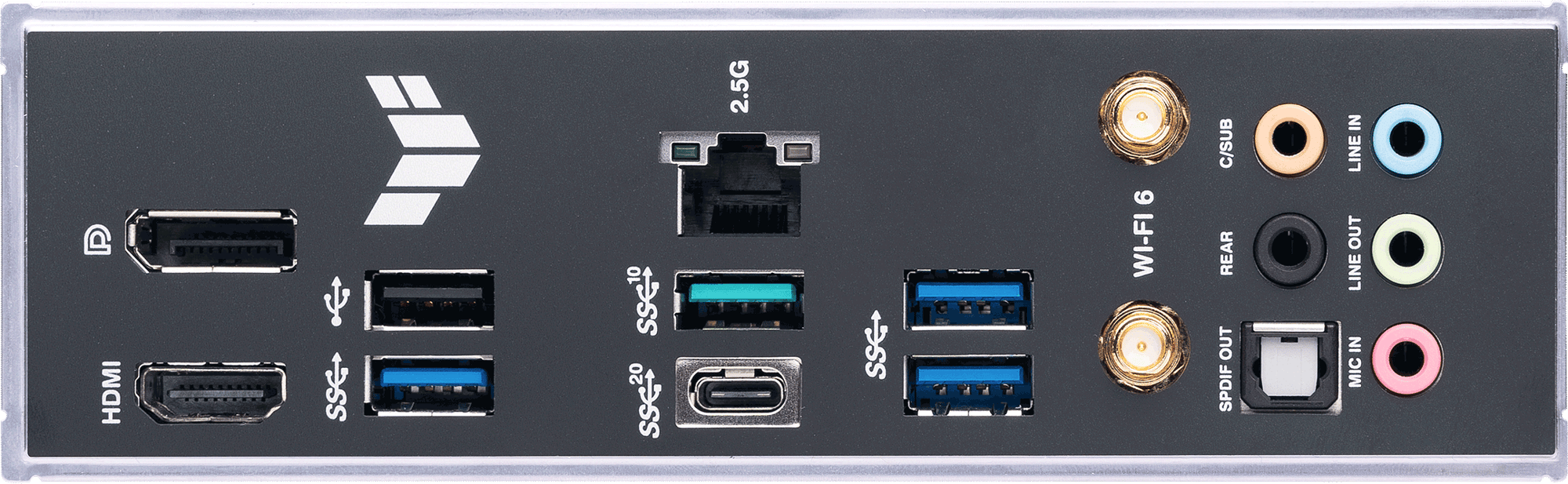

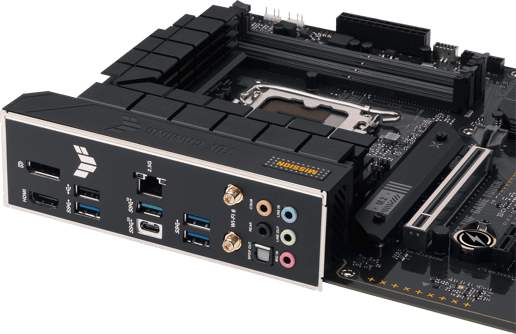

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 1 x USB 3.1 3 x USB 3.0 1 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT header 1 x AIO pump header 4 x Chassis fan headers
Thunderbolt Port(s)	1 x Thunderbolt 4 header
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 5333+ MHz
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	B760
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x1 slot
1 x PCI Express 3.0 x16 slot (@ x4)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6E)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

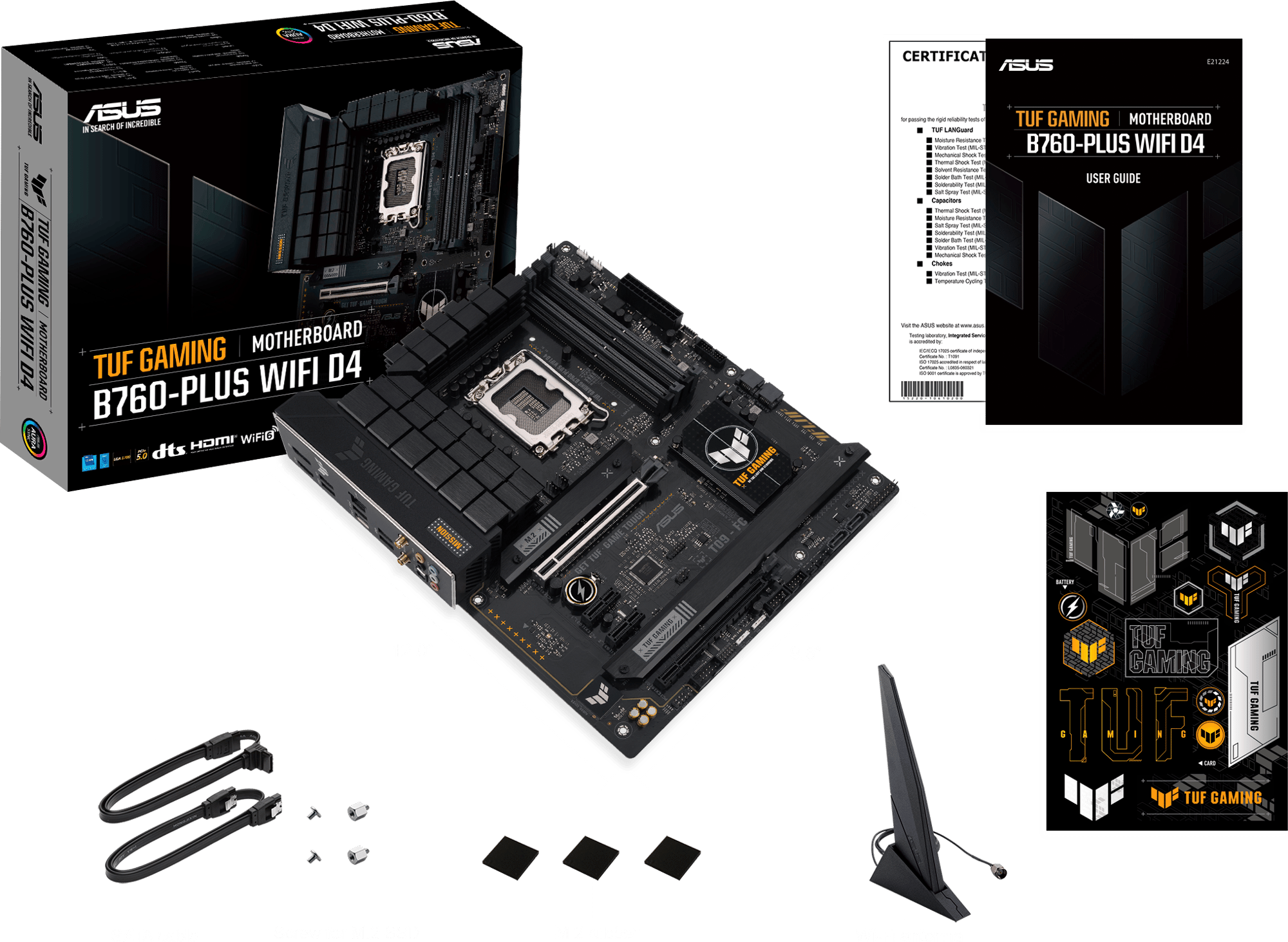

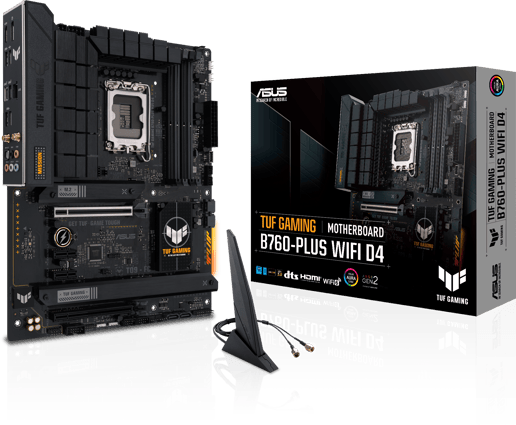

In The Box	Motherboard 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antenna 1 x TUF Gaming sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD 1 x TUF Certification card 1 x User guide
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Chipset Manufacturer	Intel
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4-Pin + 8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	ASUS TUF Gaming B760-Plus WiFi D4
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	5333 MT/s
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	3200 MT/s
Max Memory Speed Supported (overclocked)	5333 MT/s
CPU Power Pins (female)	12
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
PCI-e slots	4
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
