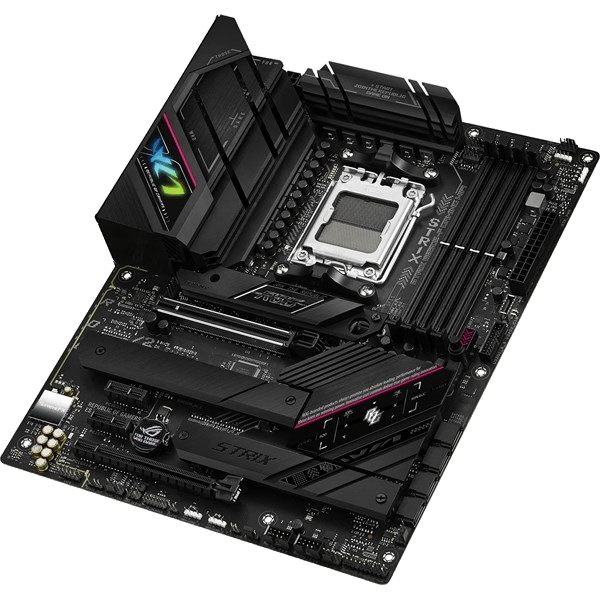

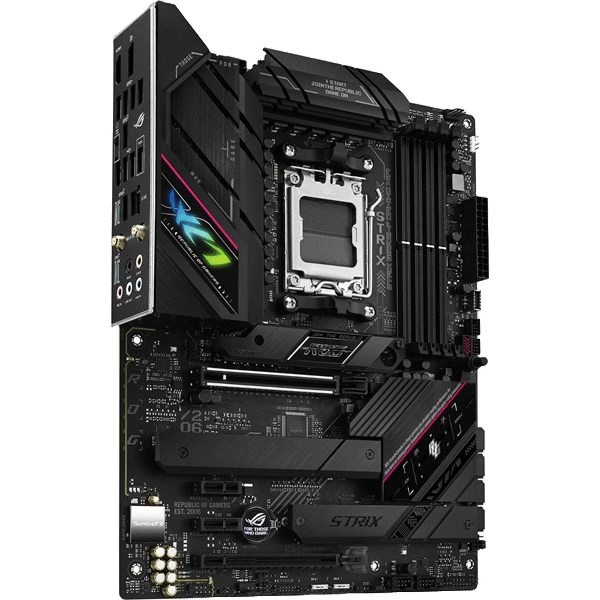

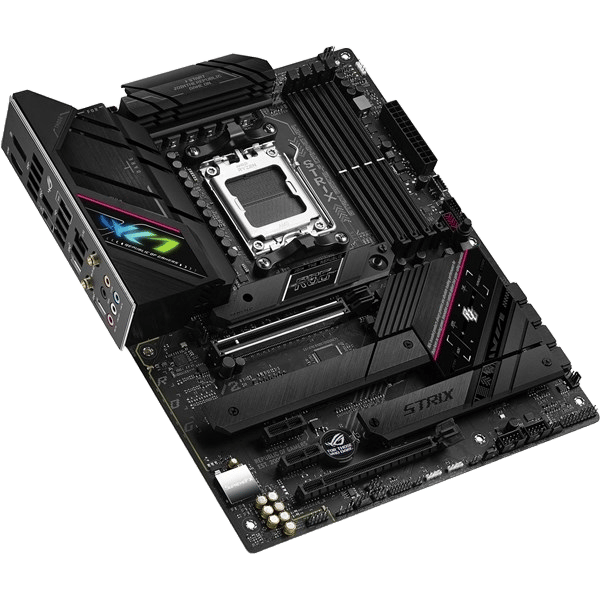

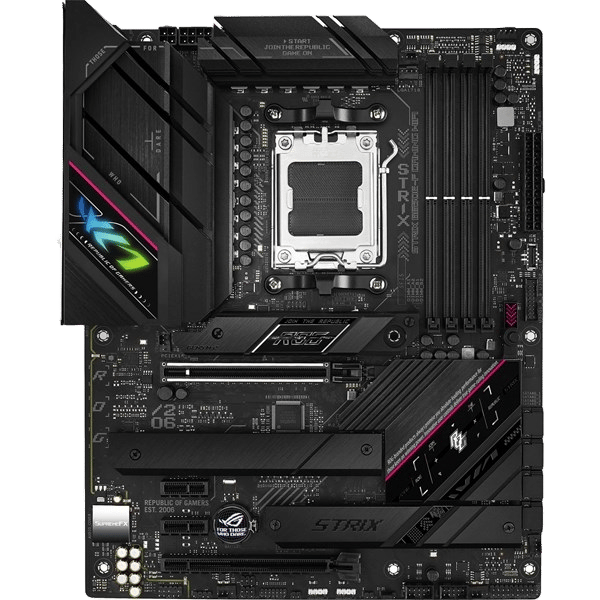

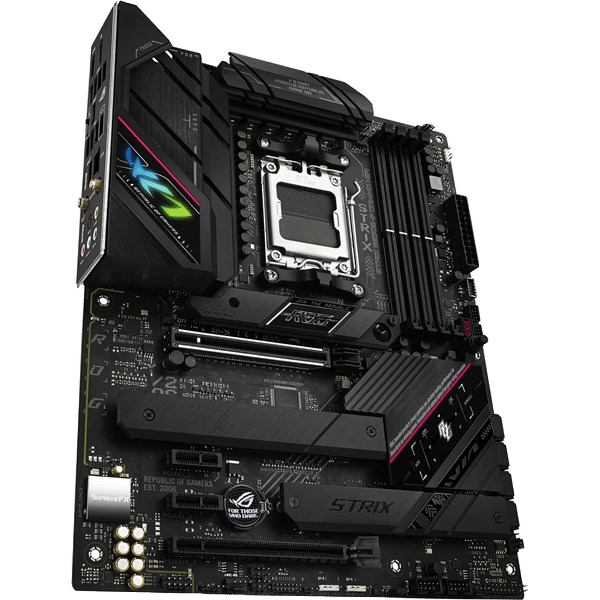

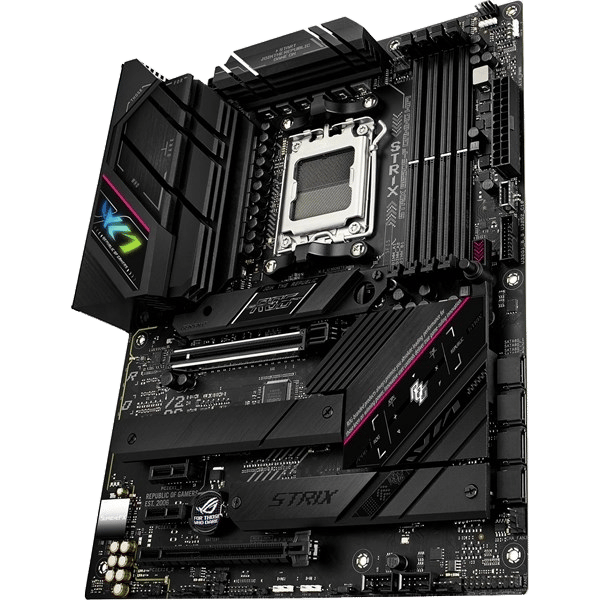

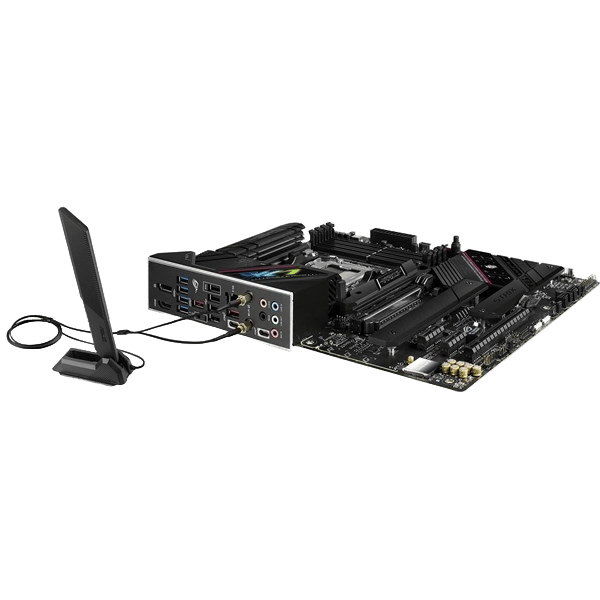

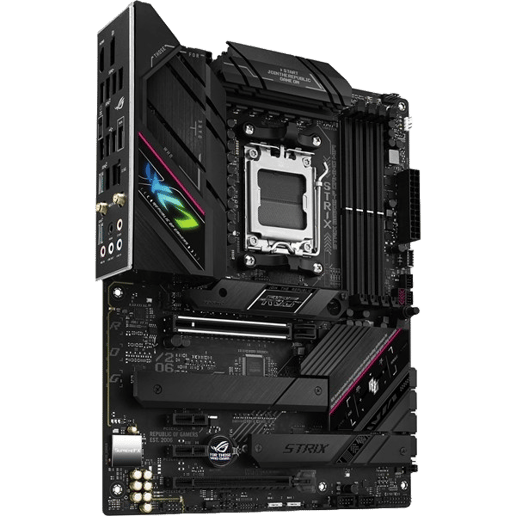

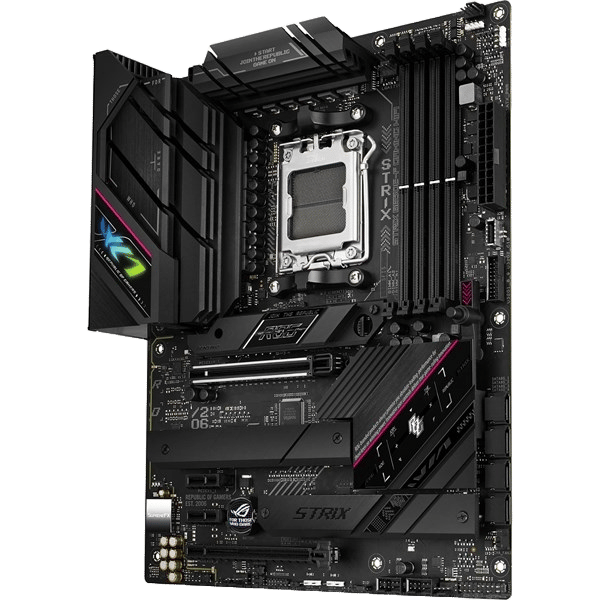

ASUS ROG Strix B650E-F Gaming WiFi ATX Motherboard for AMD AM5 CPUs

Compare

ASUS ROG Strix B650E-F Gaming WiFi ATX Motherboard for AMD AM5 CPUs

Name: ASUS ROG Strix B650E-F Gaming WiFi ATX Motherboard for AMD AM5 CPUs
Brand: ASUS
SKU: MBD3371
Price: 229.99 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

90MB1BQ0-M0EAY0

Was £434.99

SAVE £205

Now only

£229.99 inc VAT

Available for Free Priority Delivery from Tomorrow

or Click & Collect from Today

10+ In Stock Now

Order within

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

ATX Form Factor
AMD B650E Chipset
Socket AM5
DDR5 (Max: 128GB / 4 slots)
3 x M.2 & 12 x USB & 4 x SATA
HDMI and Display Port

CCL Code: MBD3371

Overview

ASUS ROG Strix B650E-F Gaming WiFi Motherboard

Promotions

Rate your Gear with ASUS

For a limited time purchase an eligible ASUS product, leave a review of said product from the review invitation email, and you can claim £25 cashback from ASUS.

For more information, visit our promotion page. Terms & Conditions apply.

Promotional Period: From October 21^st till December 31^st 2024, while stock lasts.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Find the full Terms & Conditions on the ASUS website here: Terms & Conditions.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

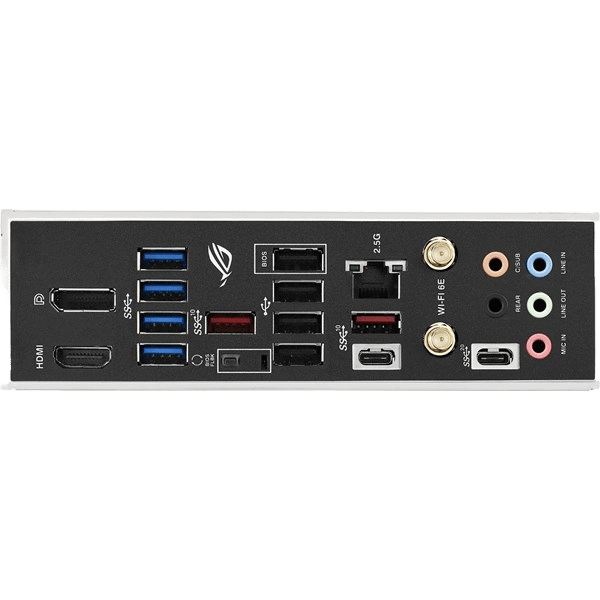

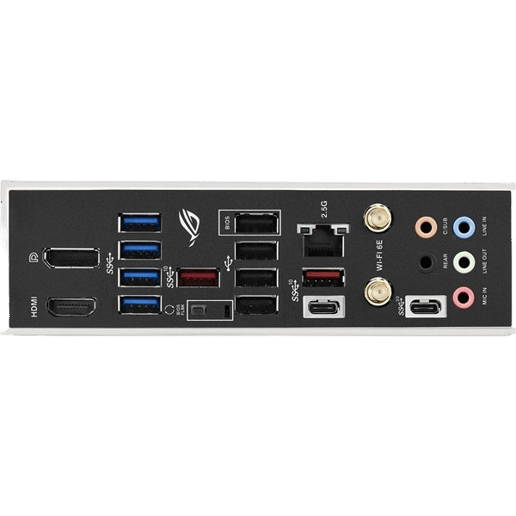

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 1 x USB-C 3.1 2 x USB 3.1 4 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO pump header 4 x Chassis fan headers
S/PDIF Connectors	1 x S/PDIF Out header
Thunderbolt Port(s)	1 x Thunderbolt header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5) 2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Thermal Sensor header 1 x COM_DEBUG header

Memory

Memory Bus Speed	Up to 6400 (OC) MHz
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	B650E
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
2 x PCI Express 4.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

ROG SupremeFX ALC4080

Warranty

3 Years

Network

Integrated Network	Intel
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Jumpers	1 x CPU Over Voltage jumper 1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

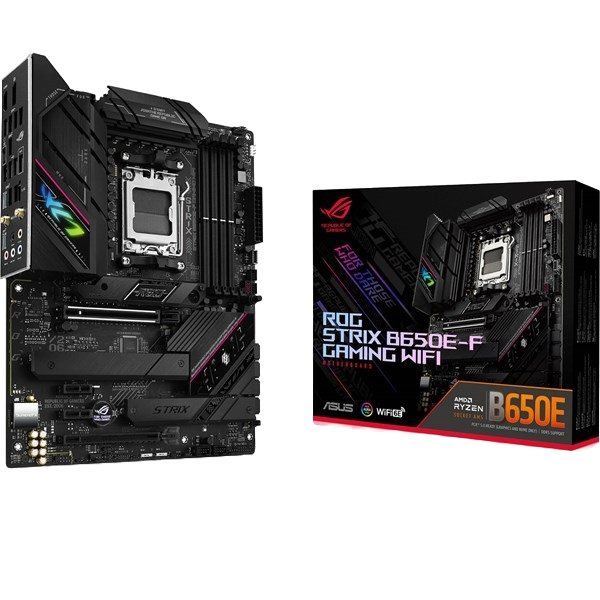

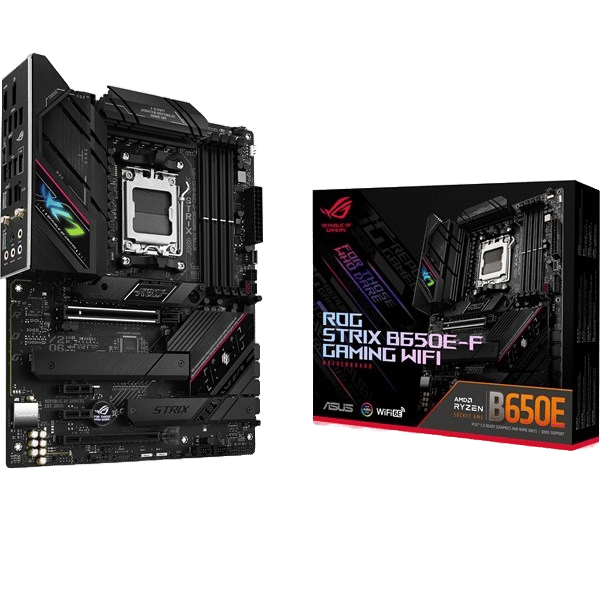

In The Box	Motherboard 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages 1 x User guide
Width	305 mm
Length	244 mm

Key Features

Motherboard Model	ASUS ROG Strix B650E-F Gaming WiFi
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	6400 MT/s
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	6400 MT/s
CPU Power Pins (female)	12
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Chipset Manufacturer	AMD
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	12 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4-Pin + 8-Pin
Motherboard Chipset	AMD B650E
Thunderbolt	No

Item Details

Manufacturer	ASUS
Manufacturer Code	90MB1BQ0-M0EAY0
Alternative Part Numbers	90MB1BQ0-M0EAY1, ROG STRIX B650E-F GAMING WIFI
EAN	4711081944034
UPC	195553944038
Condition	New

Warranty

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	ASUS
Manufacturer Code	90MB1BQ0-M0EAY0

Reviews

5.0 / 5 1 review

Jack Butler

December 2022

Great high quality motherboard, well happy! Have bought from here in the past, never had any problems :)
