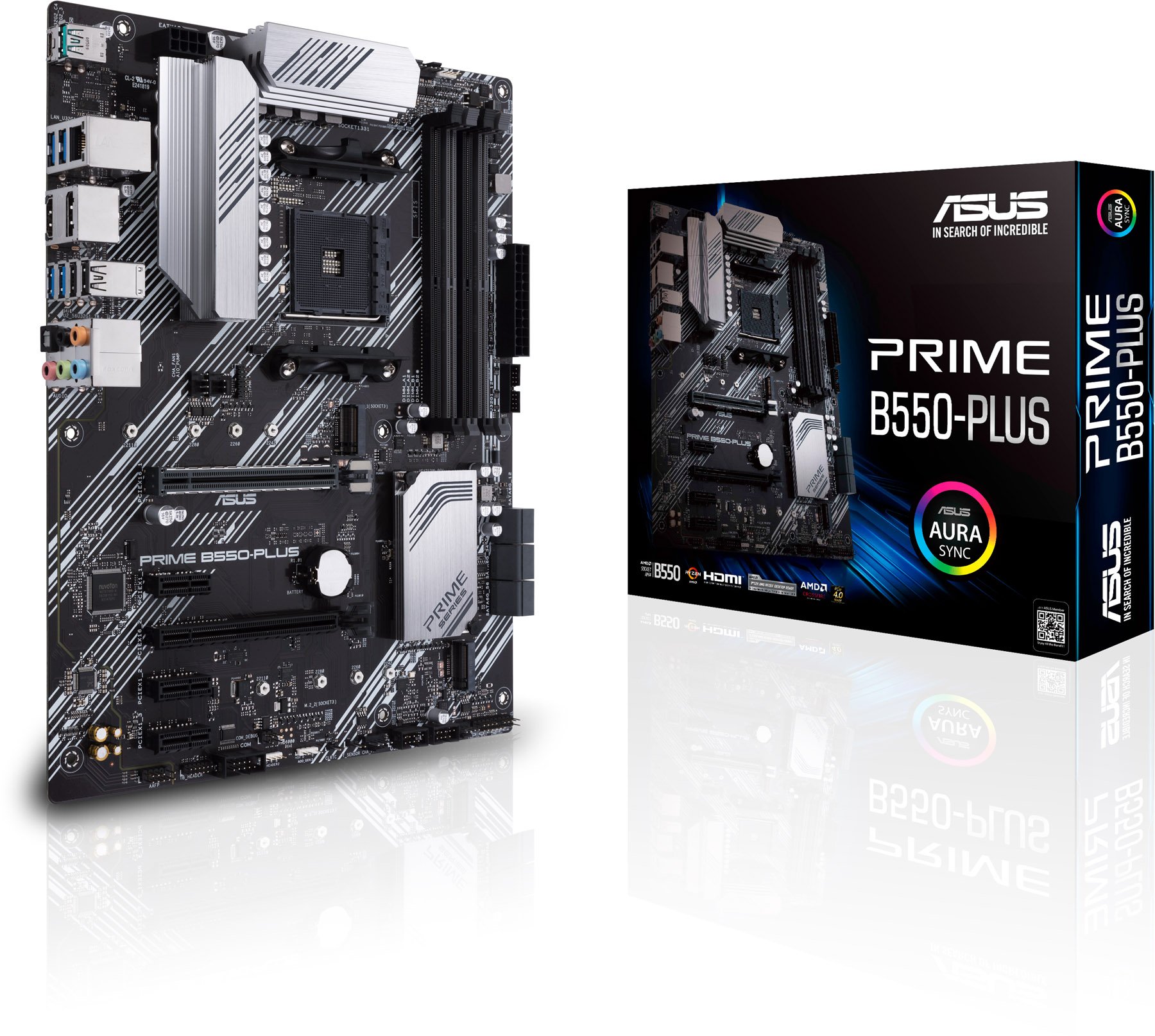

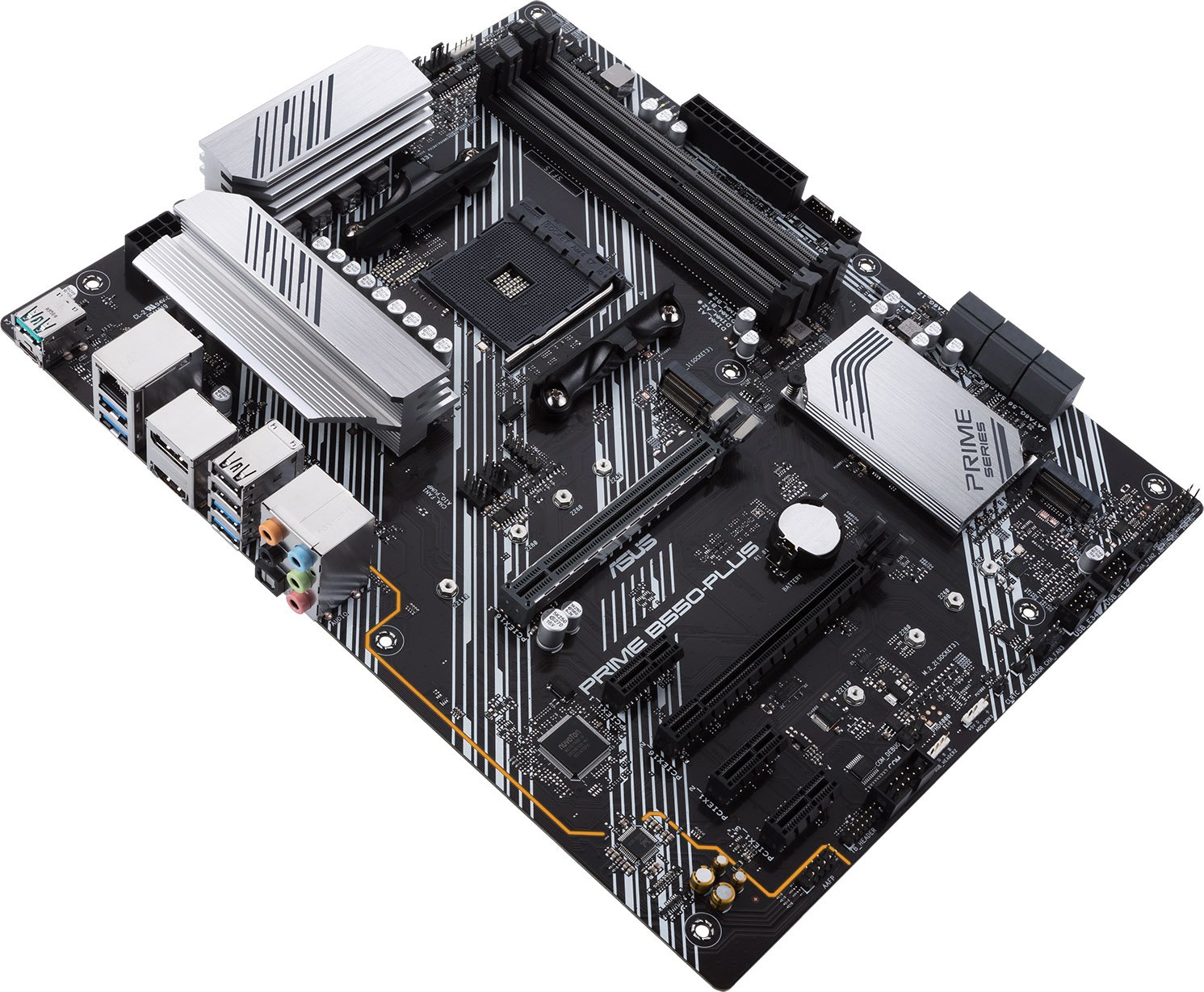

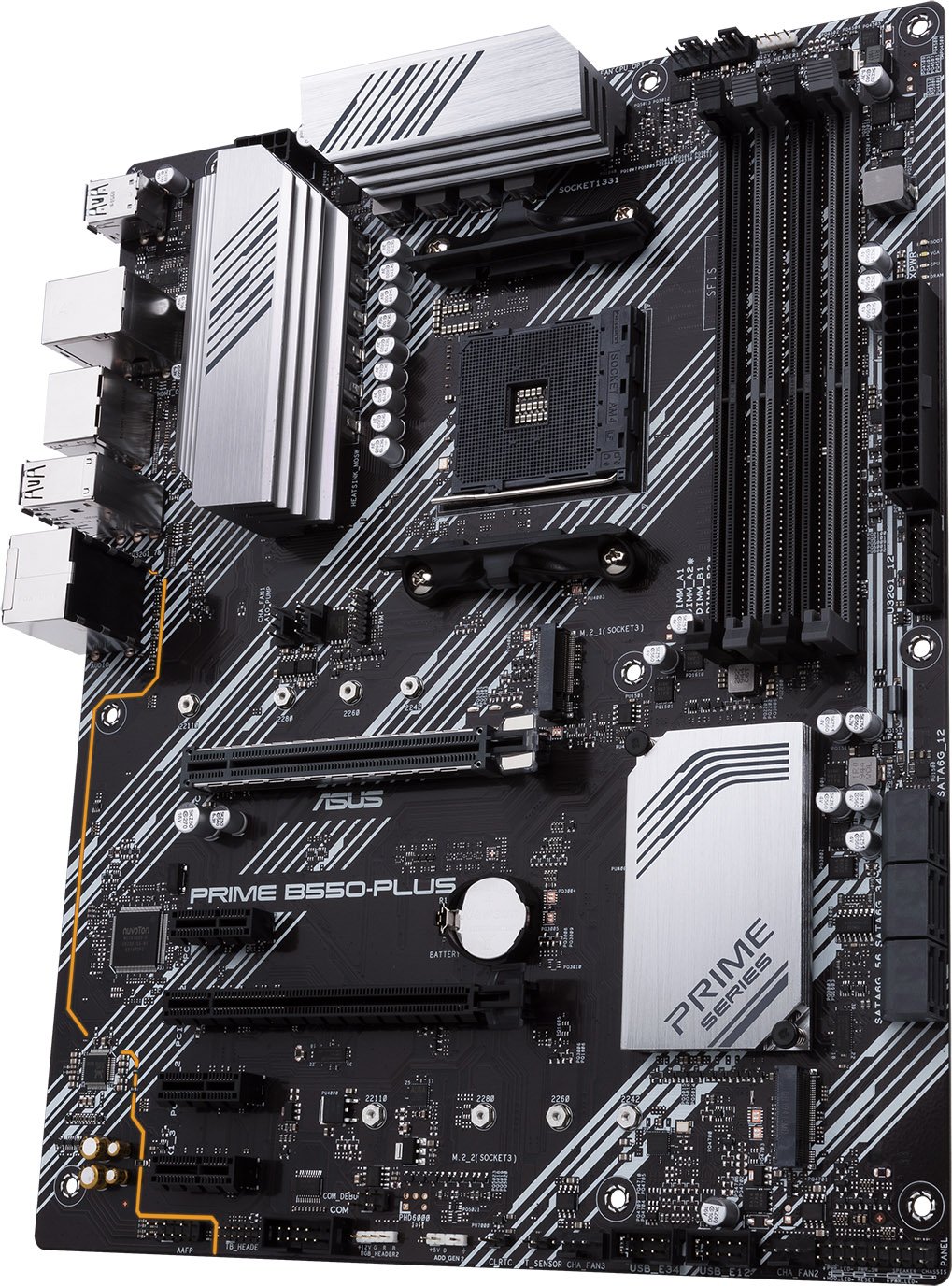

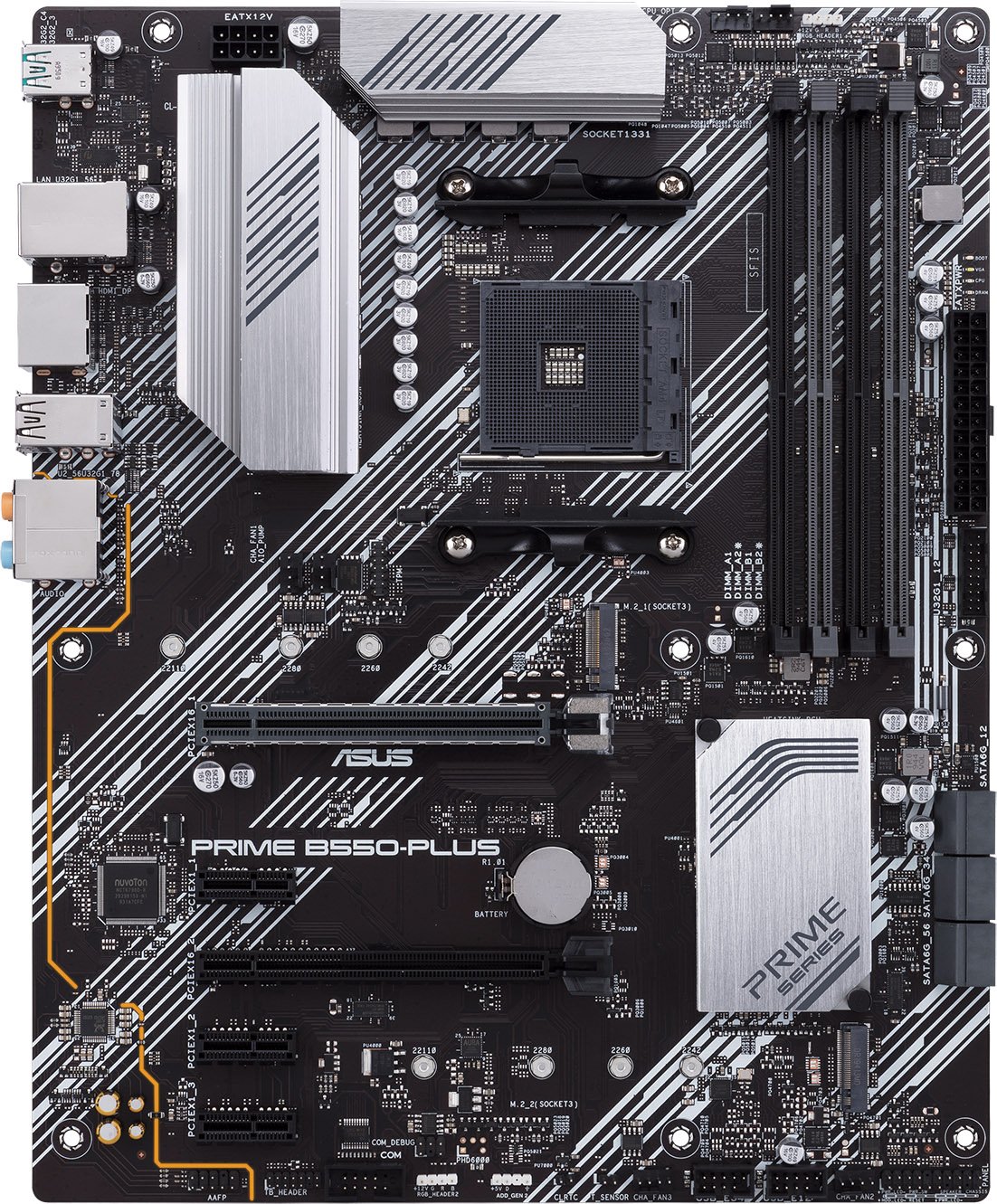

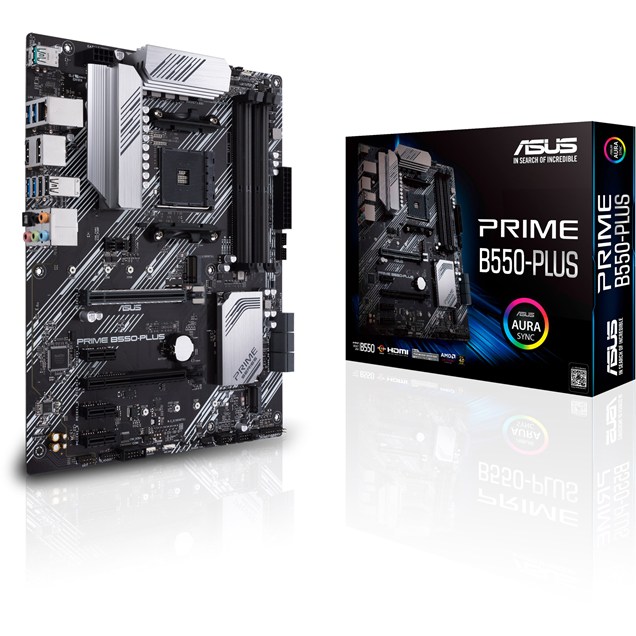

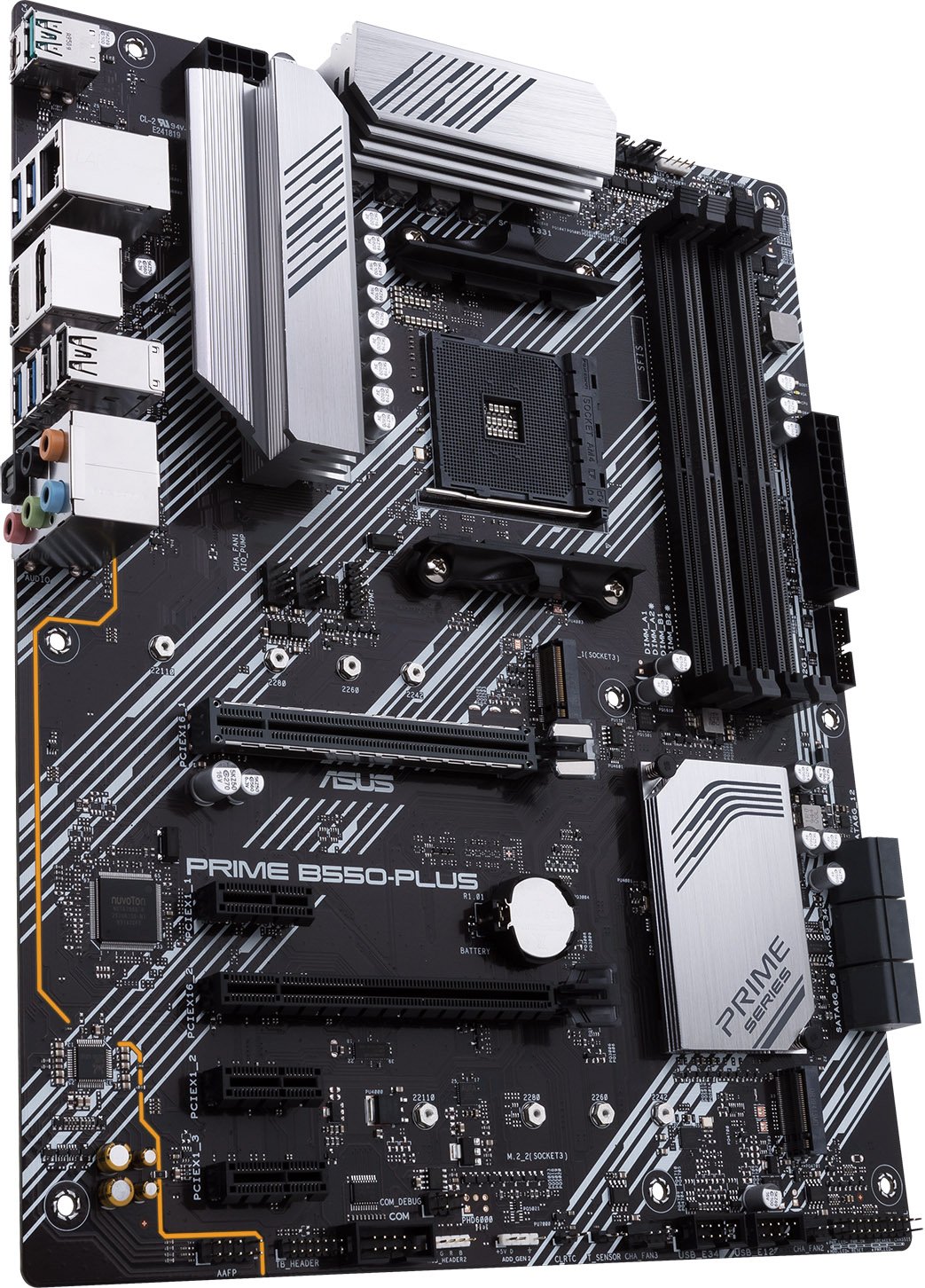

ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs

ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs

CCL Code: MBD2882

Sold out

Notify Me
  • ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs
  • ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs
  • ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs
  • ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs
  • ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs
  • ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs
  • ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs

Rate your Gear and claim £25 cashback from ASUS*

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support

ASUS Prime B550-Plus ATX Motherboard for AMD AM4 CPUs

90MB14U0-M0EAY0

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support

Key Features:

  • ATX Form Factor
  • AMD B550 Chipset
  • Socket AM4
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 8 x USB & 6 x SATA
  • HDMI and Display Port
CCL Code: MBD2882

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

Intelligent Control

EPU

All-around Energy Efficiency

With the Energy Processing Unit (EPU), you’ll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.

Fan Xpert 4

Flexible Air- and Liquid-Cooling Controls

Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AiO coolers can also be controlled via the UEFI BIOS.

Digi+ VRM Control

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

  • Search Function - Quickly and easily find the option or setting you need.
  • ASUS User Profile - Port configuration settings between different BIOS versions or share them with friends.

EZ Mode

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

  • Intuitive Graphical Fan Control -Fine-tune individual fan settings simply by dragging a curve with the mouse.
  • EZ XMP - Improve DRAM performance with one click.
  • Aura On/Off Mode (Stealth) - Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

Cool to the Core

Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

VRM Heatsink and Thermal Pads

A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime B550 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AIO Pump Header

A dedicated PWM/DC header for self-contained water-cooling setups.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

Each onboard chassis fan header supports PWM and DC mode.

Build on a Solid Foundation

Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Storage

PCIe 4.0 M.2 (up to 64 Gbps)

Achieve speed with onboard M.2

PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

* The M.2_1 supports PCIe 4.0 and the M.2_2 supports PCIe 3.0.

Connectivity

USB 3.2 Gen 2

USB 3.2 Gen 2 Type-A & Type-C

Numerous USB ports support high-end rigs loaded with peripherals, including a USB Type-C® and a Type-A® connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Thunderbolt™ 3 Support

Prime B550-Plus supports ThunderboltEX 3-TR, an Intel certified Thunderbolt™ 3 add-on card that enables bi-directional speeds of up to 40 Gbps via a single cable. Additionally, an integrated Thunderbolt 3 header can support up to six devices in a daisy-chain and provide up to 100 watts of power to fast-charge devices.

Little Things Make a Big Difference

Prime B550 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Audio

Outstanding Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

  • Audio Shielding - Separates analog/digital signal domains, significantly reducing multi-lateral interference
  • Separate Layers for Left and Right Tracks - Ensures minimal crosstalk between audio paths
  • Premium Japanese Capacitors - Premium parts provide an immersive sound signature, with exceptional fidelity

Personalization

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for RGB LED strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 RGB Header

The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offers backward-compatibility with existing Aura RGB gear.

Armoury Crate

Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlights to help you stay in touch with the ASUS community.

  • Aura Sync
  • Driver & Manual Download
  • Account Management

DIY-friendly

SafeSlot Core

Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

LANGuard

Pumped-up throughput 2.5X higher surge tolerance

ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

1000+

Compatible devices and components

The Prime Z490 series provides superior compatibility with thousands of components and our Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+

Validation hours

Every ASUS motherboards is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Main Features

  • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen Processors
  • Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
  • Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
  • Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
Promotions

ASUS Rate Your Gear

Rate your Gear with ASUS

For a limited time purchase an eligible ASUS product, leave a review of said product from the review invitation email, and you can claim £25 cashback from ASUS.

For more information, visit our promotion page. Terms & Conditions apply.

Separation

Promotional Period: From October 21st till December 31st 2024, while stock lasts.

Terms and Conditions

Find the full Terms & Conditions on the ASUS website here: Terms & Conditions.

Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors 3rd Gen AMD RyzenT Processors
64-bit Support Yes
Socket AM4

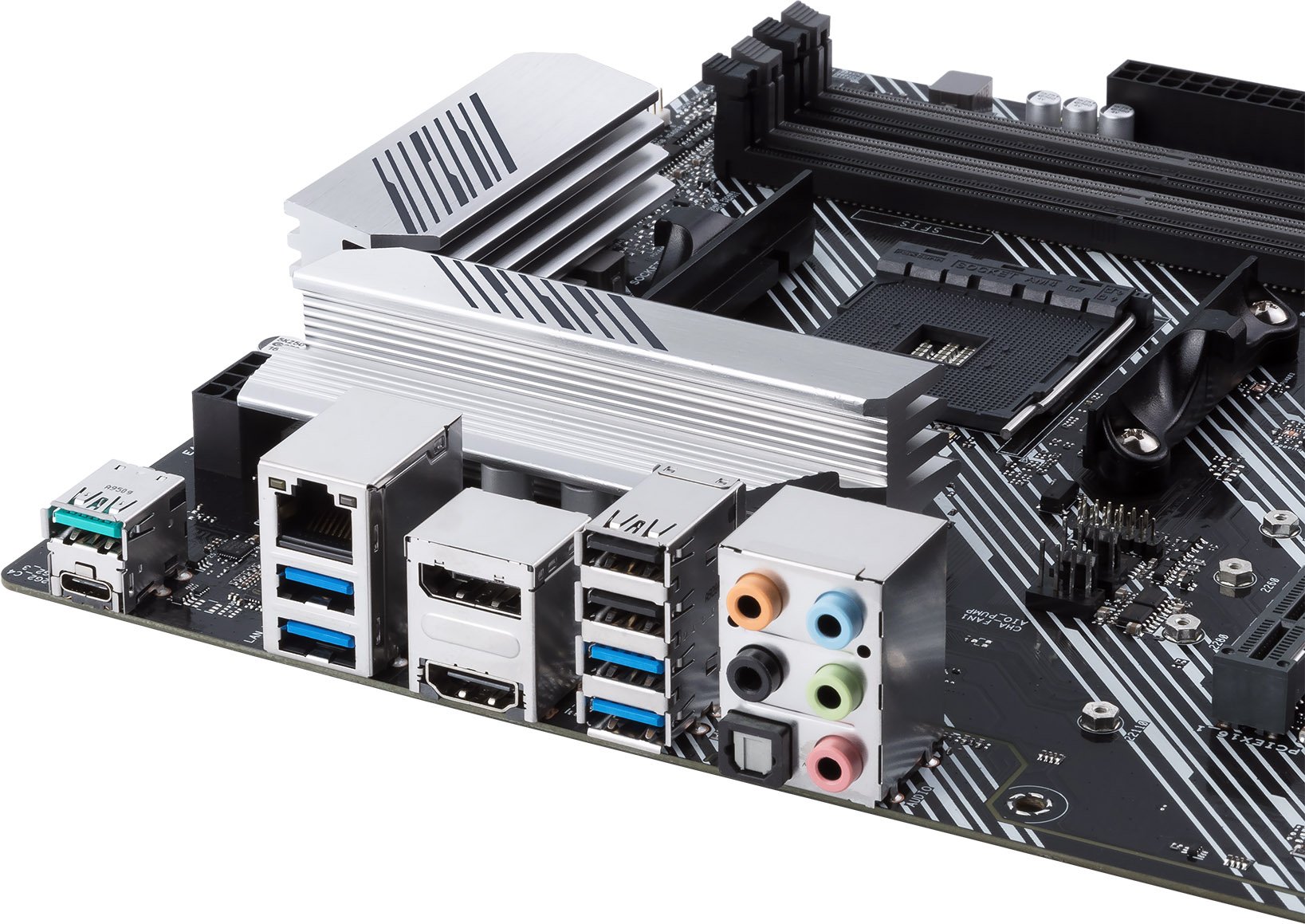

Rear Panel I/O Ports

USB Ports 1 x USB 3.1 Type-C
1 x USB 3.1 Type-A
4 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.2
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU_OPT fan header
3 x Chassis fan headers
1 x AIO_PUMP header
Thunderbolt Port(s) 1 x Thunderbolt header
Serial Connectors 1 x COM header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 20+4-pin ATX
1 x 4+4-pin EPS
Other Connectors 2 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110)
2 x Aura RGB LED headers
1 x Addressable Gen 2 header
1 x Thermal Sensor header

Memory

Memory Bus Speed 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge B550
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x16 (@ x4)
3 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC887

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8111H
Network Speeds Supported 10/100/1000 Mbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Supports AMD 2-Way CrossFireX Technology

Physical

Form Factor ATX Motherboard

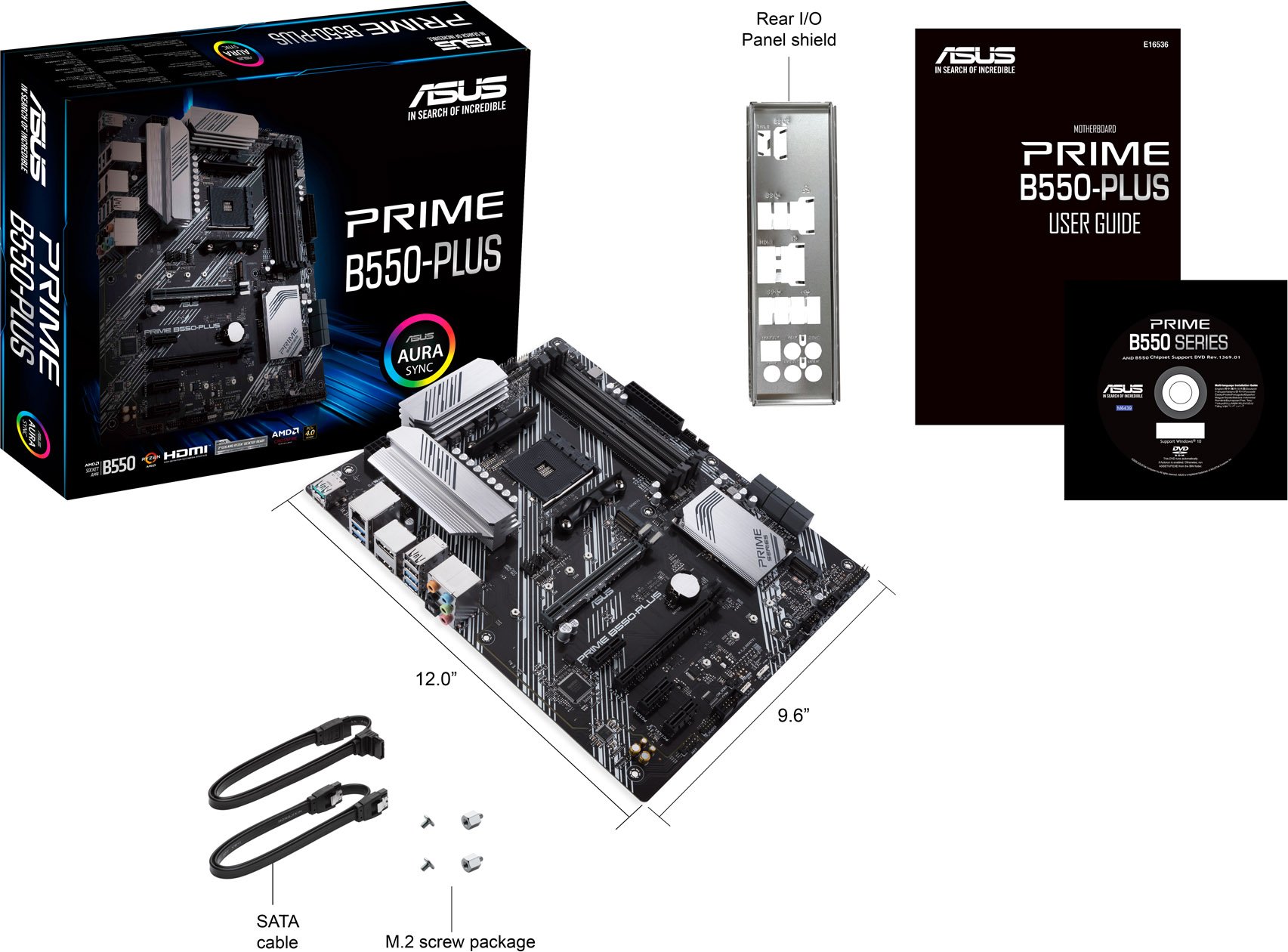

In The Box PRIME B550-PLUS Motherboard
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
Width 305 mm
Length 244 mm

Key Features

USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 4800 MT/s
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header No
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 4800 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 2
SATA ports 6
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
Firewire No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B550
Thunderbolt No
Motherboard Model ASUS Prime B550-Plus

Item Details

Manufacturer ASUS
Manufacturer Code 90MB14U0-M0EAY0
Alternative Part Number PRIME B550-PLUS
EAN 4718017782340
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB14U0-M0EAY0
