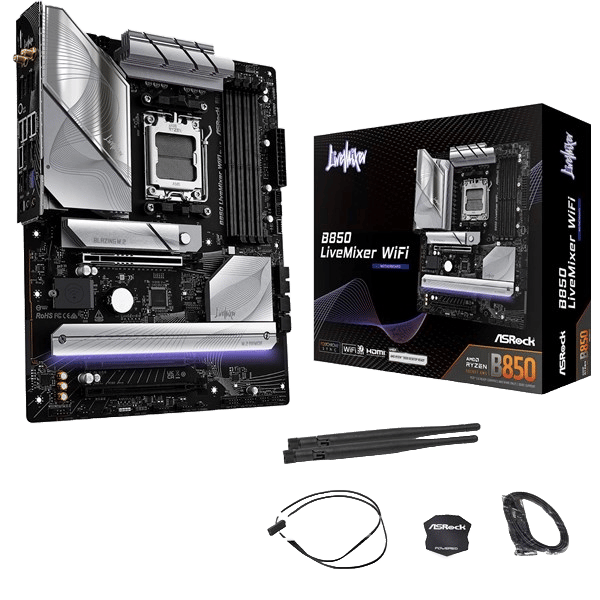

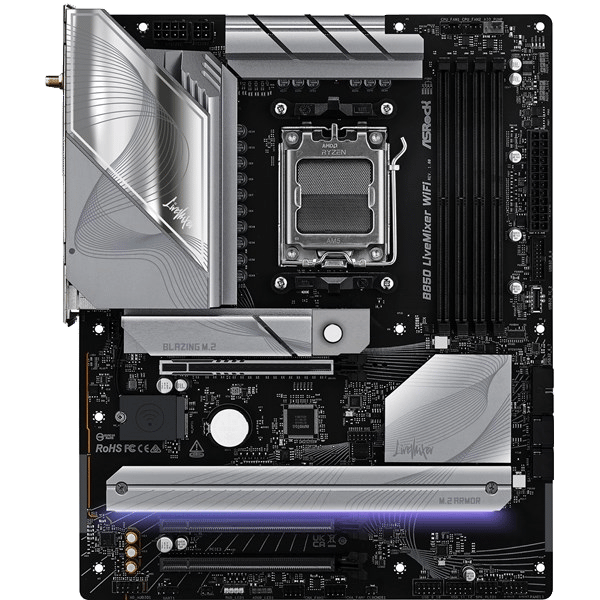

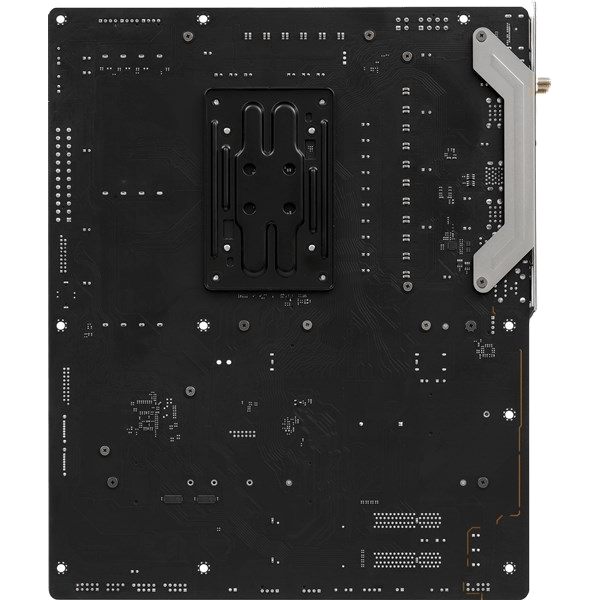

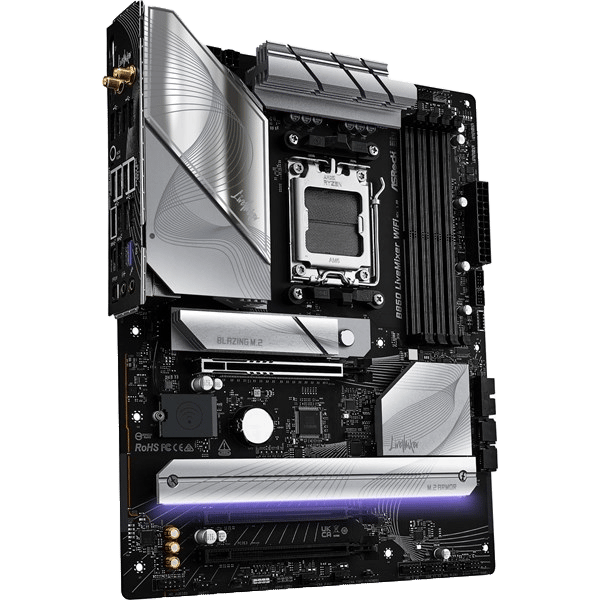

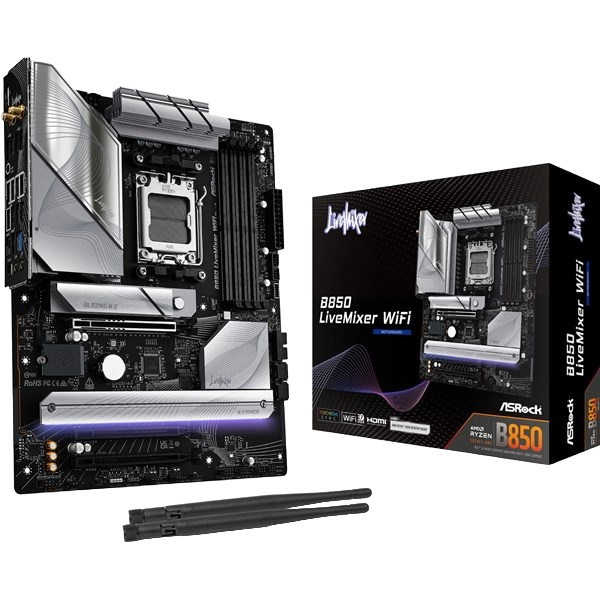

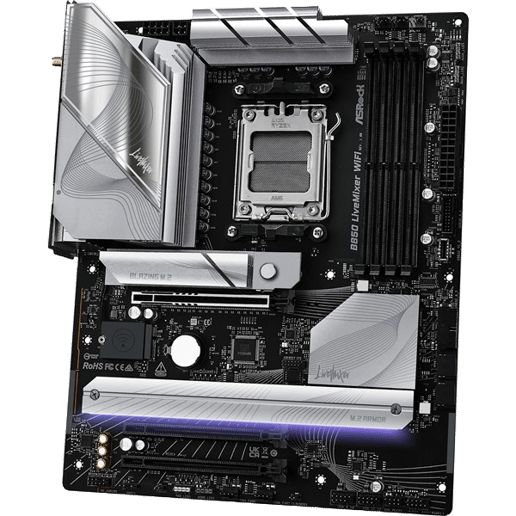

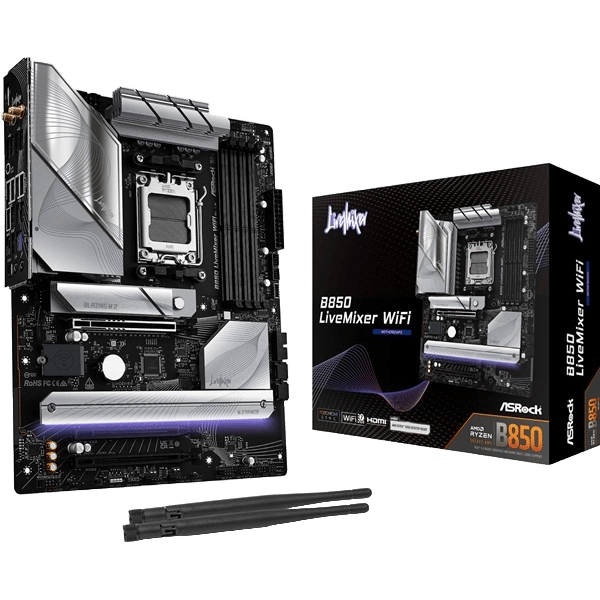

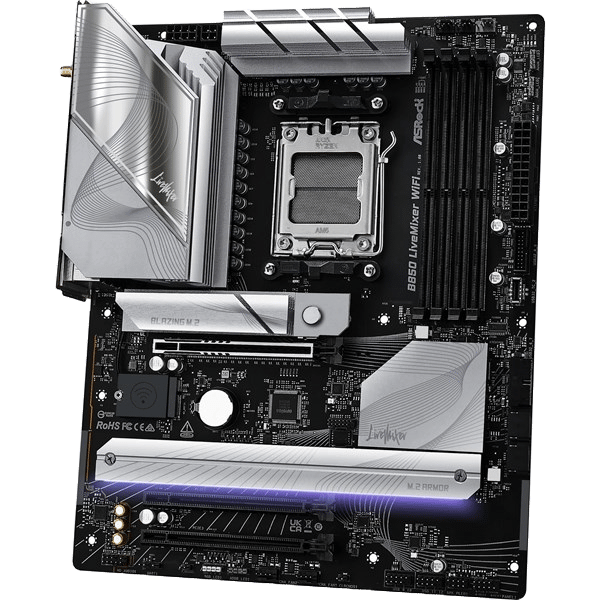

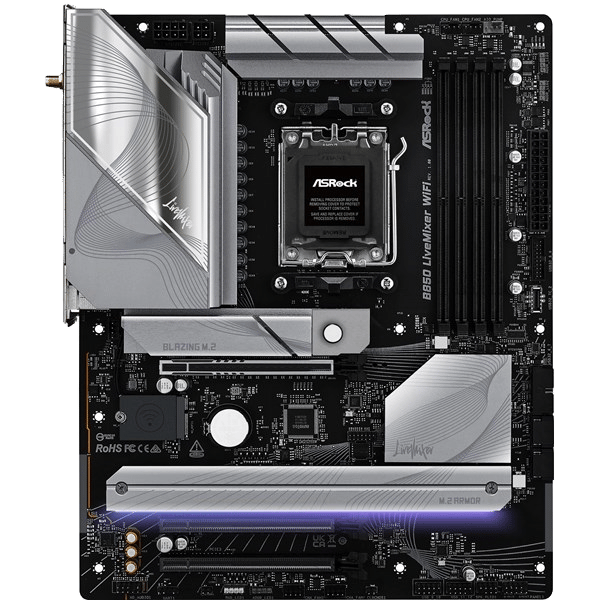

ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs

ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3841

Coming soon

Notify Me
  • ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs
  • ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs
  • ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs
  • ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs
  • ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs
  • ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs
  • ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs
  • ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs

Grab a free Lian Li anti-sag bracket with every ATX motherboard purchase!**

ASRock B850 LiveMixer WiFi ATX Motherboard for AMD AM5 CPUs

90-MXBQU-A0UAYZ

Key Features:

  • ATX Form Factor
  • AMD B850 Chipset
  • Socket AM5
  • DDR5 (Max: 256GB / 4 slots)
  • 3 x M.2 & 14 x USB & 2 x SATA
  • HDMI and Display Port
CCL Code: MBD3841

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management.

Promotions

GRAB A SOUGHT-AFTER PC ACCESSORY FREE WITH EVERY ATX MOTHERBOARD!

For a limited time, every purchase of an ATX motherboard qualifies for a 100% discount on a Lian Li GB-002 anti sag bracket, one of the better methods to keep your shiny new graphics card from succumbing to gravity!! Simply add the bracket to your basket alongside the motherboard and discount will be applied.

CLICK TO VIEW AND ADD THE LIAN LI GB-002 TO YOUR BASKET

Bracket advertised as compatible with ATX/eATX motherboards, however high-end boards with large thermal-shielding may interfere with mounting compatibility.

Offer valid 25th December to 31st January, and whilst stocks last.

Bracket

Lian Li GB-002 Anti Sag Bracket for Graphics Cards

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD (1)
Supported Processors Ryzen 9000, 8000 and 7000 Series Processors
64-bit Support Yes
Socket AM5

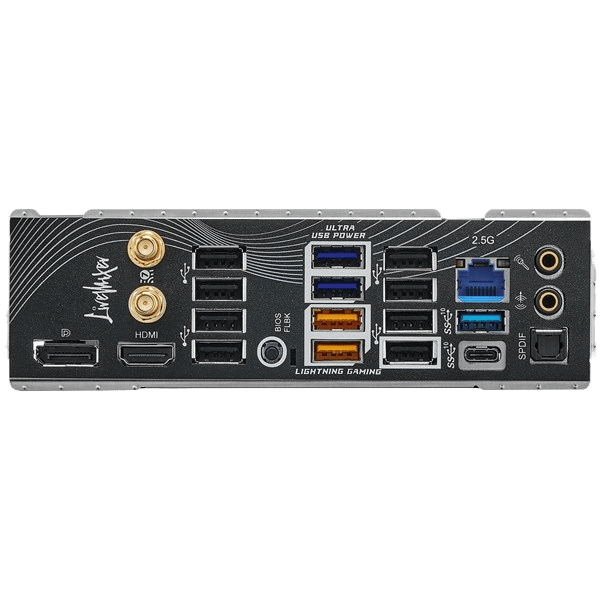

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
1 x USB 3.1
4 x USB 3.0
8 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 2 x SATA
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 2 x CPU fan headers
3 x Chassis fan headers
1 x AIO pump header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2230/2242/2260/2280 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header
1 x Thermistor Cable header

Memory

Memory Bus Speed Up to 8000 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B850
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
2 x PCI Express 4.0 x16 slots (@ x4/x4)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC1220

Warranty

Warranty 3

Network

Integrated Network Dragon RTL8125BG
Network Speeds Supported Up to 2.5
Wireless LAN Yes Years
Bluetooth Yes
Bluetooth Version 5.4 Gbps

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
In The Box Motherboard
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Thermistor Cable
Width 244
Length 305 mm|mm

Key Features

Power Requirement (auto) 70 W
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 12
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
SATA ports 2
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
Back Connect Support No
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 2 port(s)
Number of USB Ports 14 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4-Pin + 8-Pin
Motherboard Chipset AMD B850
Thunderbolt No
Motherboard Model ASRock B850 LiveMixer WiFi
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBQU-A0UAYZ
Alternative Part Number B850 LIVEMIXER WIFI
EAN 4711581490154
Condition New
Warranty

Warranty Information

Warranty 3

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBQU-A0UAYZ
