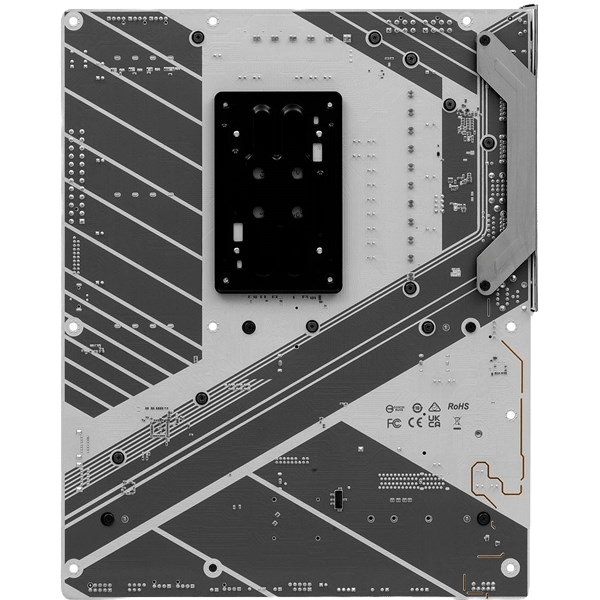

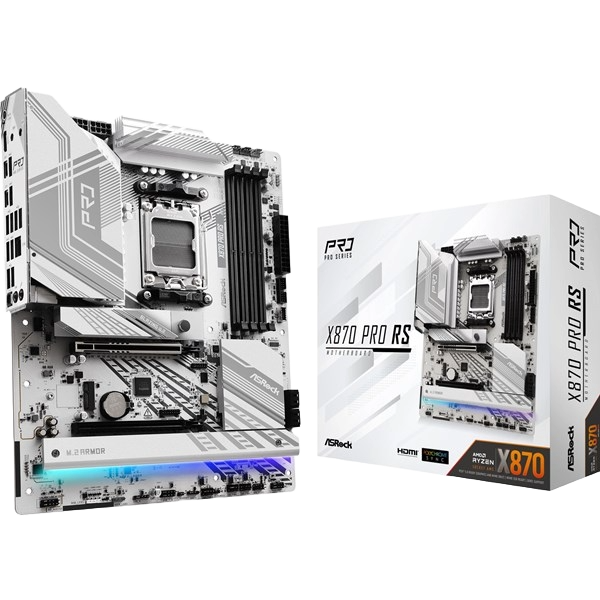

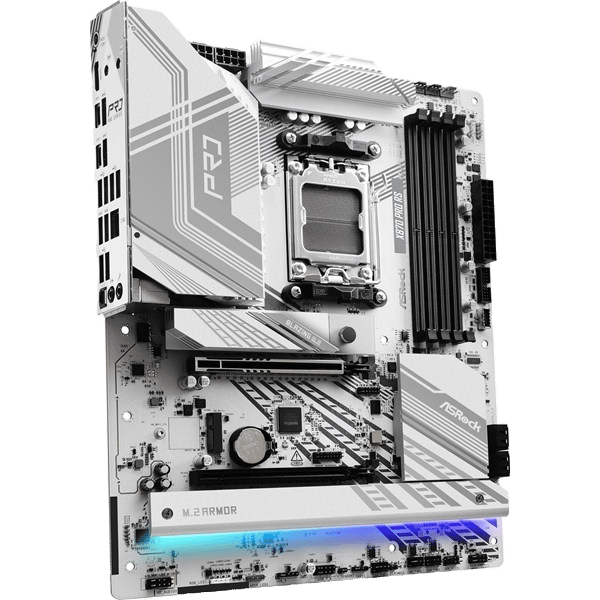

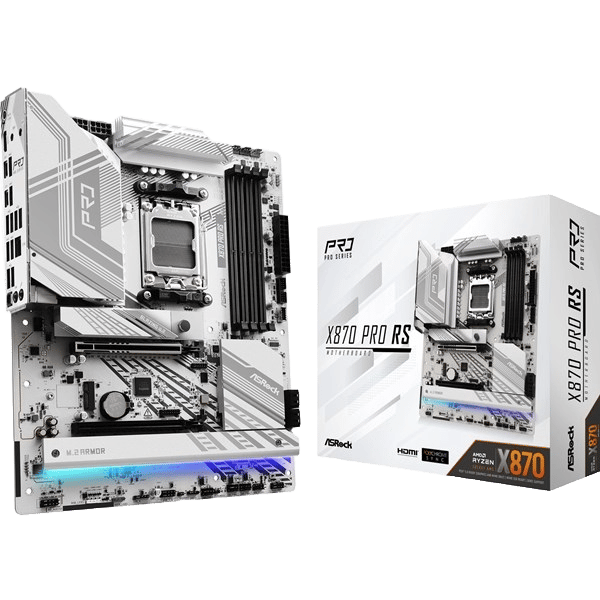

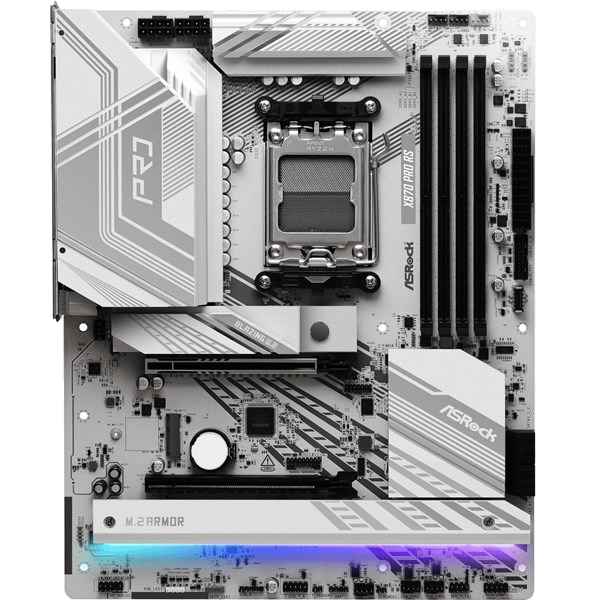

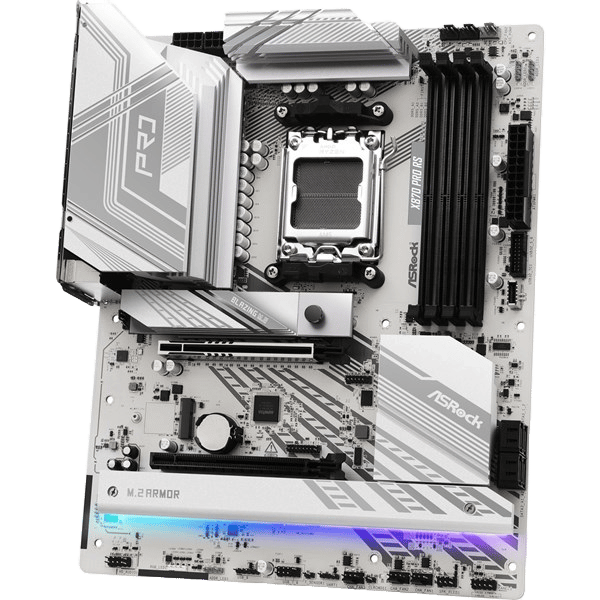

ASRock X870 Pro RS ATX Motherboard for AMD AM5 CPUs

ASRock X870 Pro RS ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3714

£195.99 inc VAT

ASRock X870 Pro RS ATX Motherboard for AMD AM5 CPUs

90-MXBPZ0-A0UAYZ

£195.99 inc VAT

Available for delivery from Wednesday 6th November

or Click & Collect from Tomorrow

Hurry, only 2 left!

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • AMD X870 Chipset
  • Socket AM5
  • DDR5 (Max: 256GB / 4 slots)
  • 3 x M.2 & 12 x USB & 4 x SATA
  • HDMI
CCL Code: MBD3714
Overview

ASRock X870 Pro RS AMD Socket AM5 ATX Motherboard

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
64-bit Support Yes
Socket AM5

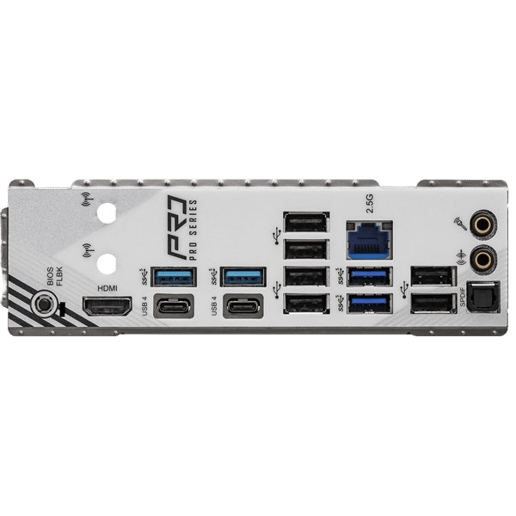

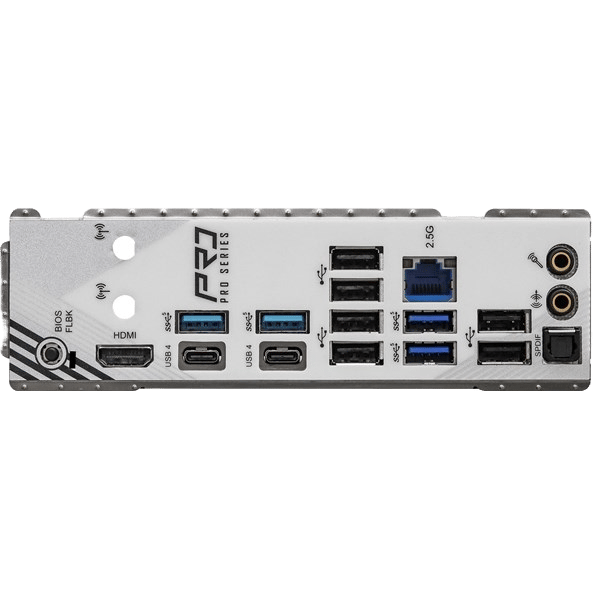

Rear Panel I/O Ports

USB Ports 2 x USB-C 4
4 x USB 3.0
6 x USB 2.0
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 2 x CPU fan headers
4 x Chassis fan headers
1 x AIO pump header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2230/2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen3 or SATA)
3 x 3-pin ARGB headers
1 x 4-pin RGB header
1 x Thermistor Cable header

Memory

Memory Bus Speed Up to 8000 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD X870
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC1220

Warranty

Warranty 3 Years

Network

Integrated Network Dragon RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Windows 11
Windows 10 64-bit

System

BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

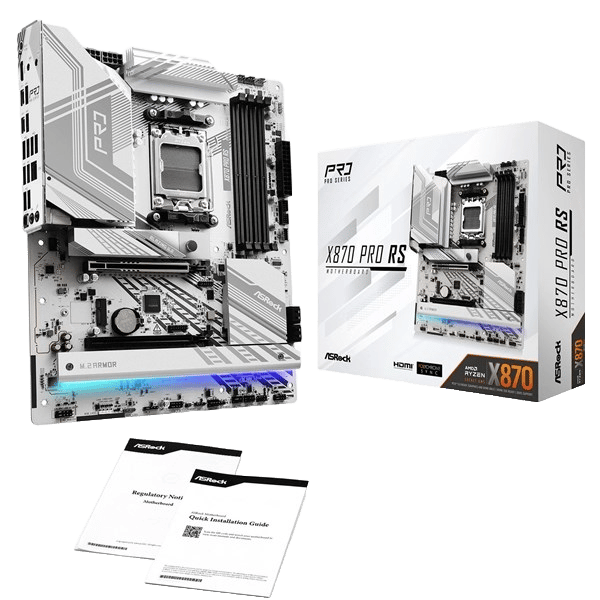

In The Box Motherboard
2 x SATA Cables
M.2 Screw
Width 244 mm
Length 305 mm

Key Features

Maximum NVMe M.2 ports 3
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 12 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset AMD X870
Thunderbolt No
Motherboard Model ASRock X870 Pro RS
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 3

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBPZ0-A0UAYZ
EAN 4710483949326
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBPZ0-A0UAYZ
