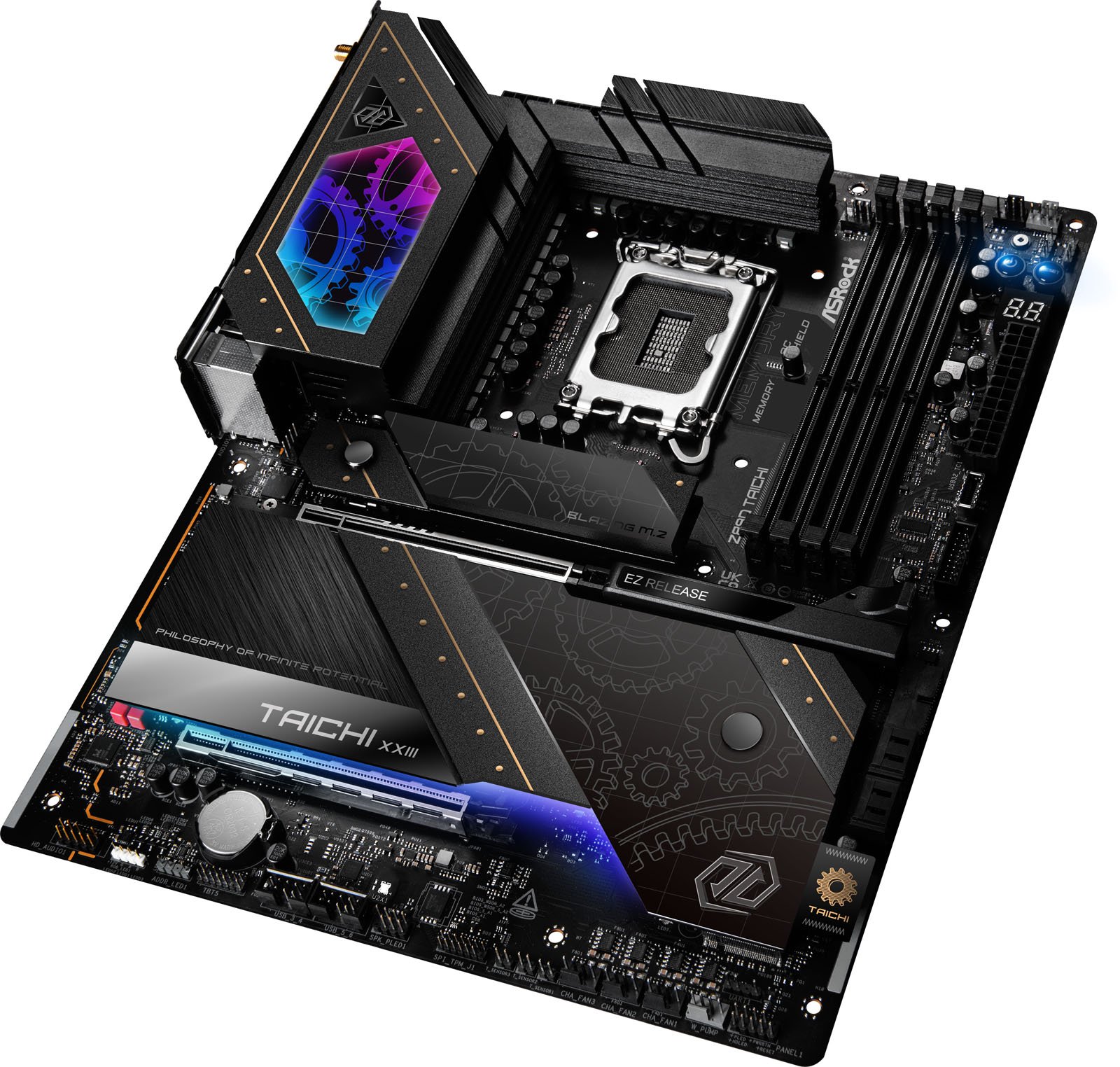

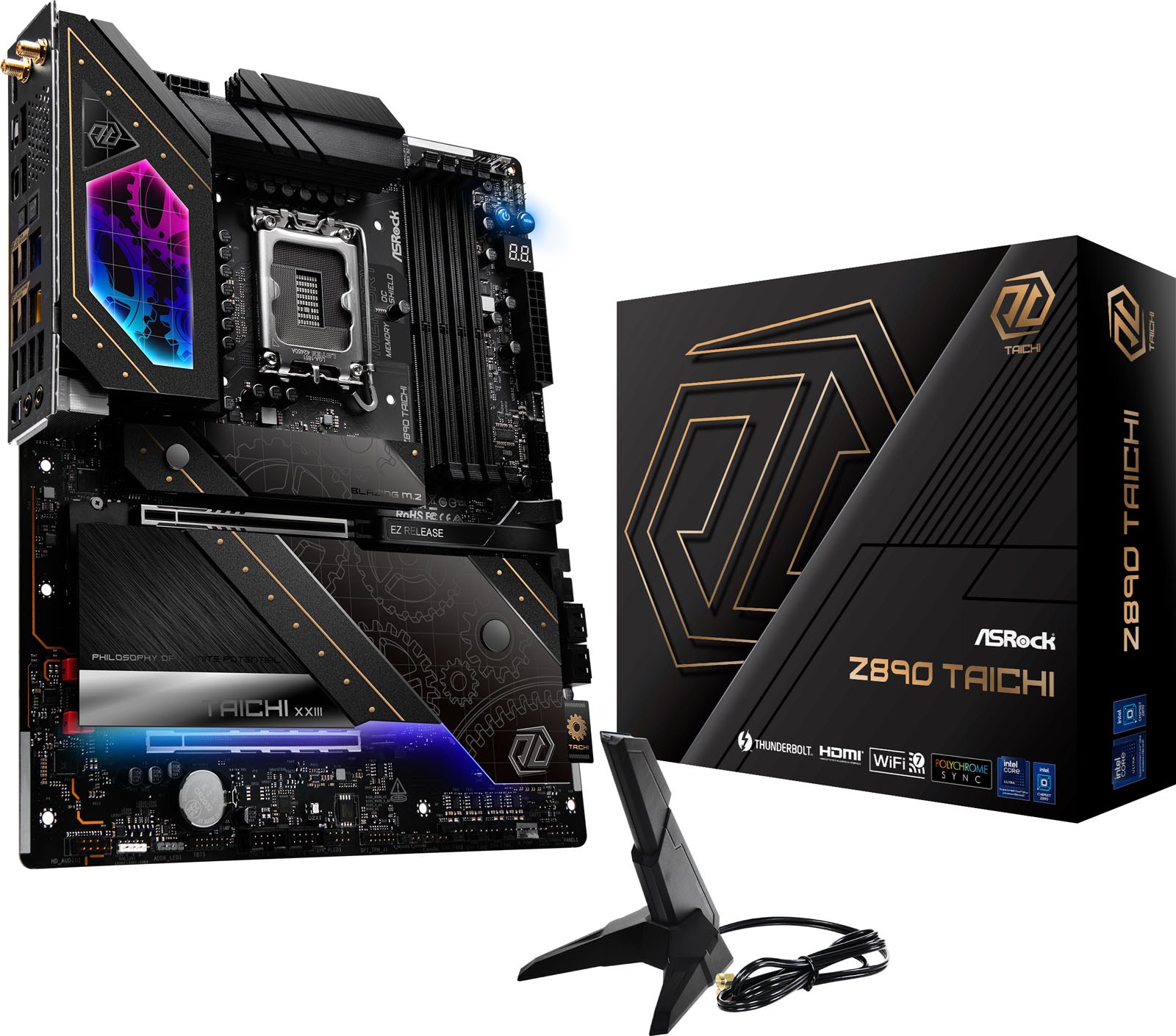

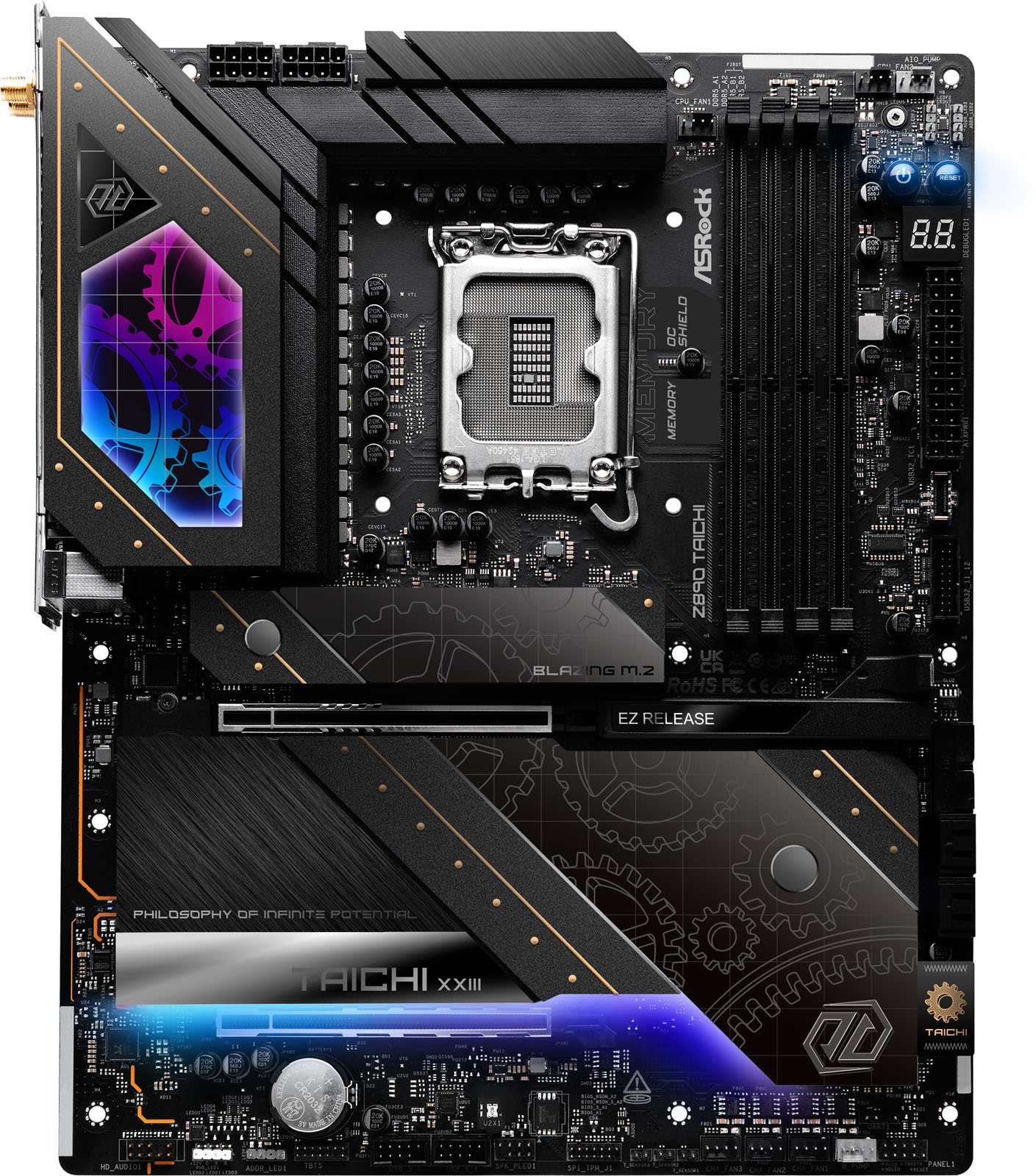

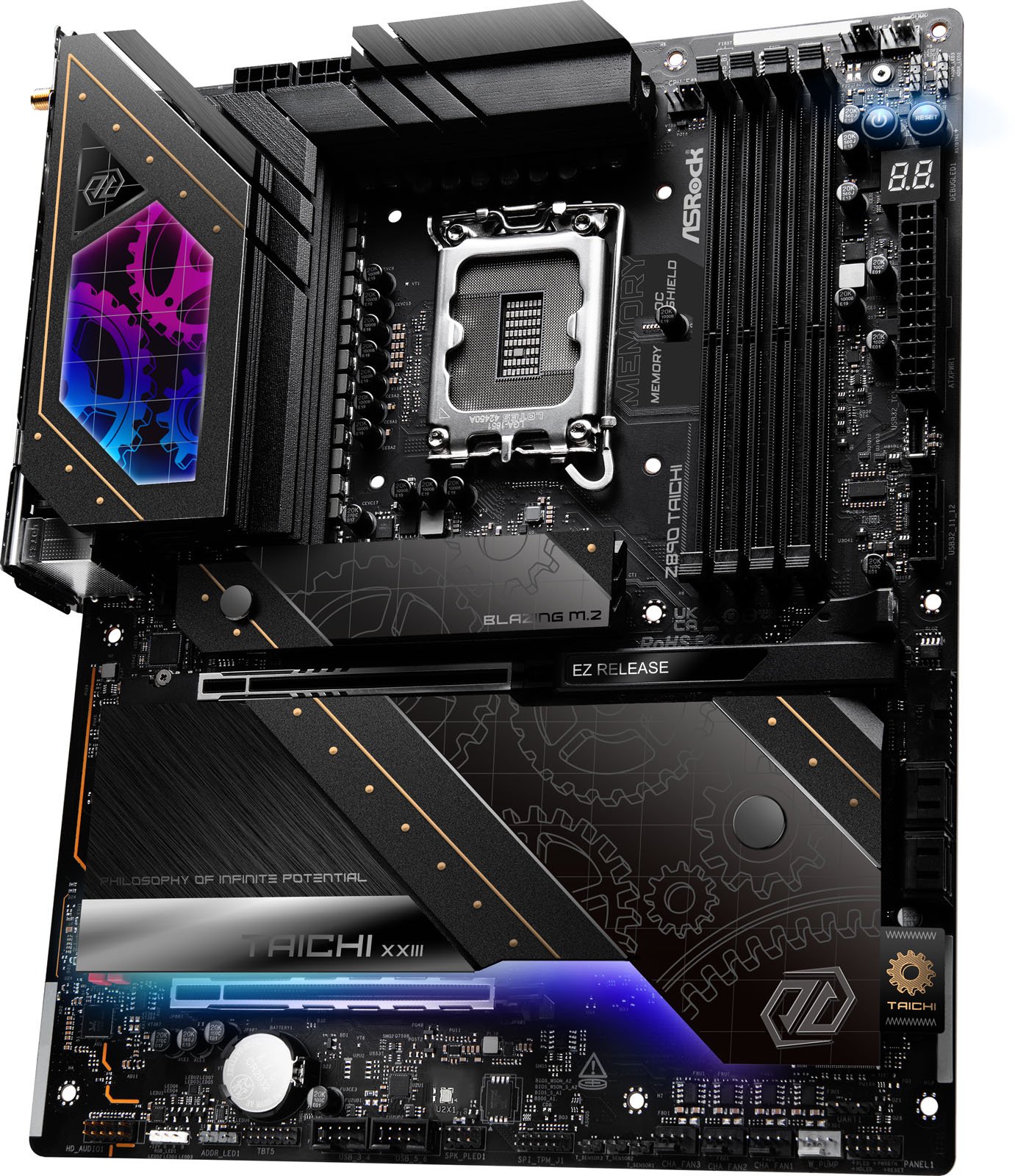

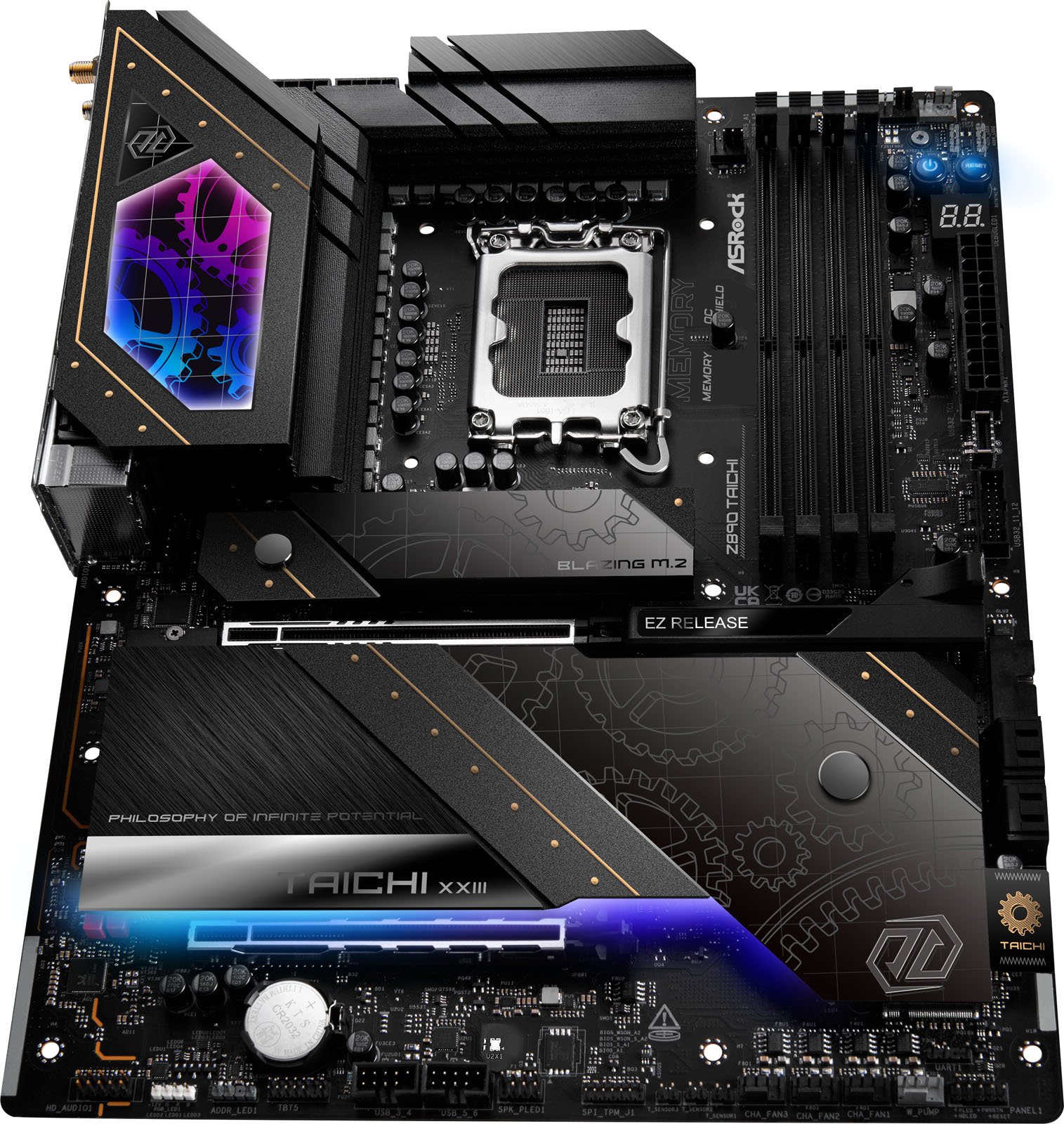

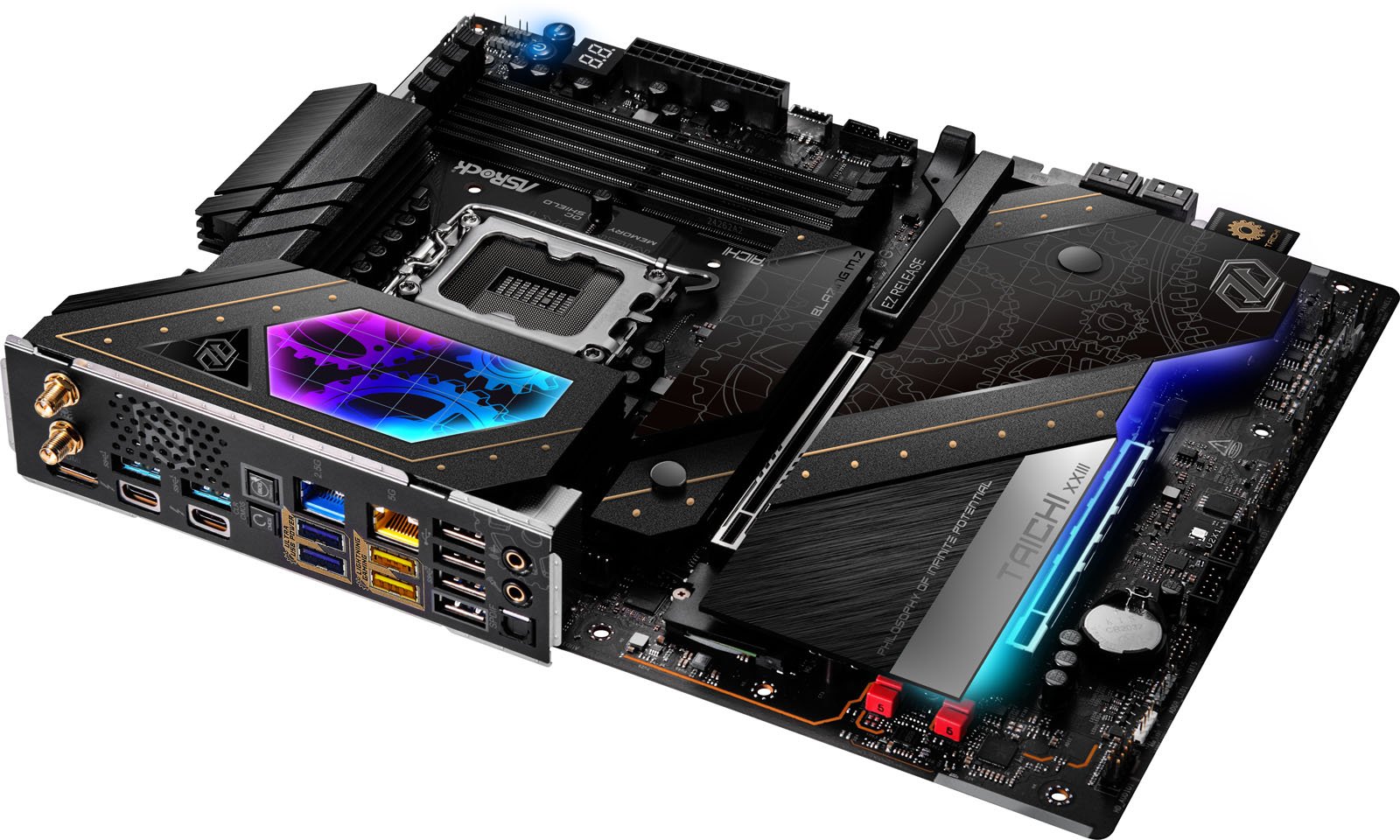

ASRock Taichi ATX Motherboard for Intel LGA1851 CPUs

ASRock Taichi ATX Motherboard for Intel LGA1851 CPUs

CCL Code: MBD3744

£407.99 inc VAT

ASRock Taichi ATX Motherboard for Intel LGA1851 CPUs

90-MXBPR0-A0UAYZ

£407.99 inc VAT

Available for delivery from Saturday 23rd November

or Click & Collect from Monday 25th November

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel Z890 Chipset
  • Socket 1851
  • DDR5 (Max: 256GB / 4 slots)
  • 6 x M.2 & 10 x USB & 4 x SATA
  • HDMI
CCL Code: MBD3744
Overview

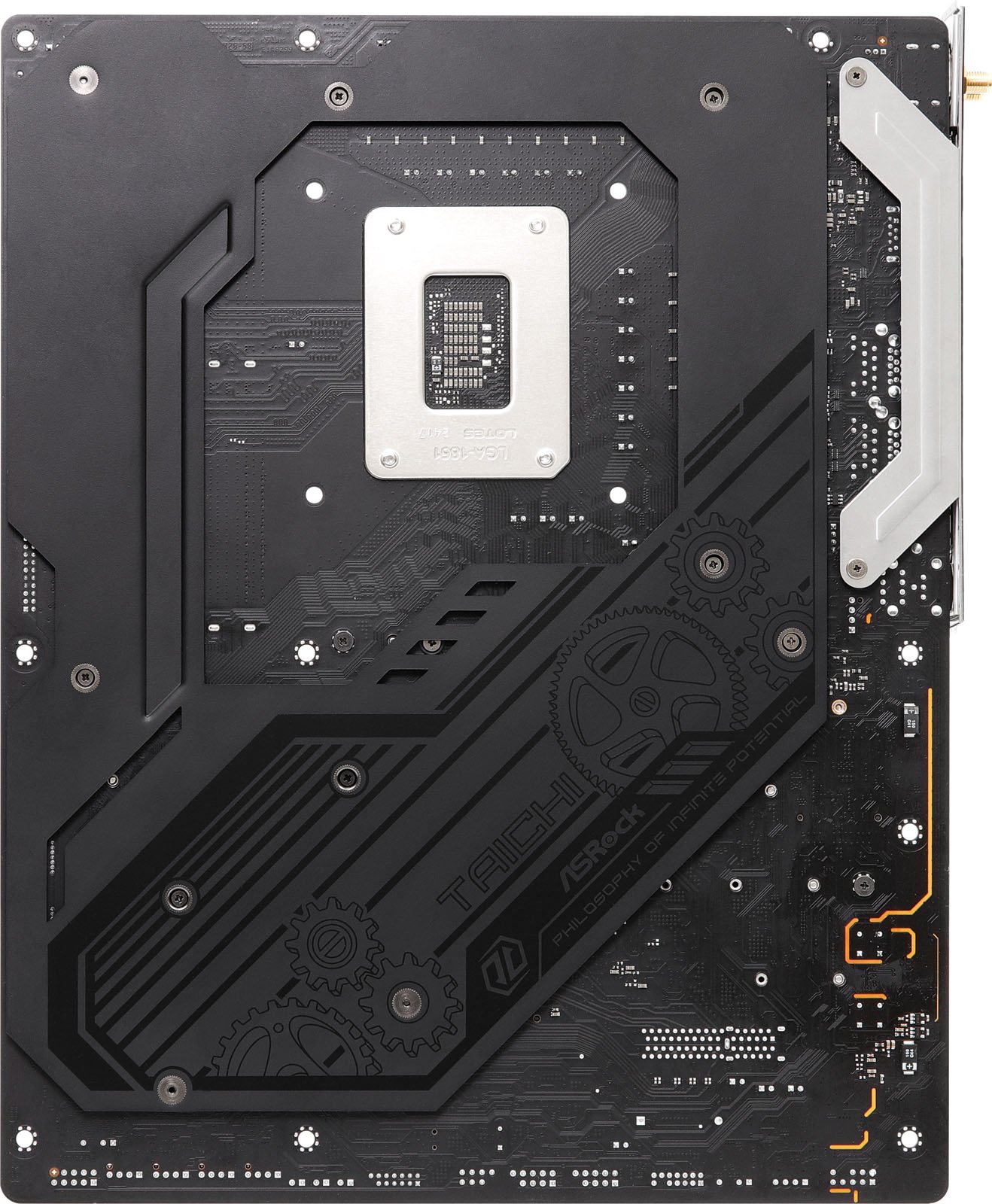

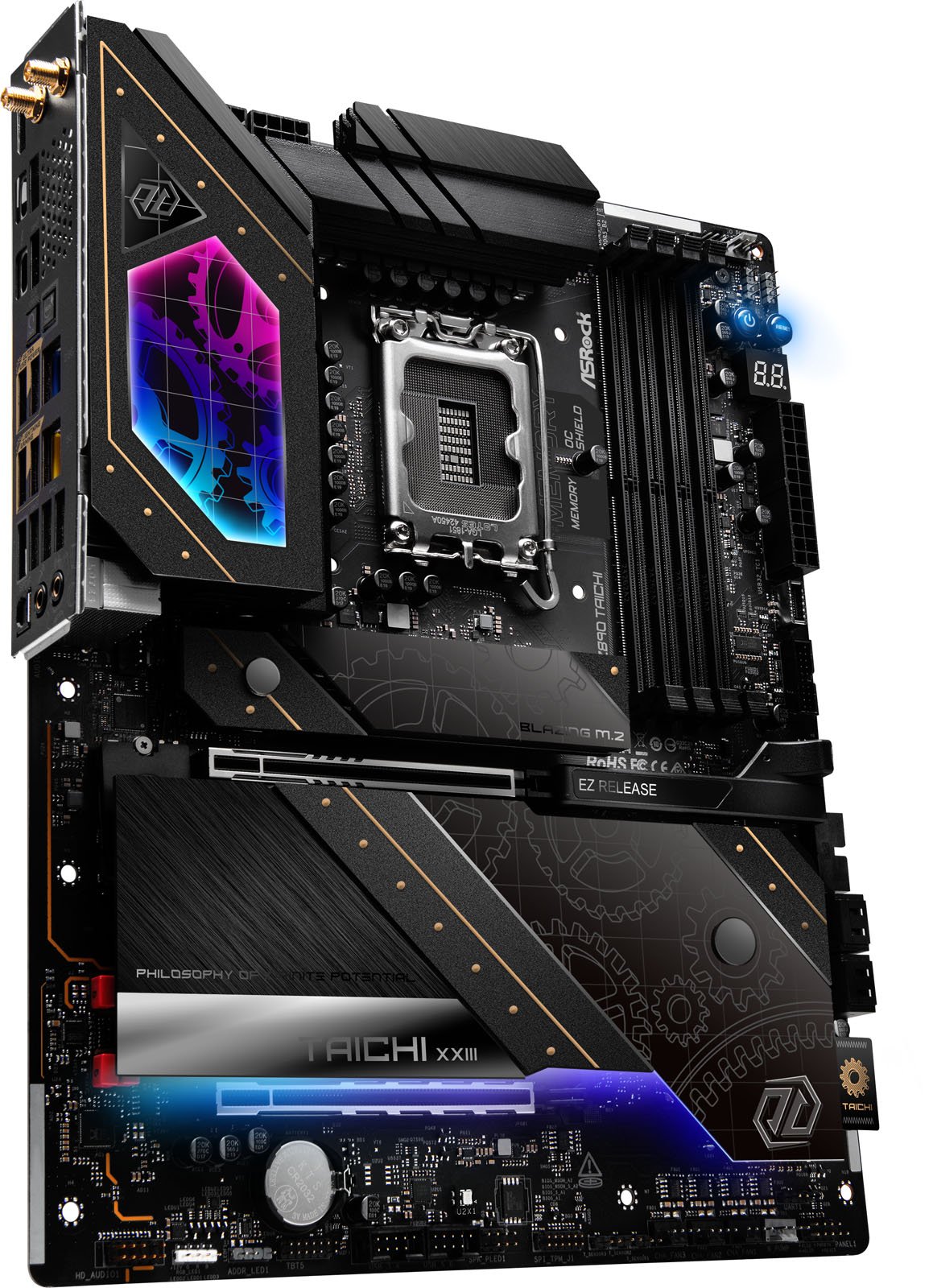

ASRock Z890 Taichi Motherboard

Specifications

CPU

CPU Socket Socket 1851
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core Ultra Processors (Series 2)
64-bit Support Yes
Socket LGA1851

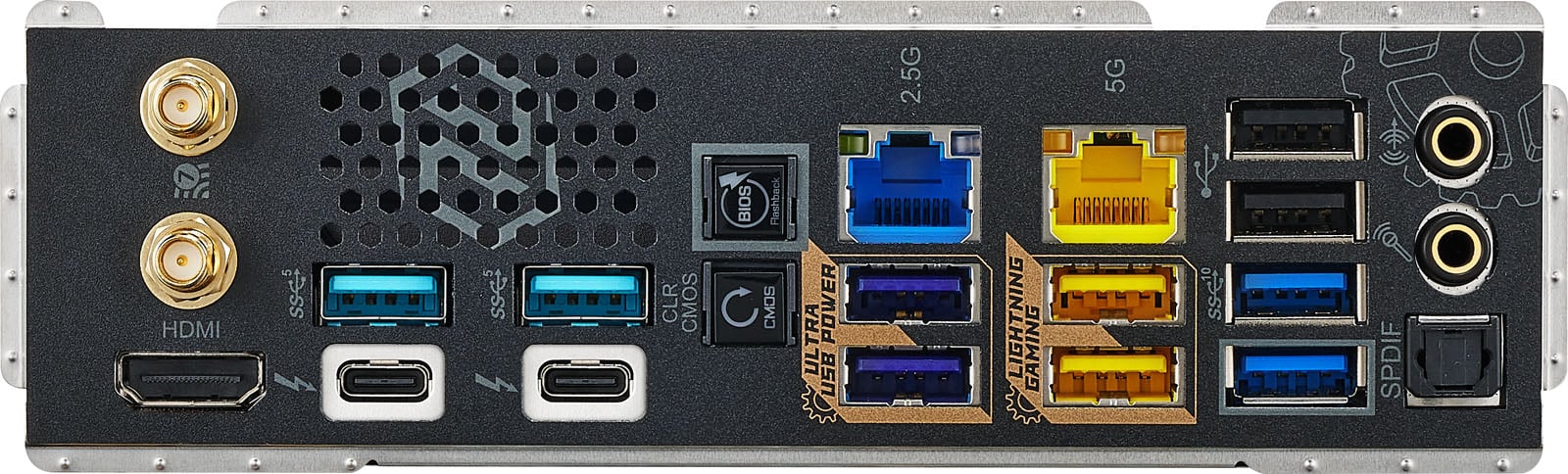

Rear Panel I/O Ports

USB Ports 2 x Thunderbolt 4
4 x USB 3.1
4 x USB 3.0
2 x USB 2.0
DisplayPorts Yes via Thunderbolt 4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 2 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker headr
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 2 x CPU fan headers
4 x Chassis fan headers
1 x AIO pump header
1 x Water pump headers
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
4 x M.2 slots, Key M, Type 2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2230/2242/2260/2280 (PCIe Gen4 or SATA)
3 x 3-pin ARGB headers
3 x Thermistor headers

Memory

Memory Bus Speed Up to 9200 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel Z890
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC4082

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8126-VB
Dragon RTL8125BG
Network Speeds Supported Up to 5 Gbps (Realtek)
Up to 2.5 Gbps (Dragon)
Wireless LAN Yes - Wi-Fi 7
Bluetooth Yes
Bluetooth Version 5.4

System Requirements

Operating Systems Supported Windows 11

System

BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

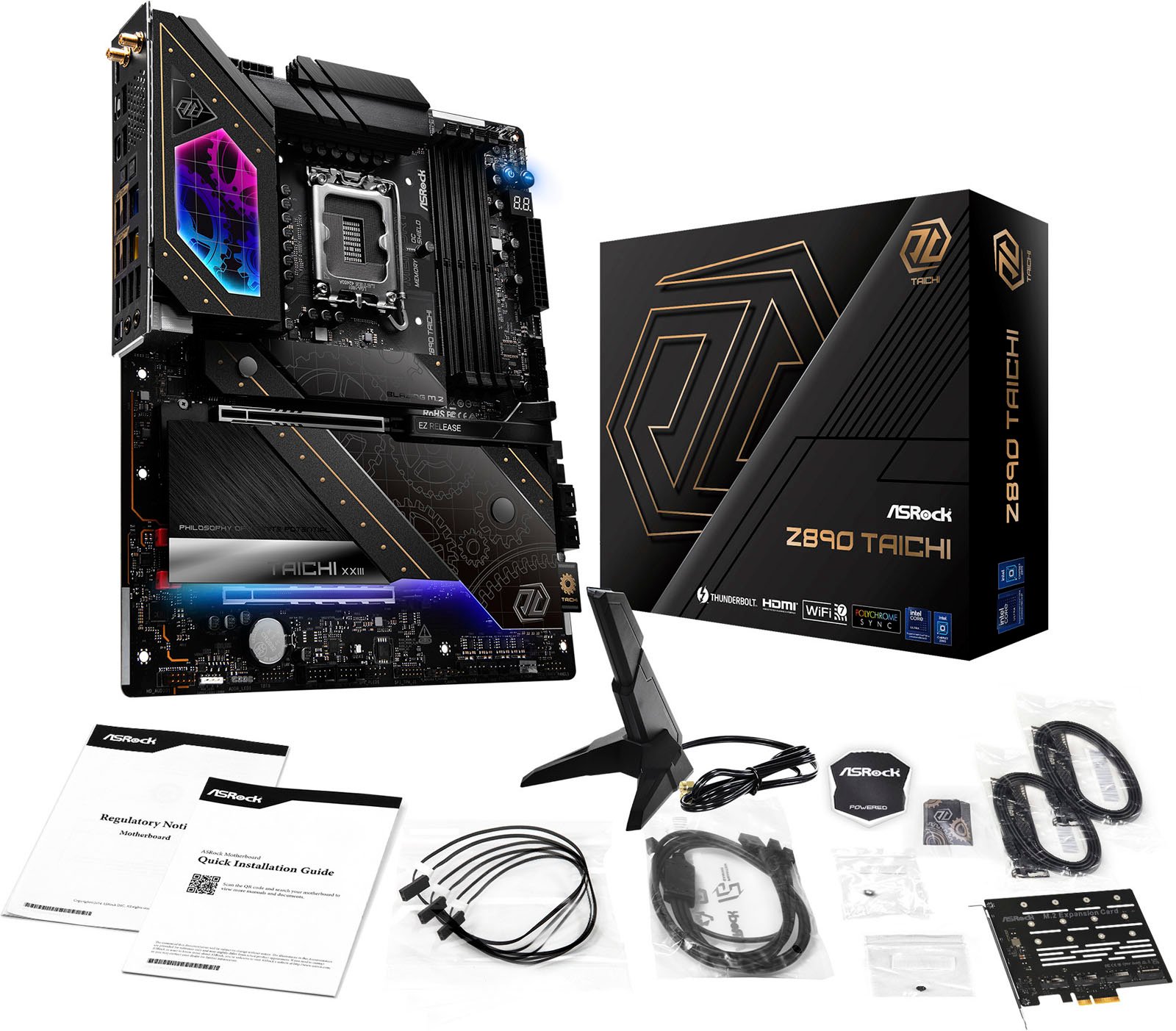

In The Box Motherboard
4 x SATA Cables
M.2 Expansion Card
WiFi Antenna
ARGB Splitter Cable
3 x Thermistor Cables
1 x M.2 Screw
1 x M.2 Standoff
Width 244 mm
Length 305 mm

Key Features

Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 10 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
Drive Interface Type PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel Z890
Thunderbolt Yes
Motherboard Model ASRock Z890 Taichi
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 9200 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 6
Maximum NVMe M.2 ports 6
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
Back Connect Support No

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBPR0-A0UAYZ
EAN 4710483949685
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBPR0-A0UAYZ
