CPU

CPU Socket	Socket 1851
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core Ultra Processors (Series 2)
64-bit Support	Yes
Socket	LGA1851

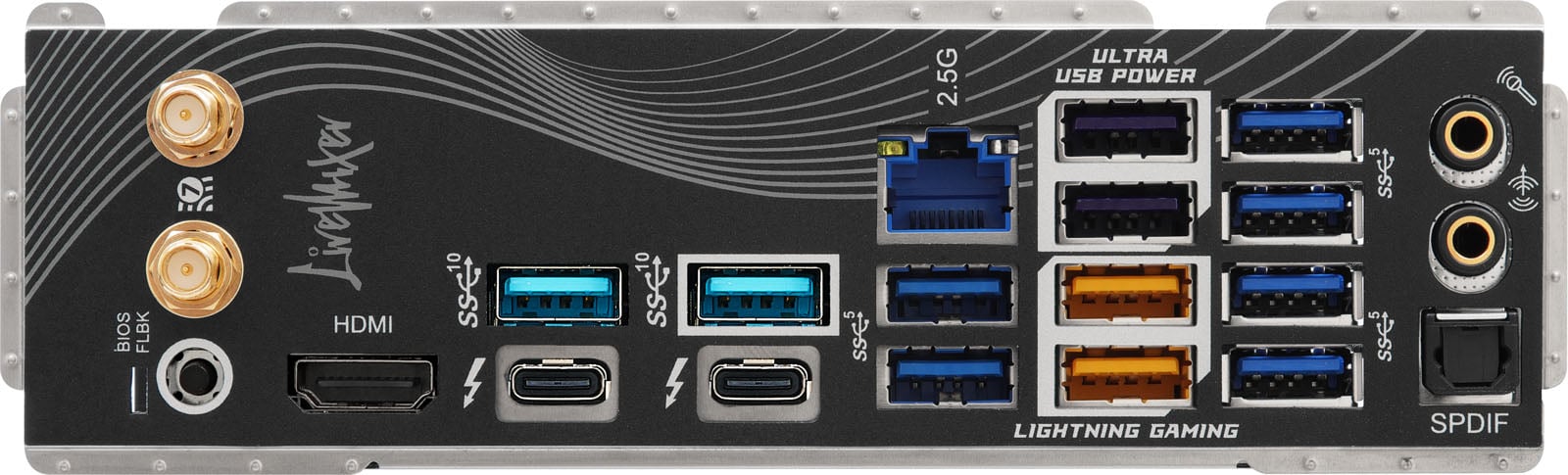

Rear Panel I/O Ports

USB Ports	2 x Thunderbolt 4 2 x USB 3.1 10 x USB 3.0
DisplayPorts	Yes via Thunderbolt 4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	2 x CPU fan headers 5 x Chassis fan headers 1 x AIO pump header
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4 or SATA) 1 x M.2 slot, Key M, Type 2230/2242/2260/2280 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x 4-pin RGB header 1 x Thermistor header

Memory

Memory Bus Speed	Up to 9066 MT/s
Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Intel Z890
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot 2 x PCI Express 4.0 x16 slots (@ x4/x4)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC1220

Network

Integrated Network	Dragon RTL8125BG
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Windows 11

System

BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

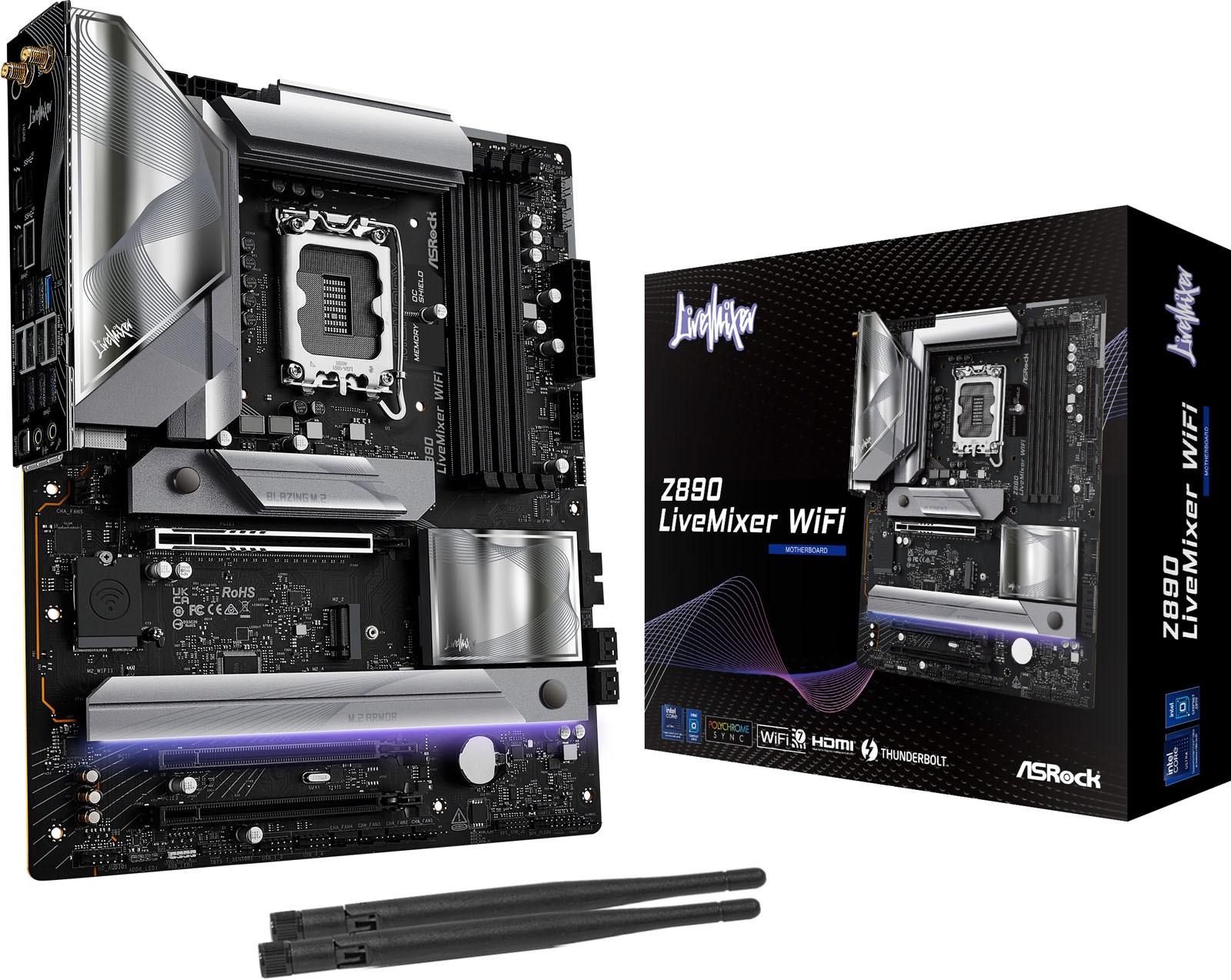

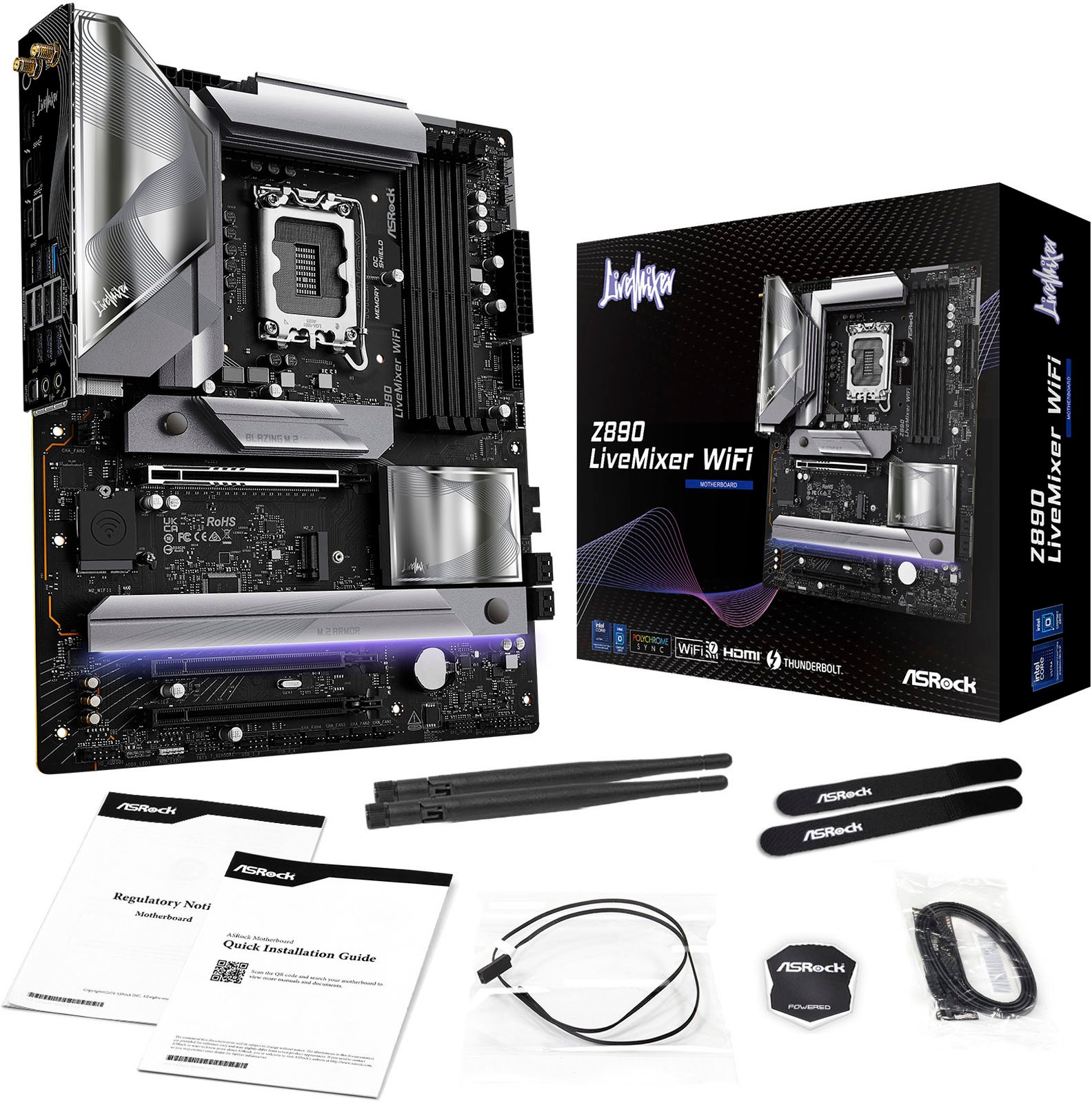

In The Box	Motherboard 2 x SATA Cables 2 x WiFi Antennas Thermistor Cable
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	12 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Drive Interface Type	PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel Z890
Thunderbolt	Yes

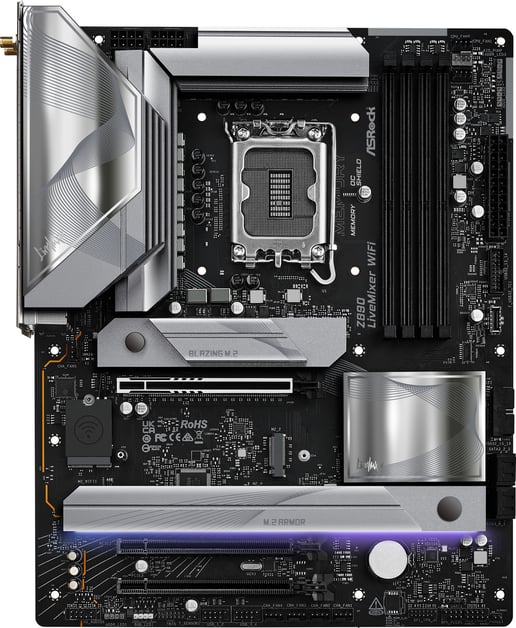

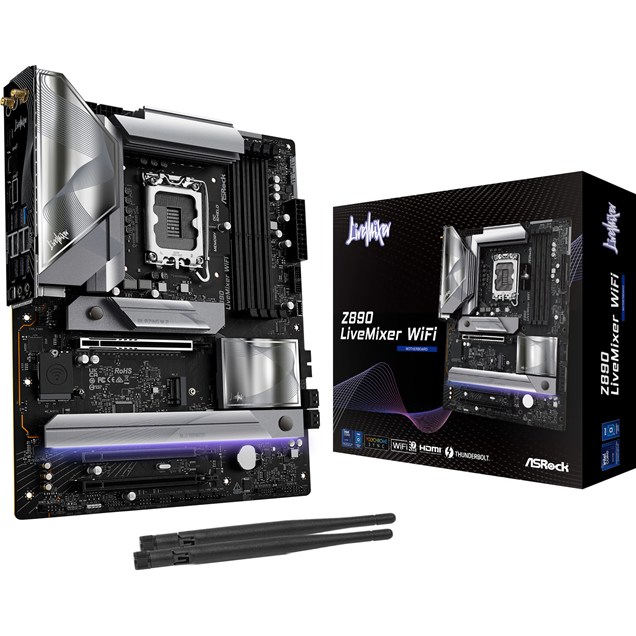

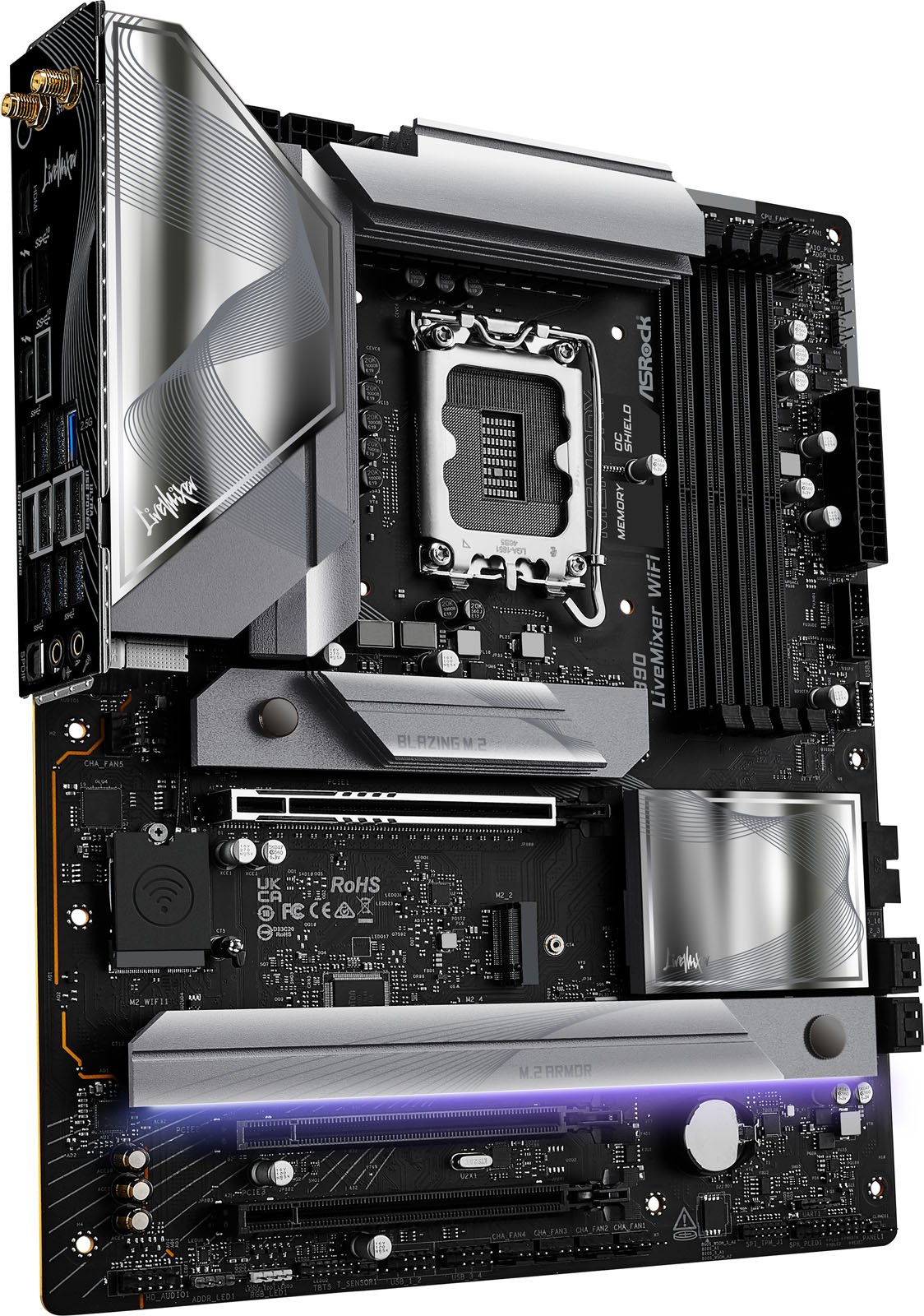

Motherboard Model	ASRock Z890 LiveMixer WiFi
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5600 MT/s
Max Memory Speed Supported (overclocked)	9066 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1
Back Connect Support	No

Item Details

Manufacturer	ASRock
Manufacturer Code	90-MXBPE0-A0UAYZ
EAN	4710483949715
Condition	New

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	ASRock
Manufacturer Code	90-MXBPE0-A0UAYZ
