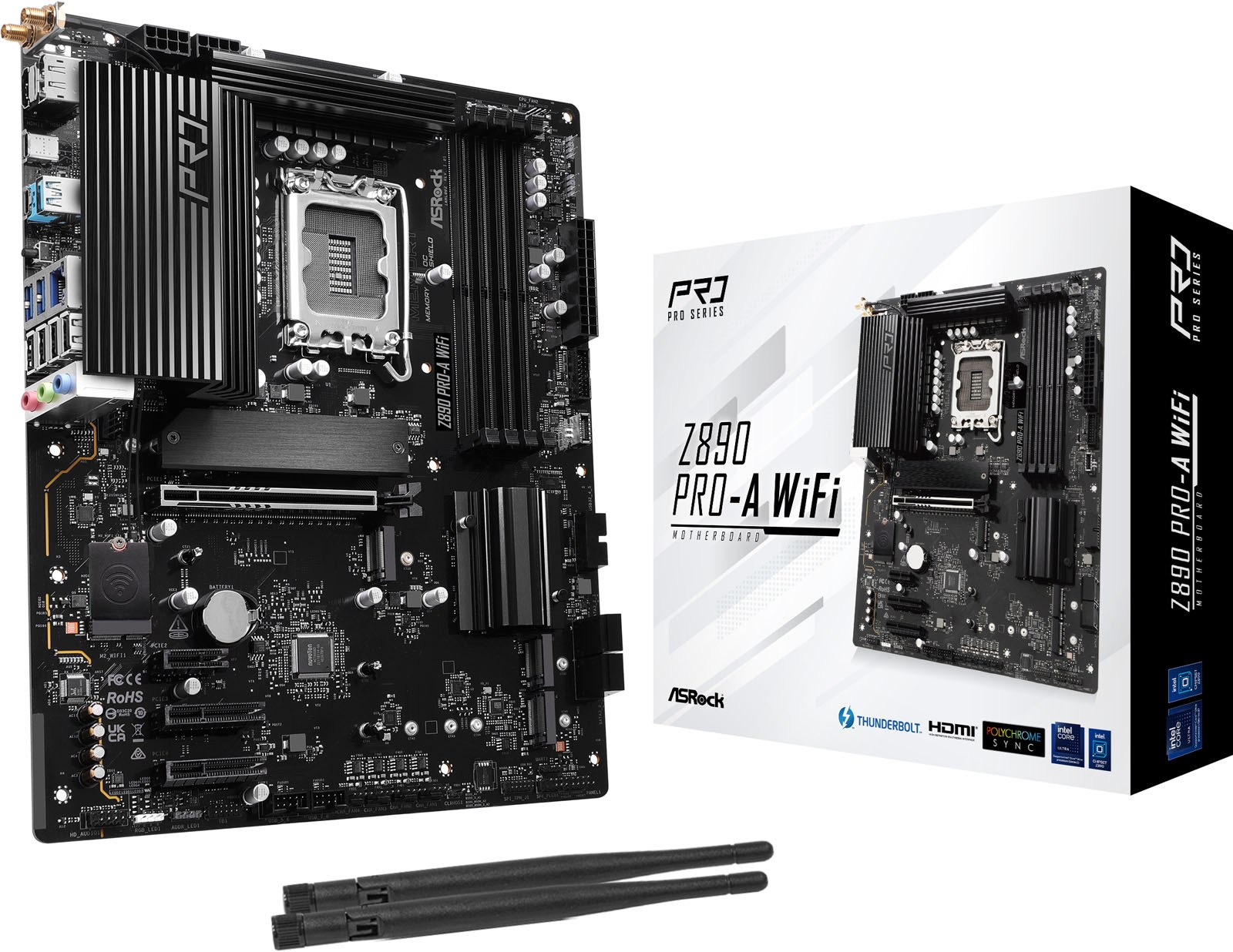

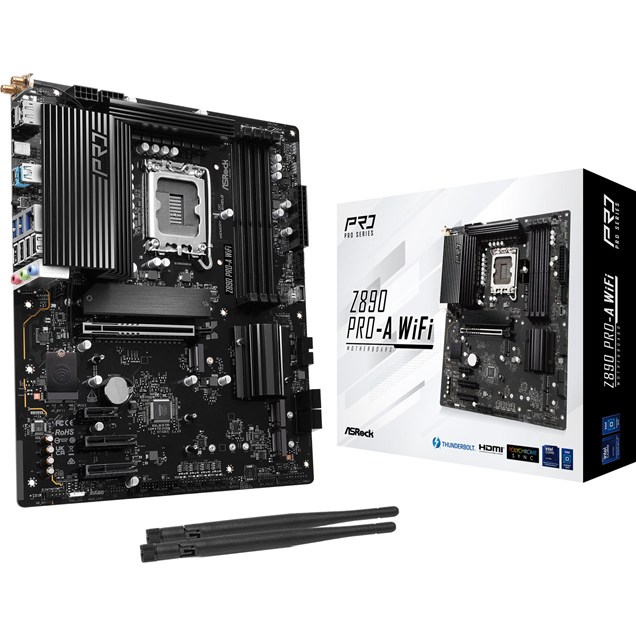

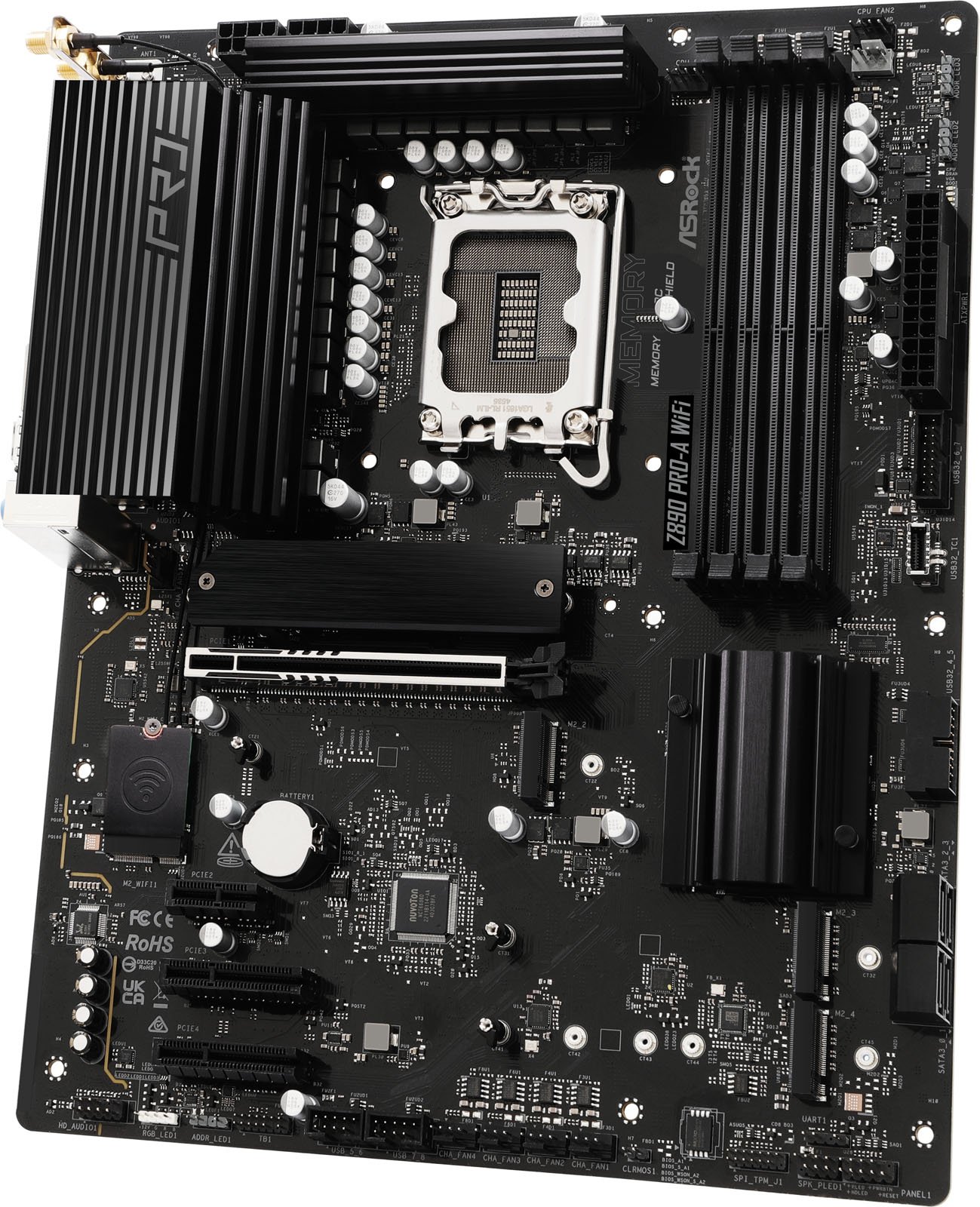

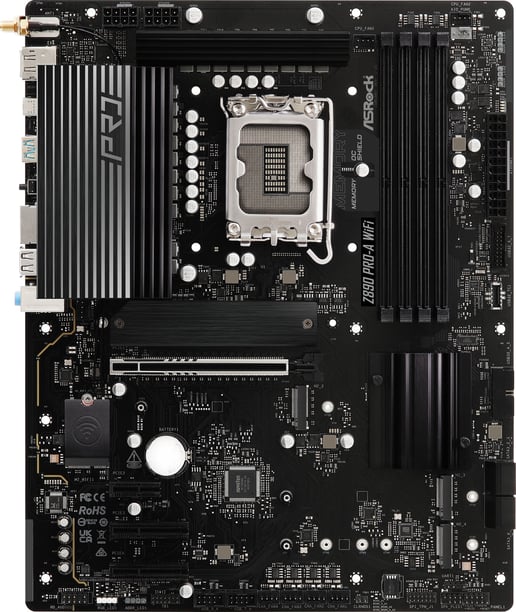

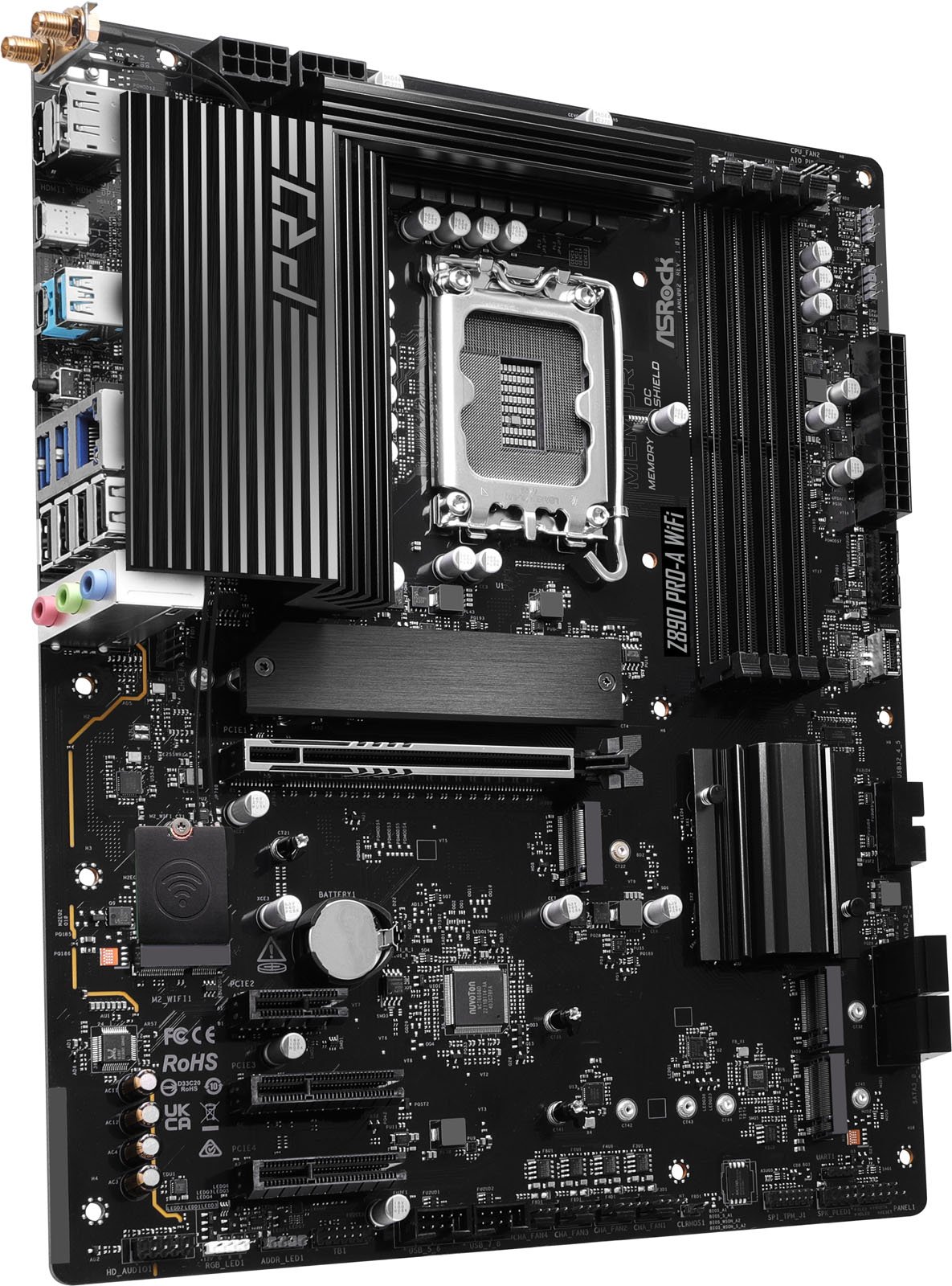

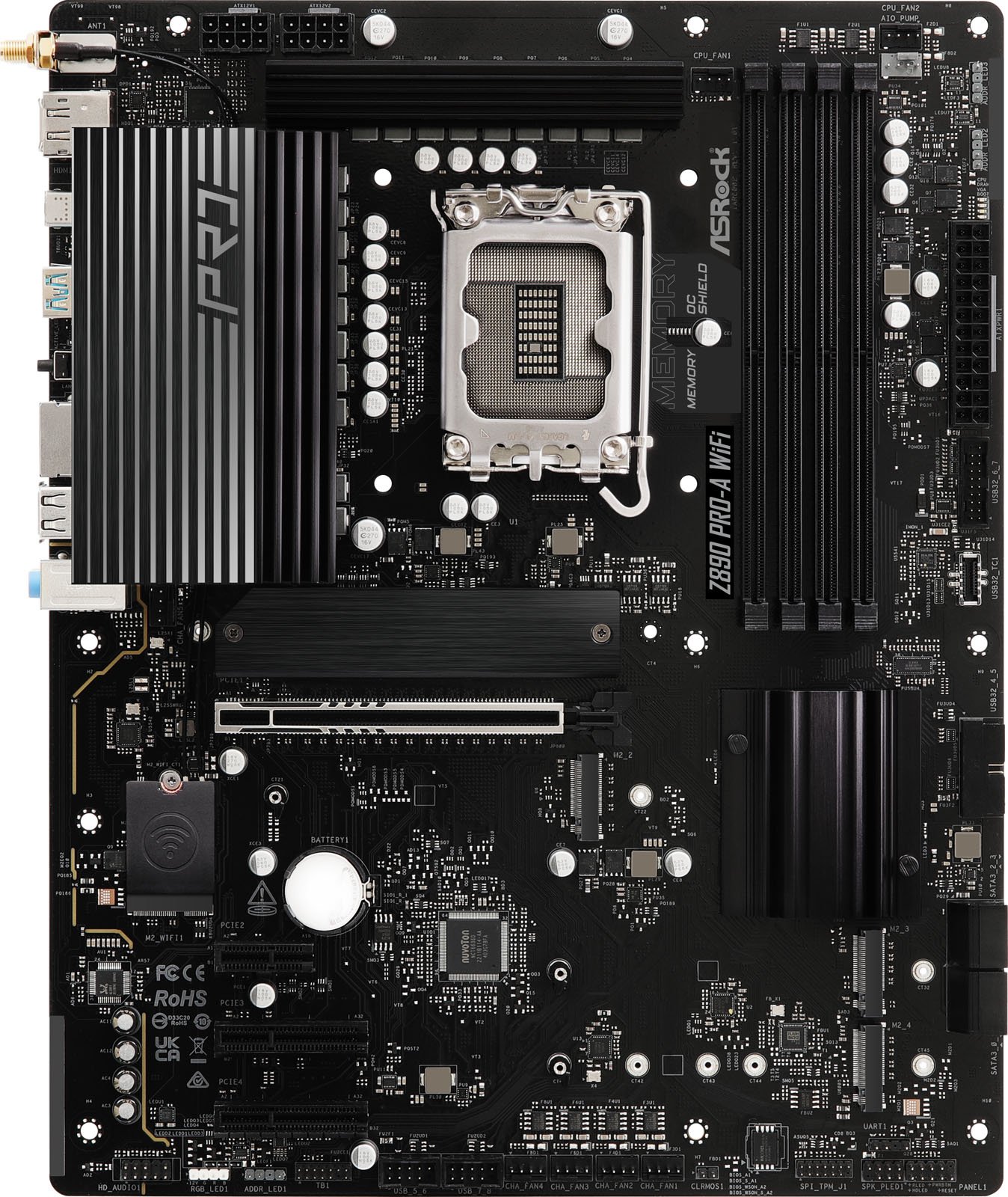

ASRock Z890 Pro-A WiFi ATX Motherboard for Intel LGA1851 CPUs

ASRock Z890 Pro-A WiFi ATX Motherboard for Intel LGA1851 CPUs

CCL Code: MBD3753

£199.99 inc VAT

ASRock Z890 Pro-A WiFi ATX Motherboard for Intel LGA1851 CPUs

90-MXBP60-A0UAYZ

£199.99 inc VAT

Available for delivery from Saturday 7th December

or Click & Collect from Monday 9th December

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel Z890 Chipset
  • Socket 1851
  • DDR5 (Max: 256GB / 4 slots)
  • 4 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3753
Overview

ASRock Z890 Pro-A WiFi Motherboard

Specifications

CPU

CPU Socket Socket 1851
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core Ultra Processors (Series 2)
64-bit Support Yes
Socket LGA1851

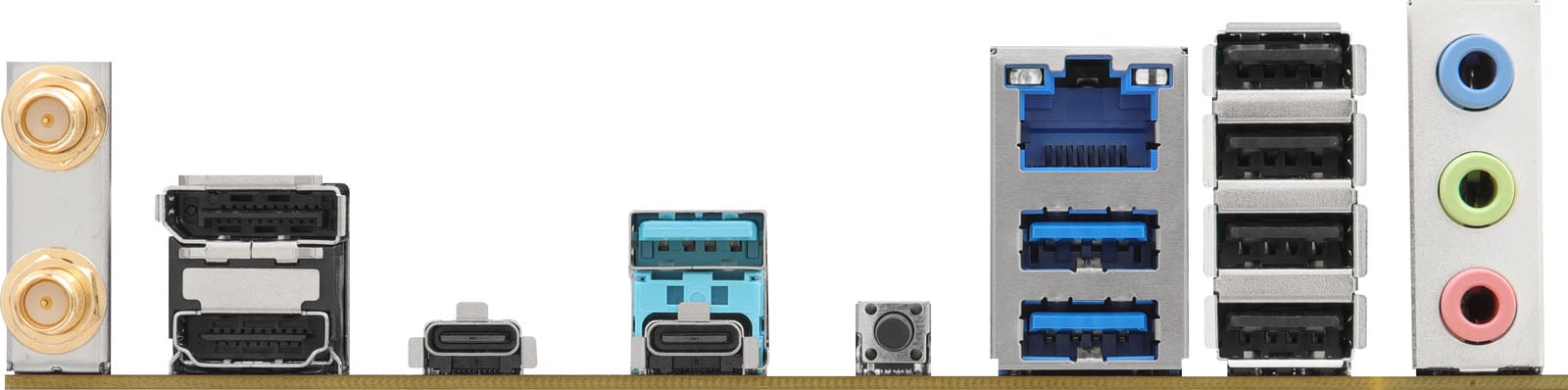

Rear Panel I/O Ports

USB Ports 1 x Thunderbolt 4
1 x USB-C 3.2
1 x USB 3.1
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 2 x CPU fan headers
5 x Chassis fan headers
1 x AIO pump header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2230/2242/2260/2280 (PCIe Gen4 or SATA)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus Speed Up to 8666 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel Z890
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
2 x PCI Express 4.0 x4 slots
1 x PCI Express 4.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC897

Warranty

Warranty 3 Years

Network

Integrated Network Dragon RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 6E
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Windows 11

System

BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

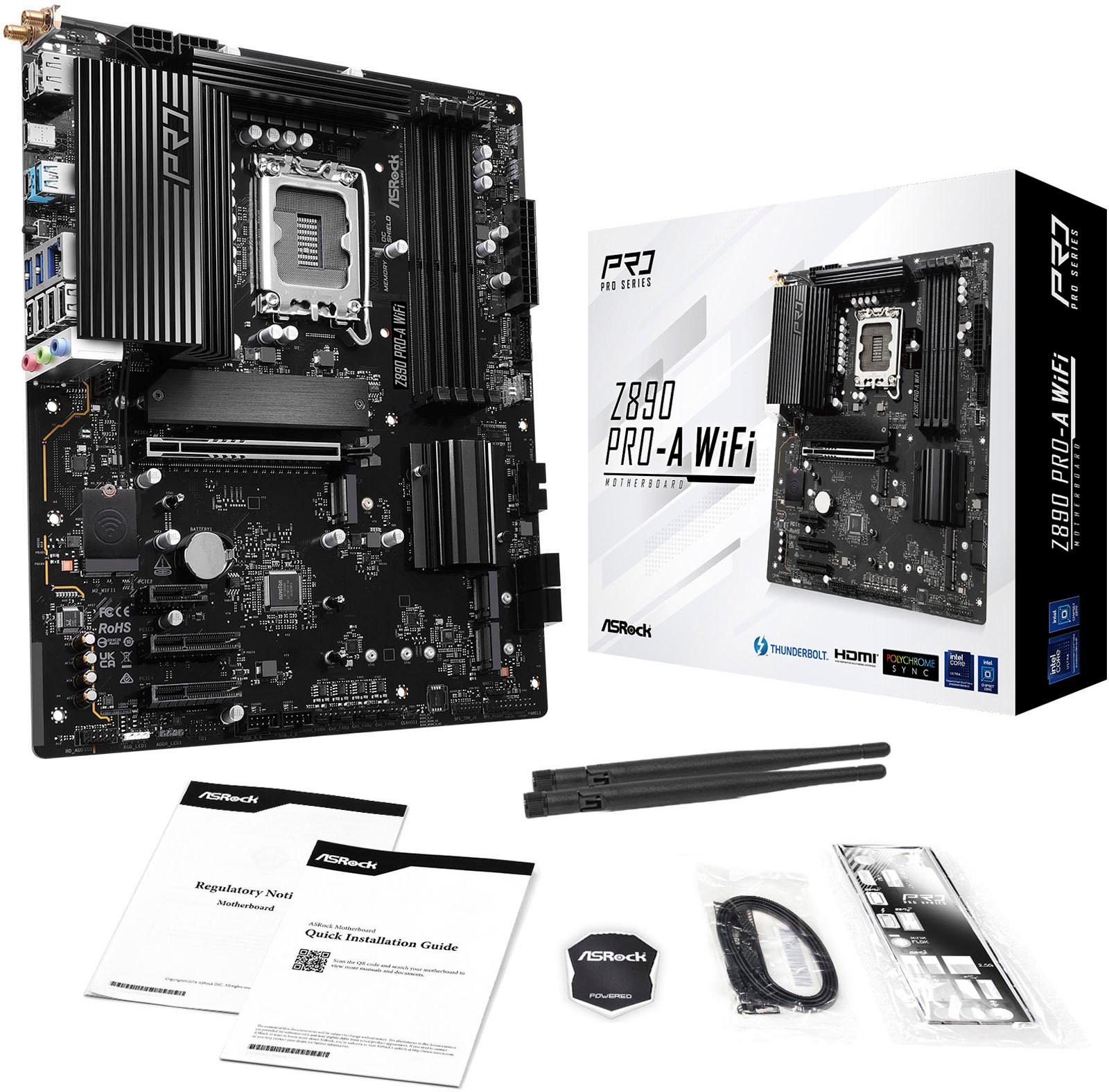

In The Box Motherboard
I/O Shield
2 x SATA Cables
2 x WiFi Antenna
Width 244 mm
Length 305 mm

Key Features

Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 8666 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
Back Connect Support No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Drive Interface Type PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel Z890
Thunderbolt Yes
Motherboard Model ASRock Z890 Pro-A WiFi
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBP60-A0UAYZ
EAN 4710483947544
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBP60-A0UAYZ
