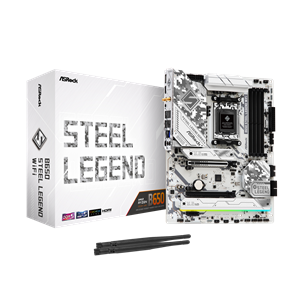

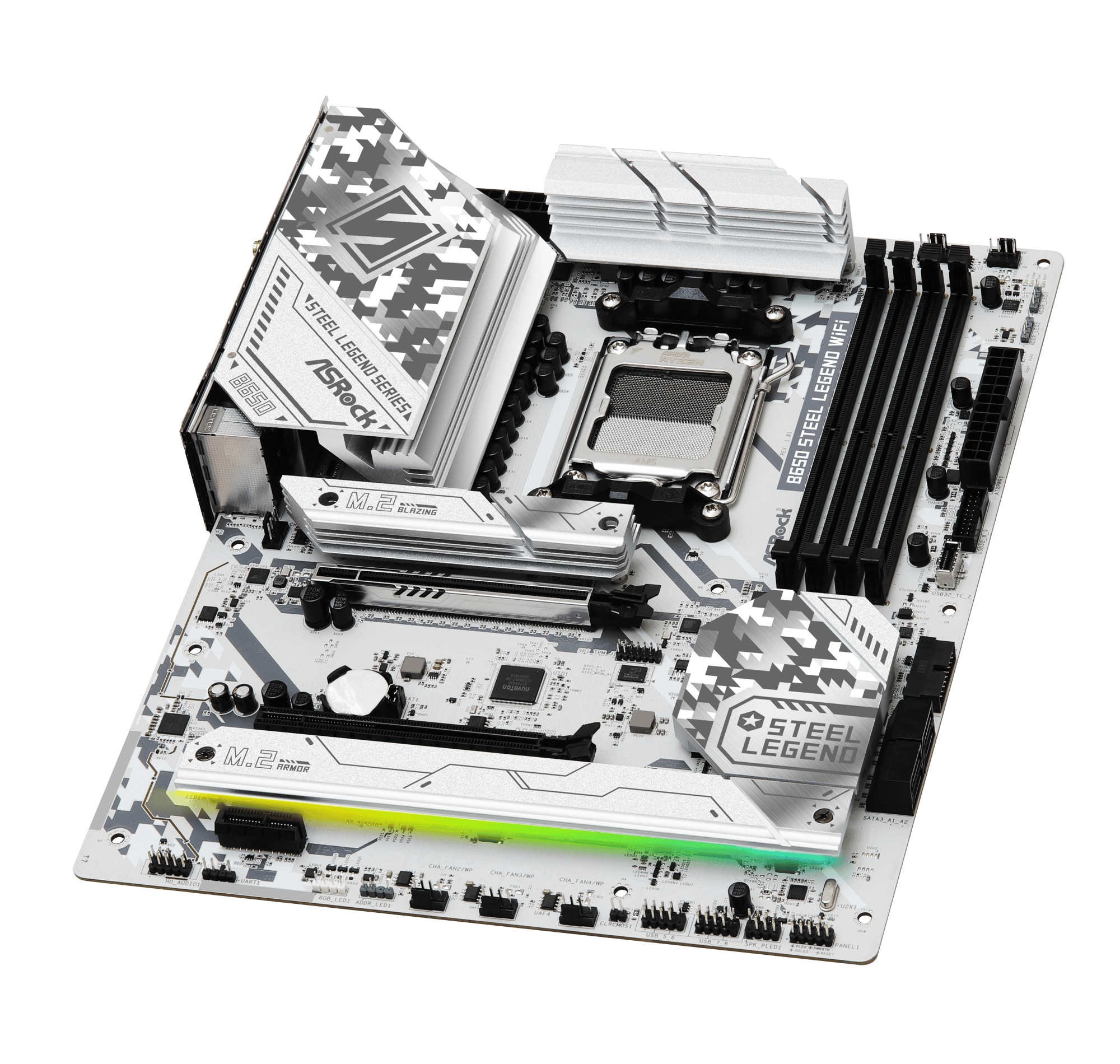

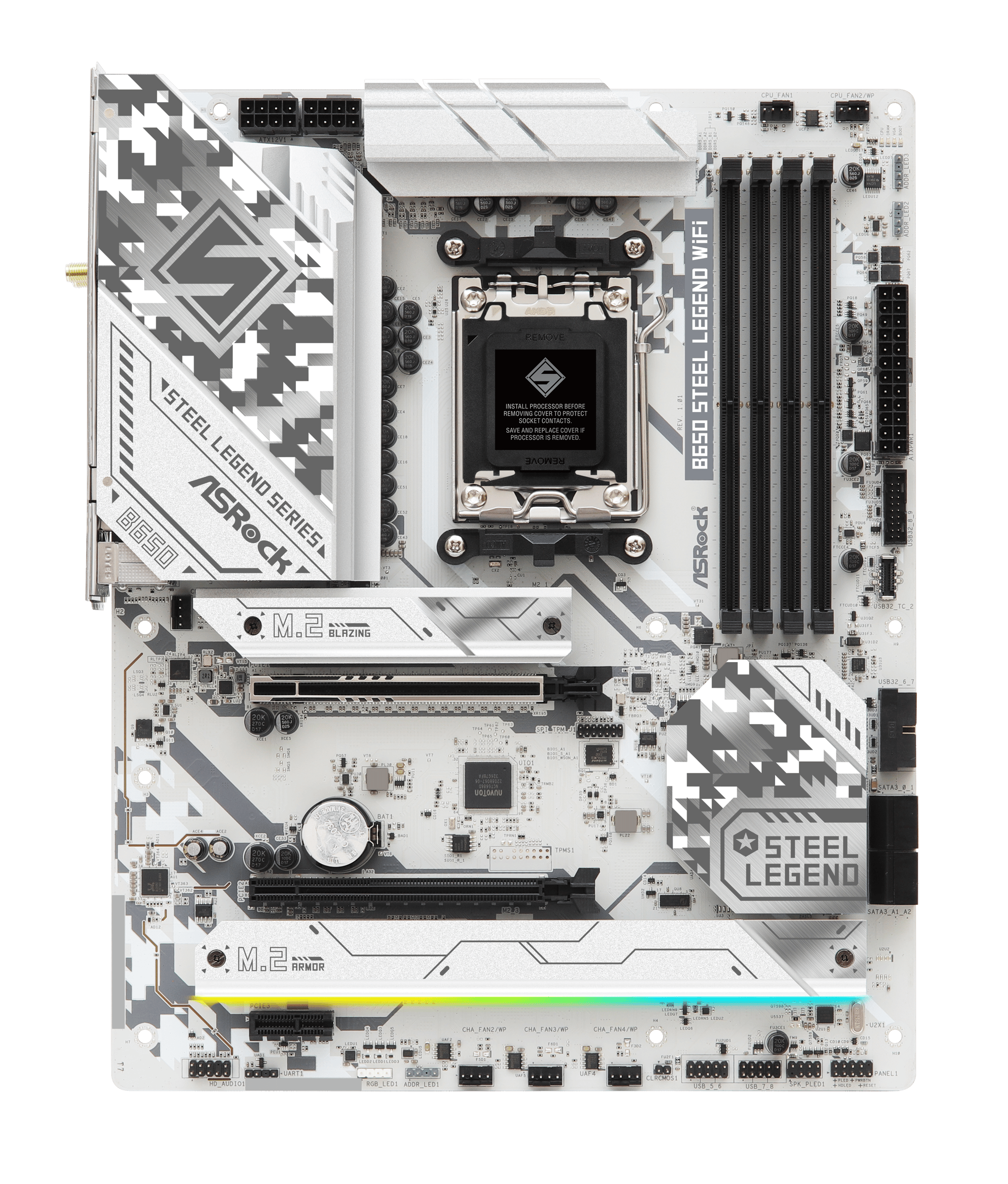

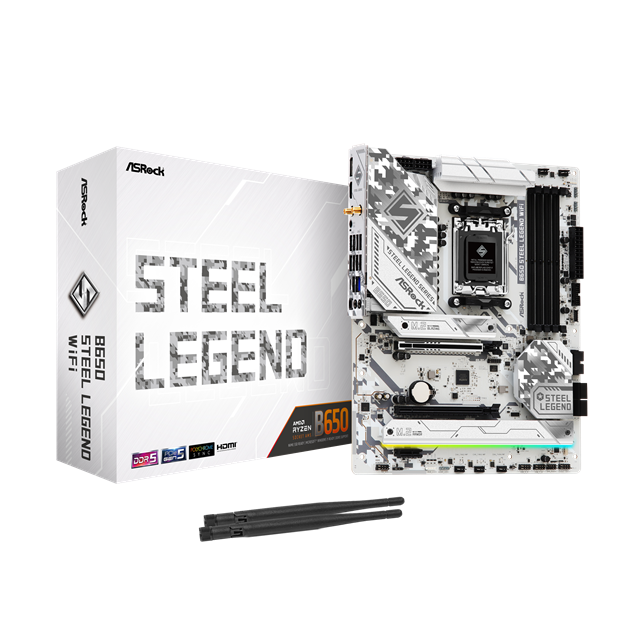

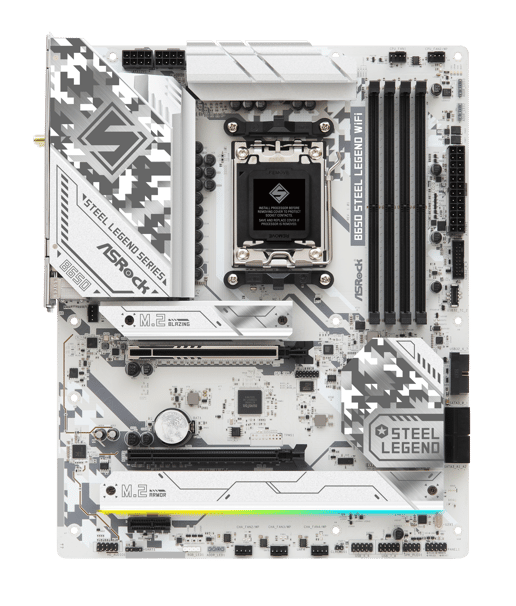

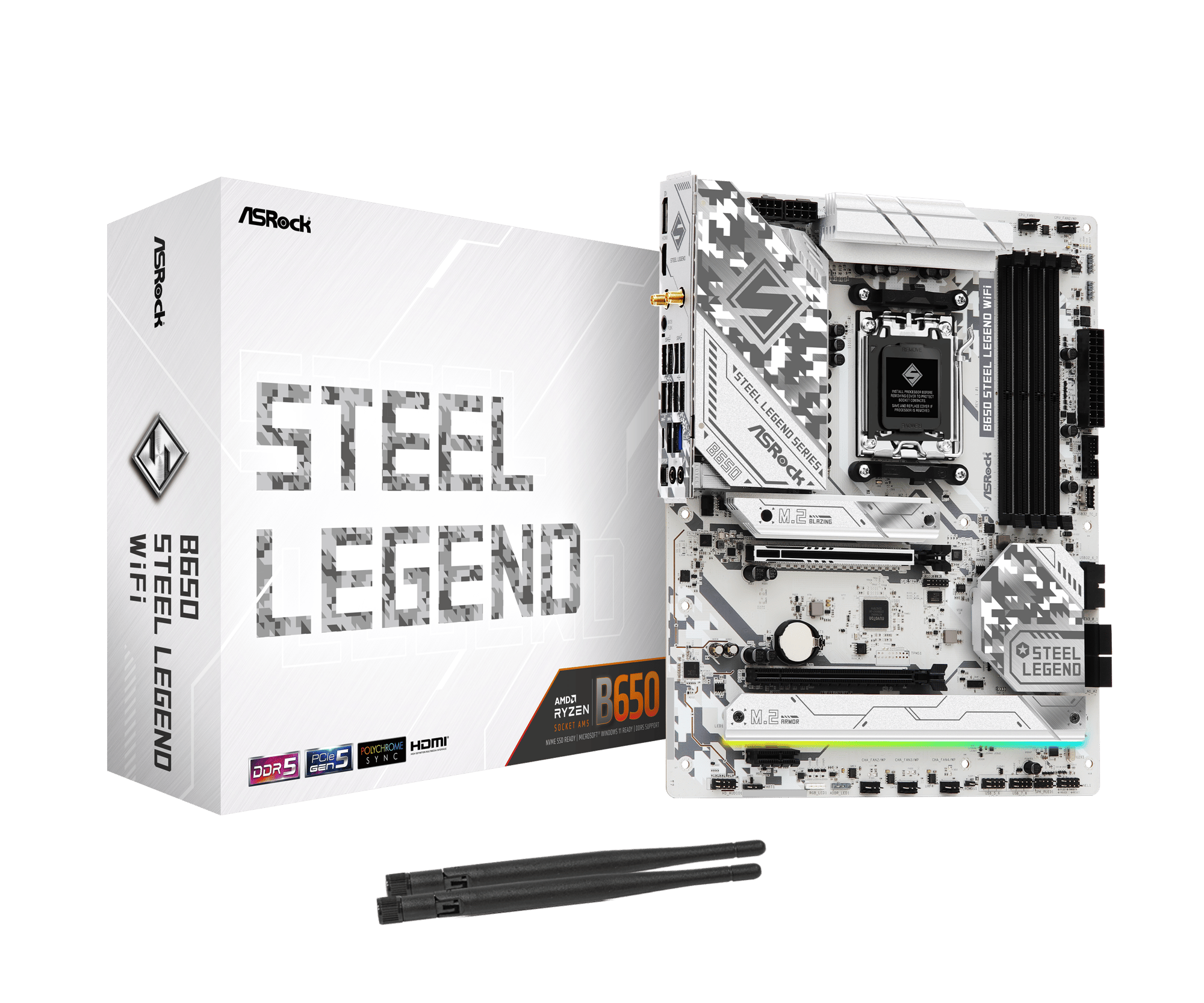

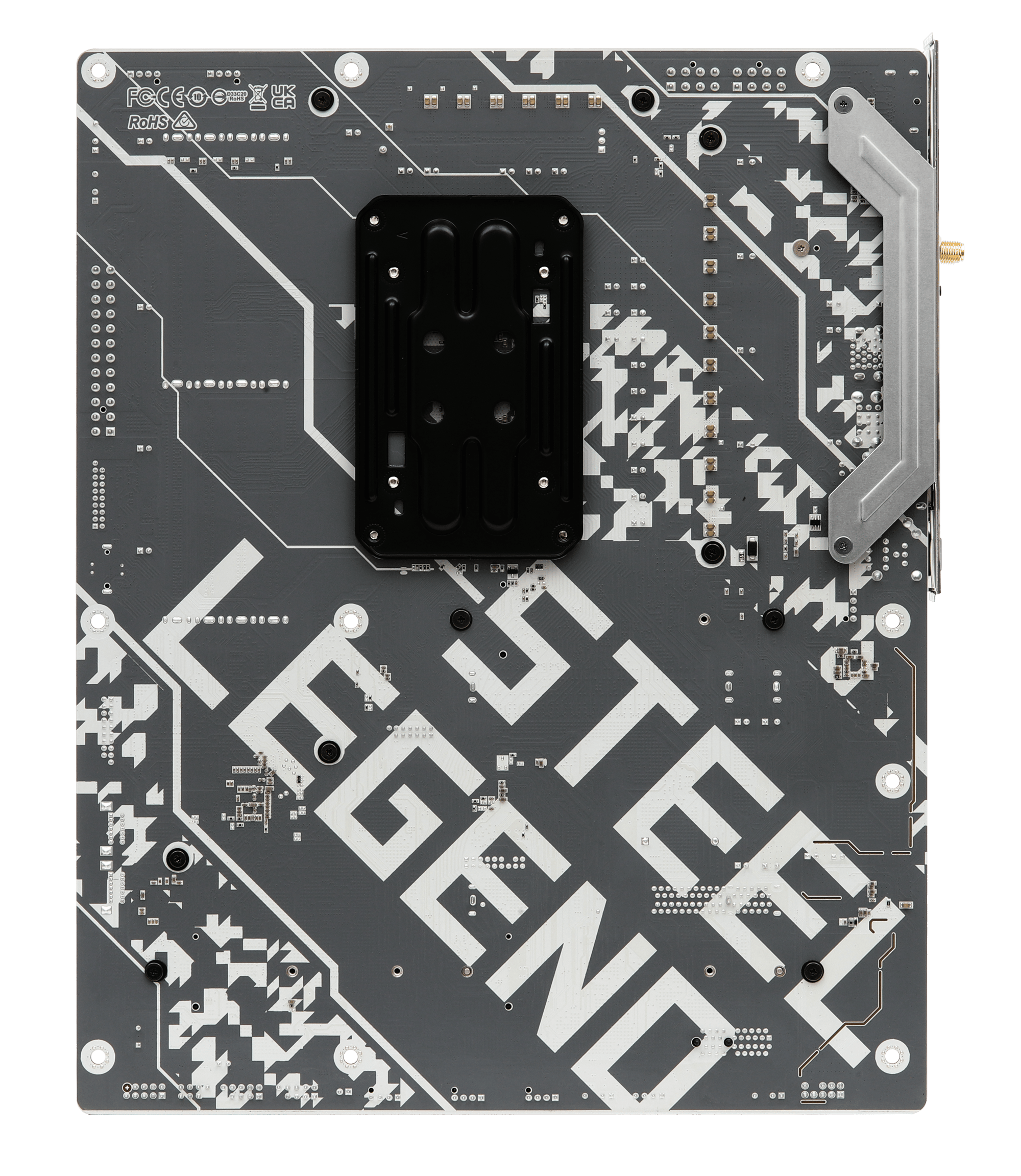

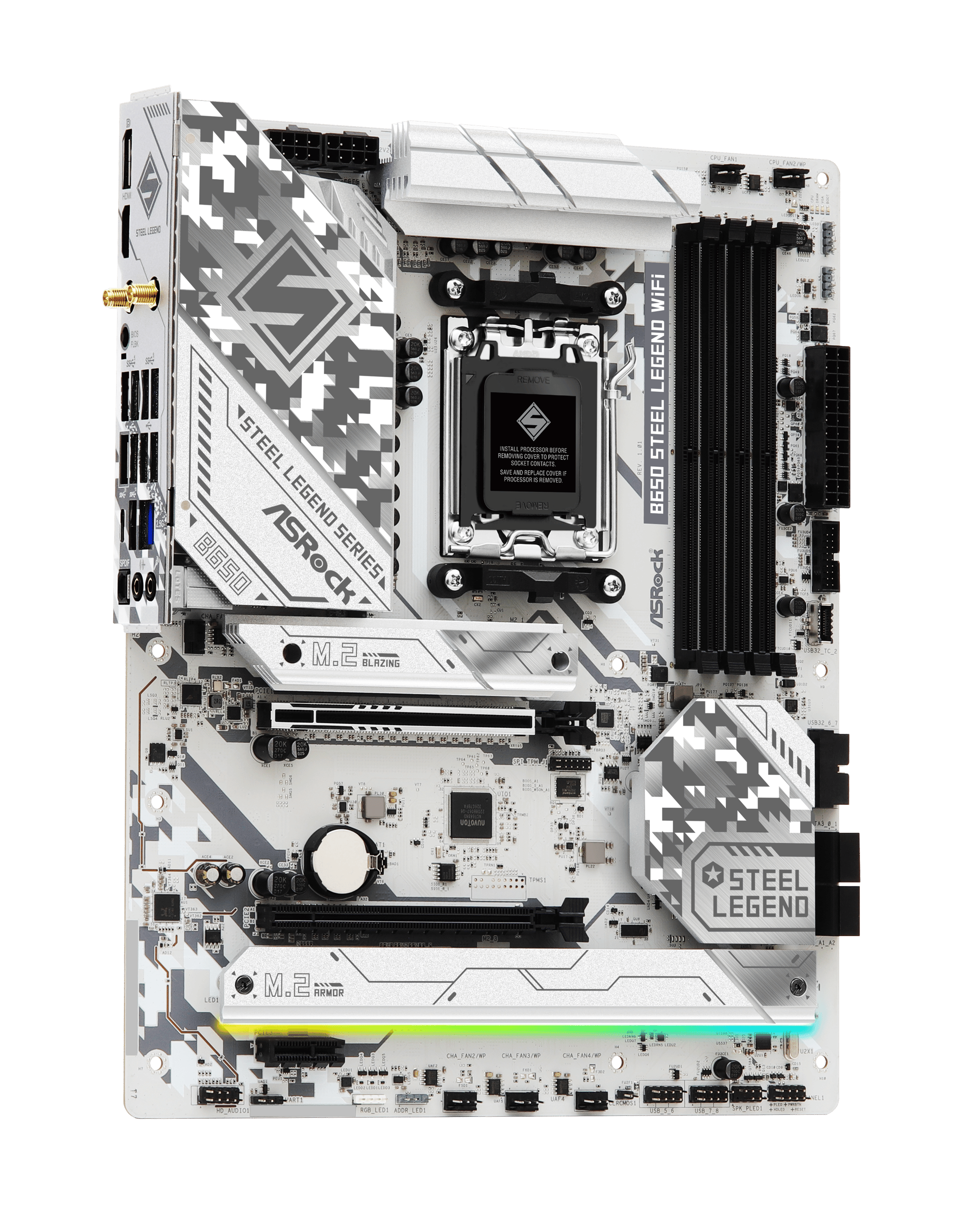

ASRock B650 Steel Legend WiFi ATX Motherboard for AMD AM5 CPUs

ASRock B650 Steel Legend WiFi ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3887

£187.99 inc VAT

New to CCL

ASRock B650 Steel Legend WiFi ATX Motherboard for AMD AM5 CPUs

90-MXBN90-A0UAYZ

£187.99 inc VAT

Available for Free Priority Delivery from Tomorrow

or Click & Collect from Tomorrow

10 In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • AMD B650 Chipset
  • Socket AM5
  • DDR5 (Max: 256GB / 4 slots)
  • 3 x M.2 & 10 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3887
Overview

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen 9000, 8000 and 7000 Series Processors
64-bit Support Yes
Socket AM5

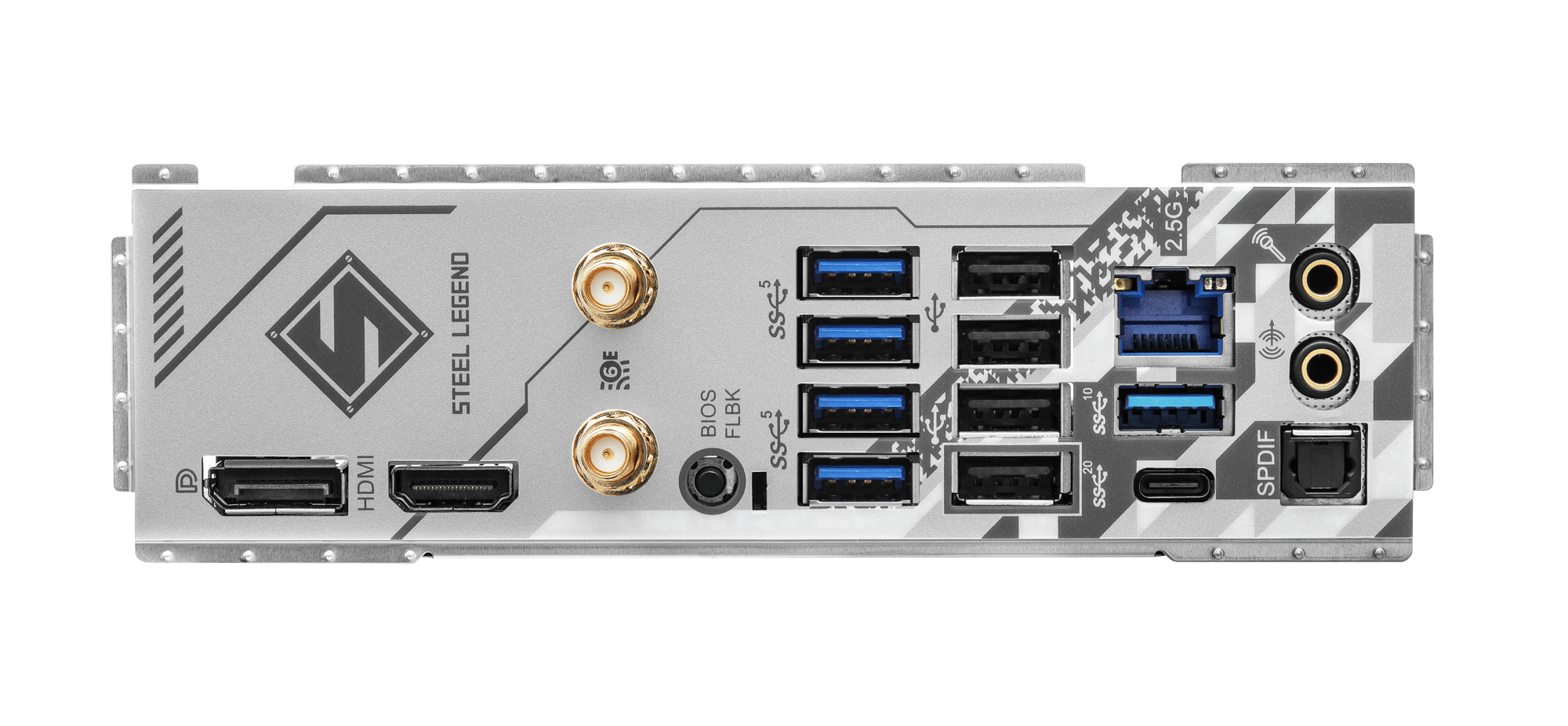

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB 3.1
4 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan / Water pump header
4 x Chassis fan / Water pump headers
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2230/2260/2280 (PCIe Gen4)3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus Speed Up to 7200 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x1 slot
1 x PCI Express 3.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC4082

Network

Integrated Network Dragon RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 6E
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

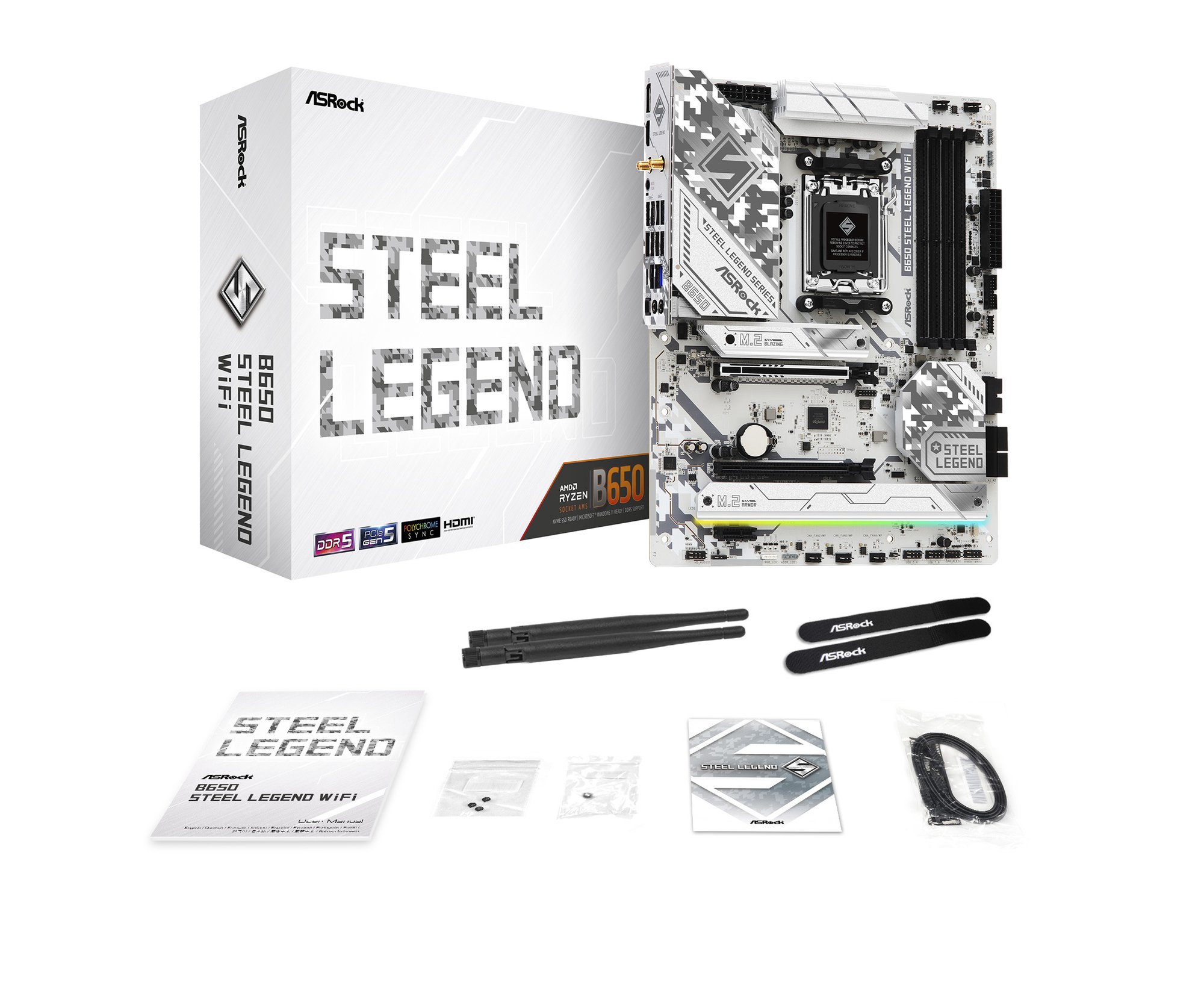

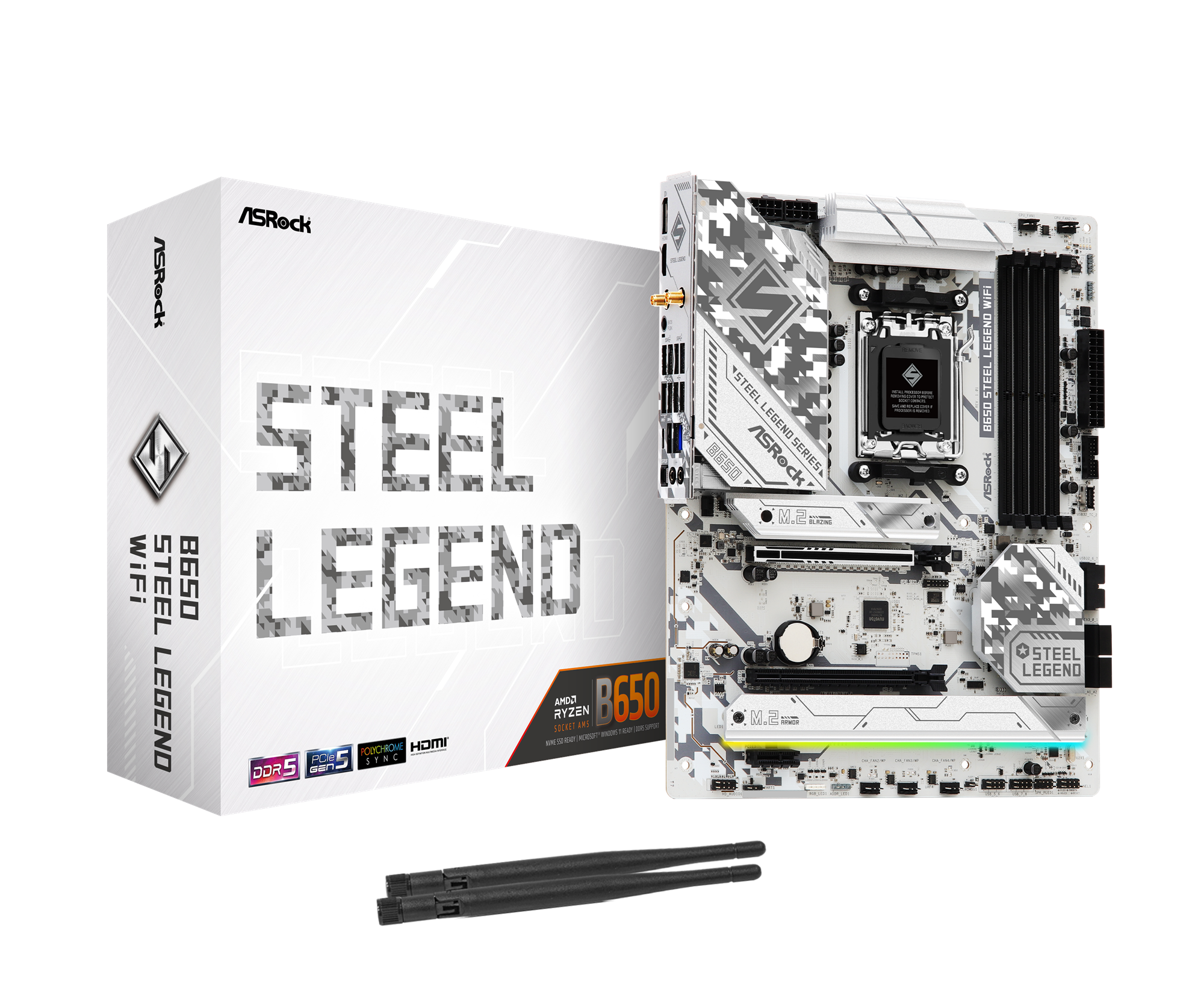

In The Box Motherboard
1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Width 244 mm
Length 305 mm

Key Features

Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 10 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset AMD B650
Thunderbolt No
Motherboard Model ASRock B650 Steel Legend WiFi
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (overclocked) 7200 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
Back Connect Support No

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBN90-A0UAYZ
EAN 4710483944598
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBN90-A0UAYZ
