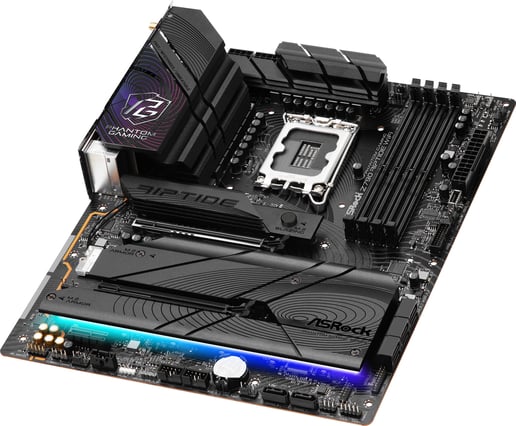

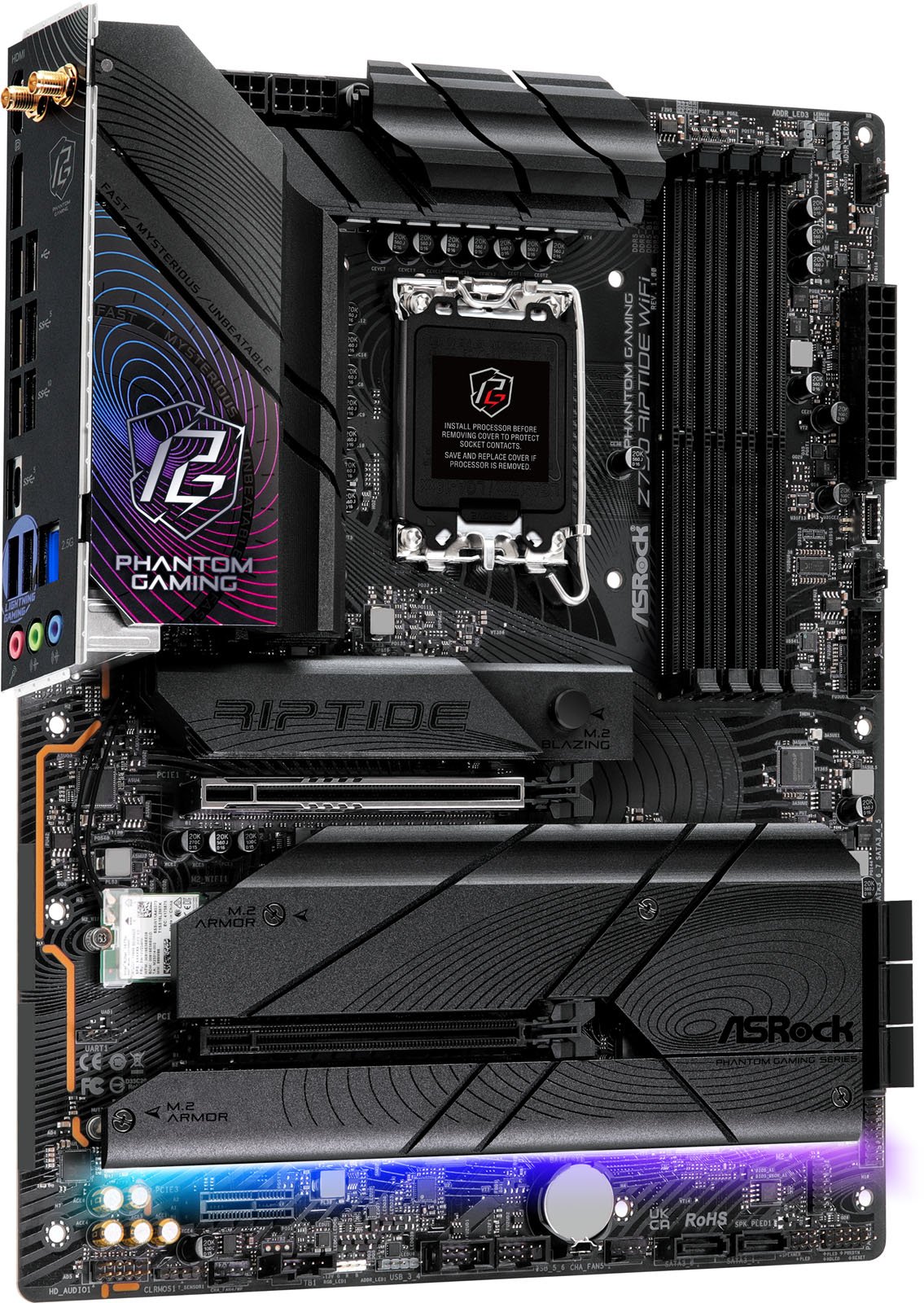

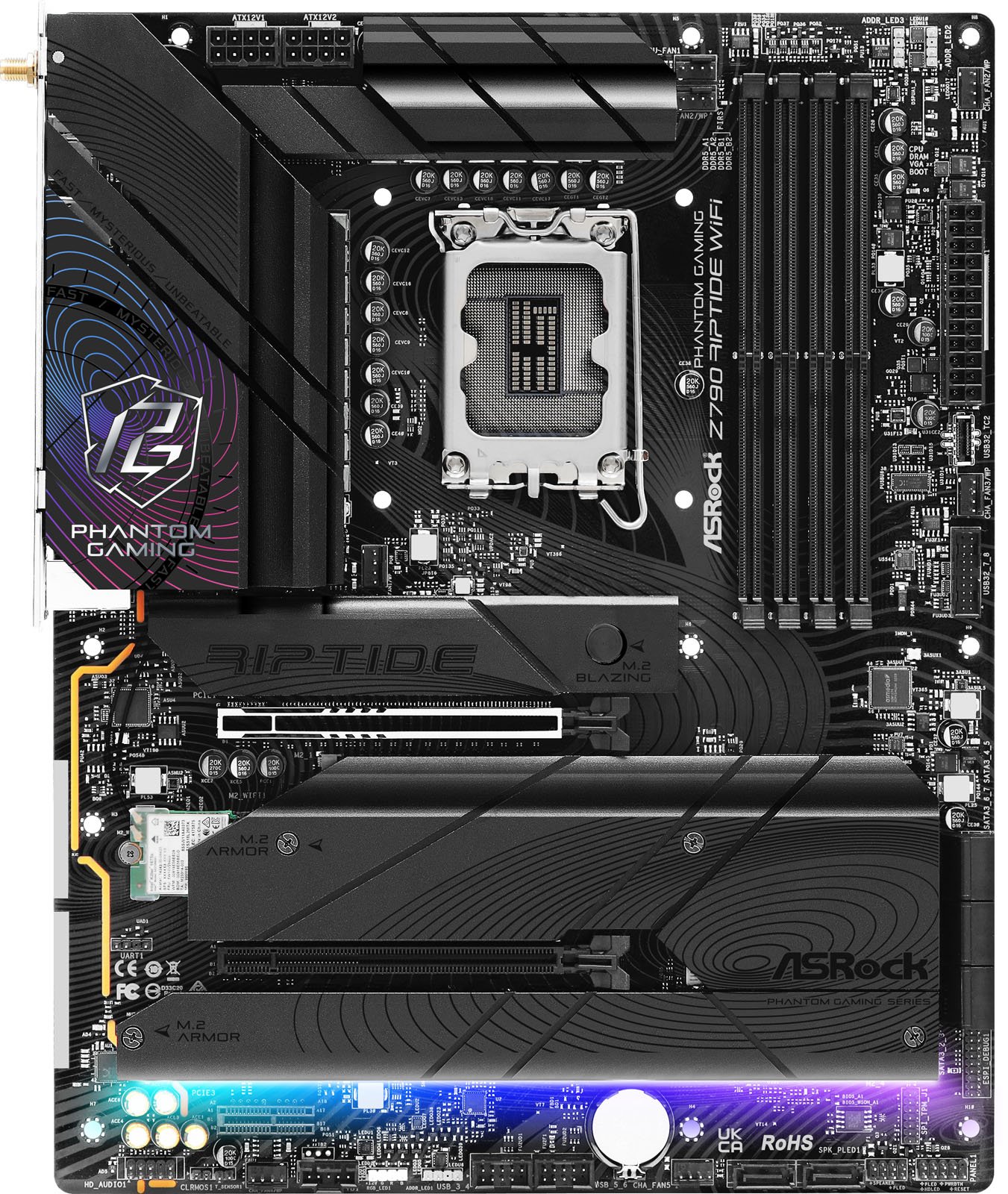

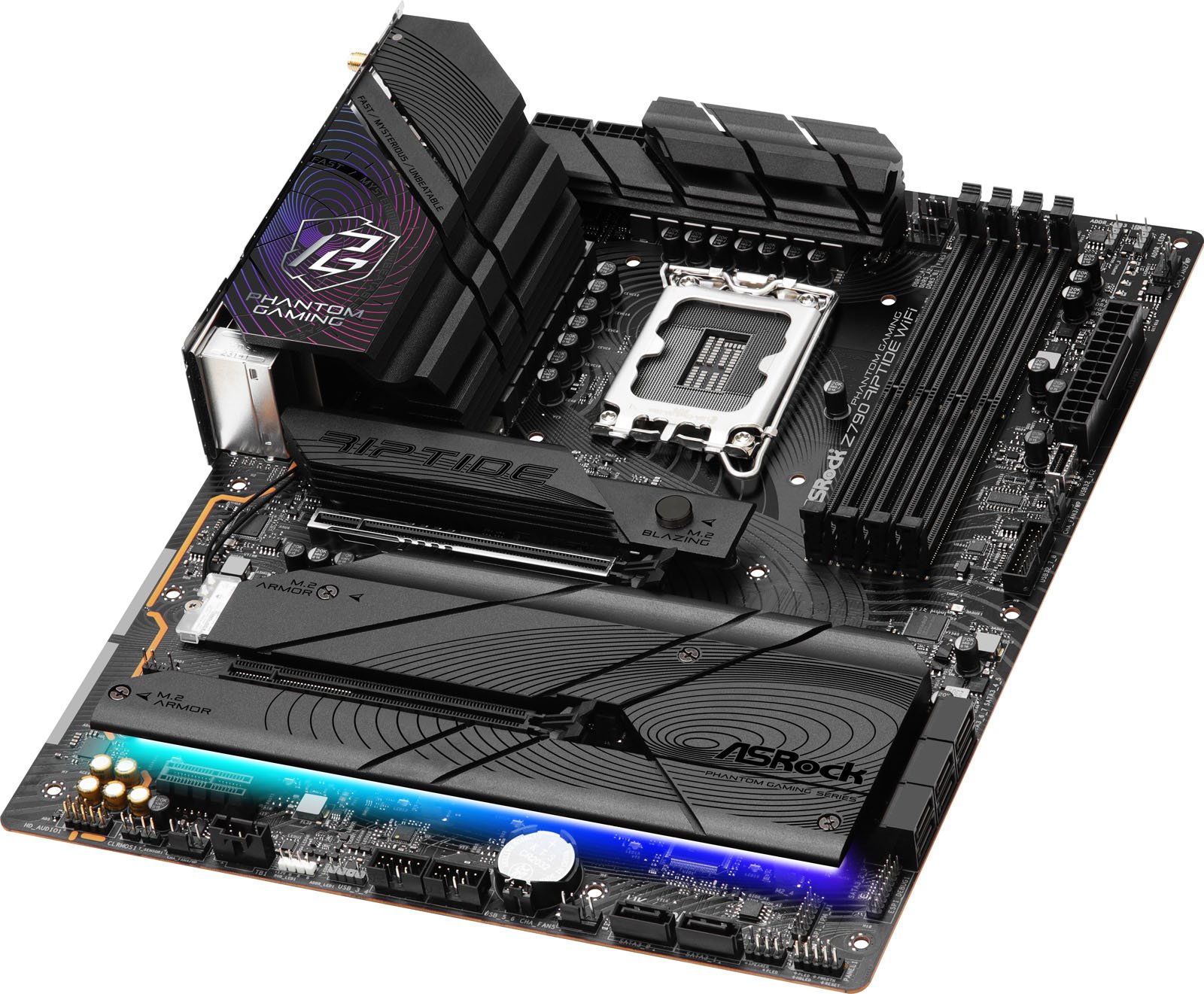

ASRock Z790 Riptide WiFi ATX Motherboard for Intel LGA1700 CPUs

ASRock Z790 Riptide WiFi ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3621

£209.99 inc VAT

ASRock Z790 Riptide WiFi ATX Motherboard for Intel LGA1700 CPUs

90-MXBMD0-A0UAYZ

£209.99 inc VAT

Available for delivery from Wednesday 27th November

or Click & Collect from Wednesday 27th November

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel Z790 Chipset
  • Socket 1700
  • DDR5 (Max: 192GB / 4 slots)
  • 5 x M.2 & 9 x USB & 8 x SATA
  • HDMI and Display Port
CCL Code: MBD3621
Overview

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

Main Features

  • Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  • 16+1+1 Power Phase, SPS for VCore+GT, 8-Layer PCB
  • 4 x DDR5 DIMMs, supports up to 8000+(OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 eDP
  • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
  • 8 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 4 Hyper M.2 (PCIe Gen4 x4)
  • 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
  • Intel Killer 2.5G LAN
  • 802.11be WiFi 7 + Bluetooth
  • Supports ASRock Lightning Gaming Ports, Toolless Multi-Layer M.2 Heatsink
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 14th, 13th & 12th Gen Intel Core Processors
64-bit Support Yes
Socket LGA1700

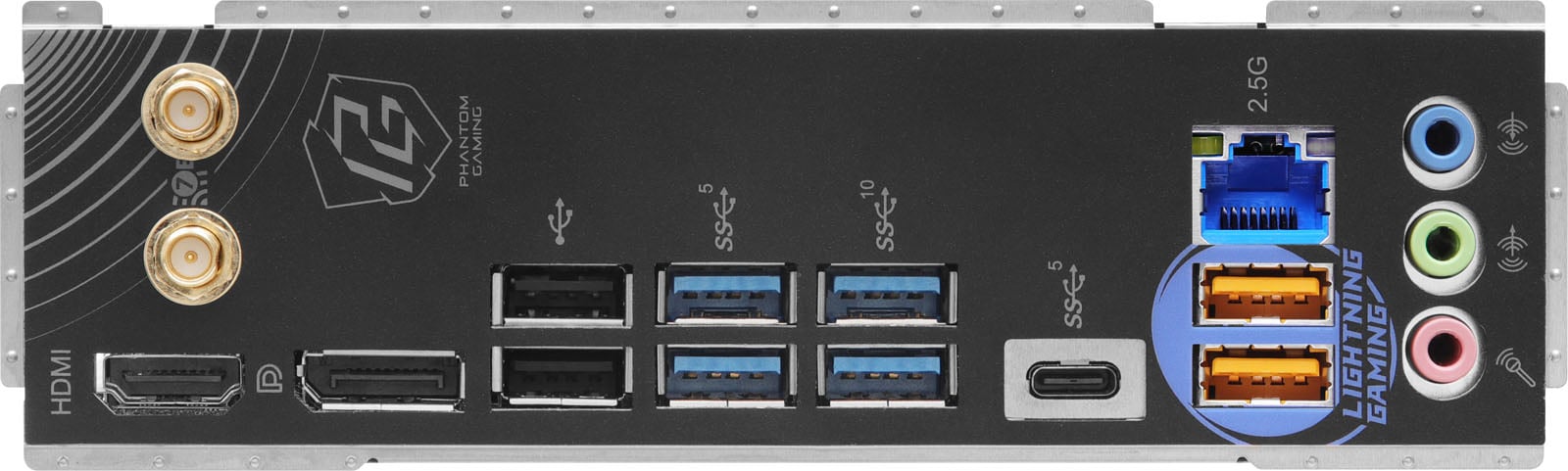

Rear Panel I/O Ports

USB Ports 2 x USB 3.1
1 x USB-C 3.0
4 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 8 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU/Water Pump fan header
1 x Chassis fan header
4 x Chassis/Water Pump fan headers
Thunderbolt Port(s) 1 x Thunderbolt AIC Connector (Supports ASRock Thunderbolt 4 AIC Card)
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
4 x M.2 slots, M Key, Type 2260/2280 (PCIe Gen4)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Thermistor Cable header
1 x eDP Signal header

Memory

Memory Bus Speed Up to 8000 MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel Z790
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC1220

Warranty

Warranty 3 Years

Network

Integrated Network Killer E3100G
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 7
Wireless Network Speed Up to 5.8 Gbps
Bluetooth Yes
Bluetooth Version 5.4

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

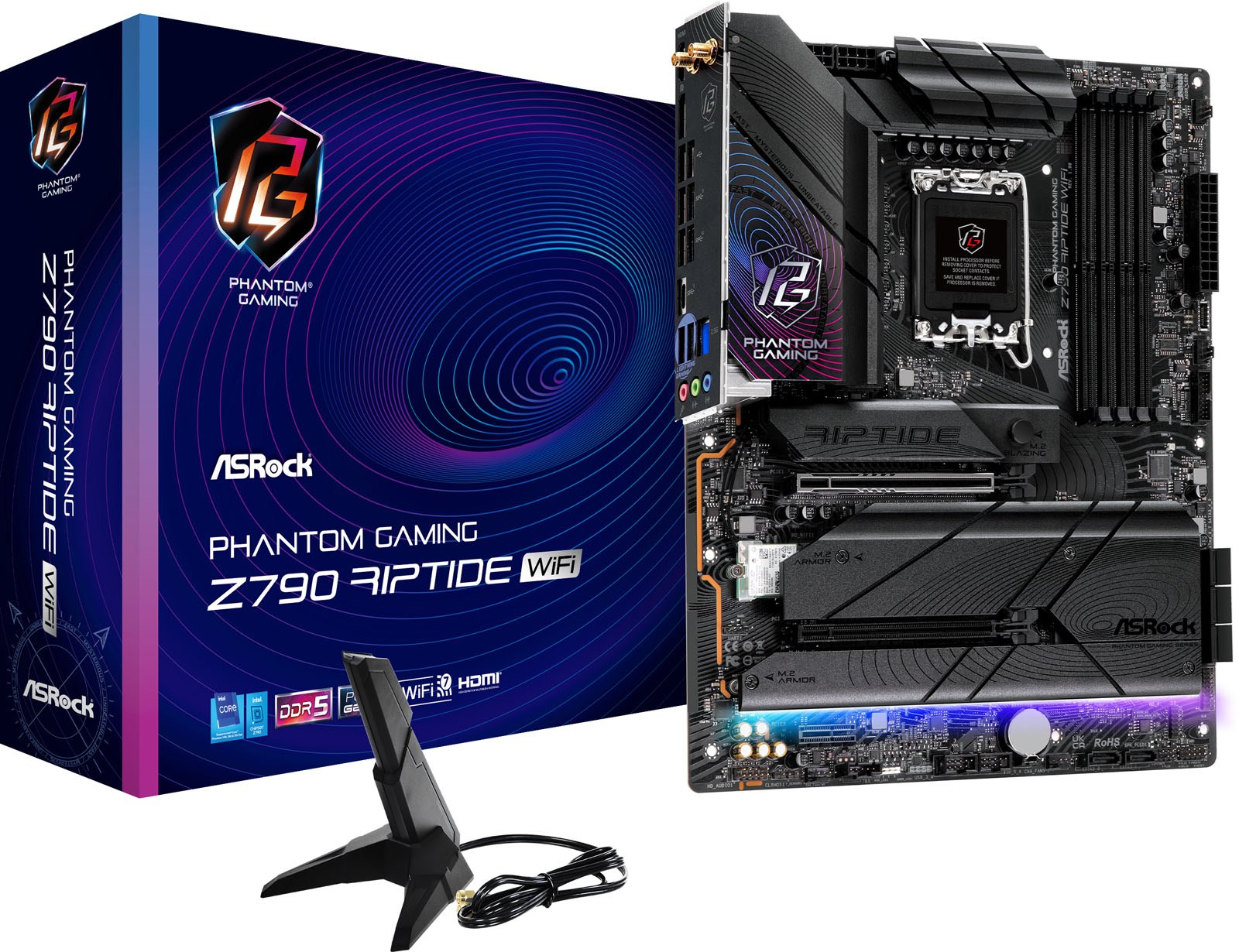

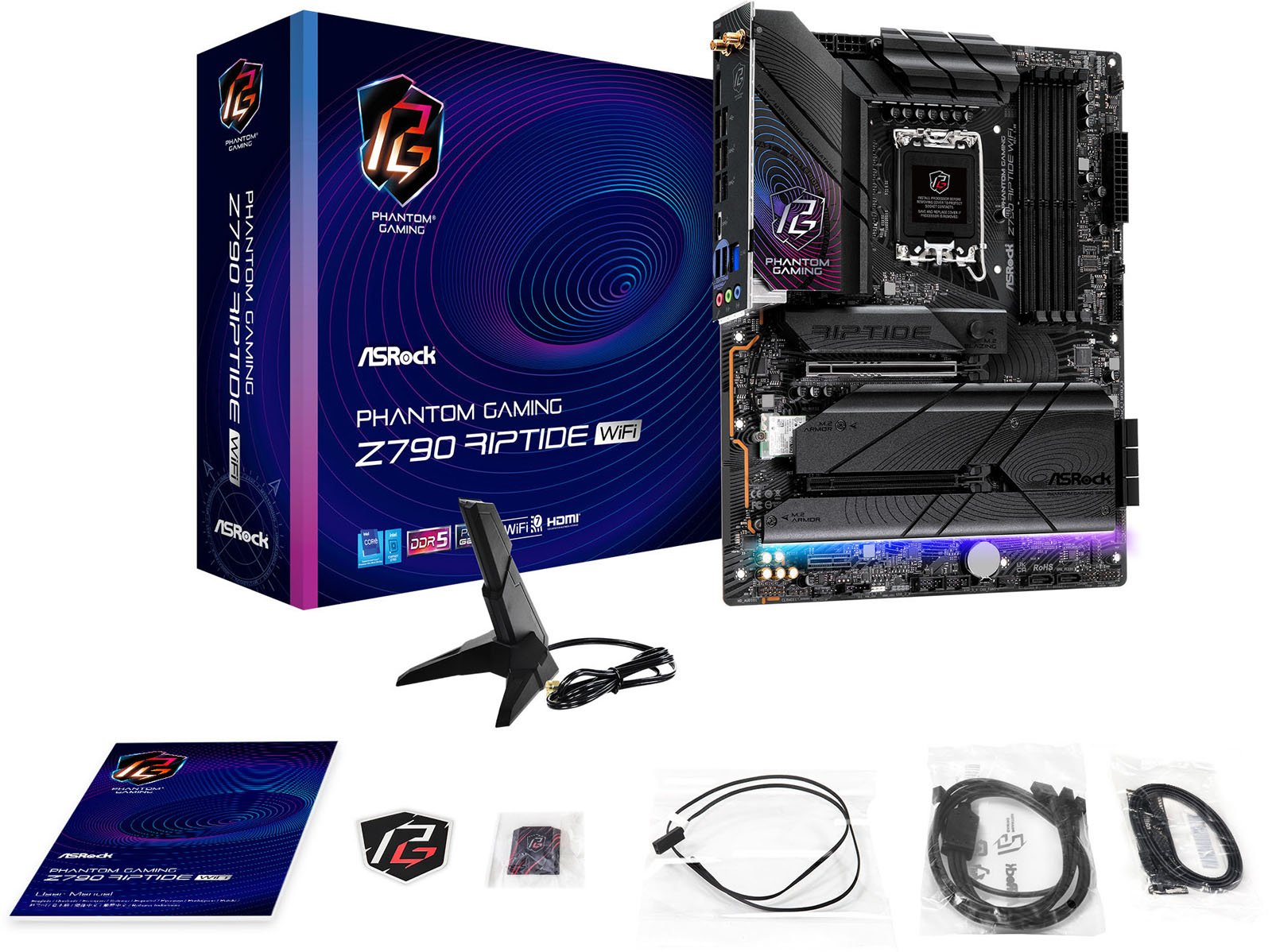

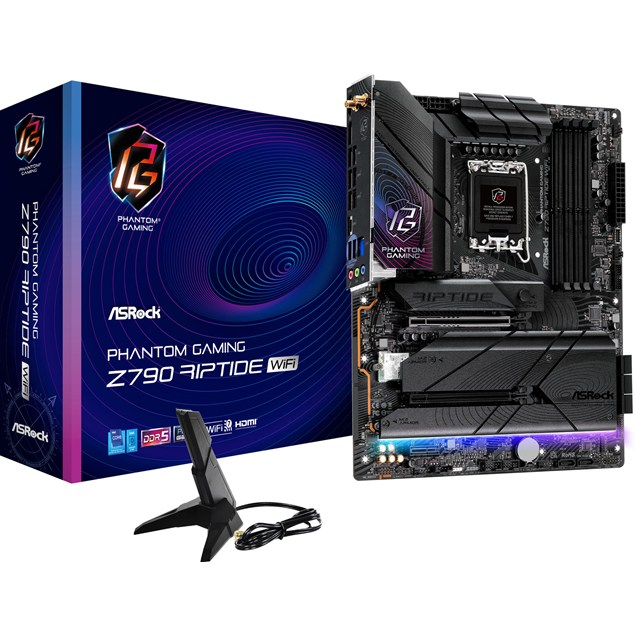

In The Box Motherboard
User Manual
2 x SATA Data Cables
ASRock WiFi 2.4/5/6 GHz Antenna
ARGB Splitter Cable
Thermistor Cable
Width 244 mm
Length 305 mm

Key Features

Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 4800 MT/s
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 5
Maximum NVMe M.2 ports 5
SATA ports 8
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 8 port(s)
Number of USB Ports 9 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel Z790
Thunderbolt No
WiFi Speed 5800 Mbps
USB 3.1 Support Yes

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBMD0-A0UAYZ
EAN 4710483944475
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBMD0-A0UAYZ
