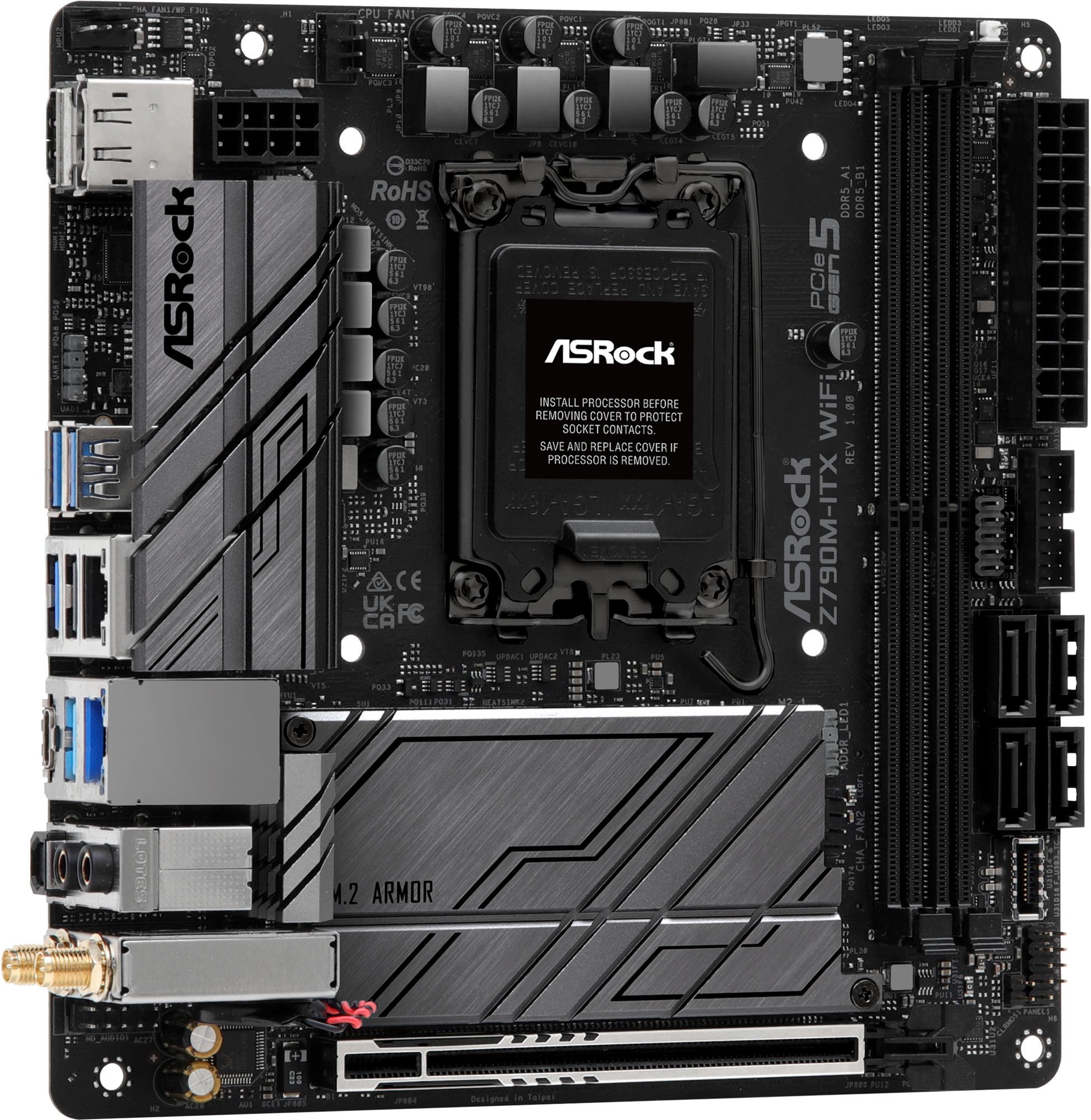

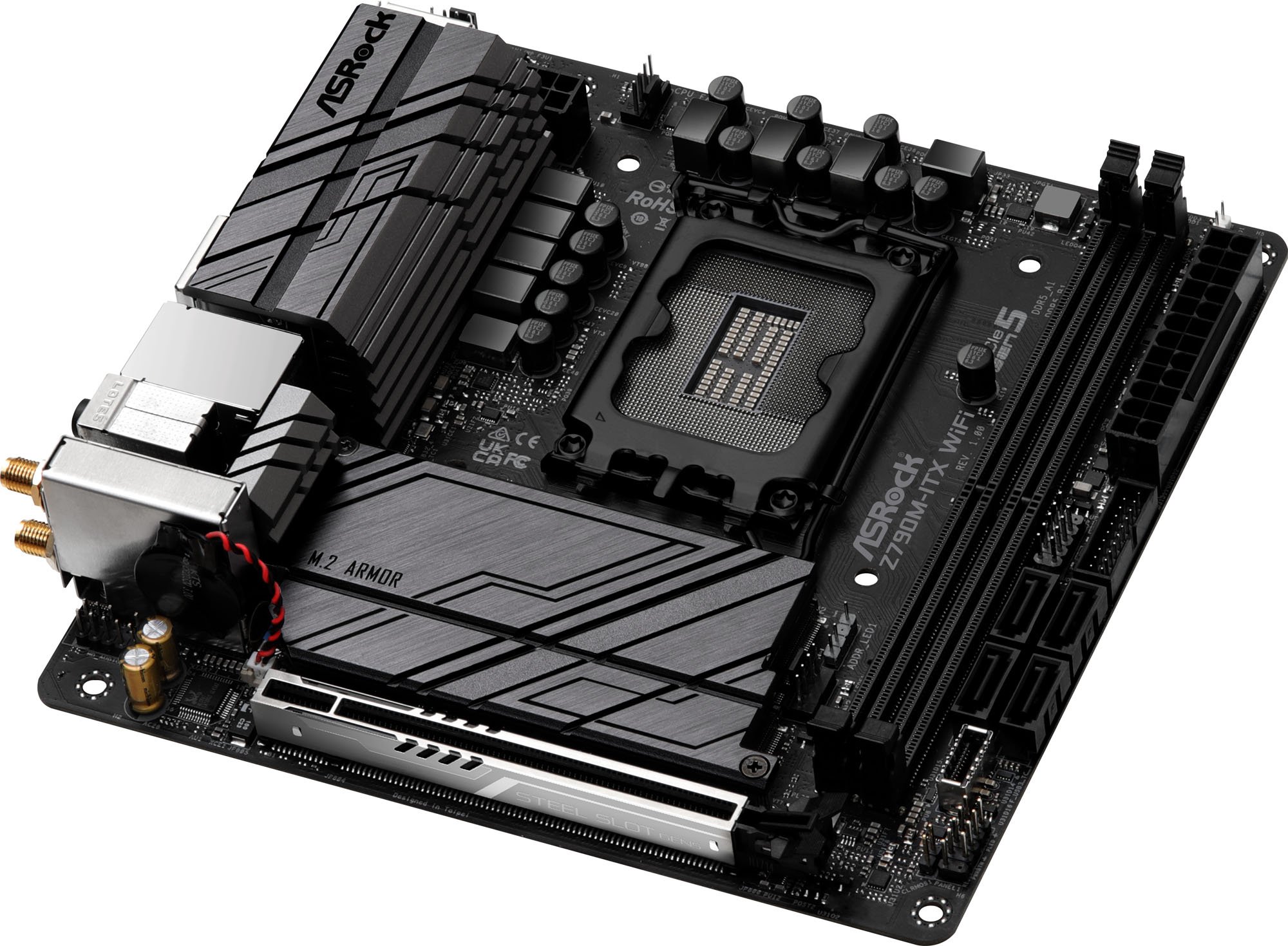

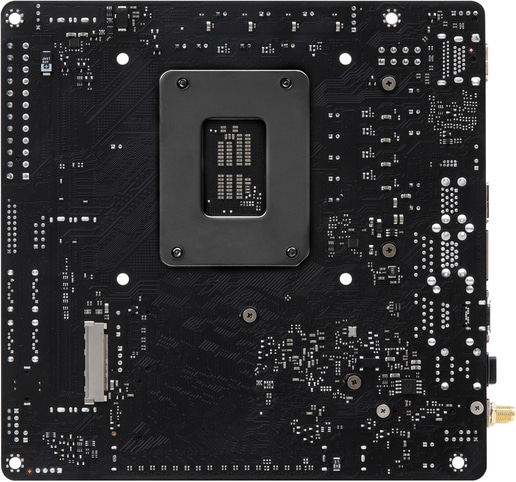

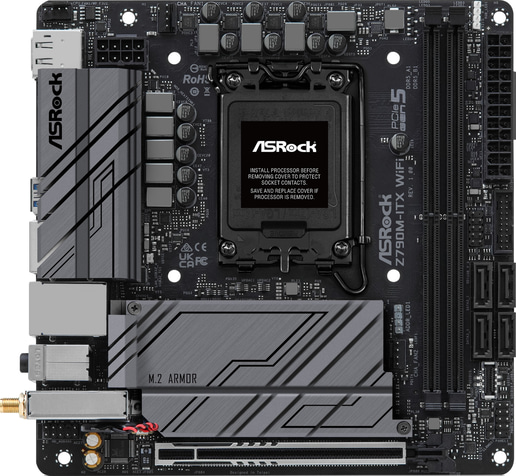

ASRock Z790M-ITX WiFi ITX Motherboard for Intel LGA1700 CPUs

ASRock Z790M-ITX WiFi ITX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3404

Was £443.99

SAVE £231

Now only

£212.99 inc VAT

ASRock Z790M-ITX WiFi ITX Motherboard for Intel LGA1700 CPUs

90-MXBKE0-A0UAYZ

Was £443.99

SAVE £231

Now only

£212.99 inc VAT

Available for Free Priority Delivery from Tomorrow

or Click & Collect from Tomorrow

Hurry, only 1 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ITX Form Factor
  • Intel Z790 Chipset
  • Socket 1700
  • DDR5 (Max: 64GB / 2 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3404
Overview

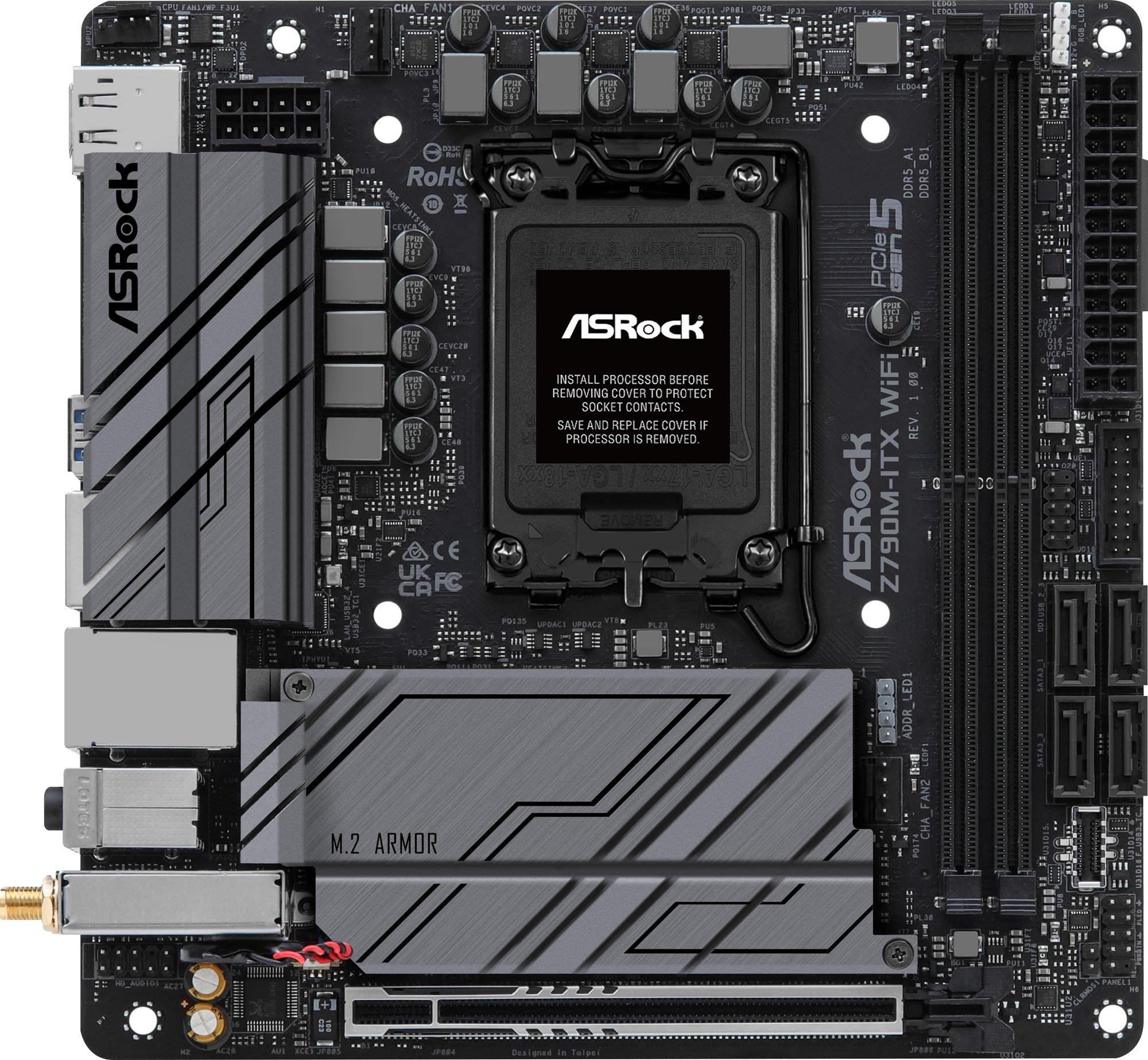

ASRock Z790M-ITX WiFi Motherboard

Main Features

  • Supports 13th Gen & 12th Gen Intel Core Processors
  • Dr.MOS Phase Power Design
  • 2 x DDR5 DIMMs, supports
  • 1 PCIe 5.0 x16
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
  • Intel 2.5G LAN, Intel 1G LAN
  • 802.11ax Wi-Fi 6E + Bluetooth
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 13th Gen & 12th Gen Intel Core Processors
64-bit Support Yes
Socket LGA1700

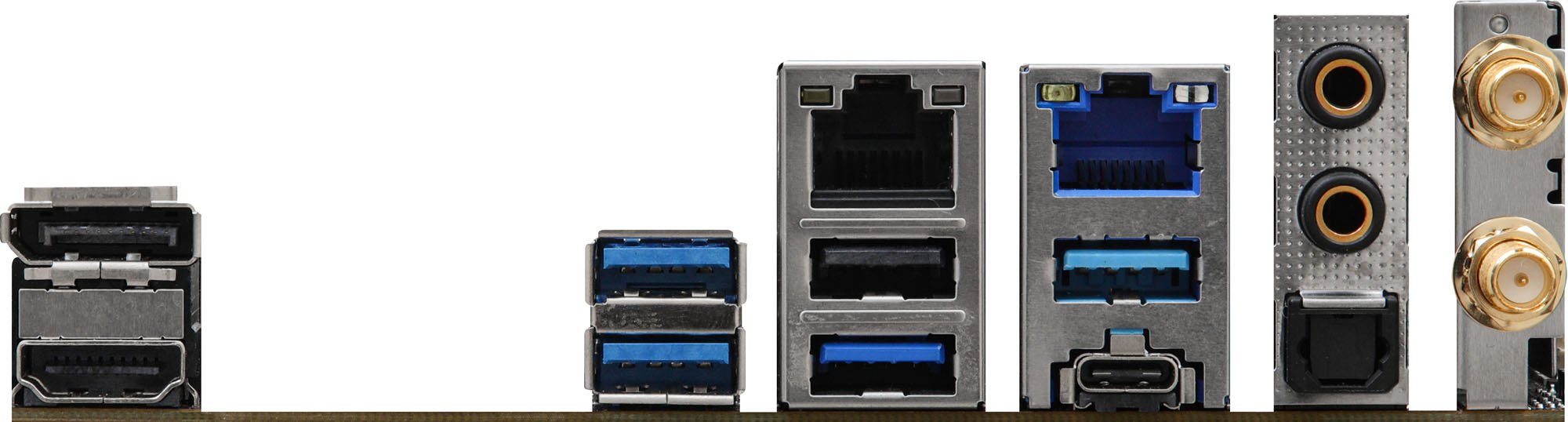

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
4 x USB 3.1
1 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 2 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header (supports 1 port)
1 x CPU/Water Pump fan header
2 x Chassis fan headers
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4 or SATA)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header
1 x eDP Signal header

Memory

Memory Bus Speed Up to 6800+ (OC) MHz
Memory Type DDR5
Maximum RAM 64 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge Z790
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC897

Warranty

Warranty 3 Years

Network

Integrated Network Intel I226V
Intel I219V
Network Speeds Supported I226V: Up to 2.5 Gbps
I219V: Up to 1 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ITX Motherboard

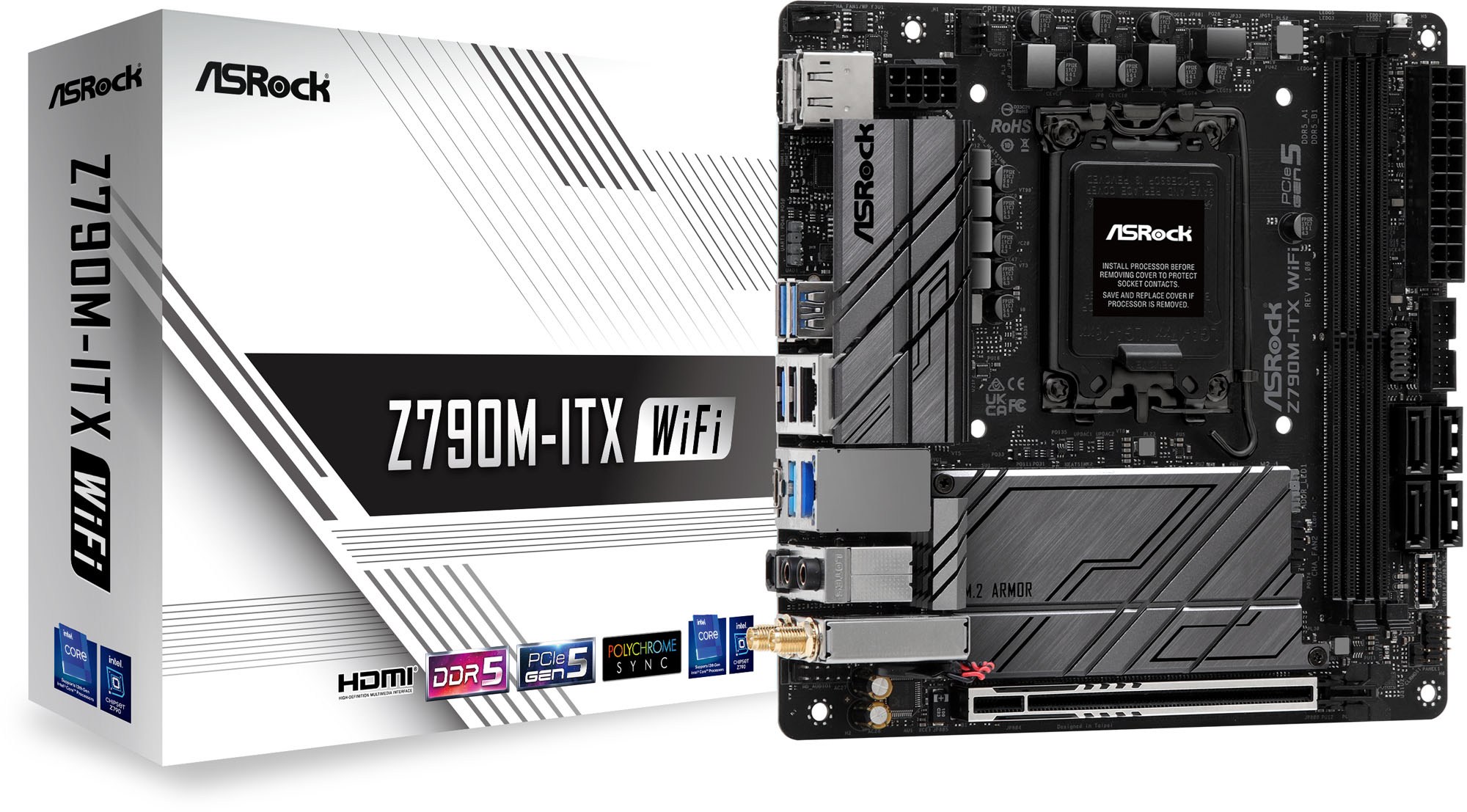

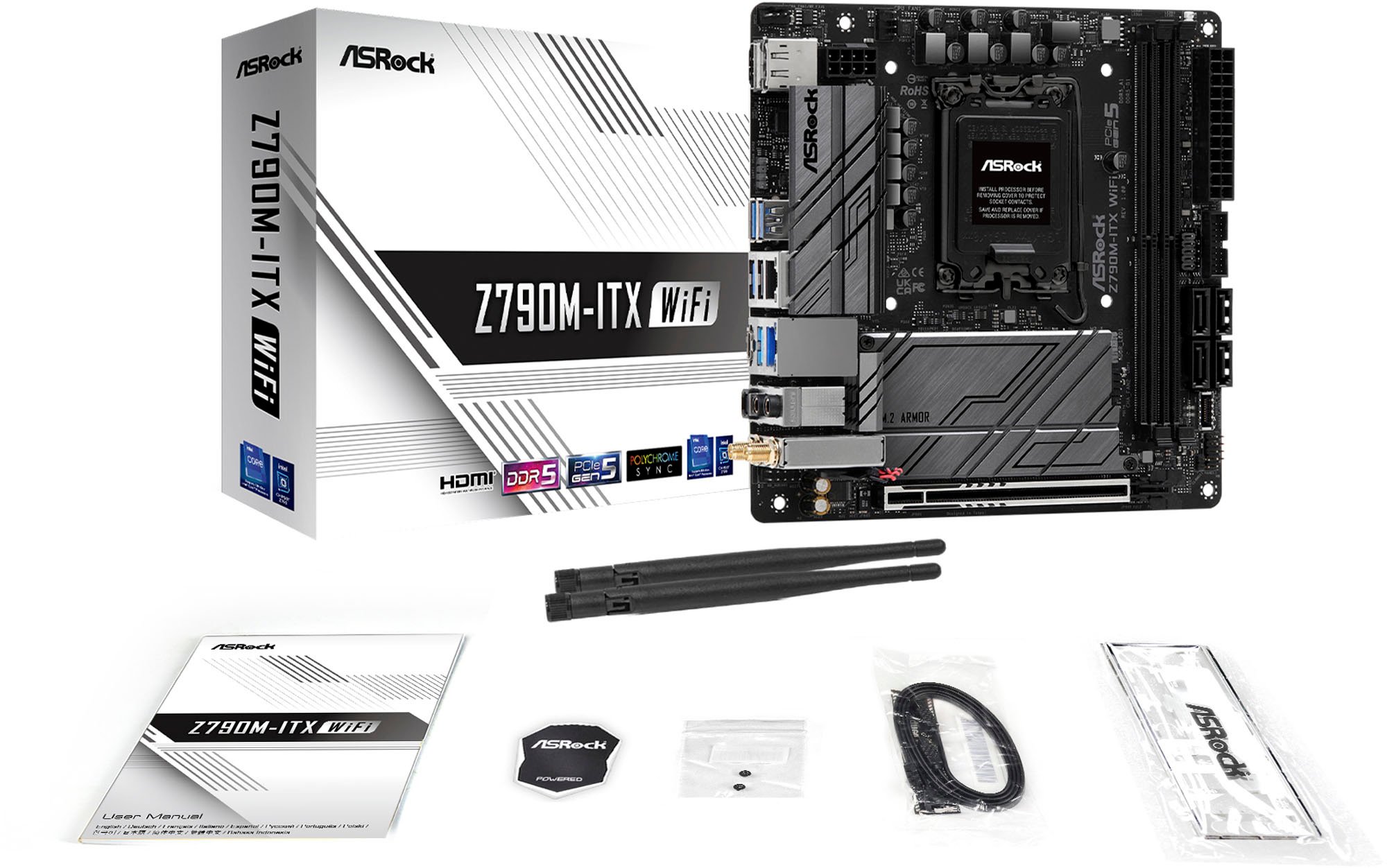

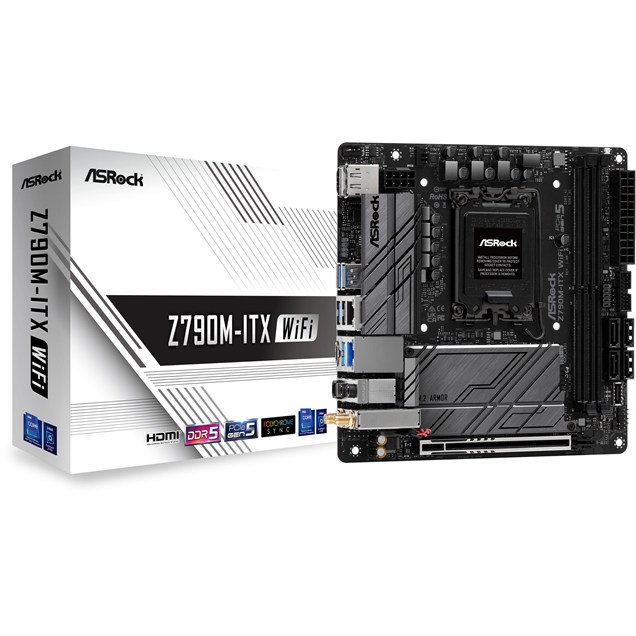

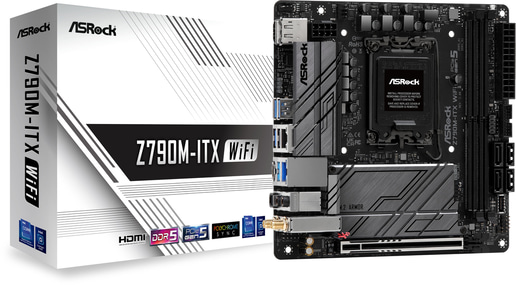

In The Box Motherboard
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
Width 170 mm
Length 170 mm

Key Features

USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
Memory Speed 6800 MT/s
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 30 W
Max Memory Speed Supported (Non-overclocked) 4800 MT/s
Max Memory Speed Supported (overclocked) 6800 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 170 mm
Motherboard Height 170 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer Intel
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ITX
Motherboard (EPS) Power Connectors 8-Pin
Motherboard Chipset Intel Z790
Thunderbolt No
Motherboard Model ASRock Z790M-ITX WiFi
WiFi Speed 2400 Mbps

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBKE0-A0UAYZ
Alternative Part Number Z790M-ITX WIFI
EAN 4710483941054
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBKE0-A0UAYZ
Reviews
5.0 / 5 1 review

Matt G

January 2023

Limited choice in the ITX 700 series chipset boards. This one is great value and in my opinion there is no need (for most use cases) to spend 400-500+ on the more expensive mobo options. A side by side comparison of the specs highlights almost no difference.
