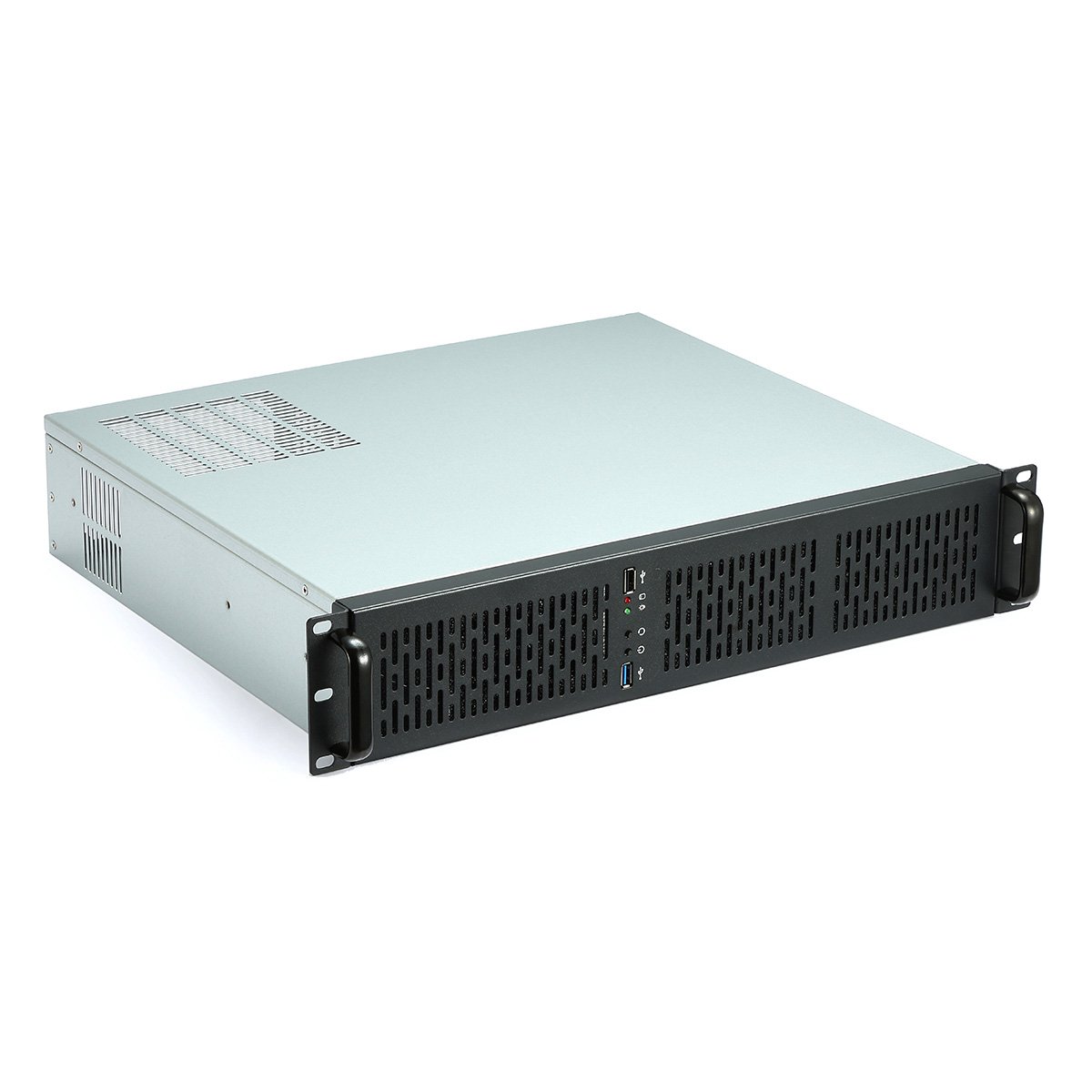

Codegen rack mount server chassis 2U 405mm depth is a stable, safe, high quality, durable 2U chassis. Installed with three Hydraulic Bearing PWM fans, which can deliver an exceptional thermal performance you can rely on.
The 405mm rackmount comes with 3 x 80mm HDB PWM fans. The interior supports Micro-ATX and Mini -ITX Motherboards and up to 2 x 2.5” or 2 x 3.5” & 1 x 2.5” + 1 x 3.5” or 2 x 3.5” and four low profile PCIE expansion slots, to accommodate your server systems.
Configure or build your own custom 2U rack server starting with the chassis.
Main Features
- 2U Rackmount Case - 380mm deep & 430mm wide (Exc. handles).
- Server Motherboard Support - Supports Micro-ATX and Mini ITX Motherboards.
- 3 x 80mm PWM Fans Included - 3 x 80mm PWM fans are included with automatic speed control of the Motherboard through the 4 Pin PWM fan cable interface, which can determine the speed according to the temperature readings from various parts of the PC. This further helps to keep your system as quiet as possible, using only as much fan power as needed.

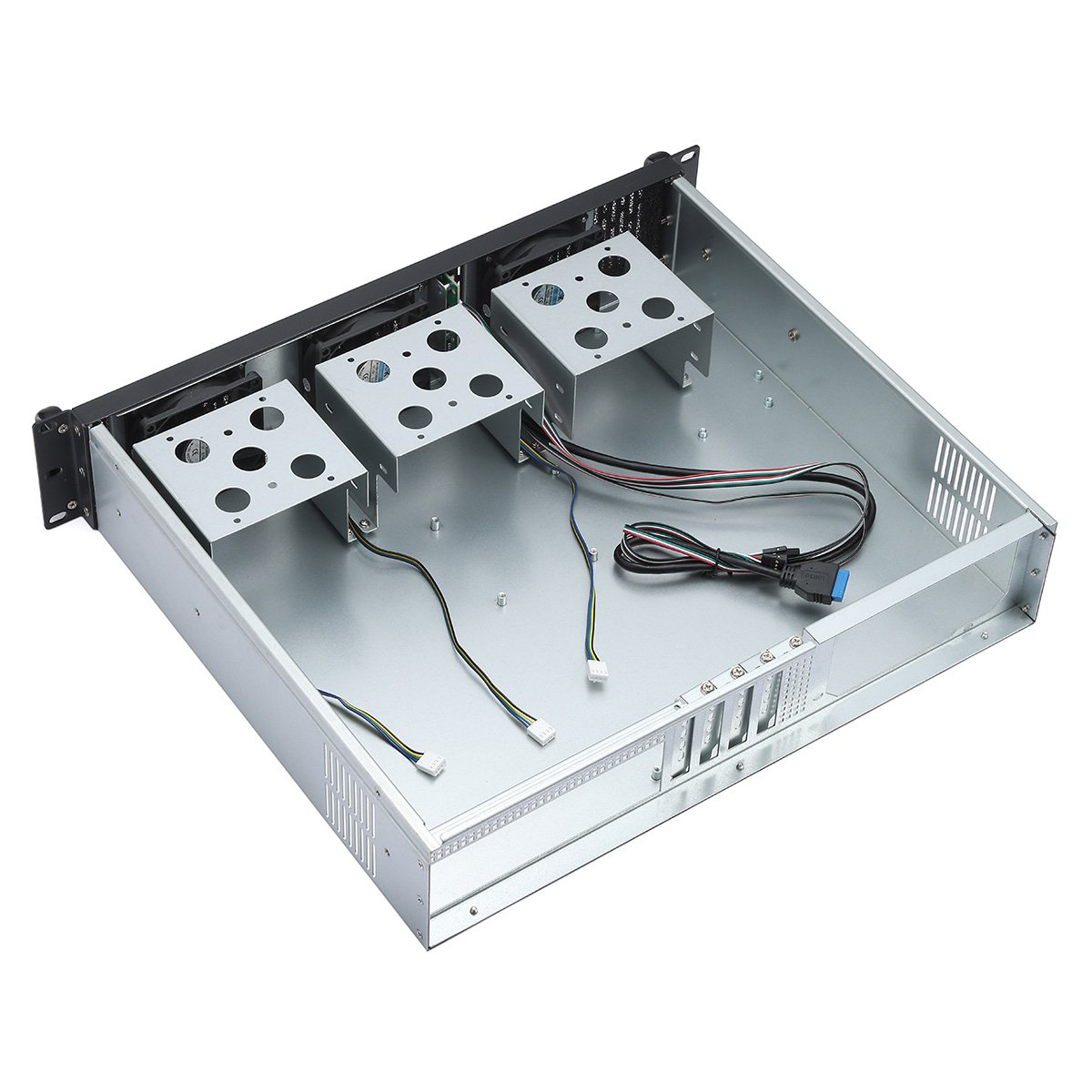

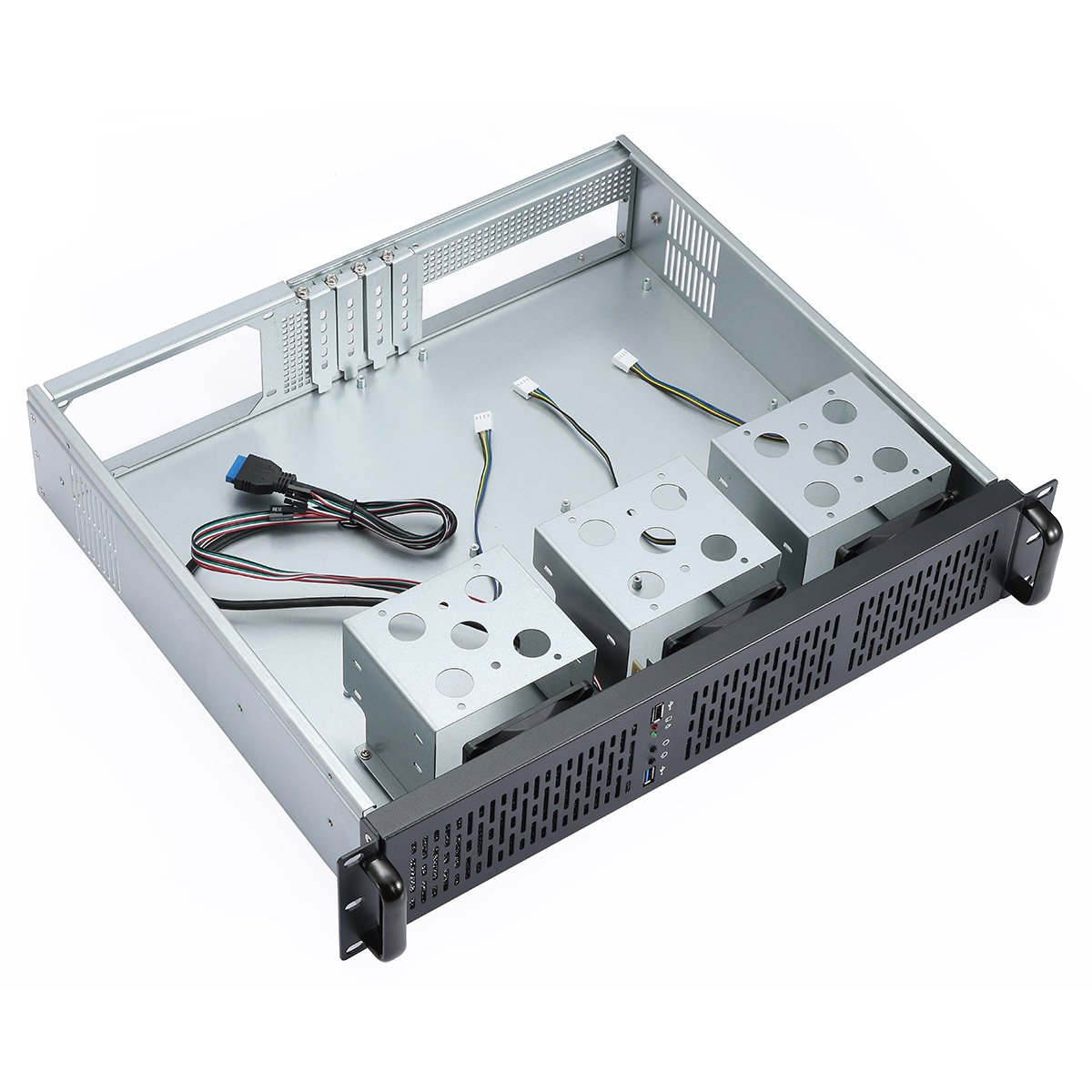

- HDD Capacity Support - Hard drive mounting support options includes up 4 x 3.5" HDDs, 1 x 2.5" SSD & 3 x 3.5" HDDs and 3 x 2.5" SSDs & 1 x 3.5" HDD. The hard drive bays are shared bays.
- Air Ventilation - Designed with ventilation on the top panel where the PSU is located to increase airflow inside the Rackmount to keep components at peak performance.

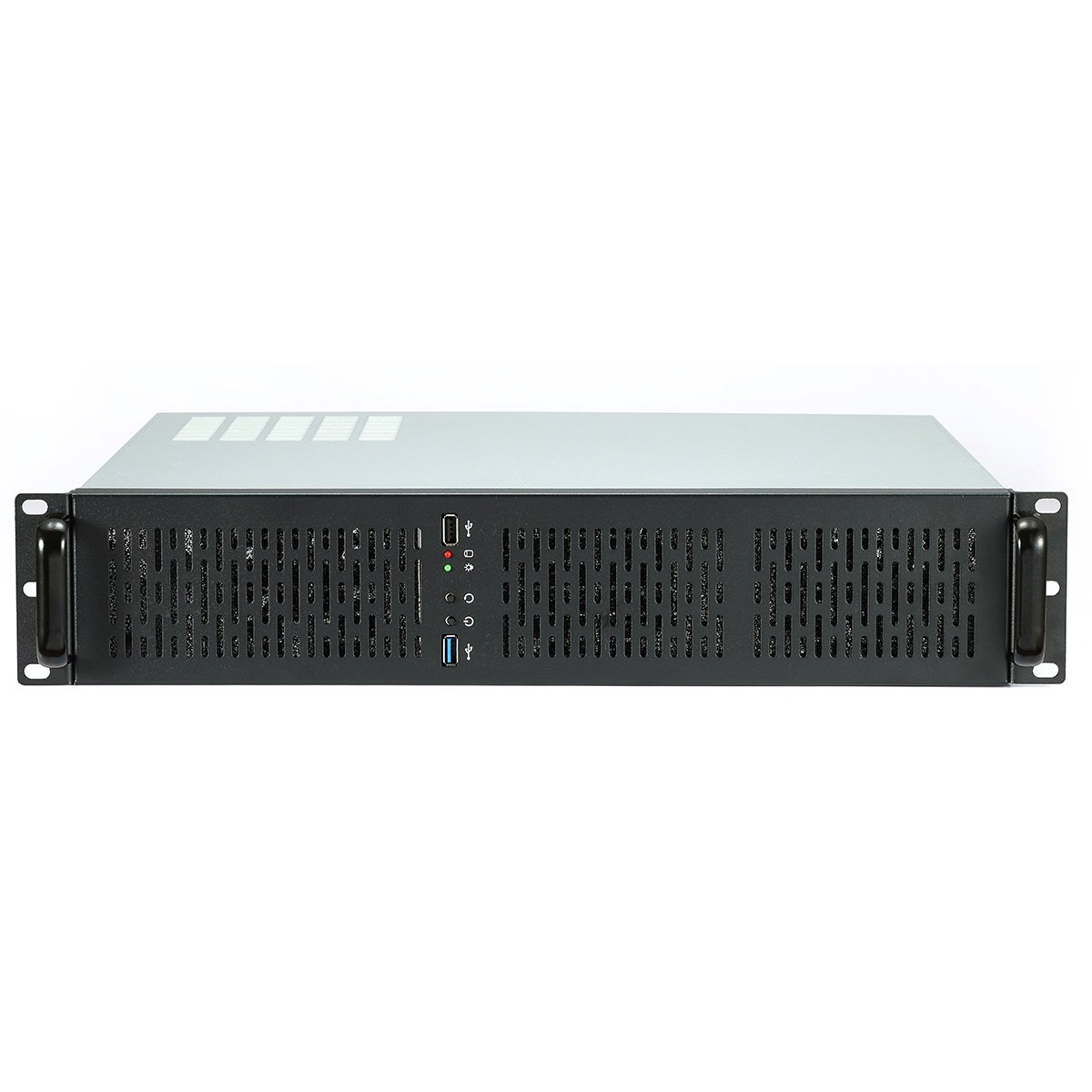

- LEDs for Server Functions - LEDs to indicate the following: Machine state (Power LED x 1 green), HDD Activity (HDD LED x 1 red).
