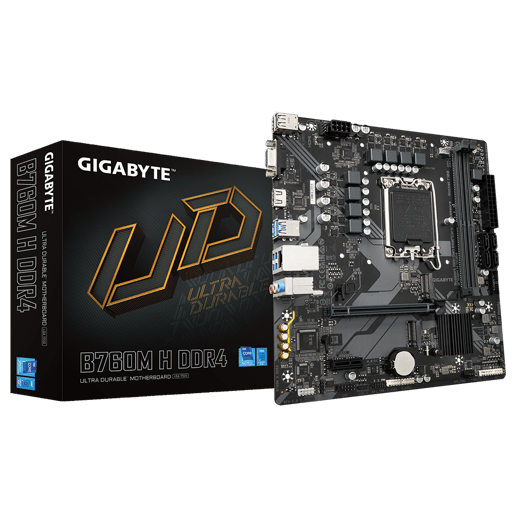

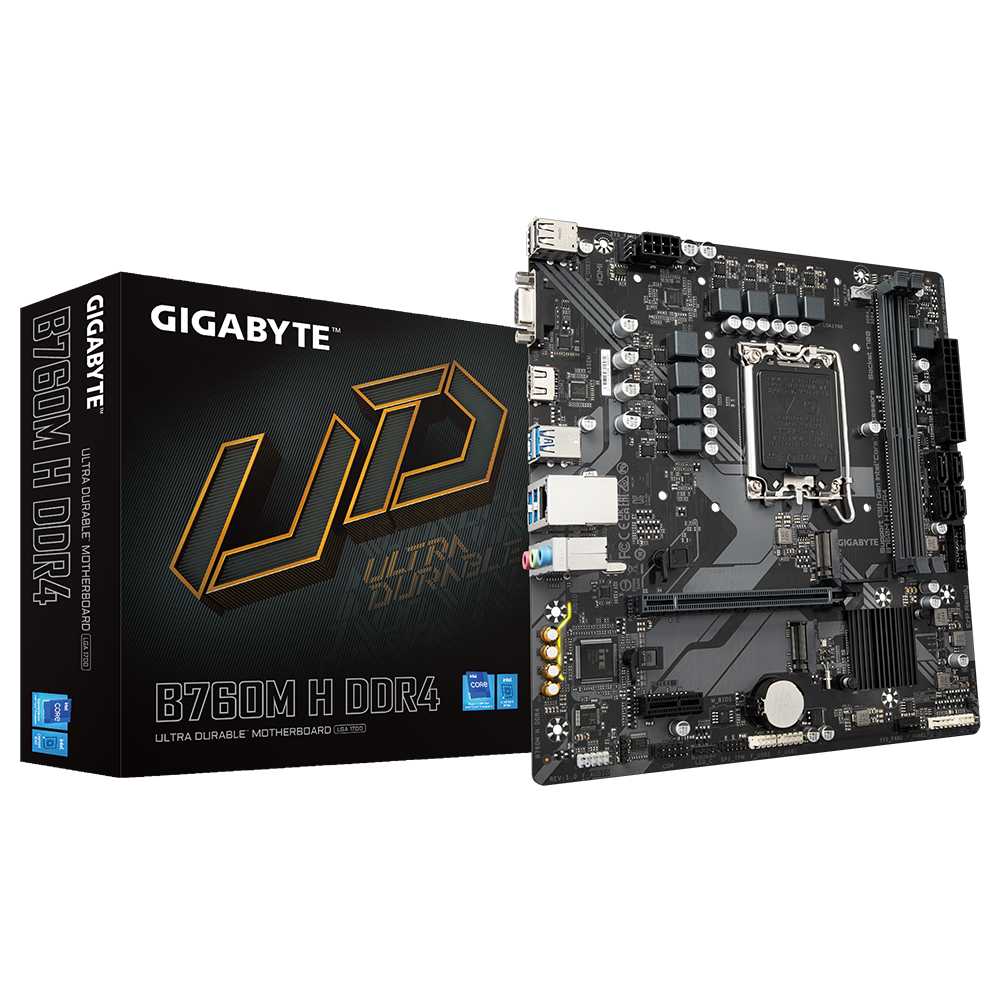

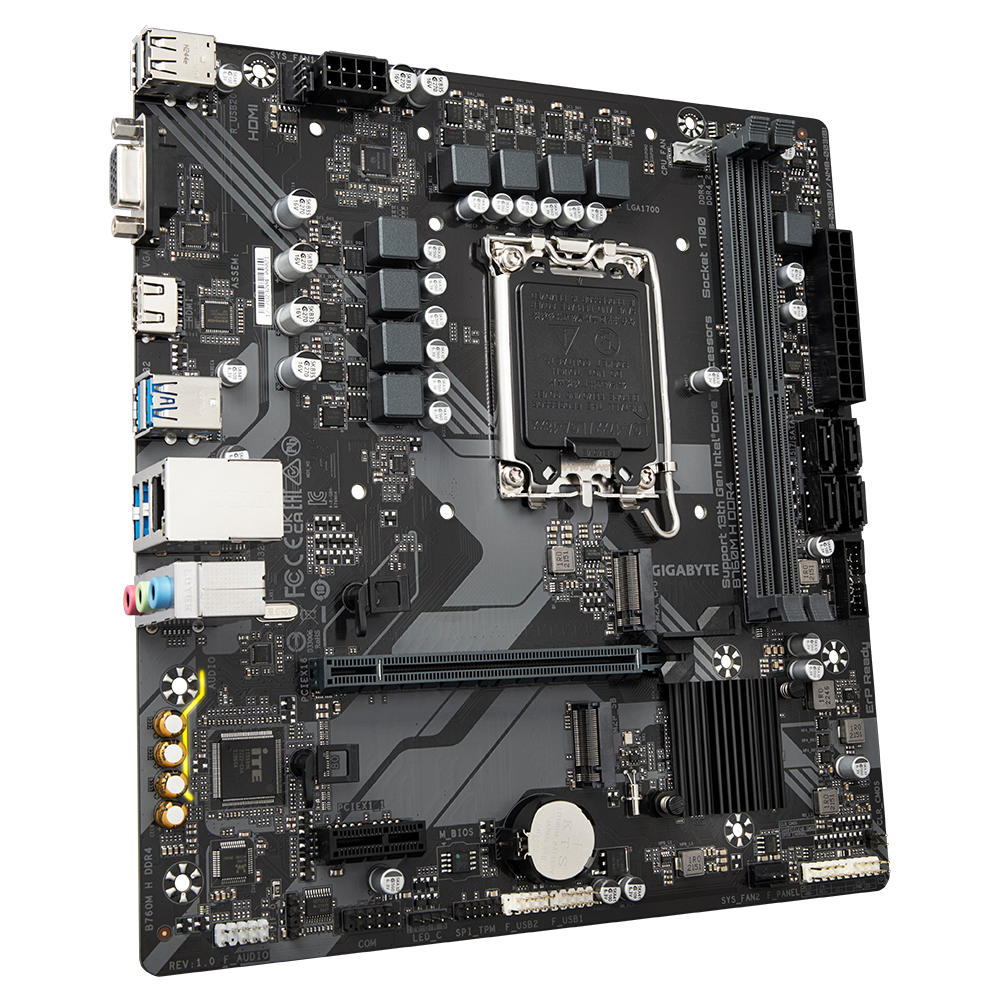

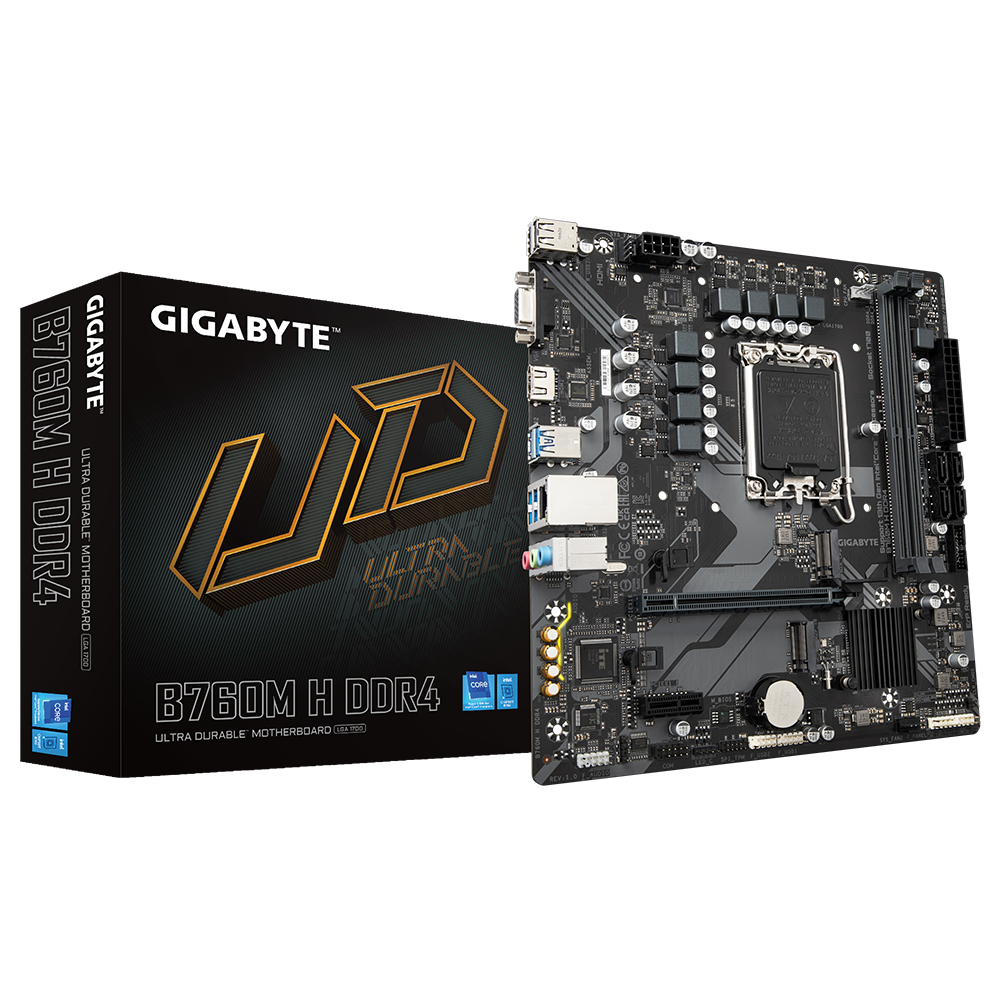

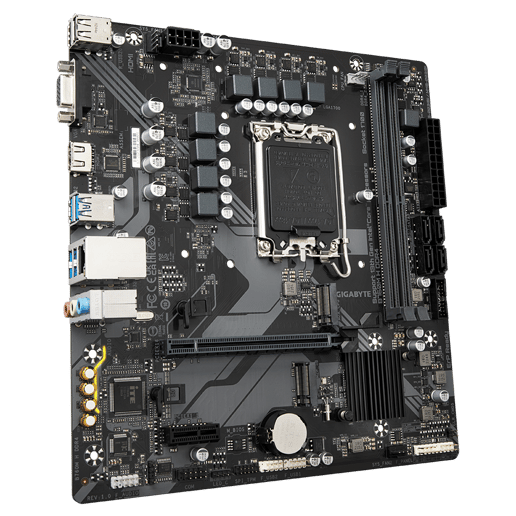

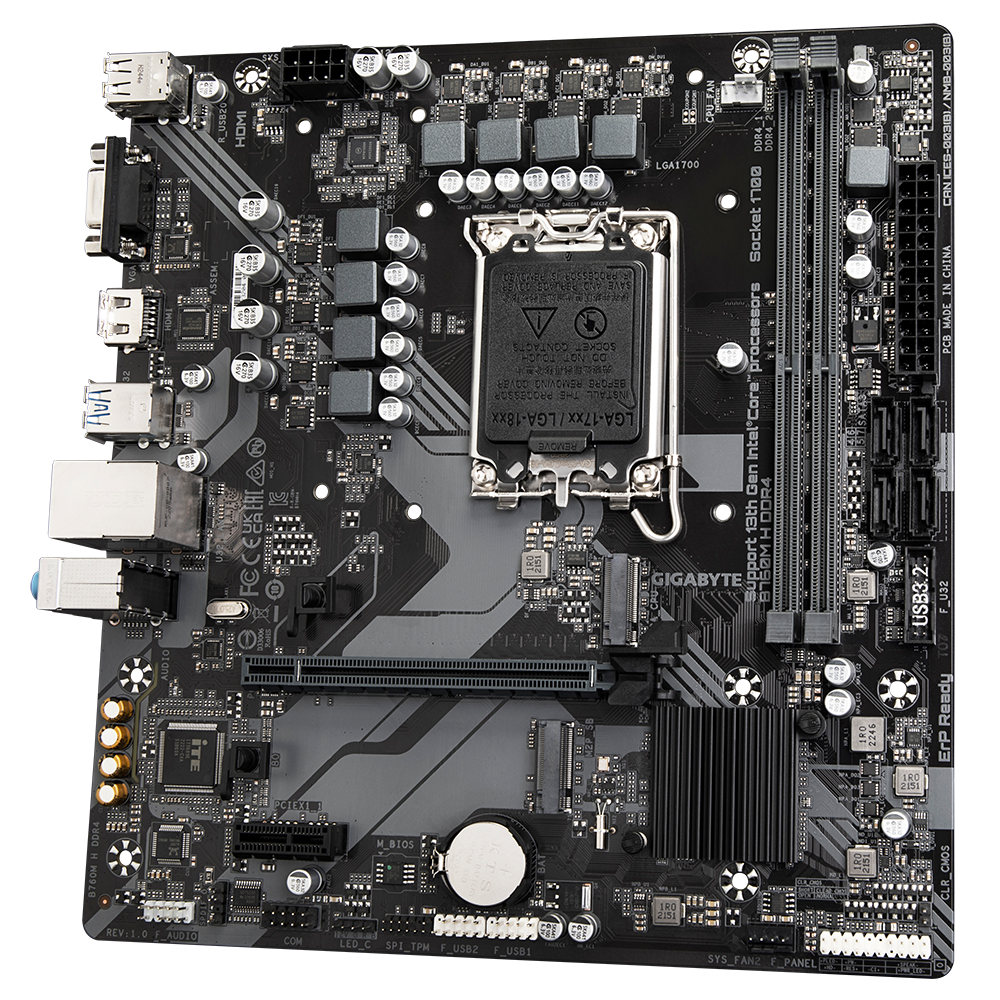

Name: Gigabyte B760M H DDR4 mATX Motherboard for Intel LGA1700 CPUs
Brand: Gigabyte
SKU: MBD3592
Price: 101.99 GBP
Availability: InStock

Gigabyte B760M H DDR4 mATX Motherboard for Intel LGA1700 CPUs

Compare

£101.99 inc VAT

Available for delivery from Wednesday 8th May

Hurry, only 1 left!

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

mATX Form Factor
Intel B760 Chipset
Socket 1700
DDR4 (Max: 64GB / 2 slots)
2 x M.2 & 6 x USB & 4 x SATA
HDMI and VGA

CCL Code: MBD3592

Overview

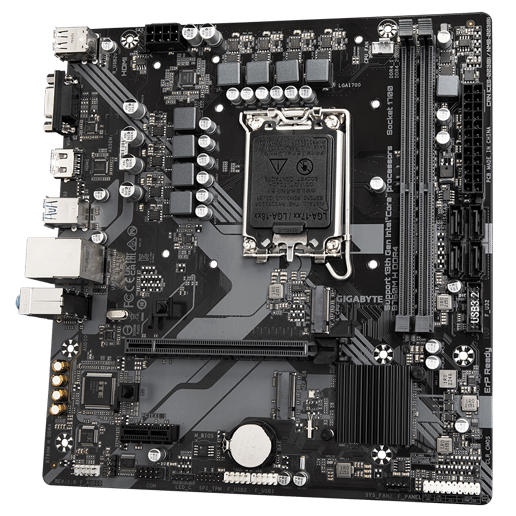

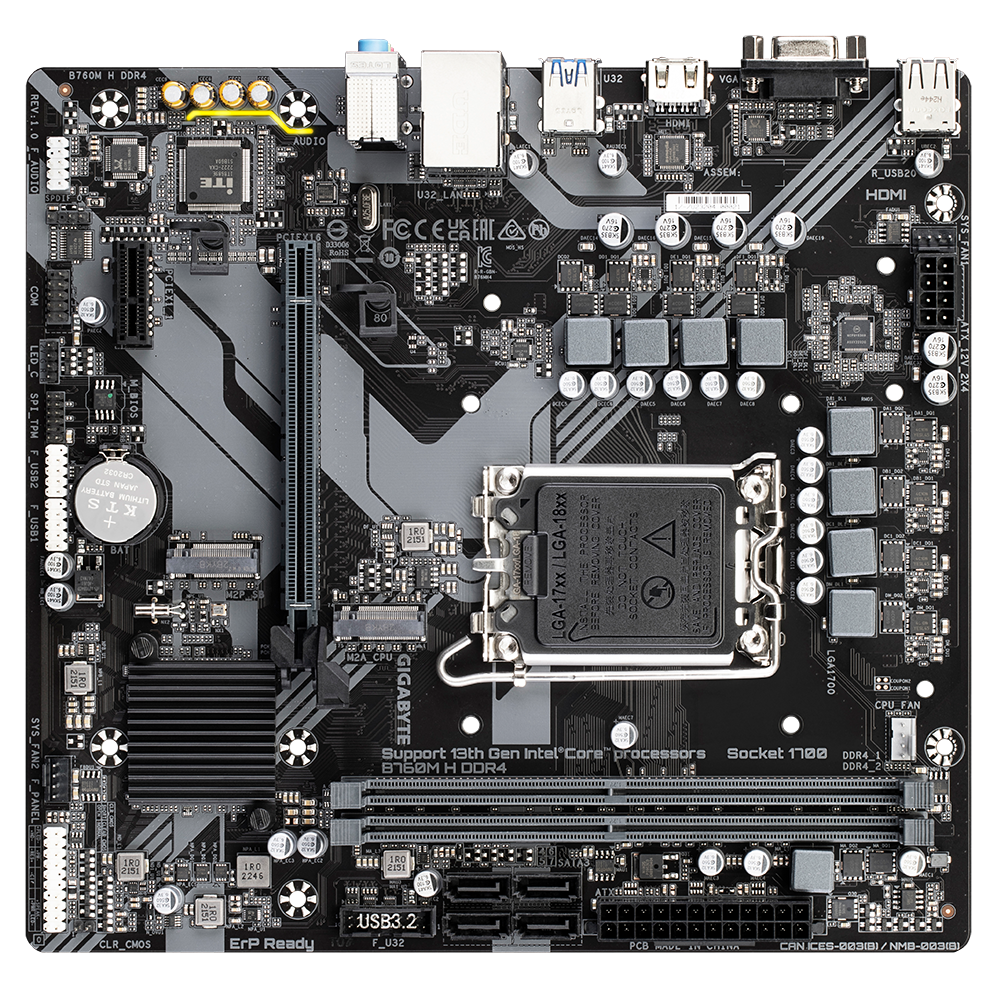

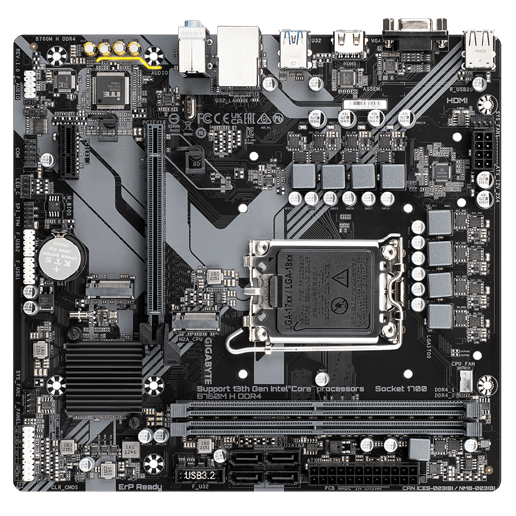

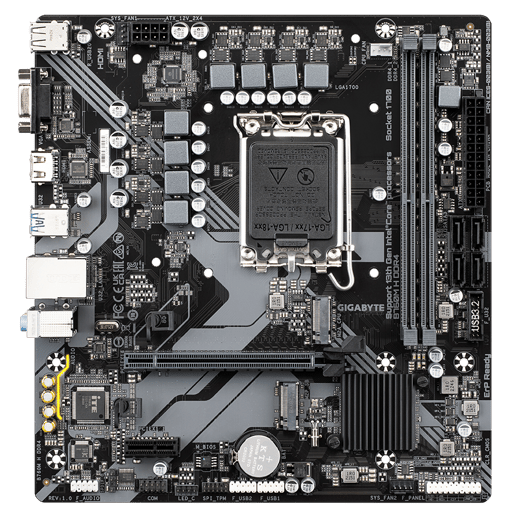

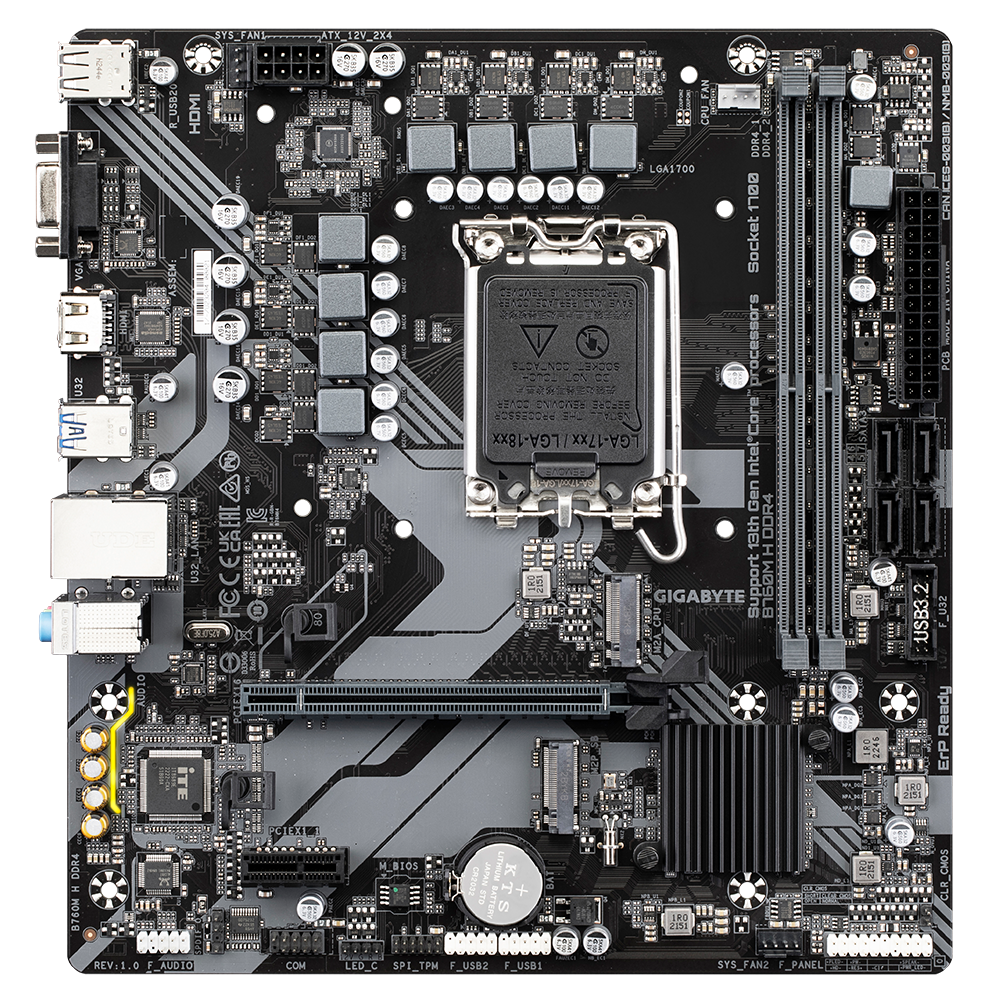

Gigabyte B760M H DDR4 Motherboard

Main Features

Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance: Hybrid 6+1+1 Phases Digital VRM Solution
Dual Channel DDR4: 2*DIMMs XMP Memory Module Support
Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
Fast Networks: GbE LAN
Extended Connectivity: HDMI, D-Sub
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Promotions

Get 5% off components when you buy three or more*

For a limited time, buy at least three different components worth £30 or more from different qualifying categories and get 5% off those items. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power Supplies, CPU Coolers, and Cases.

Promotional Period: From 3rd May 2024 till 7th May 2024.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Some items may not be included, such as new product launches - please check the item to ensure the promotion applies. Minimum value of each item must £30 or greater. Discount will apply to three or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. It will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the three or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period:From 8PM April 27th, 2023 till 2AM April 28th 2023.

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

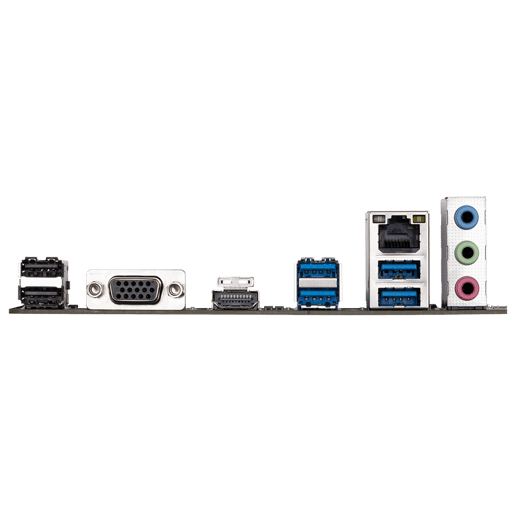

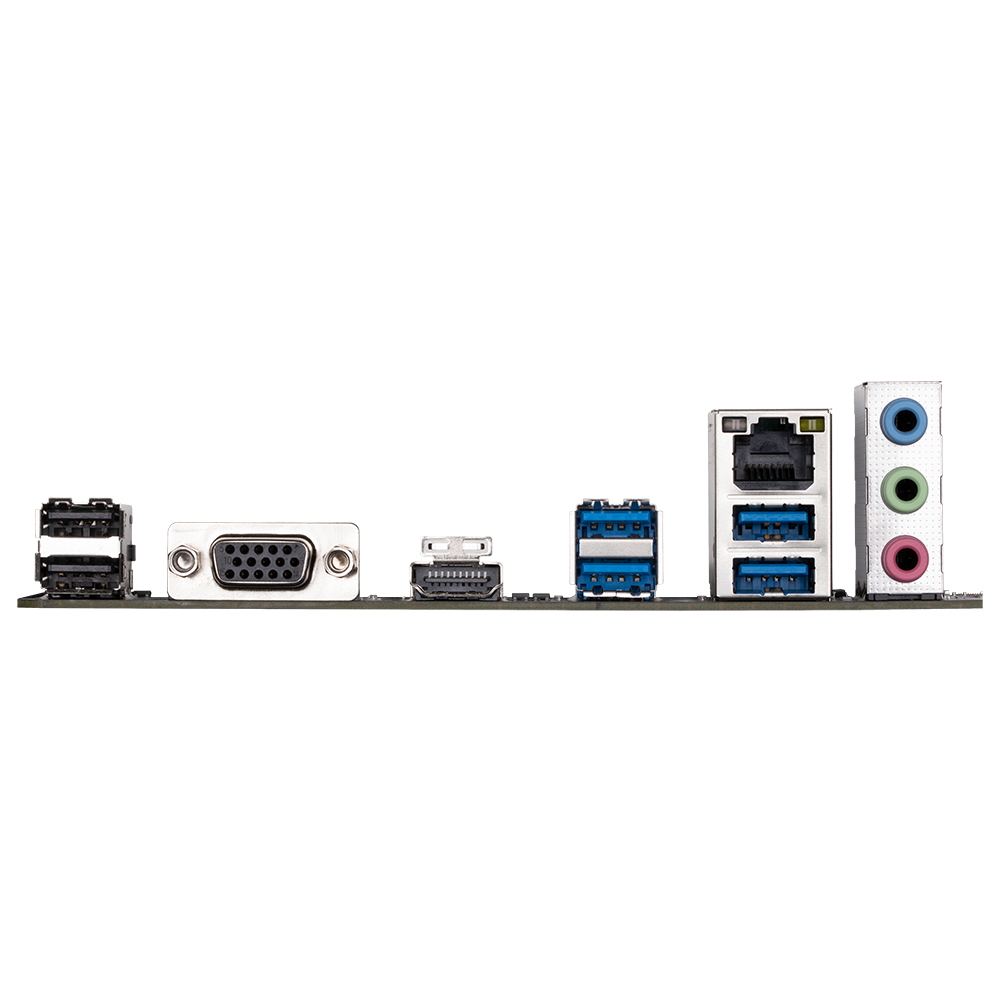

Rear Panel I/O Ports

USB Ports	4 x USB 3.0 2 x USB 2.0
HDMI Port	1 x HDMI 2.1
VGA Port	1 x D-Sub
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x System fan headers
S/PDIF Connectors	1 x S/PDIF Out header
Serial Connectors	1 x COM header
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	2 x M.2 slots, Socket 3, M Key, Type 2280 (PCIe Gen4) 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 3200 MHz
Memory Type	DDR4
Maximum RAM	64 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	Intel B760
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
Width	215 mm
Length	230 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	No
Motherboard Width	215 mm
Motherboard Height	230 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	4-Pin RGB
Addressable RGB	No
Internal USB Type-C Header	No
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	3200 MHz
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
