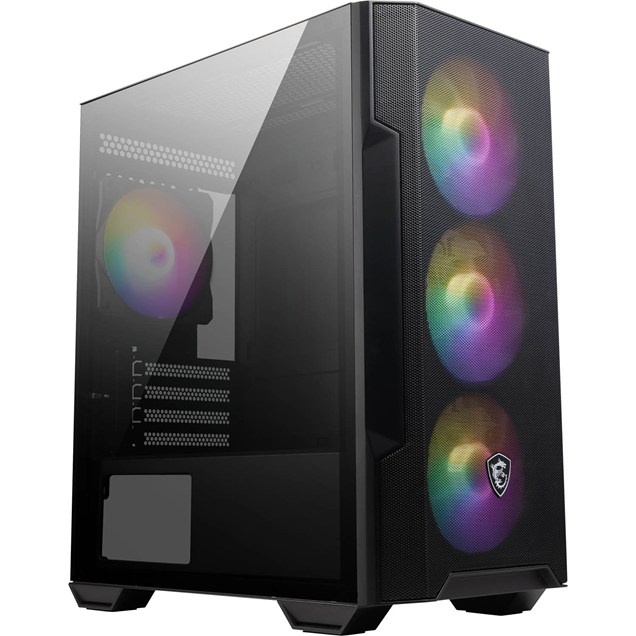

MSI MAG FORGE M100R Mid Tower Gaming Case - Black

MSI MAG FORGE M100R Mid Tower Gaming Case - Black

CCL Code: CAS4435

Sold out

Notify Me

MSI MAG FORGE M100R Mid Tower Gaming Case - Black

MAG FORGE M100R

Key Features:

  • Max Motherboard Size: mATX
  • Tempered Glass Side
  • 3 x 2.5" / 2 x 3.5" Bay(s)
  • PSU Not Included
CCL Code: CAS4435

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview
MAG FORGE M100R
MESH CERTIFIED MAKES IT WORK

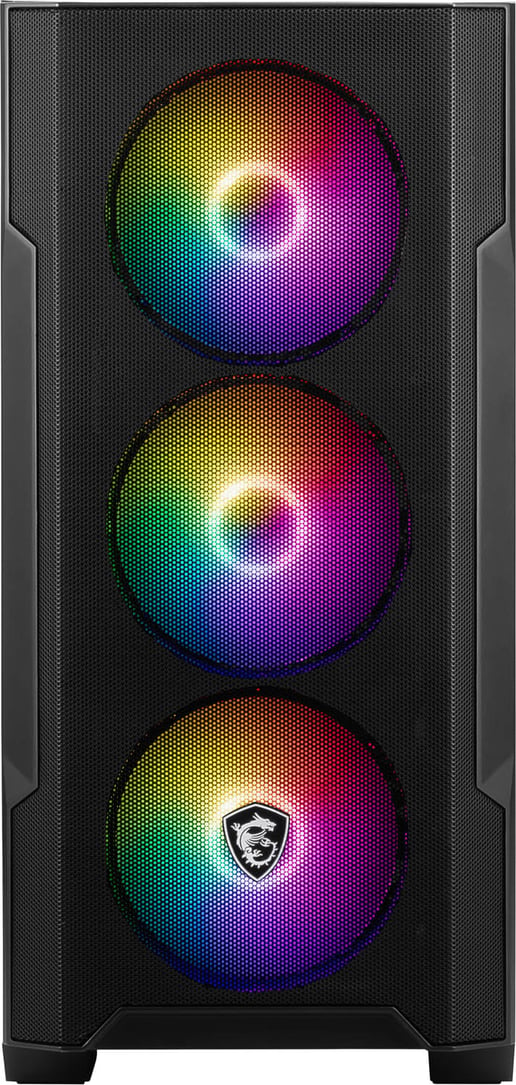

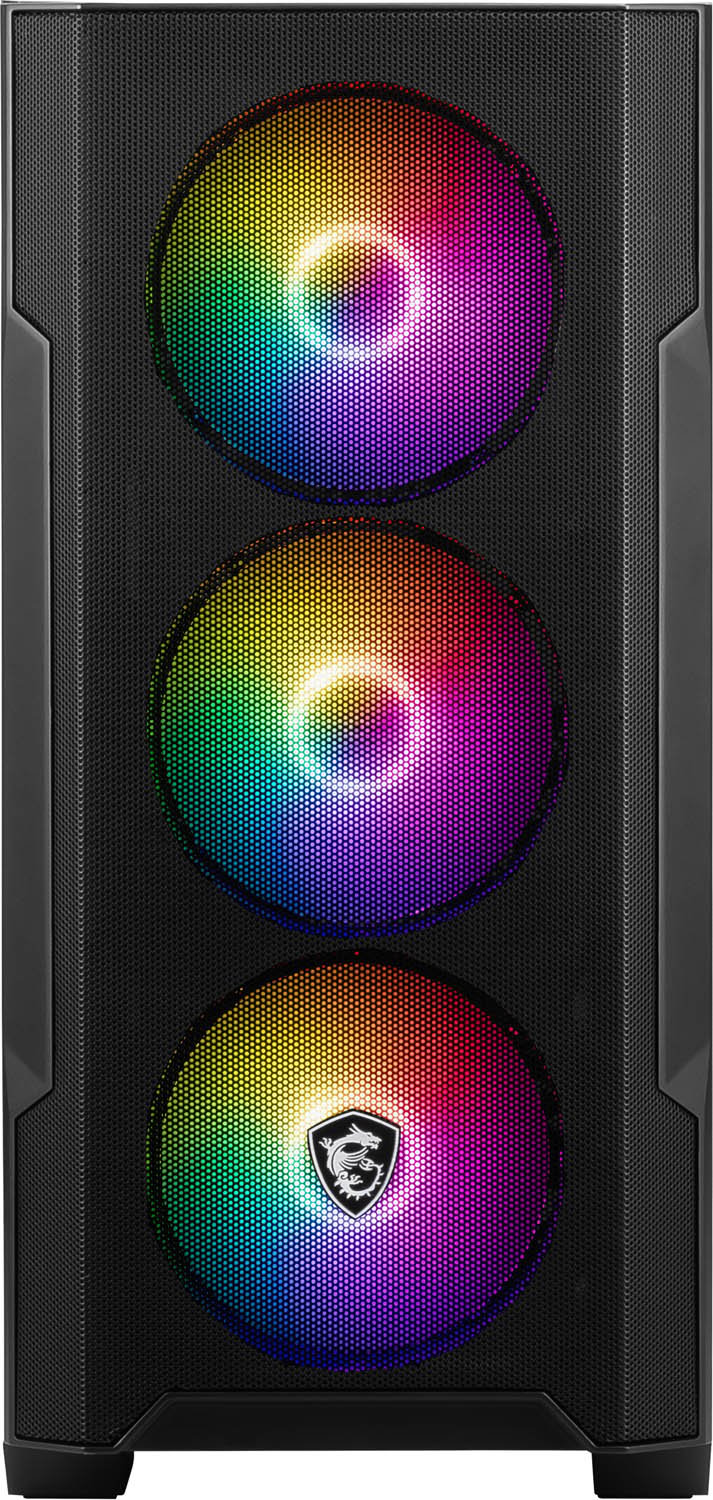

The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big perfromance.
MESH CERTIFIED MAKES IT WORK
TEMPERED GLASS WINDOW
TEMPERED GLASS WINDOW
TEMPERED GLASS WINDOW

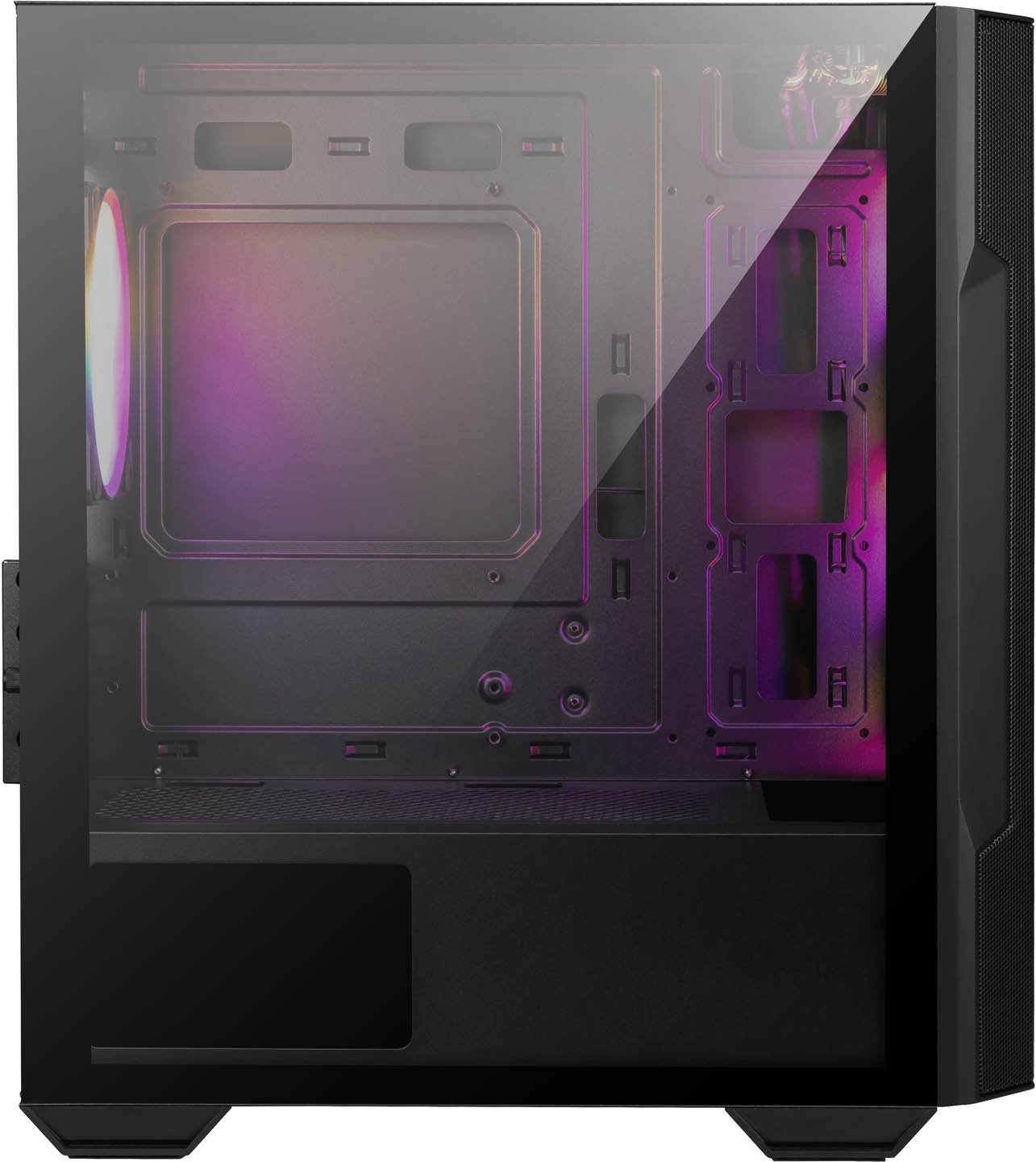

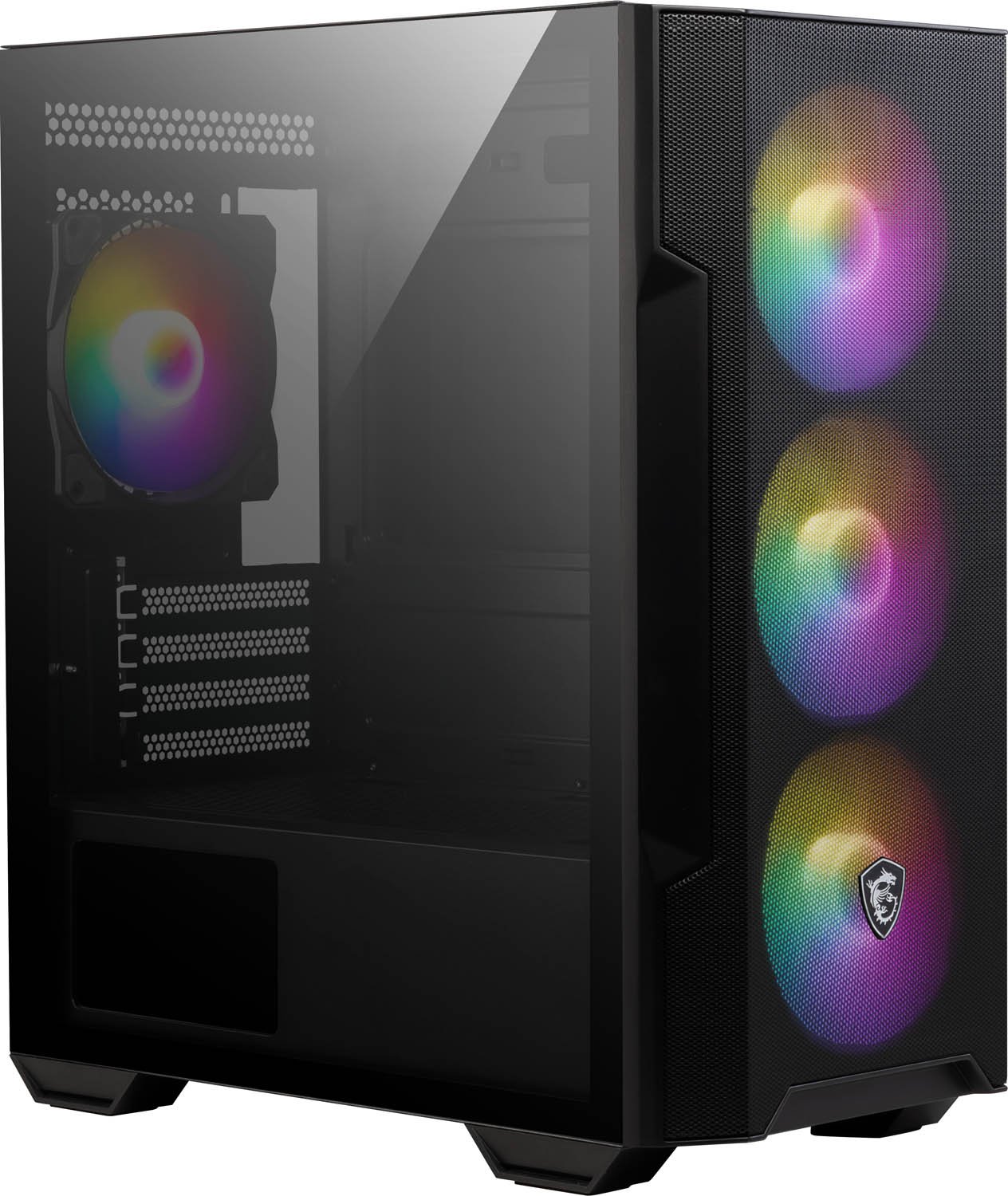

The 3mm tempered glass swinging window offers the best durability and system accessibility.
1 to 6 ARGB CONTROL BOARD
TEMPERED GLASS WINDOW
1 to 6 ARGB CONTROL BOARD
User can intuitively control & switch 9 lighting effects through the LED switch button.
STORAGE YOU NEED
Configure your own storage layout and install up to 3x2.5”+1x 3.5” or 2x 2.5” + 2x 3.5” storages.
STORAGE YOU NEED 3 x 2.5” + 1 x 3.5”

or

STORAGE YOU NEED 2 x 2.5” + 2 x 3.5”
STORAGE YOU NEED
1 to 4 Fan Cable
1 to 4 Fan Cable
Use the 1 to 4 Fan Cable to create more possibilities for adding more fans to your system.
ARGB SHOWROOM
ARGB SHOWROOM
Create your own ARGB battle station with the MAG FORGE M100R, fully supported by MSI Mystic Light.
ARGB SHOWROOM
Motherboard Support
Motherboard Support
  1. CPU Cooler Height:160 mm
  2. GPU Length:300 mm
  3. PSU Length:300 mm (without 3.5” HDD tray)
Components Clearance

FAN SUPPORT

Components Clearance

RADIATOR SUPPORT

Components Clearance
Components Clearance

dot

Main Features

  • Optimized Air Flow
  • ARGB Fans
  • 1 to 6 ARGB Control board
  • Tempered Glass

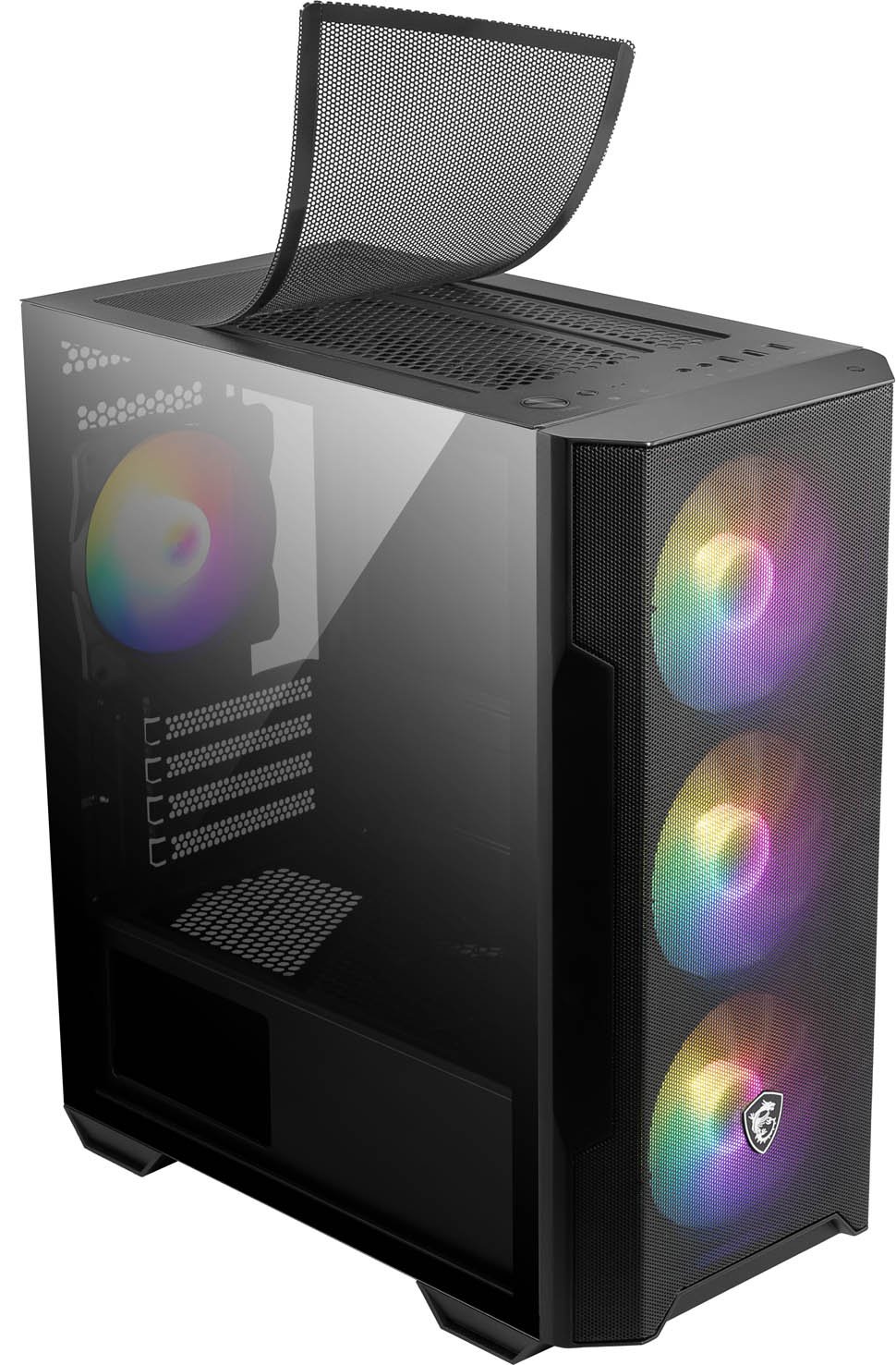

  • Magnetic Filter
Specifications

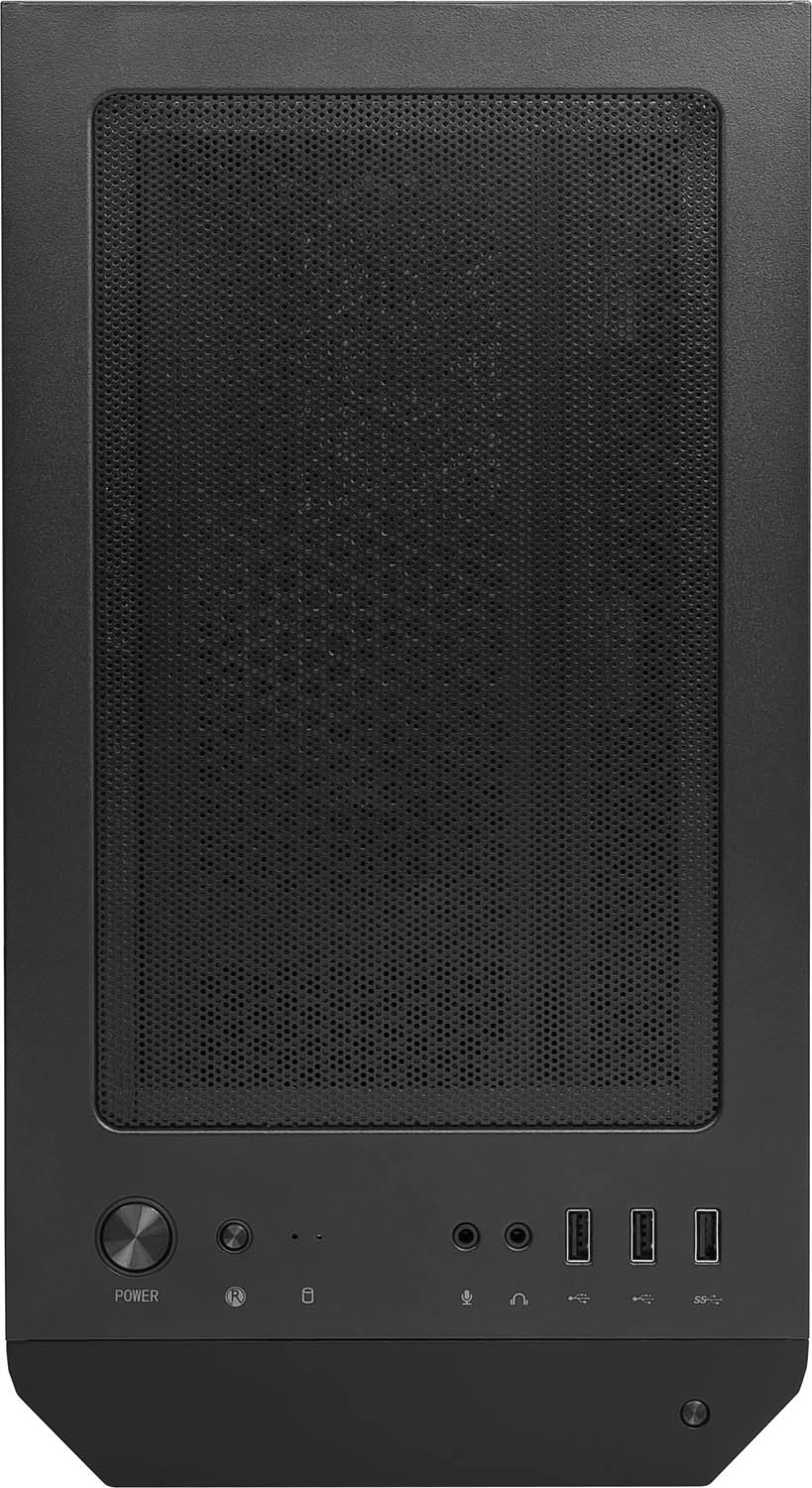

User Controls

User Controls Power
Reset
LED

Storage

Internal Expansion Bays 2 x 2.5"
2 x 3.5"

Expansion

Expansion Slots 4 x Full Height

Interfaces/Ports

USB Ports 1 x USB 3.0
2 x USB 2.0
Headphone Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Electrical

Cooling System Front: Supports 3 x 120mm fans (3 x ARGB LED fans included)
Top: Supports 2 x 120mm fans
Rear: Supports 1 x 120mm fan (ARGB LED fan included)
Power Supply ATX Power Supply supported

Physical

Form Factor Mid Tower Case
Case Colour Black
Motherboard Compatibility MicroATX
Miini-ITX
Width 200 mm
Depth 388 mm
Height 423 mm

Key Features

Firewire No
Max Motherboard Width 244 mm
Max Motherboard Height 244 mm
Main Colour Black
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Mid Tower
Power Supply Included No
Optimised for Gaming
80Plus Rated No
PSU Form Factor ATX
Illuminated No
e-SATA No
L.E.D Fan No LED
Max 3.5" Drives 2
Max 2.5" Drives 3
ATX No
Micro-ATX Yes
ITX Yes
E-ATX No
Cooler Height 160 mm
Built-in Card Reader No
USB Type-C Support No
Front HDMI No
Side Panel Type Tempered Glass
GPU Length 300 mm
PSU Depth 300 mm
Front Audio Type Separate
Number of Fans 4 fan(s)
RGB LED Controller Included Yes
LED Strip(s) Included No
Maximum Motherboard Size Supported mATX
RGB Software Type MSI Mystic Light
Total 2.5" + 3.5" drive bays 4
Power Requirement (auto) 12 W
USB2.0 ports 2
USB3.0 ports 1
Low profile expansion No
Vinyl Position - Top No
Vinyl Position - Front No
Vinyl Position - Left Yes
Vinyl Position - Right Yes
Max Supported Radiator Length 240 mm
Create Your Own Gaming PC (CCL) Yes

Warranty

Warranty 1 Year

Item Details

Manufacturer MSI
Manufacturer Code MAG FORGE M100R
EAN 4719072932220
UPC 824142280379
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer MSI
Manufacturer Code MAG FORGE M100R
Reviews
5.0 / 5 1 review

John

10 months ago

Don't usually use microATX but glad I did. This was quite nice to build with. As I used ssd and m2 storage I was able to remove the hdd bracket which gave me more room to site power supply. It would have been very tight to manipulate leads leaving it in place. But still a very good case.
